Boost port???

Discussion in 'Performance and Tuning' started by JWP6114, Jul 14, 2013.

  1. Jul 14, 2013 at 7:22 PM
    #1
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    About to install the PLX boost module on a 2010 for a TRD blower. Can anyone suggest/inform what fitting do I need for the boost port and where exactly located on the aft side of the sc? A pic would be helpful.

    Also installing an A/F plx gauge as well. Any suggestion on where to mount these tow modules and where did you tap into switched power for the modules?

    Sorry so many questions in one post, the will show up Tuesday and I'm sure there will be some general instructions with them. Just looking for some specifics to get prepared for the instal.

  2. Jul 14, 2013 at 8:32 PM
    #2
    WHPLSH3

    WHPLSH3 Fortified with horsepower-adding goodness...

    Joined:
    Mar 8, 2013
    Member:
    #99302
    Messages:
    687
    Gender:
    Male
    First Name:
    Vance
    Alberta
    Vehicle:
    Supercharged Spruce Mica 6spd 4x4
    Build thread coming soon!
    The boost reference port is the nipple with the orange vinyl cap near the cooler lines, top side close to rear of housing.
    I haven't had my nipple cap off yet, but it looks like a 1/4" fitting

    Last edited: Jul 14, 2013
  3. Jul 15, 2013 at 7:17 AM
    #3
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    Seriously? I thought there was a brass plug on the back side, figured boost would blow off that plastic cap,

    If so, that makes installation a bit easier

  4. Jul 15, 2013 at 8:05 AM
    #4
    memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    13,021
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
    Yup seriously. If you are hooking up a boost gauge you will hook your hose to that nipple on top with the orange cap on it.

  5. Jul 15, 2013 at 8:25 AM
    #5
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    430
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Slide a 3/16" rubber hose on top of the fitting and you'll be fine, I've got a FPR (fuel pressure regulator) mod done but no boost gauge. Still had to use my boost port, with 9 psi that hose has not popped off whatsoever lol then it's as simple as a tee to connect the boost gauge in that line.

    [​IMG]

    Last edited: Jul 15, 2013
  6. Jul 15, 2013 at 9:16 AM
    #6
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    can u explain the fpr mod? is it easy cheap? what are bennifits?

  7. Jul 15, 2013 at 9:25 AM
    #7
    2011supercoma

    2011supercoma Well-Known Member

    Joined:
    Dec 5, 2011
    Member:
    #68211
    Messages:
    145
    Gender:
    Male
    First Name:
    capt. schyler
    nola
    Vehicle:
    sr5 4x4, trd supercharged
    trd supercharger, afe cai, doug thorley lt hearders, magnaflow exhaust,
  8. Jul 15, 2013 at 9:28 AM
    #8
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    I searched around a little and see some using aftermarket FPR's but not much talk on why, gain, or cost...

    def qurious of mod for exsisting FPR...

  9. Jul 15, 2013 at 11:27 AM
    #9
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    430
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    The simplest way of explaining without gettin into to much details is that the purpose for the FPR is to increase the capacity of your injectors. The way it does this is that the regulator makes fuel pressure and boost pressure a 1:1 ratio with the boost from your supercharger. So with every psi that's coming out of the supercharger will raise the fuel pressure by that much.

    So im running roughly 9psi of boost with the 2.7 pulley. Static fuel pressure is 43.5psi. With the FPR Mod the 9psi of boost will raise fuel pressure to 52.5psi when your in boost for you don't max out your injectors duty cycle at high RPM's

    Making sense? lol

    Very easy to install and you can get one for about $150 after getting some hoses and fittings maybe $200?
    I've got a whole write up in my build thread about it

    Last edited: Jul 15, 2013
  10. Jul 15, 2013 at 1:21 PM
    #10
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    Can the oem fpr be modified?

  11. Jul 15, 2013 at 2:03 PM
    #11
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    430
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Not that I know of, easier buying an adjustable aftermarket one with a bigger diaphragm than OEM since OEM is set for one specific pressure

    but you will have to put your boost line to the OEM fuel regulator when you install your boost gauge, heard it helps a bit with injectors but I'm not 100% sure on the OEM one

  12. Jul 15, 2013 at 7:07 PM
    #12
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    Roger all. Thanks

  13. Jul 15, 2013 at 9:26 PM
    #13
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    430
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build

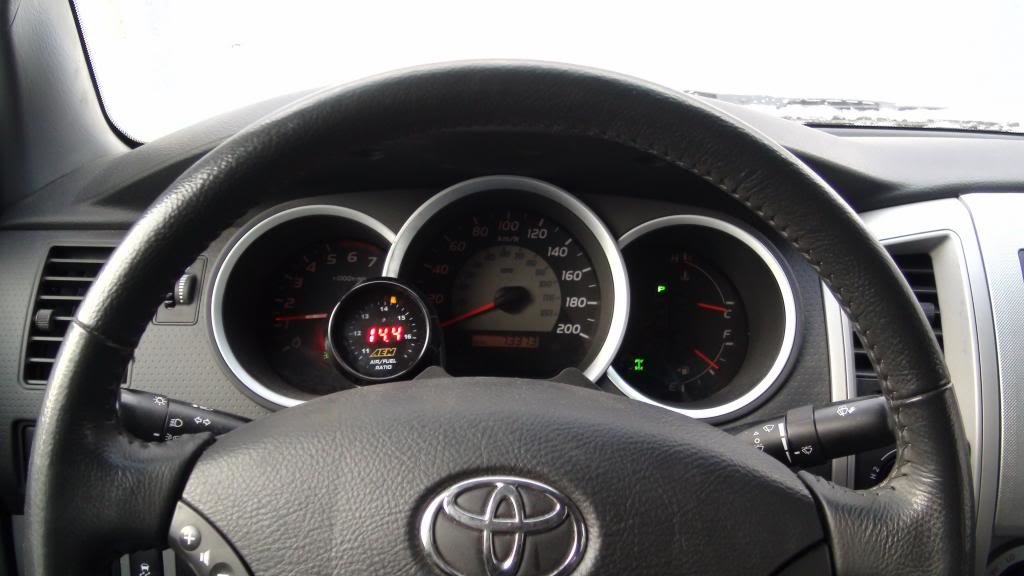

    Here's one spot where you can put your gauges, there called flex pods, you can get them from URD

    http://urdusa.com/Electronics-Wideband/Gauges-Gauge-Mounting-Solutions/c66_77_177/index.html

    [​IMG]

    OR you can go with the pillar style on the side of where the handle is

  14. Jul 16, 2013 at 2:03 PM
    #14
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    question... are the upsream o2 sensors AFR sensors and the downstream o2 sensors narrow band? got my plx gauges in and dont know where to put the new sensor.

    caled PLX and they said if you can replace a narrow band one and run the grey wire to the ECM to trick the computer into functioning normally.

    Called gadget at URD racing and he said you cant do that, you have to buy bung and cut a hole and weld in the new sensor... (weak sauce)

    where do i put this damn new o2 sensor? and any info on installing the grey wire to ECM would be helpfull too.

  15. Jul 16, 2013 at 2:17 PM
    #15
    Brunes

    Brunes abides. Staff Member

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,727
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    I'm sure you could input the wifeband signal into the ECM...but if you use an existing bung for the wideband sensor, you will only be reading one bank of the engine. All the advice I got was to put the bund into the collector in the y pipe to read all the exhaust, not just one of the two banks.

  16. Jul 16, 2013 at 2:36 PM
    #16
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    430
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build

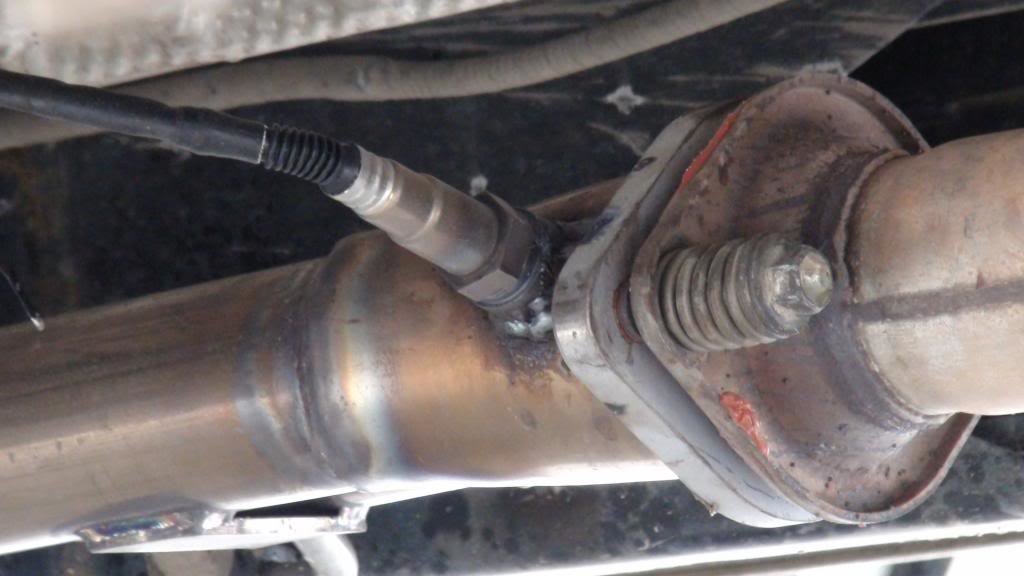

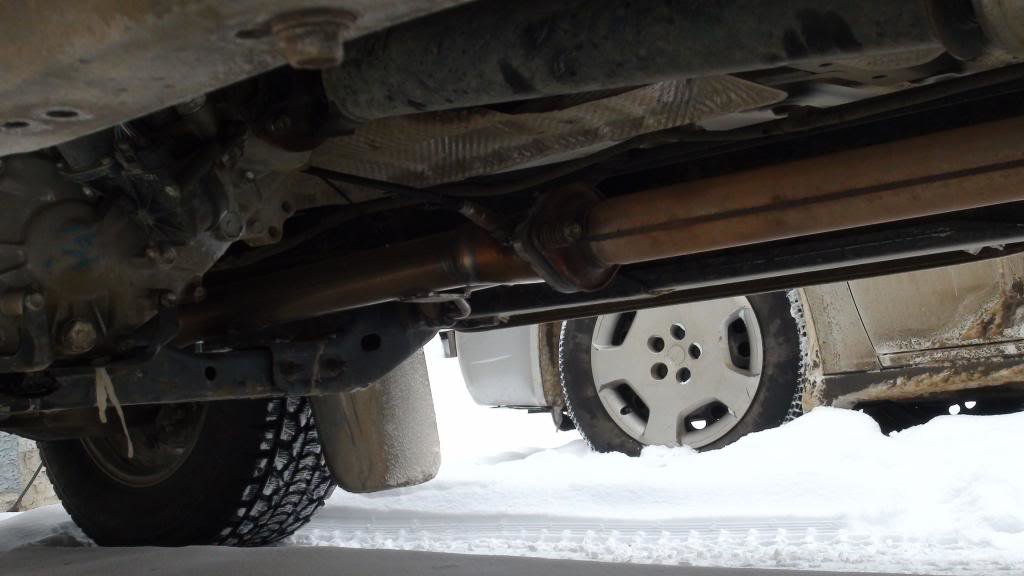

    Simplest way is to simply install an extra bung in the y-pipe collector IF you have a straight through exhaust

    [​IMG]
    [​IMG]

    If you still have your cats then I dunno if that will affect the sensor after the cats so you might be stuck reading one bank by putting the sensor before the cats

  17. Jul 16, 2013 at 2:49 PM
    #17
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    Where can I find a wiring diagram or the ECM?

  18. Jul 17, 2013 at 10:47 AM
    #18
    JWP6114

    JWP6114 [OP] Well-Known Member

    Joined:
    Jul 5, 2013
    Member:
    #107663
    Messages:
    58
    Gender:
    Male
    First Name:
    Jake
    Newnan, GA
    Vehicle:
    2010 PreRunner SR5 supercharged
    TRD supercharger
    Anyone?

  19. Jul 17, 2013 at 3:56 PM
    #19
    Justus

    Justus fucks not given

    Joined:
    Jan 4, 2013
    Member:
    #94417
    Messages:
    6,804
    Gender:
    Male
    First Name:
    Brock
    Paso Robles
    Vehicle:
    not so low, not so slow 2006 6 lug
    stockish
    U has PM

  20. Jul 18, 2013 at 10:40 AM
    #20
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,768
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
