Box Rocket Trailer Build

Discussion in 'Other Builds' started by Box Rocket, Dec 14, 2011.

  1. Apr 15, 2013 at 9:36 AM
    #81
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    haha. waiting for pics.

  2. Apr 15, 2013 at 9:39 AM
    #82
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    2,918
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Just sent a couple your way.

  3. Apr 22, 2013 at 10:16 AM
    #83
    YOTA LOVER

    YOTA LOVER Stay Calm, and Fire For Effect

    Joined:
    Jul 17, 2012
    Member:
    #82814
    Messages:
    3,825
    Gender:
    Male
    First Name:
    Chris
    NH
    Vehicle:
    2011 MGM Tacoma DCLB SR5
    3" OME lift (HD), LR UCAs, All-Pro Sliders, All-Pro APEX Front Bumper w/PIAA 530 Fogs, All-Pro Skidplate, 1" diff drop, vent visors, OCTaco Braided Lines, baby seat (forward-facing)
    Sick trailer man, really excellent work! :bowdown:

  4. May 21, 2013 at 12:55 PM
    #84
    SteveFaust

    SteveFaust Well-Known Member

    Joined:
    Jan 2, 2013
    Member:
    #94247
    Messages:
    64
    Gender:
    Male
    First Name:
    Steve
    Poway, CA
    Vehicle:
    1995 XtraCab XL 2.7 4x4
    Very nice trailer!! Love the simple & functional design. Guess I'm going to have to clear some work space and break out the welder :)

  5. May 24, 2013 at 8:50 AM
    #85
    deez

    deez Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    215
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Damn, Box Rocket! Nice trailer!

    I've been wanting to build my own and thanks to this build page, I'm going to attempt it eventually (as soon as I buy my welder) :eek:

  6. May 24, 2013 at 8:52 AM
    #86
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Thanks man. It was a really fun project and not that difficult. It's been a big help to have this trailer for what will soon be 6 years. Man time is flying.

  7. May 24, 2013 at 10:05 AM
    #87
    Jon850FL

    Jon850FL is Lurkin'

    Joined:
    Aug 1, 2011
    Member:
    #60972
    Messages:
    1,989
    Gender:
    Male
    First Name:
    Jon
    DFS, FL
    trailer looks amazing, looks really good behind the 80.

  8. May 25, 2013 at 7:10 AM
    #88
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    The 80 is is semi-retirement mode right now so I'm contemplating repainting the trailer to match the Tacoma. Hmm......decisions.

  9. Jun 26, 2013 at 3:05 PM
    #89
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Did a little work on the trailer last night. Up til now I've had two water cans and a CO2 tank mounted on the tongue right in front of the bed and a Cooler mounted in front of them. On steep climbs the cooler get VERY close to the spare tire on the back of my truck. So I needed to make a little more room and I didn't want to extend the tongue.

    So, I ended up building full steps in front and behind the fenders and the water cans are now mounted on the front steps. Those steps will also be the mounting base for a new adjustable tent rack I've started to build. The tent rack will be around 50" from the ground during transit and when camped it will raise to a height of 74" from the ground. That will allow me to walk upright underneath the open tent. It will also allow better access into the trailer.

    After I moved the cans, that allowed me to move the cooler back almost 12" closer to the bed of the trailer to allow for MUCH better room between the trailer and truck.

    I've also started a rear swing out tire carrier for the trailer.

    Pumped about these changes as I've had them planned for a long time but haven't had time to work on them. We've got several family wheeling/camping trips planned for this summer and it was a good excuse to get this stuff done.

    No pics yet but I'll grab some soon.

  10. Jun 26, 2013 at 10:15 PM
    #90
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    2,918
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Dang buddy. Sounds fun. Let me know if you need anything.

  11. Jun 27, 2013 at 11:13 PM
    #91
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff

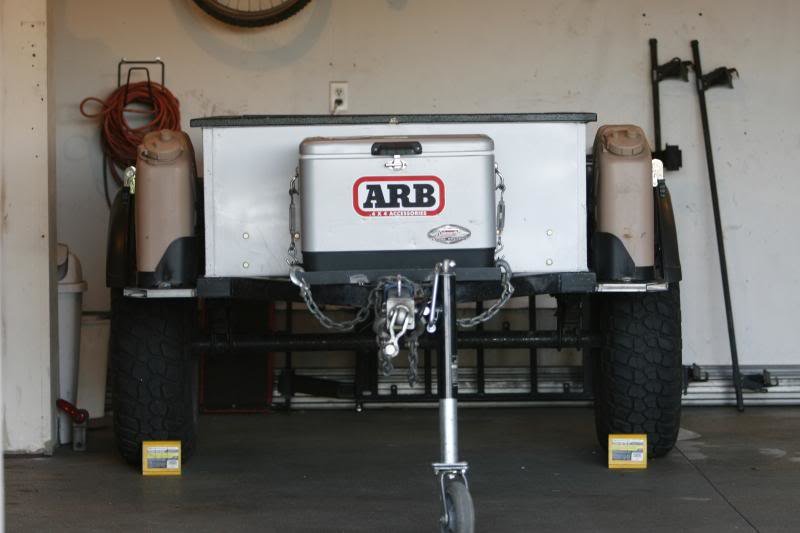

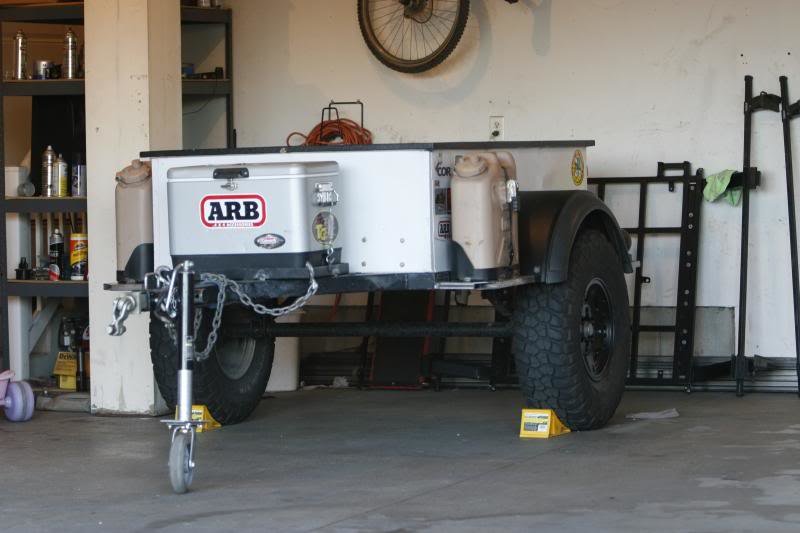

    Here's a few pics of the steps. Still need to cap the openings.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  12. Jun 28, 2013 at 5:58 PM
    #92
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    2,918
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Is that just 1" tube and some plate?? Looks sweet by the way.

  13. Jun 28, 2013 at 6:21 PM
    #93
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    They're built from the same 1x3 as the top rail.

  14. Jun 28, 2013 at 7:47 PM
    #94
    Whitecloud

    Whitecloud Cloudy-fabricator of things

    Joined:
    Feb 24, 2010
    Member:
    #32031
    Messages:
    2,918
    Gender:
    Male
    First Name:
    Johnathan
    Albuquerque, New Mexico
    Vehicle:
    Superwhite 06 DCLB
    ICON Extended travel Coilovers, Custom leaf pack, custom sliders and F&R bumpers, 295 75 17 Toyo Open Country MT's, On-Board air with F+R connectors, On-Board water with quick disconnect shower.Trimmed fenders and body mount chop. LOTS of wiring, dual battery setup, Solar charging system, with some random lights spread around here and there.
    Nice. Wasn't sure. Looks good though.

  15. Jul 10, 2013 at 9:09 AM
    #95
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    New tent rack is built. Waiting for lift struts to show up today so I can finish it off. Also built a new swing out tire carrier on the back. Really like how it turned out. Pics to come soon.

  16. Jul 12, 2013 at 10:54 AM
    #96
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    so a quick recap of the recent mods to the trailer:

    '90s era Factory Alloys (painted black)
    33x10.50 KM2s (takeoffs from the Tacoma)
    New Tepui Autana RTT with Annex

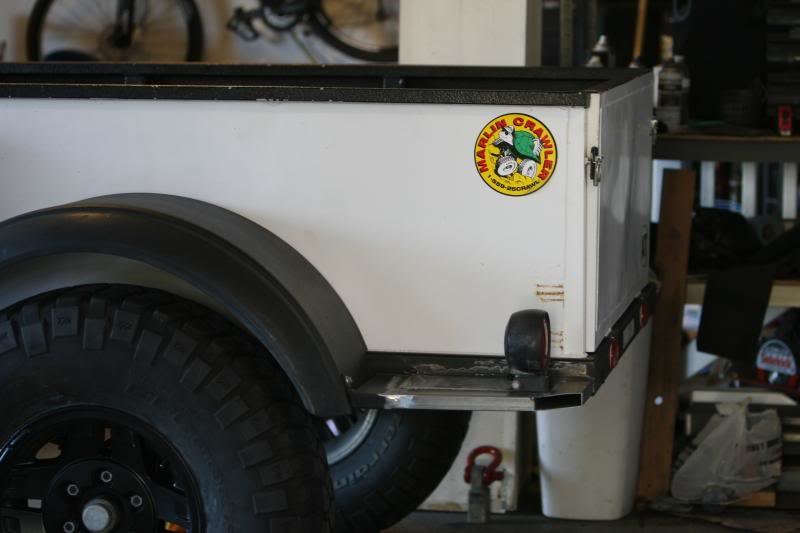

    modified side steps on the trailer
    relocated water cans from front of trailer to the sides
    custom telescoping rack for the RTT
    custom spare tire swingout

    Ok here we go with pics.

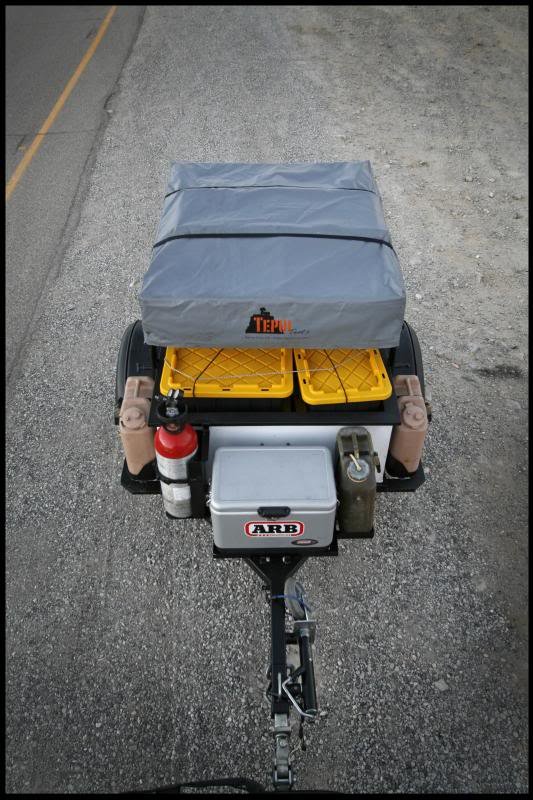

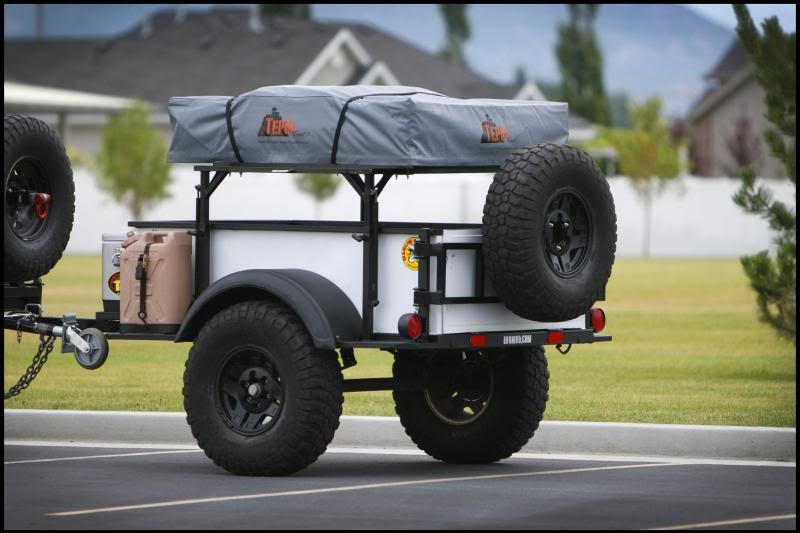

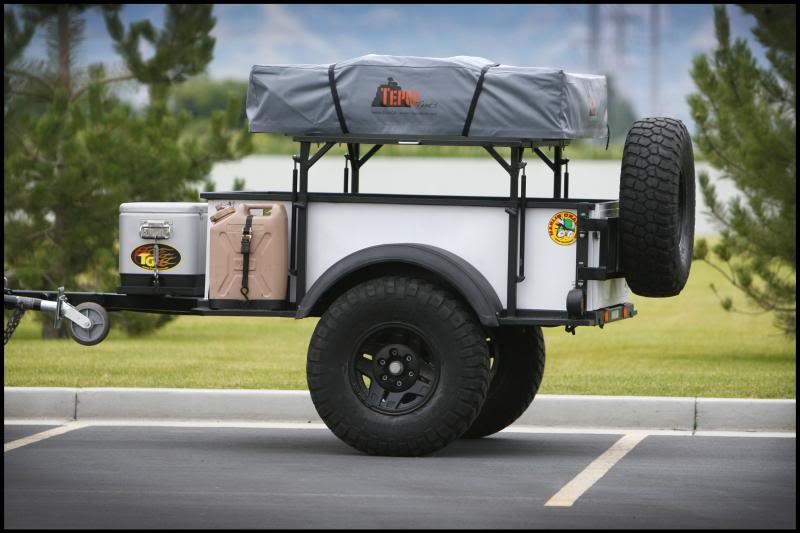

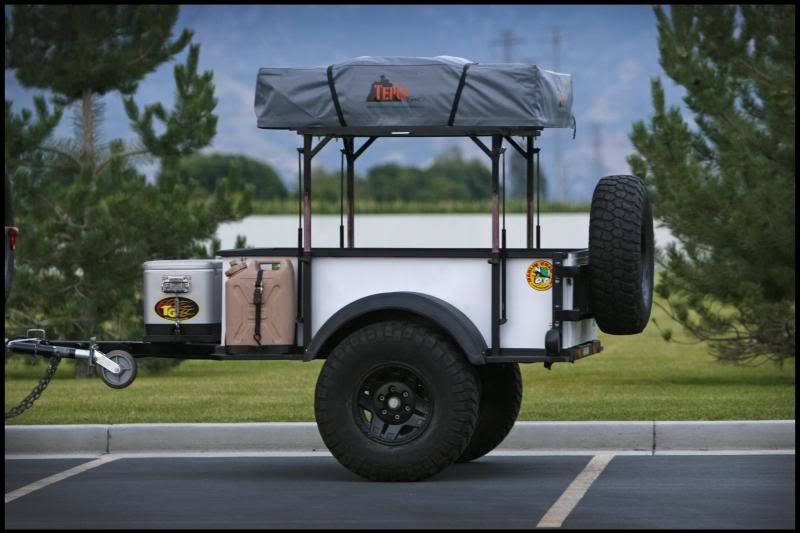

    Here's the trailer with all the listed mods. This is in "transit" mode with the RTT rack on the low setting.
    [​IMG]

    [​IMG]

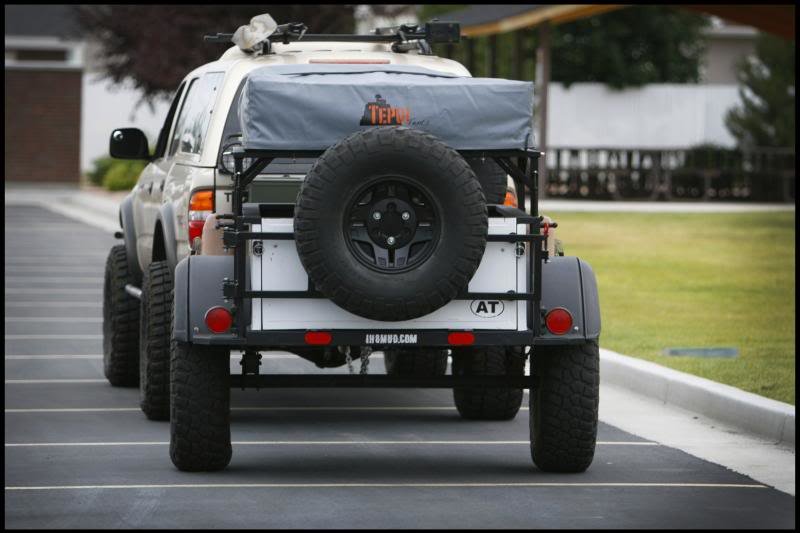

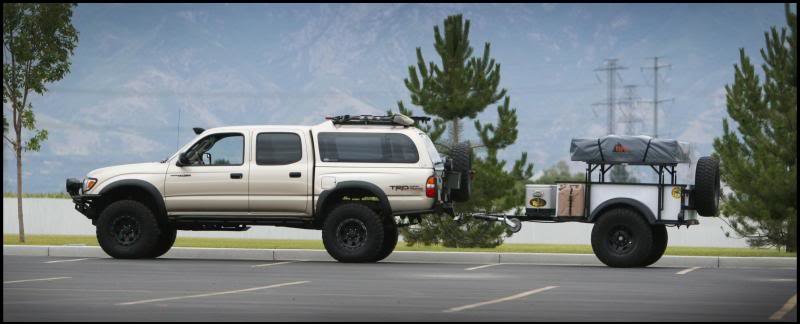

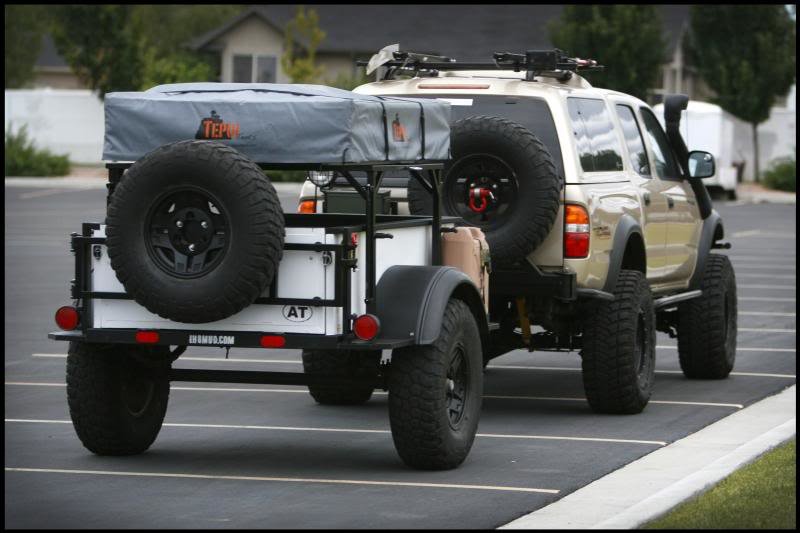

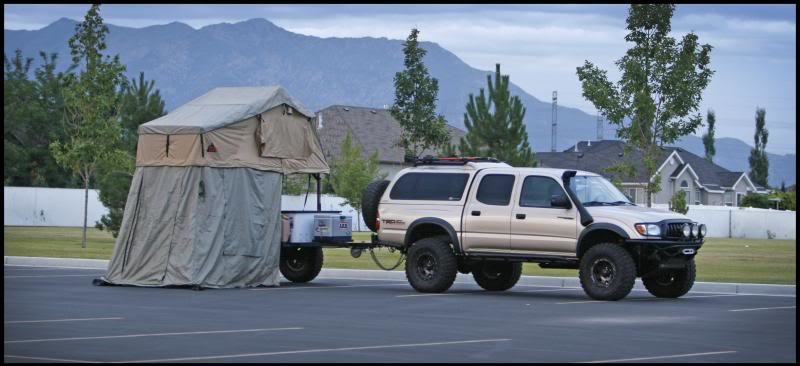

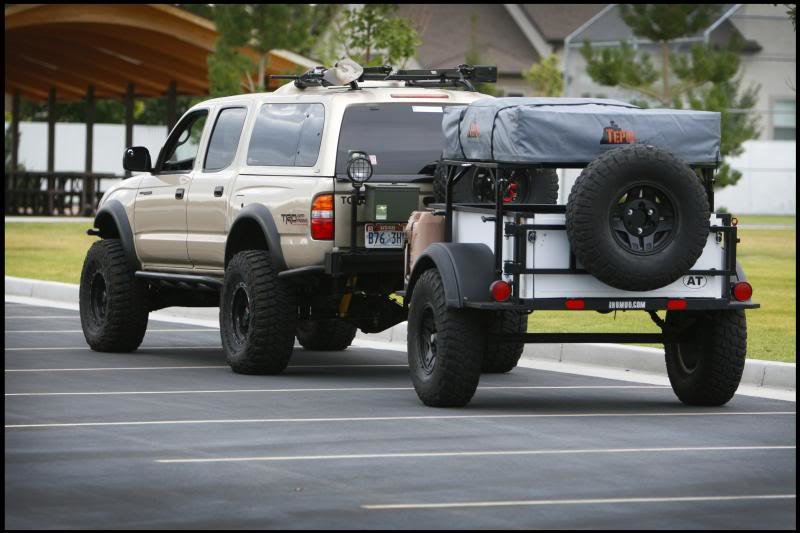

    few shots with the truck.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

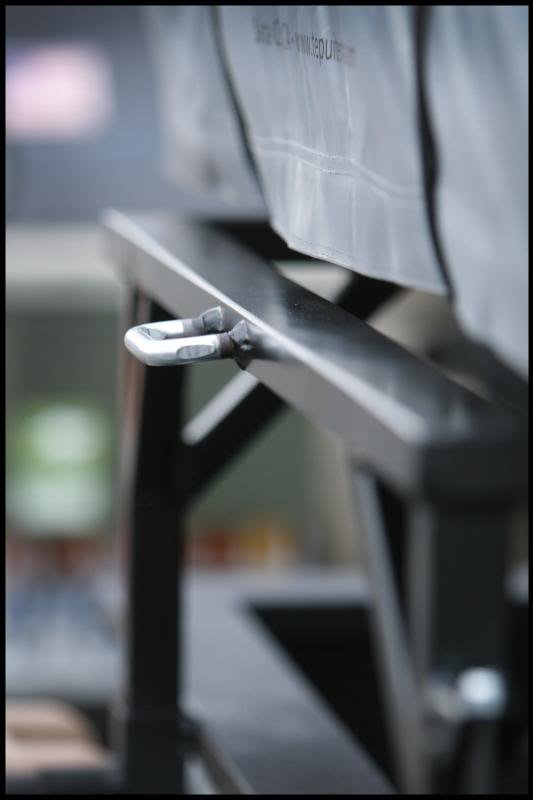

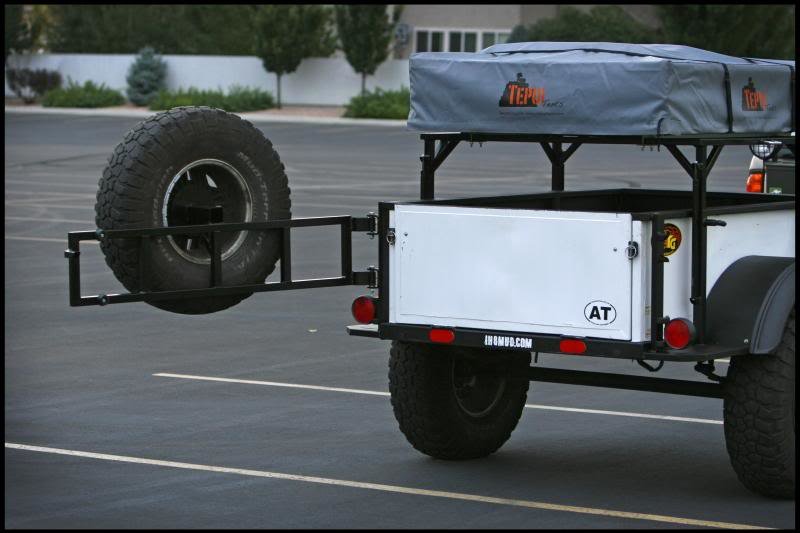

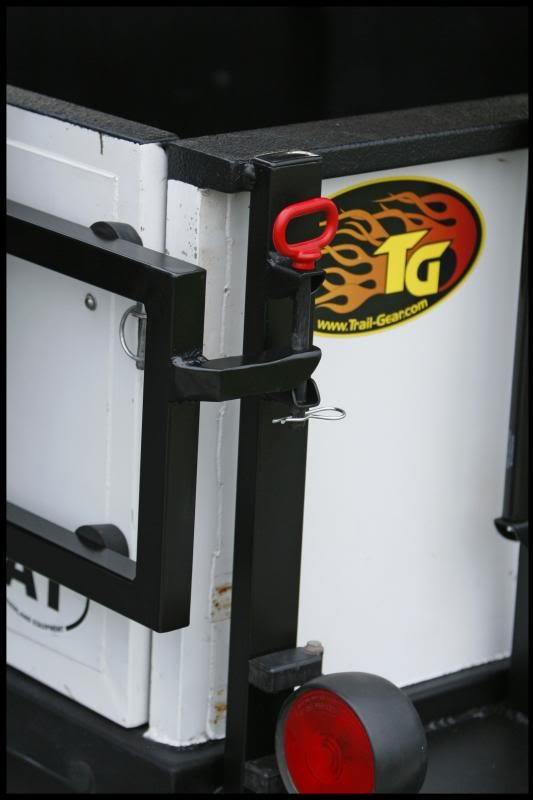

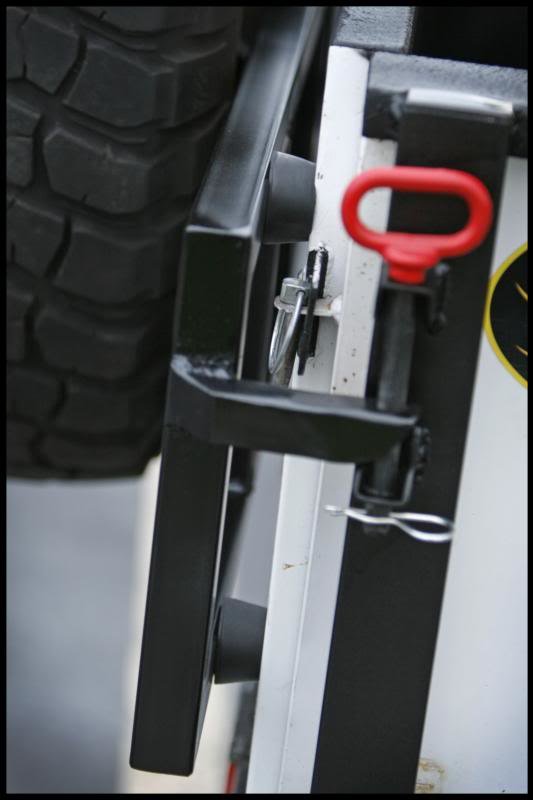

    Spare tire swingout details. Latch is a simple high visibility hitch pin. Works great and is tight
    [​IMG]

    Rubber bumpers attached to the swingout to keep it tight against the tailgate.
    [​IMG]

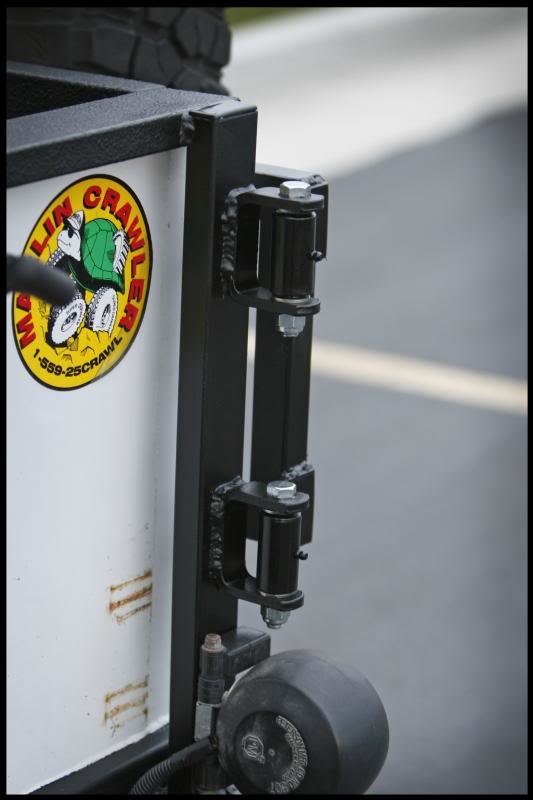

    Hinges are geasable hinges I got from Northern Tool. They are a simple bolt design with no bearings. They swing nice and smooth.
    [​IMG]

    With the swing out open and the tailgate down its a nice area for cooking etc.
    [​IMG]

  17. Jul 12, 2013 at 10:54 AM
    #97
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Now to the tent rack.

    The rack is made from 1.5" square tubes welded to the side of the trailer tub and the rack itself is 1x2" square tube for the platform and 1.25" square tube for the legs that slide down inside the 1.5" tubes on the tub.

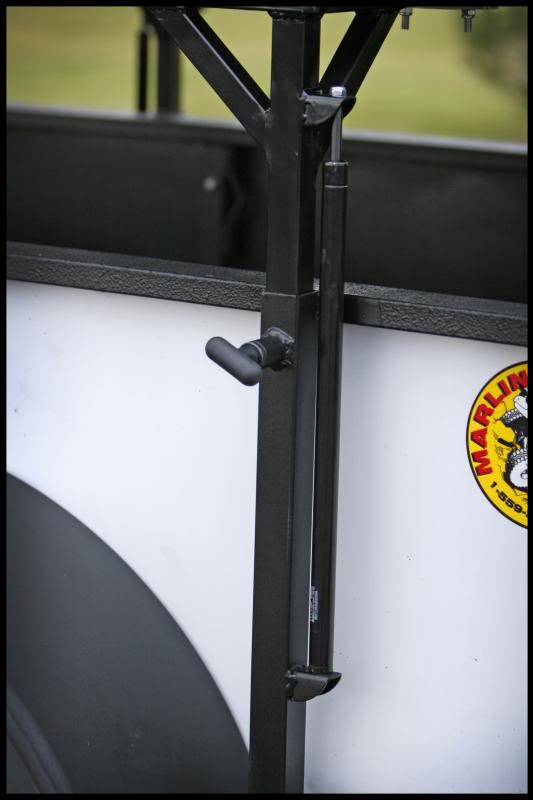

    Each post has a spring loaded "pop pin" to keep it locked in either the low or high setting. Each corner has a 50lb gas strut to raise the tent.
    [​IMG]

    Zinc coated handles on the sides of the platform (actually just some cut down ubolts) to help pull the rack back down to the low setting.
    [​IMG]

    Pull the 4 pop pins (1 on each corner) and the platform goes up to the height needed to use the annex with the RTT.
    [​IMG]

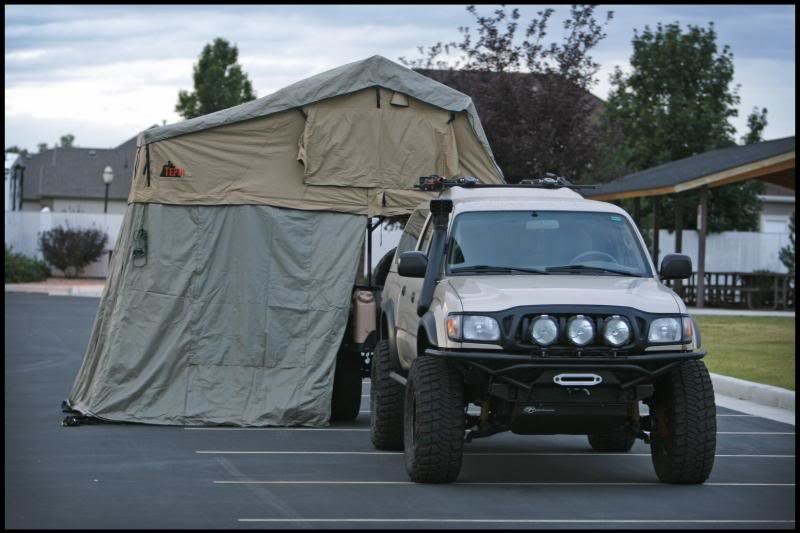

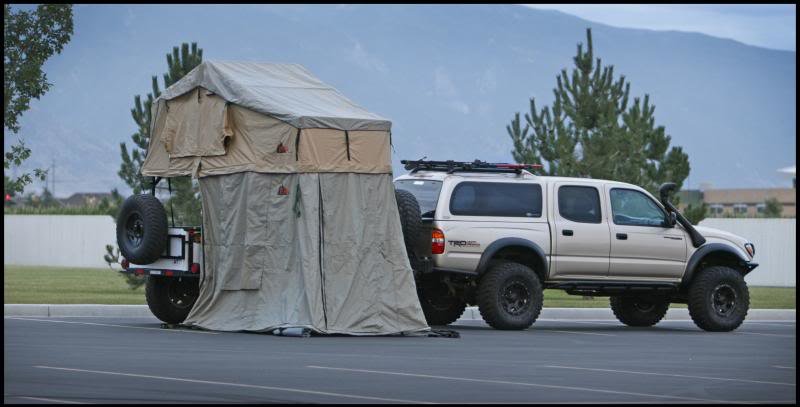

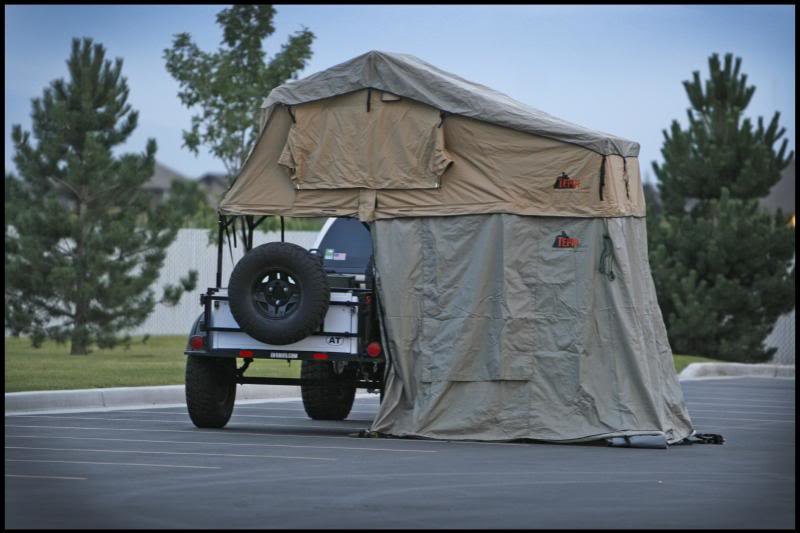

    Some quick pics of the tent set up with the annex. It was getting dark so I didn't open up all the windows etc.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    All done. Can't wait to get out and use it!

  18. Jul 18, 2013 at 12:09 PM
    #98
    Okeetee

    Okeetee I like the Anaheim Ducks

    Joined:
    Aug 13, 2011
    Member:
    #61638
    Messages:
    744
    Gender:
    Male
    First Name:
    Kyle
    Anaheim, CA
    Vehicle:
    '11 MGM TRD Sport DCSB 4x4
    OME 887 coil springs, Bilstein 5100s (front/rear), Light Racing UCAs, Wheeler's HD 1.5" AAL, 16x8 Konig Countersteer Offroads, Goodyear Duratracs (265/75/16)
    This is an amazing build. I wish I had the knowledge and experience to build something like this.

    Well done, Adam!

  19. Aug 15, 2013 at 3:19 AM
    #99
    Patch

    Patch Member

    Joined:
    Aug 13, 2013
    Member:
    #110376
    Messages:
    22
    Gender:
    Male
    First Name:
    Mike
    Northwest Florida
    Vehicle:
    11 X-Runner TRD Sport
    Just got it so not much. DrifZ Rims.
    WOW! What an amazing trailer. I would buy one in a heart beat!

    [​IMG]

    Last edited: Aug 15, 2013
  20. Aug 16, 2013 at 8:34 PM
    #100
    Box Rocket

    Box Rocket [OP] Neighborhood Know-it-all

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    5,802
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff

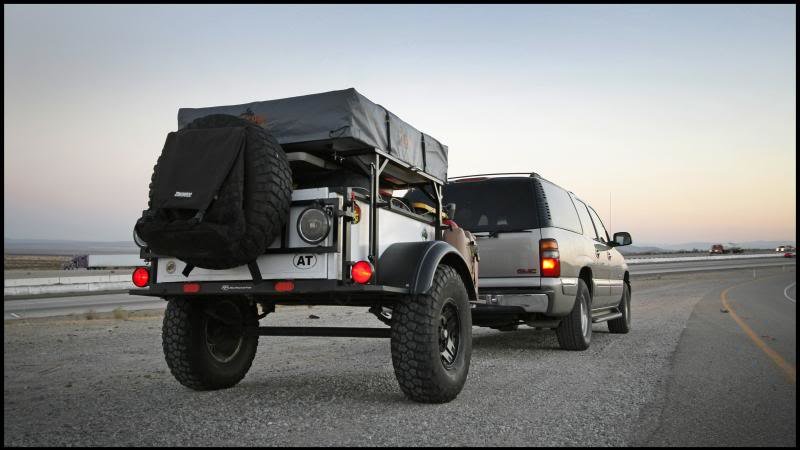

    Spent last week camping in Socal with the fam and going to Disneyland. No offroad towing involved on this trip so we took the "Burb". We're packing up and heading out again tomorrow for S. Dakota and plan to do a little wheeling in the black hills and badlands so we're taking the Tacoma this time. Stoked.

    [​IMG]

    Leading up to these trips I made a few more changes to the trailer. In the above pic you can see that I added two Hella 1000 Black Magics to the rear swing out for camp lights. Also, if you look close you can see the rack I added right under the tent for a camp table. Works slick. Table just slides in and has a small lock to keep it in place.

    On the front I made a new bracket for my CO2 tank and another for a 5 gal fuel can. So for now there's 10gal of water 5 of fuel, 20lbs of CO2 and whatever I can fit in the fridge. :)
    [​IMG]
