    Hi everyone. I'm new to the forum. Looking for some help.

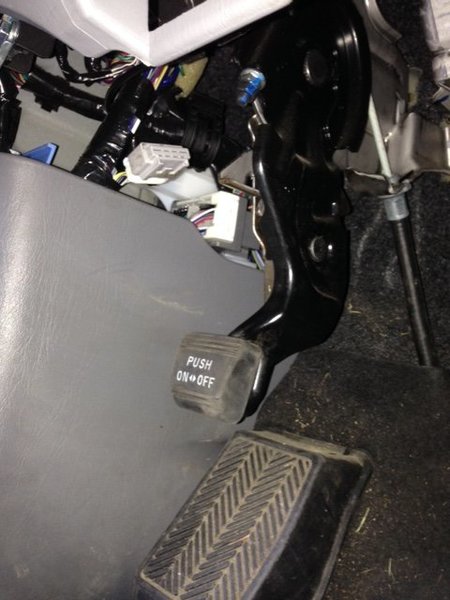

    I'm trying to install a brake controller on my 2012 Tacoma TRD with factory tow package. Based on information online, I'm pretty sure I'm looking in the right spot for the connector, but the one I found doesn't match up with the harness I bought. It doesn't seem to match any of the tacoma connectors I've seen online either. Has anyone seen this before? Could it be a Canada only thing?


    NVanTacoma, Jul 26, 2015
    #1
  2. Jul 26, 2015 at 7:59 PM
    #2
    Tao Zero

    #2
    Tao Zero Well-Known Member

    Joined:
    Jan 14, 2013
    Member:
    #95215
    Messages:
    106
    Gender:
    Male
    That is different than mine. Mine is more square. I can take a pic if needed.

    Tao Zero, Jul 26, 2015
    #2
  3. Jul 26, 2015 at 8:03 PM
    #3
    tacobell007

    #3
    tacobell007 Western Mass Automotive Coatings

    Joined:
    Jun 11, 2009
    Member:
    #18327
    Messages:
    11,600
    Gender:
    Male
    First Name:
    Drew
    Western MA
    Vehicle:
    06 Regular Cab Lifted
    Eibach springs, OME Dakars, Walker Evans remote resi coilovers with adjustable dampening, Icon tubular uniball UCAs, Icon ext travel rear shocks, Kenwood in-dash nav receiver, Kicker 10 inch sub in a ported truck box, Alpine 250 watt amp, stickers, Rigid 32" gang box, LED tool box lights, 35% tint, Flowmaster Super 44 muffler, 35x12.5x17 Mastercraft Courser MXT's, Fuel Off-Road Trophy d551 in 17x8.5, Retros, white corner marker bulbs, color matched front grille, custom satoshi grille mod with matching Toyota badge, aFe Pro5R drop in filter, diff breather mod, new frame from recall, SOS concepts front plate, SOS concepts rear high clearance plate with swing out and full size spare, SOS bolt-on sliders with kickout, 22" LED bar, flush mount pods in rear plate bumper for aux reverse lights, Rigid Industries dually's on SOS ditch light brackets, 5.29 Nitro gears, ARB front air locker, Detroit locker in the rear
    Is that the connector end? Kind of looks like some type of cap to me

    tacobell007, Jul 26, 2015
    #3
  4. Jul 26, 2015 at 8:20 PM
    #4
    landphil

    #4
    landphil Fish are FOOD, not friends!

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    3,203
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    You haven't found it yet - probably still up above / outboard of the connector pictured, and taped in place if not, try removing the dead pedal and the side kick panel. Keep digging - it will be there.

    landphil, Jul 26, 2015
    #4
  5. Jul 26, 2015 at 8:22 PM
    #5
    xaqori

    #5
    xaqori Grammer knotsy

    Joined:
    Jun 10, 2012
    Member:
    #80410
    Messages:
    1,940
    Gender:
    Male
    First Name:
    Zac
    Marietta, Georgia
    Vehicle:
    '06 4x4 Limo
    ARB lockers and 4.88s front and rear, OME 886s, Dakars, etc., Safari Snorkel, 17"Fuel Revolvers w/ 35x12.50r17 KM2s, fenders cut 3" all around, Pioneer AVH-P4400BH w/ Backup cam, CB/PA (PA Installed), Weathertech Digis, Foglight anytime, AP: front bumper, skids, and pack rack, custom sliders, Warn 9.5XP, dual VIAIR 480Cs with a 2.5gal tank, OTRATTW switches galore, URD y-pipe, RCI skids, LF 240s, etc.
    X2. Pretty sure this is the right connector - just take the cap off

    xaqori, Jul 26, 2015
    #5
  6. Jul 26, 2015 at 9:28 PM
    #6
    NVanTacoma

    #6
    NVanTacoma [OP] New Member

    Joined:
    Jul 26, 2015
    Member:
    #160371
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2012 Tacoma TRD
    You were right! Found it up higher. Much harder to get to than I thought it would be.

    Wonder what the first one is for? Oh well...

    Thanks for all the quick replies!

    NVanTacoma, Jul 26, 2015
