Brake controller install

Discussion in 'Towing' started by shutch78, Oct 8, 2010.

  1. Oct 8, 2010 at 8:43 AM
    #1
    shutch78

    shutch78 [OP] New Member

    Joined:
    Oct 8, 2010
    Member:
    #44378
    Messages:
    1
    Gender:
    Male
    First Name:
    Shannon
    Macon, GA
    Vehicle:
    2010 Tacoma Sport
    What does the pre-installed brake controller plug in a 2010 Tacoma with the towing package installed look like?

  2. Oct 10, 2010 at 6:52 PM
    #2
    psmcn

    psmcn Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43306
    Messages:
    332
    Gender:
    Male
    First Name:
    Paul
    Rockville Md
    I put a P2 in my 08 today. My connector is behind the left kick panel near the parking brake. It was tucked back there and it has a very short lead. The plug and play pigtail I ordered with my P2 is used on the2007- 2011so I'm guessing they are the same.

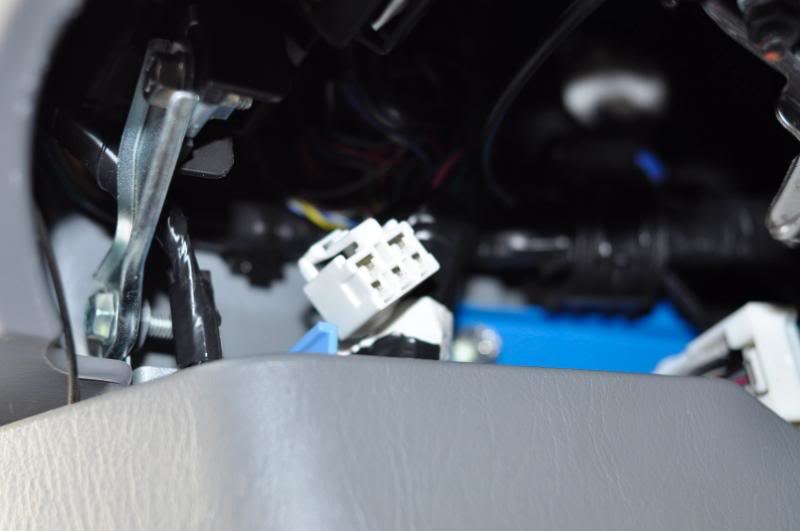

    Here is where mine is behind the left kick panel
    [​IMG]

  3. Oct 14, 2010 at 4:51 AM
    #3
    bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    792
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    Can you confirm the wire colours on that plug? Pleeeease :)

  4. Oct 17, 2010 at 6:37 PM
    #4
    psmcn

    psmcn Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43306
    Messages:
    332
    Gender:
    Male
    First Name:
    Paul
    Rockville Md
    I may not be back in there for a while but like I said, the lead is very short and taped I'd have to cut the tape or take my eyeball out of the socket to get back there for the colors. I'm sure the plug is unique for the controller plug and play. It's the only open plug down there.

  5. Oct 17, 2010 at 6:47 PM
    #5
    bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    792
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    OK thanks I think I found it.

  6. Nov 1, 2010 at 6:30 PM
    #6
    bigjoetacoma

    bigjoetacoma King of The Dirt

    Joined:
    Apr 8, 2010
    Member:
    #34871
    Messages:
    22
    Gender:
    Male
    First Name:
    Joe
    South River ON
    Vehicle:
    05 TRD offroad
    aftermarket head unit with ipod sync cable routed to glove box
    I have an 05 trd access cab. If it has the factory plug for the brake controller what do I need to get for at the back where I plug the trailer in? Right now I have the reese t-connector 4 pin flat?

  7. Nov 1, 2010 at 6:42 PM
    #7
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    3,568
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD OffRoad Poser ψ(`∇´)ψ
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
    I too would like to dis info-ma-shuns.

  8. Nov 6, 2010 at 10:40 AM
    #8
    psmcn

    psmcn Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43306
    Messages:
    332
    Gender:
    Male
    First Name:
    Paul
    Rockville Md
    Then best thing may be to ask a Toy service tech and see if they know. You may just have to run the wires yourself to be sure or do a continuity test on the ones you have. The instructions that come with the controllers are straight forward about what and how you need to wire.

    Just do it!! Nothing like a good challenge

    Paul

  9. Nov 7, 2010 at 1:41 PM
    #9
    bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    792
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    Take a look at my response in this thread:

    http://www.tacomaworld.com/forum/2nd-gen-tacomas/109885-trailer-wiring-question.html

    It's thread #14.

    If you're looking to use a brake controller, you'll need a 7-pin connector for the back of the truck. Any questions, just ask.

  10. Nov 8, 2010 at 3:51 PM
    #10
    bigjoetacoma

    bigjoetacoma King of The Dirt

    Joined:
    Apr 8, 2010
    Member:
    #34871
    Messages:
    22
    Gender:
    Male
    First Name:
    Joe
    South River ON
    Vehicle:
    05 TRD offroad
    aftermarket head unit with ipod sync cable routed to glove box
    I 've looked at aftermarket 7 pins...they have 3 extra wires and a ground...where do I splice the 3 wires to?

  11. Nov 8, 2010 at 4:42 PM
    #11
    bigmooze

    bigmooze Well-Known Member

    Joined:
    Jan 10, 2009
    Member:
    #12437
    Messages:
    792
    Gender:
    Male
    First Name:
    Richard
    Belle River, ON
    Vehicle:
    2009 4x4 access cab SR5
    Bilstein 5100's all round (0" up front with stock springs), 265/75/16 Goodyear Wrangler Duratracs, K&N 63 Series Aircharger Kit, Flowmaster Super 44 Muffler, Delta Champion Toolbox, fog lights, back-up lights, Sirius satellite radio with PA15-TOY, Midland 1001z CB radio with 2' Firestik II antenna, Weathertech floor mats, AVS sill protectors, Marathon SuperHides Seatcovers (Universal Digital Camo), trimmed front mud flaps, Viair 20005 OBA, Warn W650D driving lights and W650F fog lights on N-Fab light bar, Hi-Lift X-treme jack with off road accessories, TracRac "TracONE" system
    See here: http://www.etrailer.com/faq-wiring.aspx

    In the first table on that pages, the first four lines match your 4-pin connector.

    The blue pin supplies the brake signal to the trailer brakes. This signal originates from the output of the brake controller. I spliced the blue wire on my brake controller to the blue wire on the 7-pin connector.

    The purple pin is for trailer reverse lights. When I installed my 7-pin connector I wired this pin to a switch in the cab so I could manually control these lights.

    The black pin provides 12 V battery DC to the trailer - I think is provides charging voltage for a breakaway system and power 12 V accessories from the truck, but I might be wrong.

    Connect the ground to the frame of the truck or run a wore back to the battery. I connected it to the frame.
