Brake Controller - Non-Tow Package

Discussion in 'Towing' started by xLOGREx, Jul 31, 2023.

  1. Jul 31, 2023 at 1:29 PM
    #1
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Hey guys, I was wondering how much of a pain in the ass it would be to wire up a brake controller (probably Redarc Elite) in a truck that didn't come with a tow package. I have a 2017 SR5 DCSB 3.5l

    I added trailer lights a few years ago with the following:

    Wiring Harness:
    https://www.amazon.com/gp/product/B074HBSQ5B?ie=UTF8

    Replaced 4-pin plug on above harness with this 7-blade plug:
    https://www.amazon.com/gp/product/B005Q87T6E?ie=UTF8

    OEM Looking connnector:
    https://www.amazon.com/Hopkins-4097...t=&hvlocphy=1014226&hvtargid=pla-435820833281

    I've also added a Mishimoto transmission cooler since my truck didn't come with one.

    The wiring harness just connects to the back of my tail lights to get the basic signals for brake lights, running lights, turns, etc. The trailer brake & reverse wires from the 7-blade multi tow connector are currently not connected to anything and just hanging out behind one of my tail lights.

    I've been wanting to up my towing game by adding a trailer brake controller and bigger trailer but I'm not sure how to make the connection. I've seen a bunch of videos of people using a harness behind the kick panel when installing the trailer brake controller but I'm sure if I even have that connecter that it won't do anything in it's current state because the plug on my rear bumper doesn't have OEM wiring.

    Any help or advice would be appreciated!

    Also this was my first truck and I bought it used and didn't know anything about tow packages or else I would've bought the right thing the first time!

    Last edited: Jul 31, 2023
  2. Jul 31, 2023 at 2:26 PM
    #2
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    I think I may have answered my own question, I think I just need to use this instead of the plug and play harness that comes with the Redarc Tacoma kit.

    https://www.redarcelectronics.com/us/tow-pro-pig-tail-brake-controller-wiring-harness

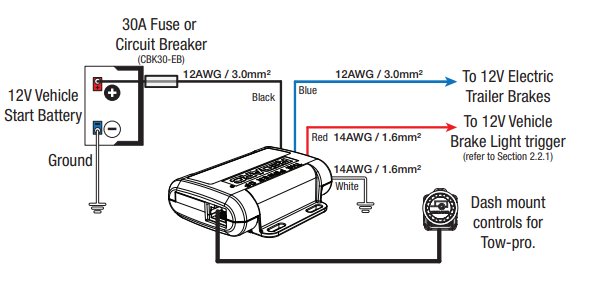

    I just need to wire this Redarc pig tail harness:

    To the Hopkins Multi-Tow Harness:
    [​IMG]

    I believe I have the backup, electric brakes, and aux power wires not connected right now. I'll obviously need to run the blues together which makes sense. I'm not sure where to run the purple and red yet.

  3. Jul 31, 2023 at 2:28 PM
    #3
    Nessmuk

    Nessmuk Well-Known Member

    Joined:
    Oct 17, 2014
    Member:
    #140517
    Messages:
    419
    Gender:
    Male
    First Name:
    Bob
    Charlottesville, Va
    Vehicle:
    2.7 5sp AC w/SR & convenience pkg
    I did it on my SR. It wasn’t hard at all. I routed some of the wires through the firewall and 1 up through the door sill. I used a Redarc controller due to the lack of space in my 5 speed manual.
    My 4 cylinder had dealer installed OEM hitch and 4 pin wiring.

    xLOGREx[OP] likes this.
  4. Jul 31, 2023 at 2:30 PM
    #4
    Nessmuk

    Nessmuk Well-Known Member

    Joined:
    Oct 17, 2014
    Member:
    #140517
    Messages:
    419
    Gender:
    Male
    First Name:
    Bob
    Charlottesville, Va
    Vehicle:
    2.7 5sp AC w/SR & convenience pkg
    That’s what I used. Tapped into the wire from the brake pedal.

  5. Jul 31, 2023 at 4:00 PM
    #5
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Right on, did you do anything with the Aux and reverse wires? (Purple and red)

  6. Jul 31, 2023 at 6:38 PM
    #6
    Nessmuk

    Nessmuk Well-Known Member

    Joined:
    Oct 17, 2014
    Member:
    #140517
    Messages:
    419
    Gender:
    Male
    First Name:
    Bob
    Charlottesville, Va
    Vehicle:
    2.7 5sp AC w/SR & convenience pkg
    Didn’t use the reverse wire, but I did hook up auxiliary power. I added a relay tied into a fuse that’s only powered up when my truck is on. No danger of draining the battery.

    xLOGREx[QUOTED][OP] likes this.
  7. Aug 28, 2023 at 7:39 AM
    #7
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell
    I'm doing the same thing right now. Where did you tap the Red wire? I bought the connector with the REDacr because my truck has the factory connector but no red wire. Its an offroad but was a rental truck for 8000 miles before I got it and no tow package. I had to add transcooler, hitch and 7/4 pin. Just trying to wire up brake controller now and not sur where to land the red wire.

  8. Aug 28, 2023 at 7:51 AM
    #8
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Sounds like you are in the exact same boat as me, I did all the same as well.

    The red wire is optional but nice to have. I originally had it on a fuse in the engine bay but I ended up blowing that fuse and breaking down on the side of the highway, so I highly recommend to leave that whole fuse box alone lol. You can run it through your firewall and pick any accessory fuse in there and be good to go.

    I personally have mine disconnected right now because I have so many add a fuses that I’m going to just consolidate everything onto one of these this fall. https://overlandequipped.com/produc...coma-2016-present?_pos=1&_sid=67c9dce2e&_ss=r

    My trailer has a solar panel and I have a generator so I’m not that concerned with keeping the batteries topped off at the moment.

  9. Aug 28, 2023 at 7:59 AM
    #9
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell
    I forgot about that red wire. I thin I hooked it straight to the power (I need to check that). What about the red wire from the brake controller. You mention hooking in to the brake trigger. Where is that located?

  10. Aug 28, 2023 at 8:04 AM
    #10
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Oh gotcha, misread your question.

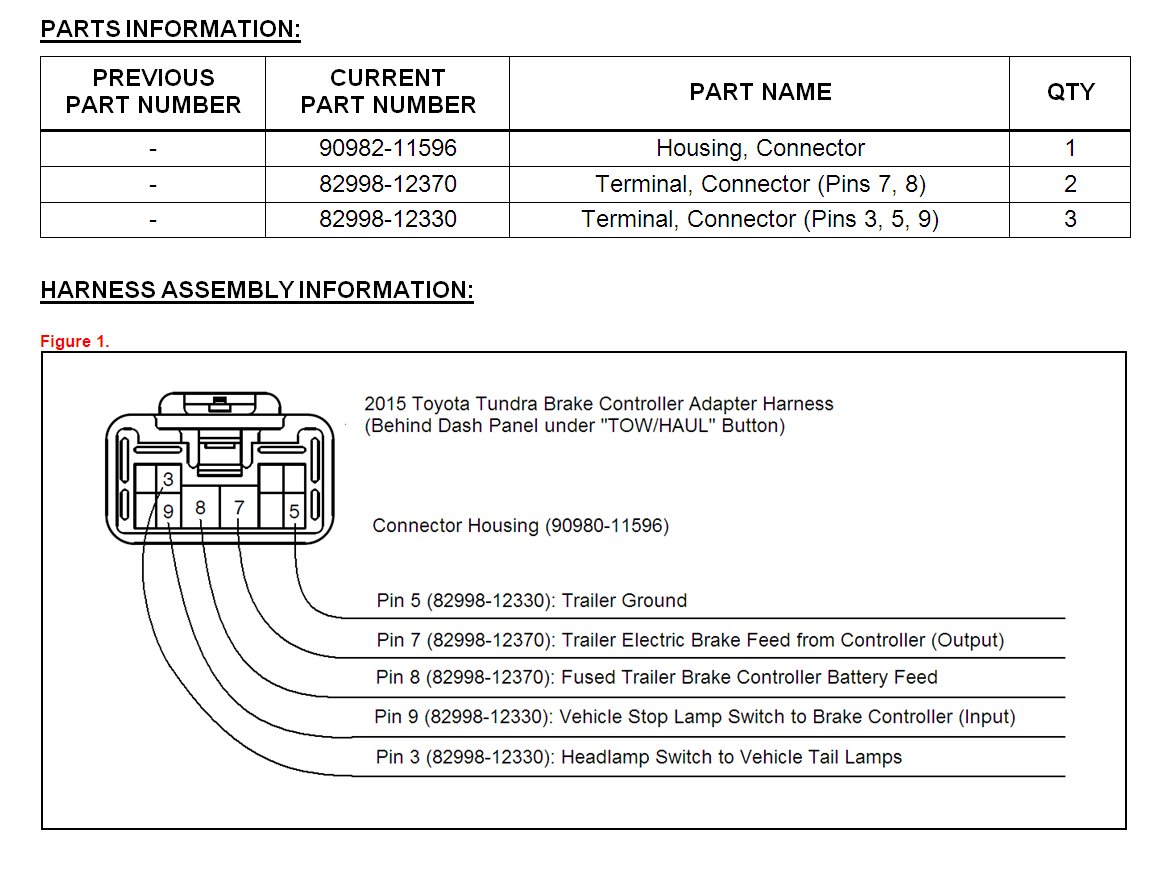

    I stole the signal from the factory harness that’s by the cab fuse box. I cut wire 9 and attached the red wire to that. Even if your truck didn’t have the factory tow package you should still have this harness floating around back there.


  11. Aug 28, 2023 at 8:07 AM
    #11
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell
    Awesome , I will look for that tonight. From what I have found its a violet colored wire. thanks again!

  12. Aug 28, 2023 at 8:14 AM
    #12
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Yes I believe it is violet. No problem!

  13. Aug 29, 2023 at 11:48 AM
    #13
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell

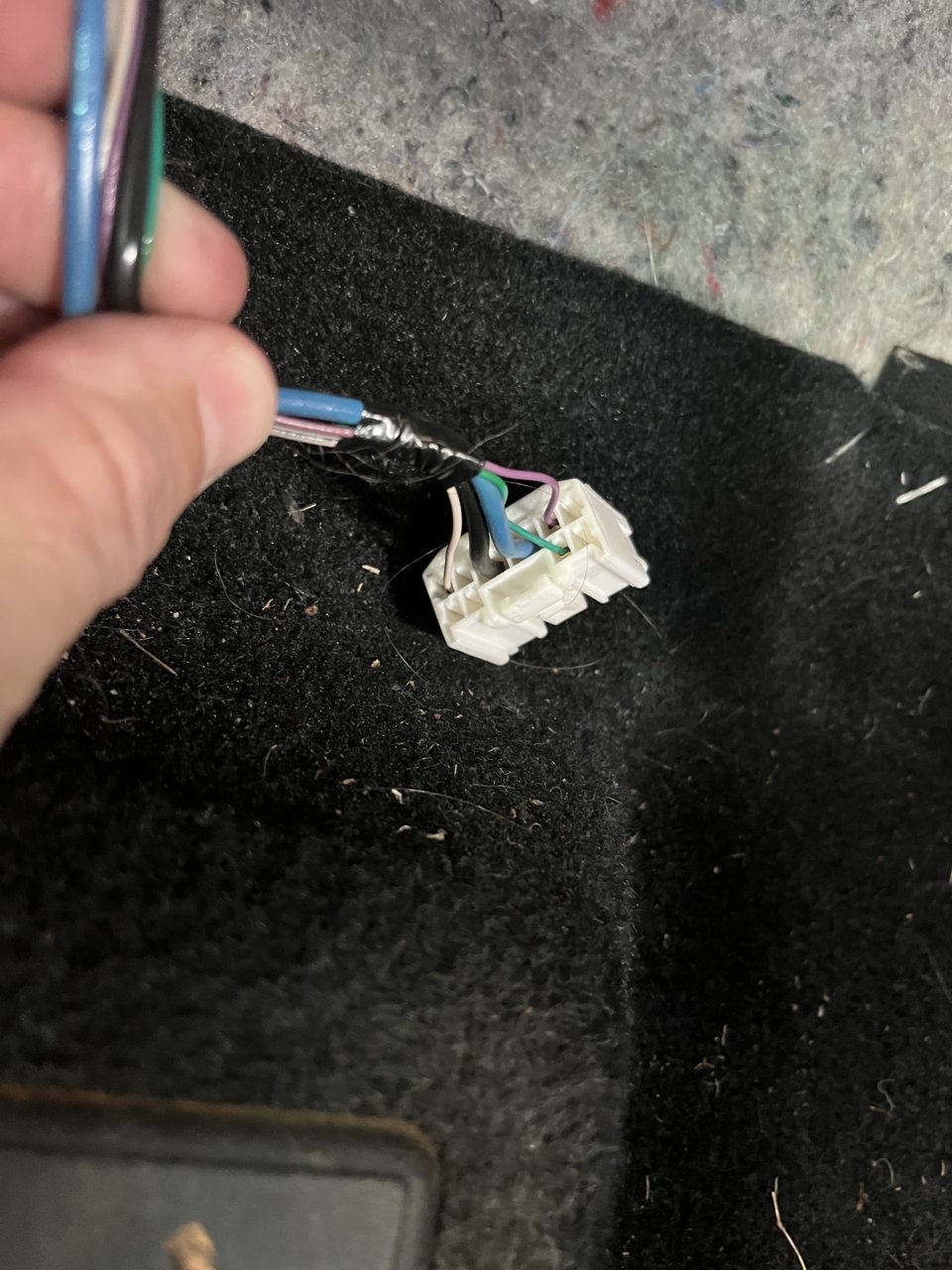

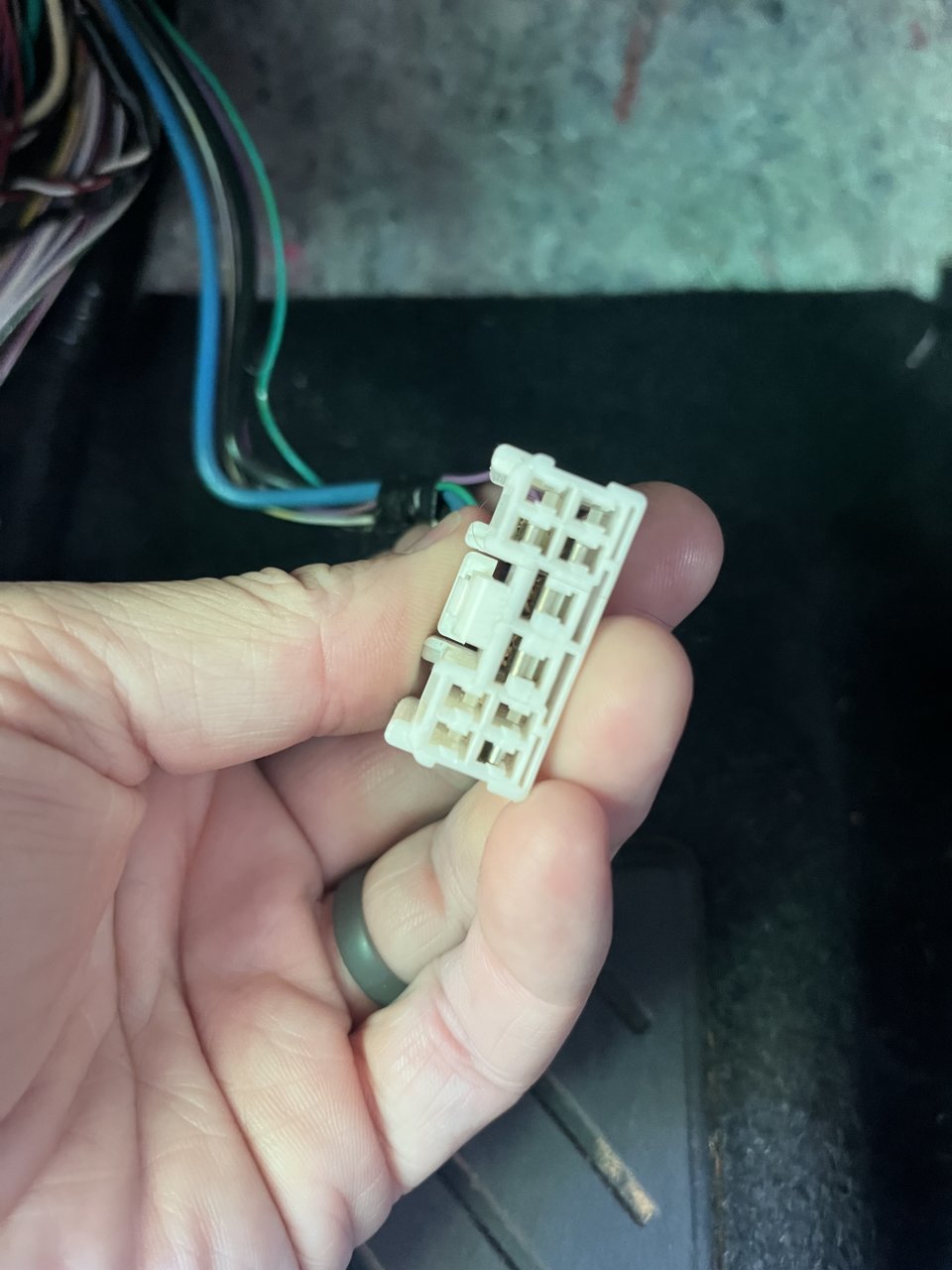

    Did your truck still have this? I have the harness and maybe just need the blue wire ran to the back....not sure.


    Sorry its two pictures, bottom is the hook up.

    [​IMG]


    Attached Files:

  14. Aug 29, 2023 at 12:02 PM
    #14
    Sprig

    Sprig Well-Known Member

    Joined:
    Sep 28, 2017
    Member:
    #231426
    Messages:
    2,354
    Gender:
    Male
    First Name:
    Ken
    N. Calif. The Twilight Zone
    Vehicle:
    Tacoma TRD double cab 4x4, Barcelona Red
    “I've been wanting to up my towing game by adding a trailer brake controller and bigger trailer”
    Since you don’t have a tow package your max tow weight is around 3500lbs. Sounds like you are planning to exceed that max tow weight. How much gross trailer weight do you plan to tow? Keep in mind that no matter what add ons or mods you install on your truck it won’t increase the stated max tow weight by even 1 lb. If you tow in excess of the manufacturer stated tow weight max there could be serious consequences. If you have an accident, especially an injury accident while towing dirty your liability increases , possibly beyond the limits of your liability insurance. There can be other liability factors too. Just wanted to throw this out there in case you are not aware of the potential problems.

  15. Aug 29, 2023 at 12:04 PM
    #15
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell
    Sticker on the inside of my door states 5600LB, same as my friends with tow packages included.

  16. Aug 29, 2023 at 12:07 PM
    #16
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Will you take a picture of the back of the harness in the same orientation as the one I posted in post #10?

  17. Aug 29, 2023 at 12:11 PM
    #17
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell
    Pictures should be attached now.


  18. Aug 29, 2023 at 12:14 PM
    #18
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    The purple wire on the back of that harness needs to be connected to the red wire of your REDARC.

  19. Aug 29, 2023 at 12:16 PM
    #19
    Justinpr

    Justinpr Member

    Joined:
    Aug 28, 2023
    Member:
    #432270
    Messages:
    13
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2017 offroad
    roof rack, camper shell
    I think I am going to try and use the connection with the REDarc "factory" connection. I will just have to run a cable to the back of the truck for the blue wire. I cannot find where it stops on the truck but it did not go to the back.

  20. Aug 29, 2023 at 12:18 PM
    #20
    xLOGREx

    xLOGREx [OP] Well-Known Member

    Joined:
    Feb 11, 2020
    Member:
    #318977
    Messages:
    246
    Gender:
    Male
    First Name:
    Logan
    SL,UT
    Vehicle:
    2017 White SR5
    Little of this, little of that.
    Yeah if you got REDARC's factory harness connector you should be able to just attach it to that harness. But you're correct in that you will still have to run the blue cable back to your 7 pin plug.
