Discussion in '1st Gen. Tacomas (1995-2004)' started by KadeA, Mar 30, 2023.

Post Reply

Mar 30, 2023 at 2:35 PM

#1

#1
KadeA [OP] Well-Known Member

Joined:

Feb 21, 2023

Member:

#418470

Messages:

52

Gender:

Male

Vehicle:

2002 Tacoma Limited

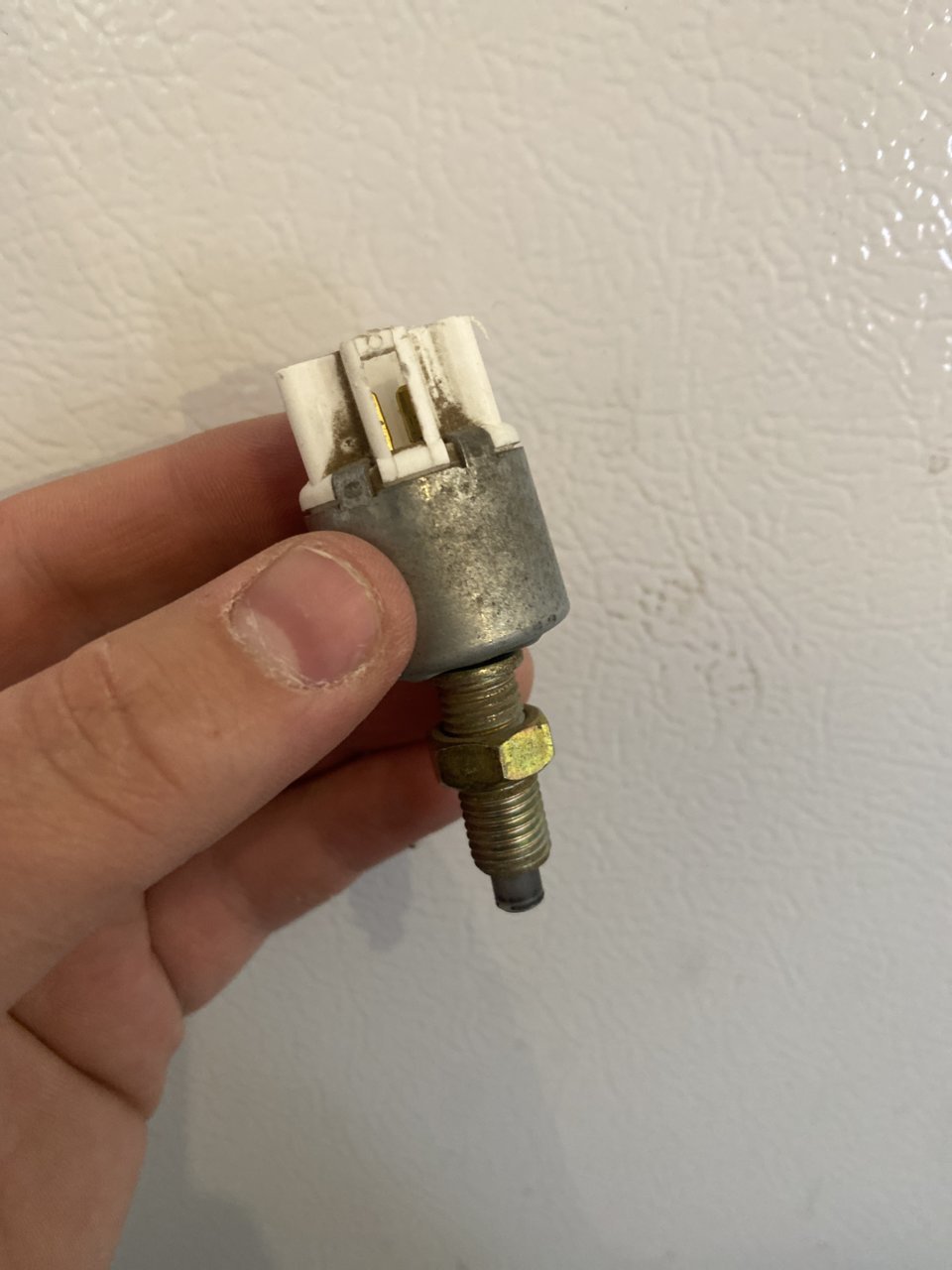

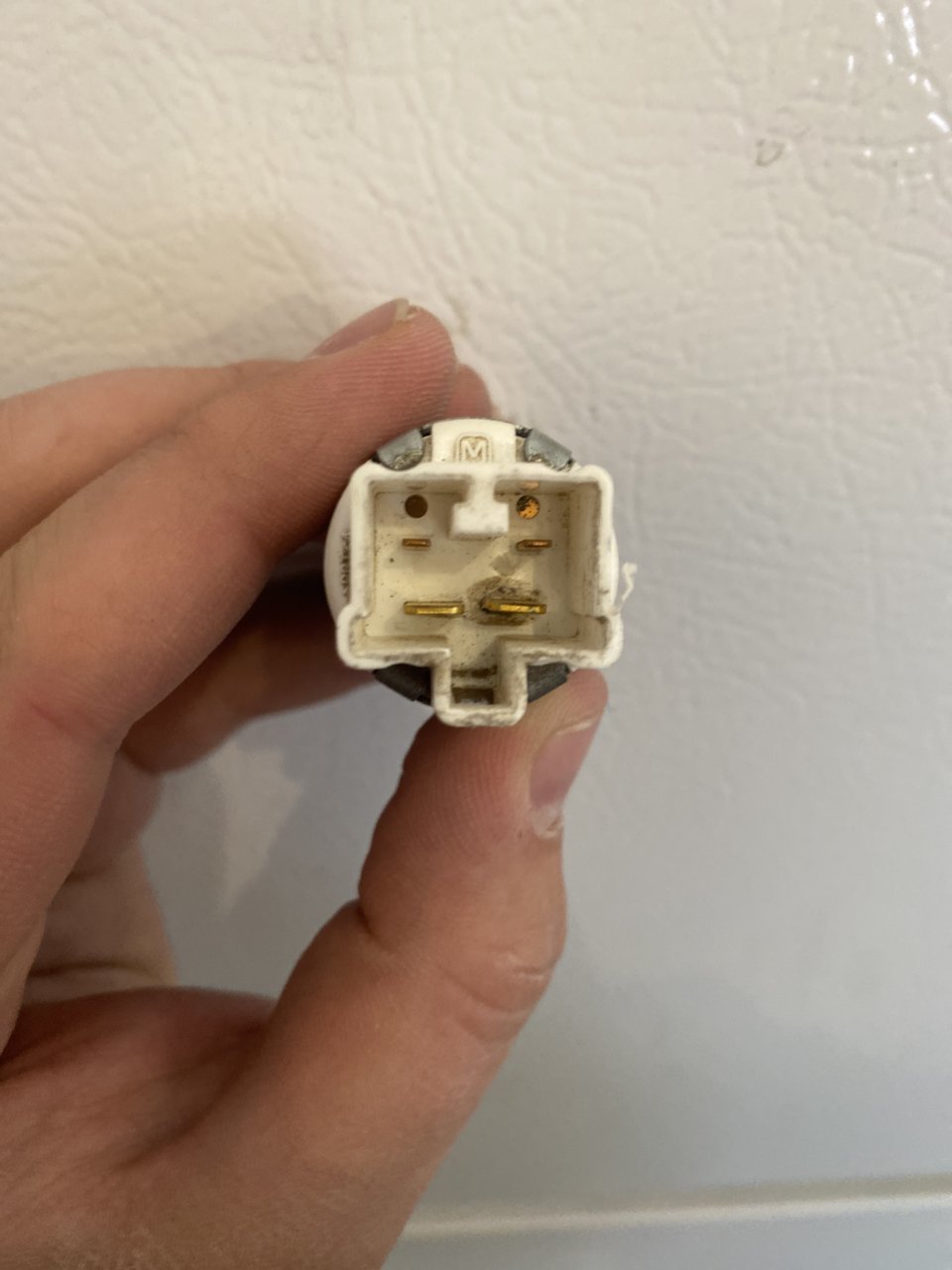

Hello! Im trying to test the brake light switch to see if it’s bad. Can someone tell me or give me a diagram on it? Like which one is power, ground, ect. Thanks!

KadeA, Mar 30, 2023

#1

Mar 30, 2023 at 3:32 PM

#2

#2
treyus30 70% complete 70% of the time

Joined:

Jun 24, 2015

Member:

#158054

Messages:

8,406

Gender:

Male

First Name:

Trey

Mesa / AJ, AZ

Vehicle:

'99 5VZ-FE Twin K03s w/Haltech

Historic plates and 2 bar

I believe the switch bridges the two pairs of matching sizes independently. Just probe all combinations with it pressed and not. If nothing changes, you know it's bad

treyus30, Mar 30, 2023
