Brake line routing on 05-12 trucks

05-12 v6 Tacoma’s with this style abs solenoid!

Can anyone post up some hood pictures of how there brake lines route across the firewall and what not? Trying to figure out how the lines crossed each other and what not. Pretty sure from the rear of the abs solenoid it’s front left then front right, then the rears.



I believe mine is the same setup, never really had a reason to look at that thing haha. If nobody else gets to it before me I'll get pictures up as soon as I get home.



Alright it was dark when I got home, hopefully these are still okay. I tried to colour code them in a understandable way.

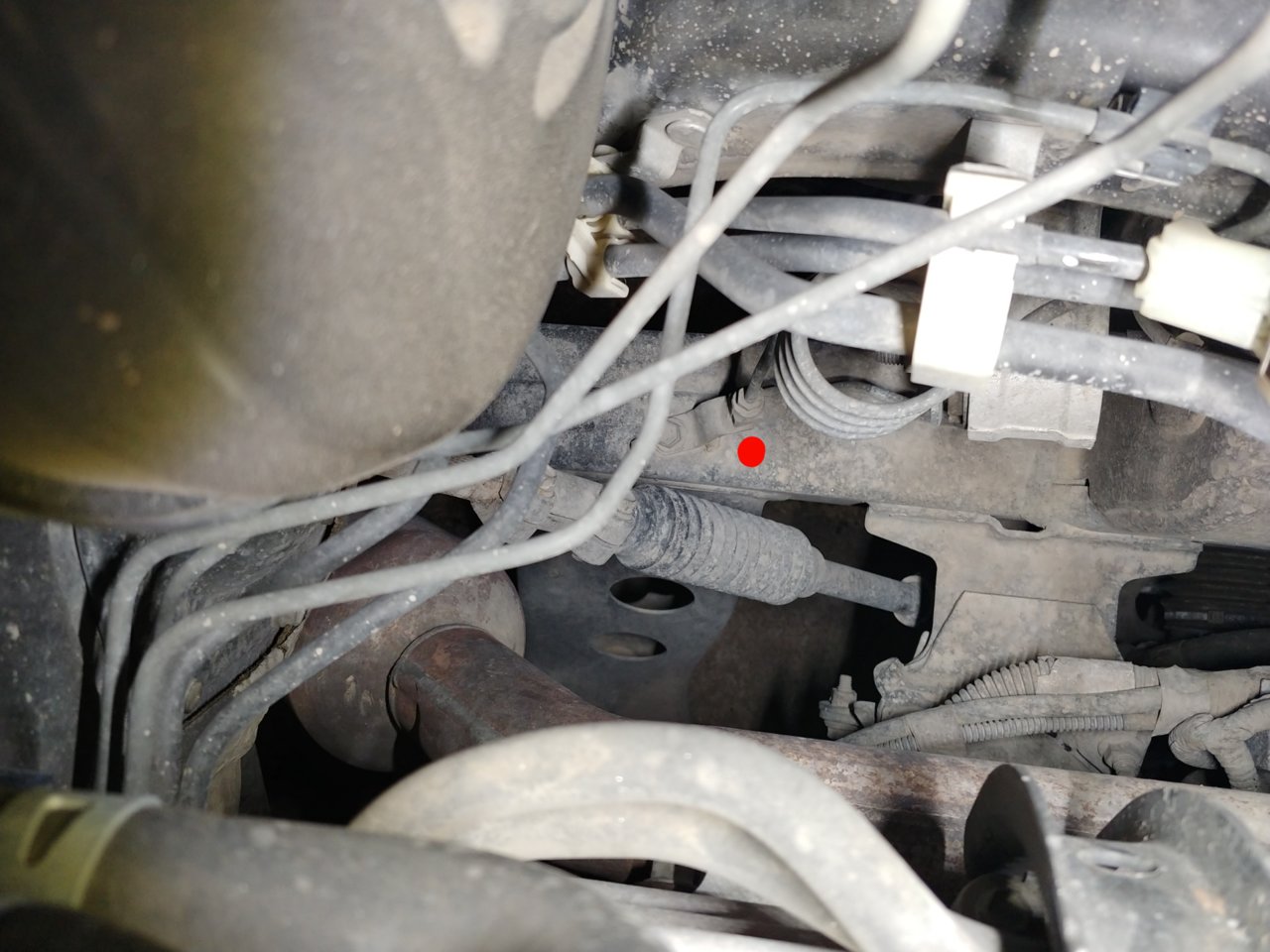

To Passenger's side front caliper.

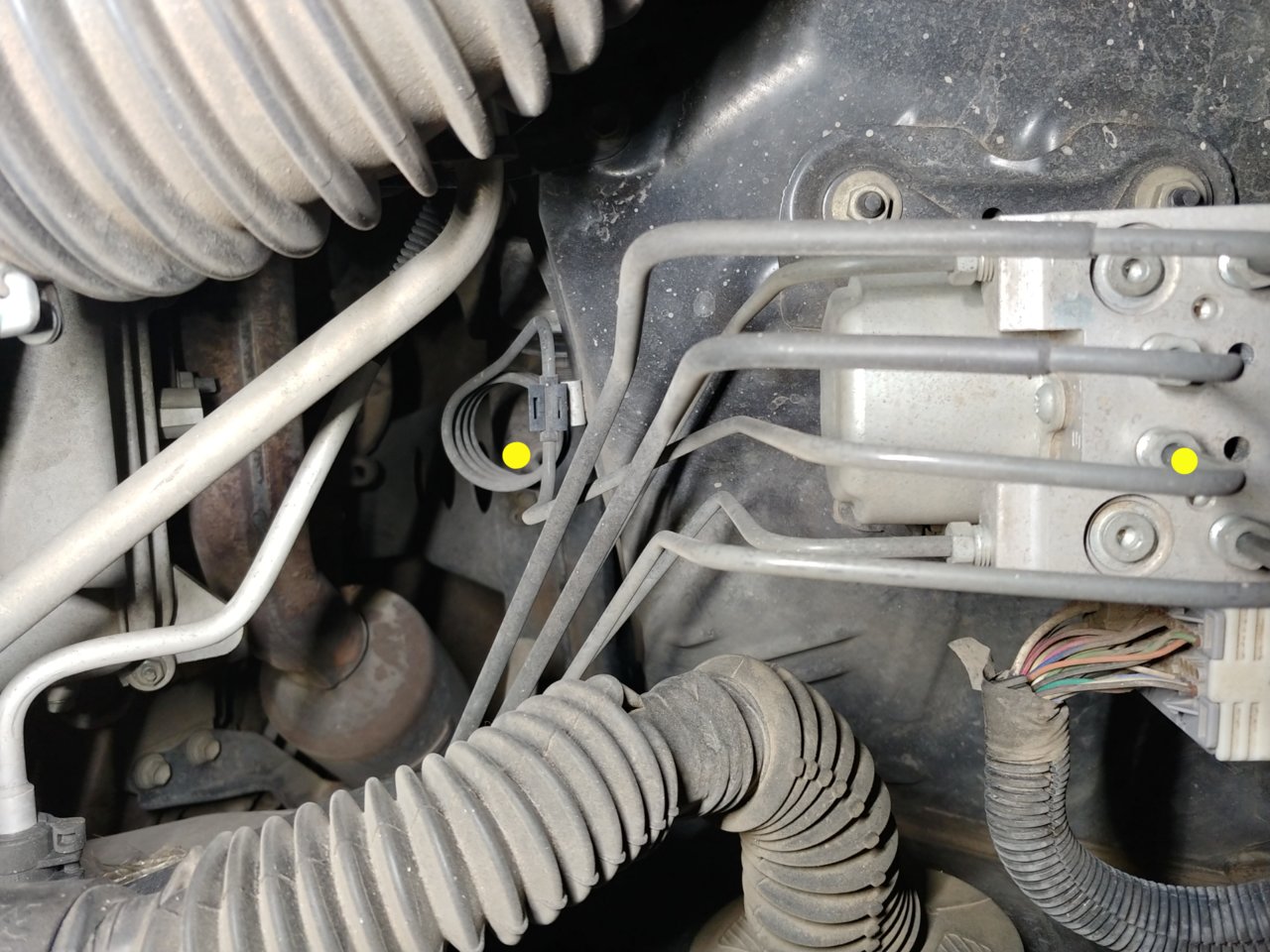

To Driver's side front caliper.

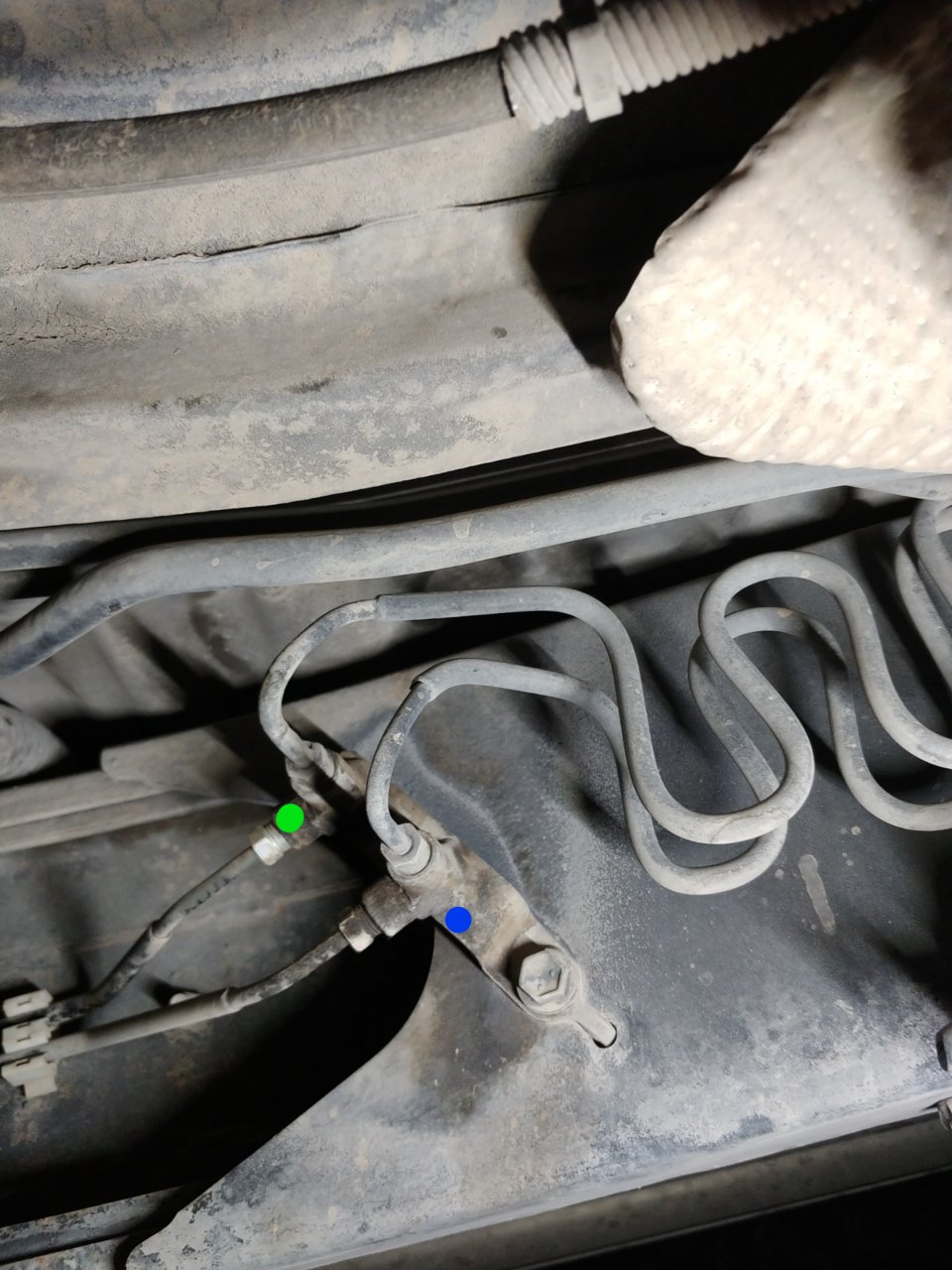

The Blue and Green go down under the truck towards the rear.


They connect on the frame under the cab, just below the Driver's door.



Not trying to be a dick but if I'm not mistaken you're going to have to go to a dealer to have the ABS Pump bled.



@ohcaltexscar awesome! Thanks that’s exactly what I needed!



meh just hammer on them till the abs activates then bleed again, good to go



That was an excellent post.
Thanks for helping a fellow TWer out



No problem! Glad I could help!
