Breathers,Diff,transfer,Transmission

Discussion in 'Technical Chat' started by BRP27, Apr 26, 2010.

  1. Apr 26, 2010 at 1:32 PM
    #1
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    I did the rear differential breather today. Easy Mod. Went to check the Transfer case and transmission breathers to see where they are at and how high up on the truck they are. On my 04 Tacoma the transmission breather is not running up higher, its right on top of the transmission.

    Here is the Differential breather that I put in behind the left rear tail light
    http://i533.photobucket.com/albums/ee334/studiduserid/Breathers005.jpg


    Here is the transmission case breather on top of case up by shift
    http://i533.photobucket.com/albums/ee334/studiduserid/Breathers002.jpg

    And the other breather on the transmission is also on top of the case. You cant see it because of the angle and how close it is to the floor board by the shifters
    http://i533.photobucket.com/albums/ee334/studiduserid/Breathers001.jpg


    The breathers are just like the one on top of the Diff,except they are molded into the transmission case. Which means you have to attach the hose to the top piece after you remove the cap.
    http://i533.photobucket.com/albums/ee334/studiduserid/Breathers004.jpg


    Here is the point of this post. The transmission on a 04 Tacoma Does not come from the factory with the breather raised up, at least not all of them? I will need to access the top of these cases from inside the cab buy pulling off the shifter boots and the cover to get at the top of the cases. There were a lot of posts that said these case breathers were already raised up. There are two breathers under the Hood probably going to Frt Diff and transfer case. But the ones I found on top of the transmission will need to be moved or water will come in thru them.

  2. Apr 26, 2010 at 1:42 PM
    #2
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,920
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    2001 4x4 5Spd Xtra Cab V6
    265/75/16 BFG A/T's, OME 881's, Wheelers 5 leaf pack, 5100's, Home Made Sliders
    Hmmm, thats strange. My front diff/transfer case breathers are under the hood on the drivers side wheel well. NOt sure about the tranny.

  3. Apr 26, 2010 at 2:02 PM
    #3
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    The breathers I am seeing are on top of the cases right where the shift levers come thru

    What I have read the frt diff, transfer and trans have breathers up high. I have a breather on each shift lever cover on the transmission
    I see the breathers on the fender well but I am seeing breathers that do not have hoses on them

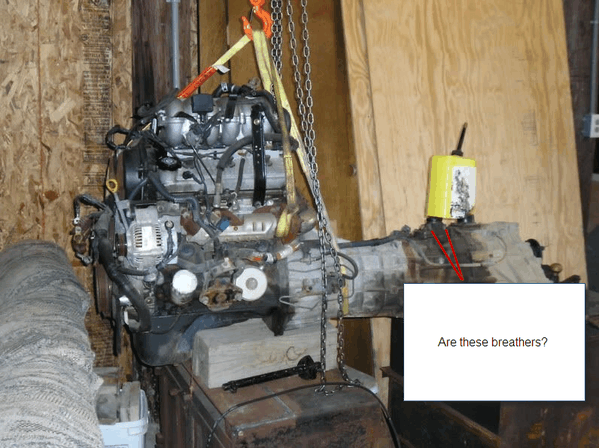

    here is a picture on another engine that may be showing the breathers

    I plan to pull the cover off the shift levers and take a better look and run these vents up higher. Will get pictures if I can of the top of the trans and transfer.
    [​IMG]

  4. May 8, 2010 at 1:55 PM
    #4
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    So I am answering my own questions, I get Rep for that

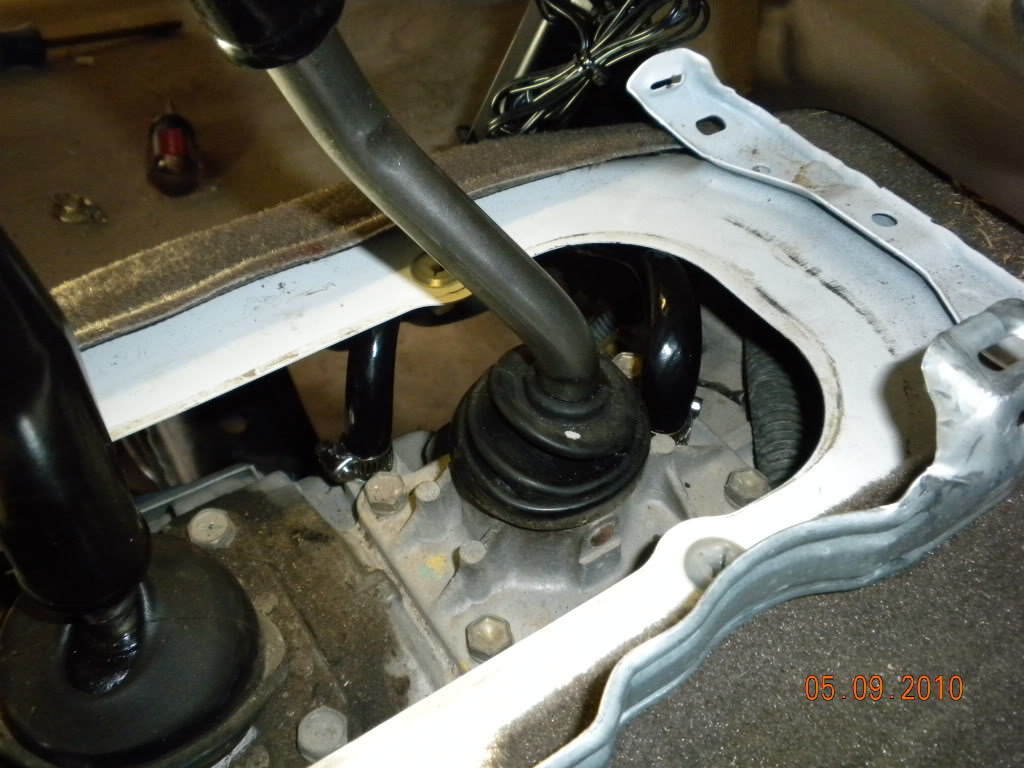

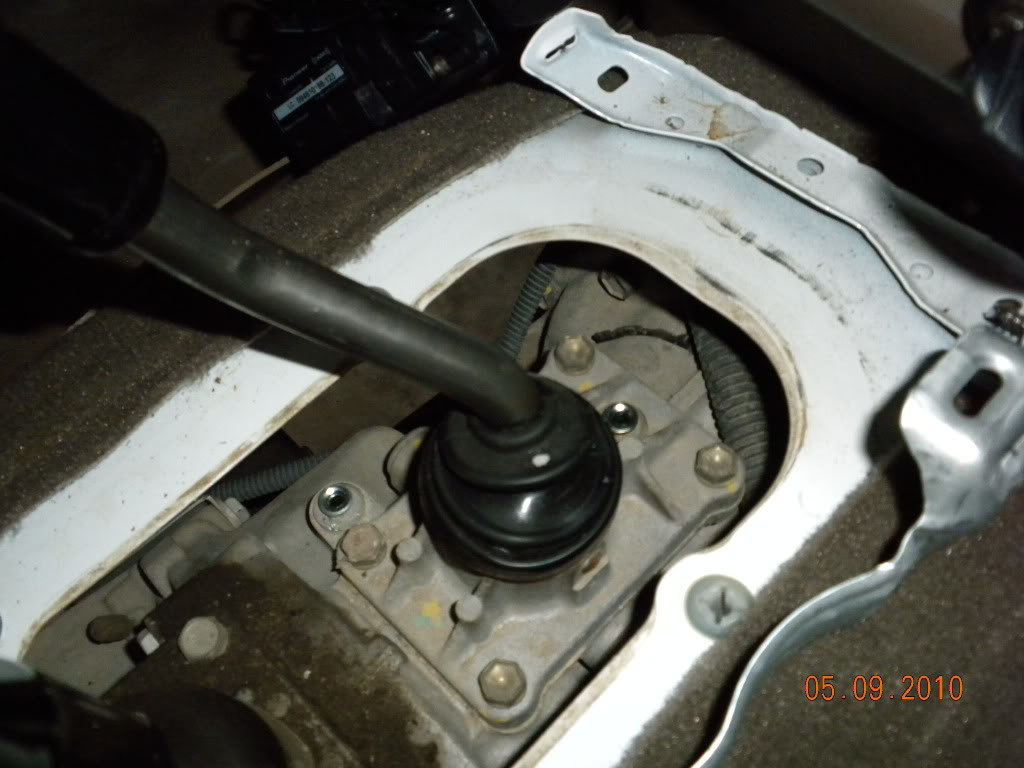

    Those are breathers on top of the transmission. I took off the shifter covers and there are two breathers on top of the trans. They do not screw out. I had to use the existing fitting and hook hoses up to them. These breathers are cast in.
    [​IMG]

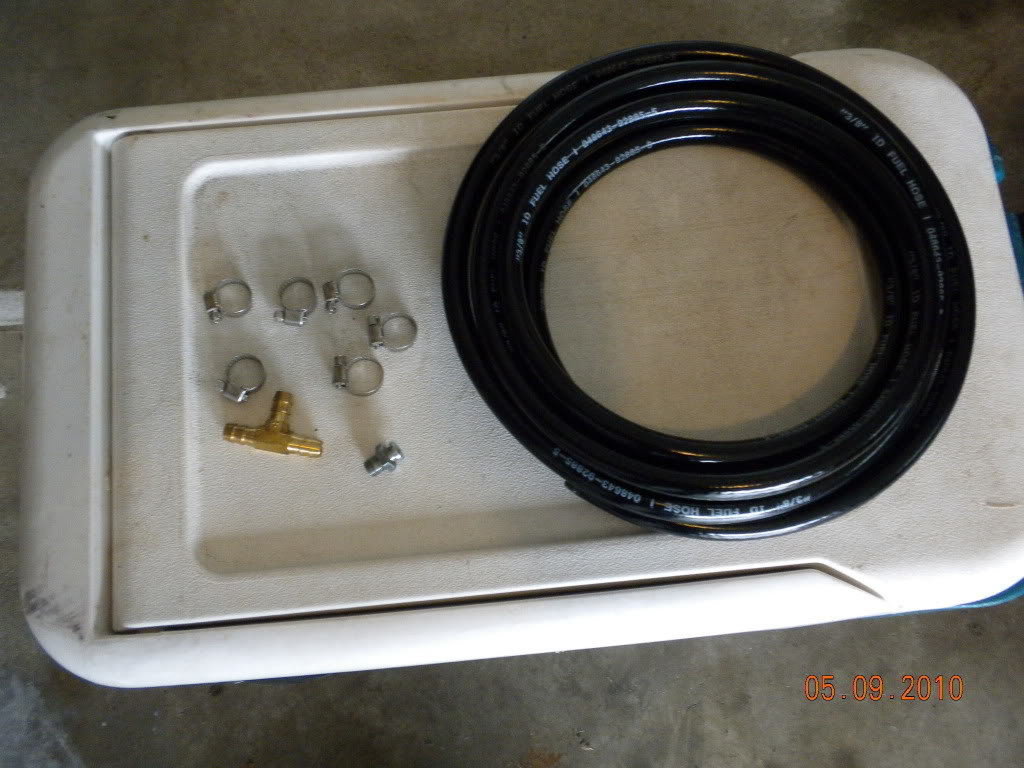

    I ran fuel hose into a Tee and then ran this up to the firewall and put a breather above the frt diff and transfer breather. The shinny parts are the breathers after I pulled the caps off the breathers. I attached the fuel hose to these pieces. Be sure to get the hose on flush so it doesn not come off. These fittings are not ideal but it's what I had to deal with since they did not have the Hex head that the Rear diff breathers have

    [​IMG]

    [​IMG]

    the hoses are hooked up

    [​IMG]

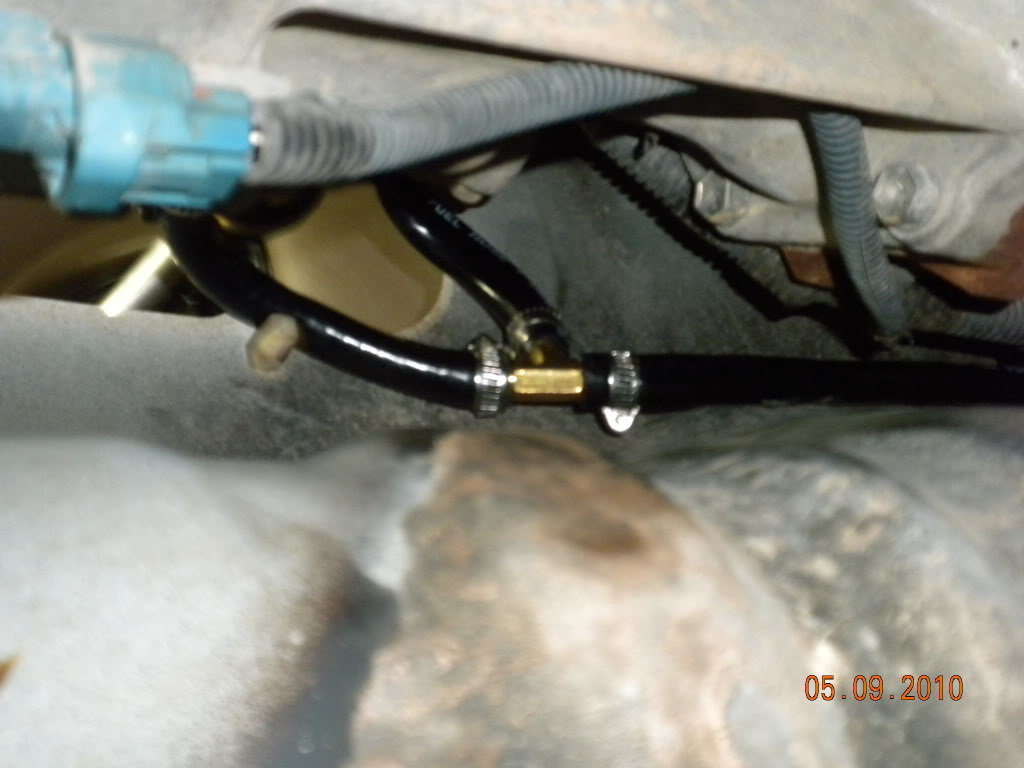

    Routing
    [​IMG]

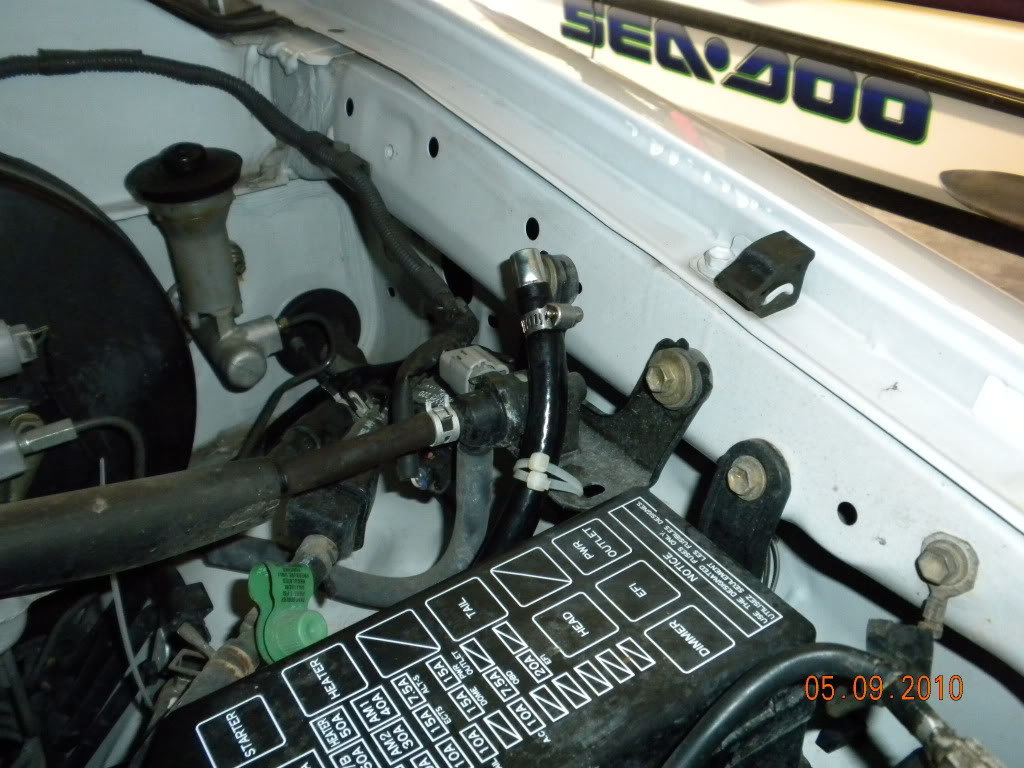

    I mounted the new breather behind the battery/fuse box
    [​IMG]

  5. May 8, 2010 at 2:03 PM
    #5
    98_Mud_bug

    98_Mud_bug 98_mud_bug

    Joined:
    Aug 9, 2008
    Member:
    #8431
    Messages:
    3,207
    Gender:
    Male
    lucedale Ms.
    Vehicle:
    98 tacoma sr5/ 06 x-runner
    3 inch suspension lift, night shades corner and blinkers projector headlights with halos and 3 led's 18 inch kmc xd rockstar wheels,275/65/18 kelly safari tsr's, bush whacker fender flares 7 inch touch screen, 2 kenwood 12's, Magnaflow exaust single in dual out,
    im curious, does the auto have a breather or is it a sealed unit?

  6. May 8, 2010 at 2:04 PM
    #6
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    So if you have done the rear diff breather you are only good for water crossings that are below the top of the transmission unless you raise the transmission breathers.

  7. May 8, 2010 at 2:08 PM
    #7
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    Not sure you would need to look under the truck or look at the FSM. There was some info out on my manual trans that it had a breather up to the inner fender well, that was not true.

  8. May 8, 2010 at 5:16 PM
    #8
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off

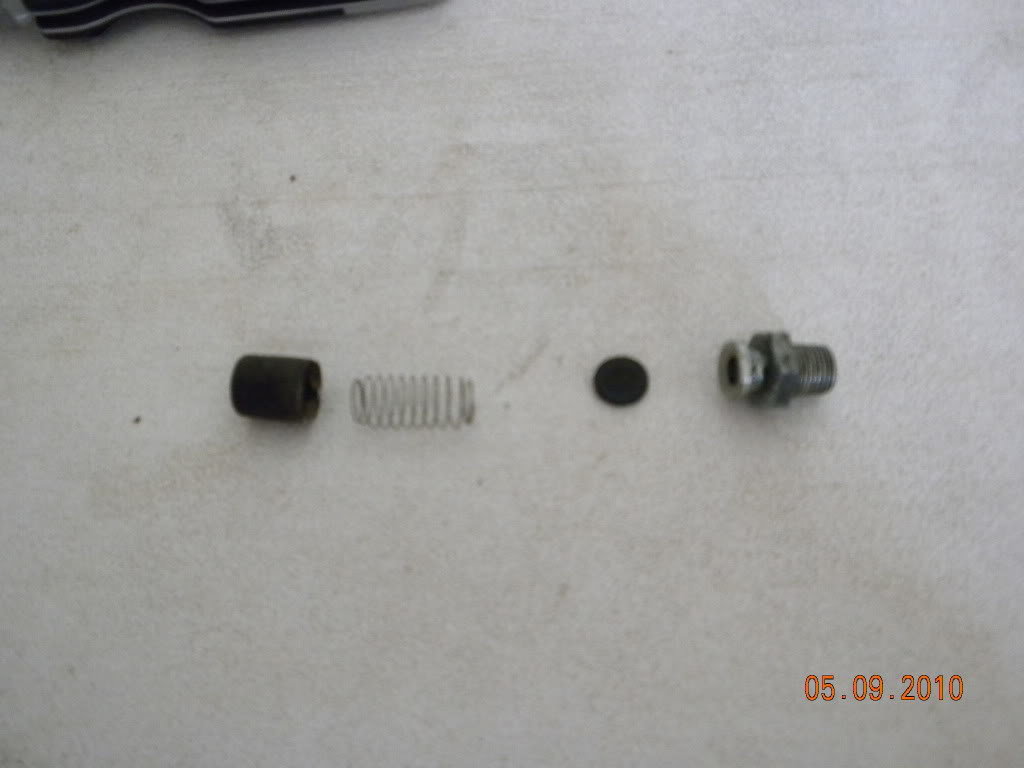

    Here is a pic of a breather that came off the Rear diff. The two that came off the top of the Transmission I had to pull the top cap off with pliers and then hook the fuel hose to the portion that was remaining.
    [​IMG]

  9. May 8, 2010 at 5:27 PM
    #9
    Jahwn

    Jahwn Active Member

    Joined:
    Feb 10, 2010
    Member:
    #31115
    Messages:
    25
    Gender:
    Male
    San Diego
    Vehicle:
    2004 Tacoma ext. cab 4x4 V6 5spd
    I'm about to do the rear diff, and was hoping to find more info on these other breathers for the tranny and front diff.
    Good info and pics, thanks for posting.

  10. May 8, 2010 at 5:35 PM
    #10
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    I was surprised to find that the breathers were not elevated on the transmission. I don't understand why Toyota would do it for the transfer case and not the transmission

  11. May 8, 2010 at 8:58 PM
    #11
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    Why would Toyota put two breathers on the transmission? The rear and front diffs have one breather each.The transfer case has one breather. Why two on the transmission and why not elevate these breathers on the transmission. The transfer case right behind it is installed with a elevated breather( I saw a hose coming off the transfer case, I did not check where it routed to, but I assume it goes under the hood on the wheel well).

  12. May 11, 2010 at 8:02 PM
    #12
    quattrokiwi

    quattrokiwi Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24518
    Messages:
    422
    Gender:
    Male
    First Name:
    Bruce
    Nor Cal
    Vehicle:
    04 Tacoma, Limited, TRD, Locked, Geared, 4x4
    The ones on the drivers side under the hood that are extended some from the factory are the front diff and the front actuator for 4x4. I traced these yesterday as I extended them up beside brake fluid reservoir

  13. May 12, 2010 at 6:48 AM
    #13
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    Thanks, I appreaciate the feedback.

  14. May 14, 2010 at 3:35 PM
    #14
    BRP27

    BRP27 [OP] When I grow up I want to be just like Me

    Joined:
    Oct 16, 2009
    Member:
    #24381
    Messages:
    407
    Gender:
    Male
    So far south in Texas my feet are in salt water
    Vehicle:
    04 4X4 Tacoma SR5
    3 in Ultimate ToyTec, set @ 2.5 in. AAL PINCH Weld Mod ( beat the pinch weld over inside the fender) Painted the pinch weld on bottom of cab Black Hi Lift Knock off
    Went out today to check the hoses to make sure every thing was the way I left it. Noticed that the breather hose on the front of the transmission is kinked possibly blocking air flow. The front breather on the transmission is higher up on the transmission . So the hose has to make a tight bend to miss the floor board. To keep it from kinking I inserted a stiff smaller tube inside the bigger tube. This worked.

  15. Apr 30, 2012 at 4:40 PM
    #15
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,834
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 220k miles
    '95-'97 camouflaged, ARB bull bar, sliders, rear tube bumper, King coilovers with Icon neoprene condoms and a defenestrated sway bar, OME Rear Suspension: CS046R leafs/N85 shocks/NWOR greasable mounting stuff; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W fog lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor; 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions/dif drop, Duratrac tires, Sockmonkey bedside decals, boat cupholder
    I'm gonna go ahead and sub this so I can check my T/TC breather status when i get time and raise it if needed.

  16. Jan 27, 2013 at 2:07 PM
    #16
    Seventh

    Seventh Insert witty title here

    Joined:
    Nov 21, 2012
    Member:
    #91582
    Messages:
    278
    Gender:
    Male
    First Name:
    Chris
    Boston, MA
    Vehicle:
    2001 Reg Cab 4x4
    Sub'd, because the smell of oil coming up through my boots is driving me insane. Really hoping the relocate will take care of it. (Just need some warmer weather up here in frosty New England..)

  17. Jan 8, 2014 at 10:26 AM
    #17
    gusotto

    gusotto gusotto

    Joined:
    Dec 13, 2009
    Member:
    #27502
    Messages:
    287
    Gender:
    Male
    First Name:
    Gary
    Iowa
    Vehicle:
    2001 Tacoma 4X4 SR5 Extended Cab
    Info on this link helped me.
    I've been smelling what seemed to be "sewing machine oil" after being in 4WD, only at times.
    Guess when the weather gets warm I'll have to check out breather hoses.
    Too cold today. -7 so it'll wait until spring.
