Brice's NA V6 Build

NotMineNotMineNotMineNotMineNotMineNotMineNotMineNotMineNotMineNotMineNotMineNot

Found this on facebook from a guy named JZ Swap and Wiring shared

I think I can wire both PWR GND connections to E02 since thats all that my ECU has (E02 and E03)



Toyota Ecu pinout abbreviations

I was asked to define the abbreviations of what I thought everyone would know. I forget that everyone had to start somewhere (myself included)

Here is a list of every Toyota abbreviation I could find. If there is anything missing or incorrect please feel free to share!

+B1 Permanent +12V
+B Permanent +12V
BAT Permanent +12V
BT Switched power via EFI main relay
IGSW Switched ignition power
E01 Earth 01 GROUND
E02 Earth 02 GROUND
E1 Earth 1 GROUND
E2 Ground/earth output for sensors
#10 Injector 1
#20 Injector 2
#30 Injector 3
#40 Injector 4
#50 Injector 5
#60 Injector 6
^Non-batch fire fuel injection
#10 Injectors 1 & 4
#20 Injectors 3 & 5
#30 Injectors 2 & 6
^Batch fire fuel injection (Older/non-vvti 1jz's)
RSO Idle air control output
RSC Idle air control output
HT Oxygen sensor heater output
STJ Cold start injector output
IGT Ignitor signal
IGT1 Ignition coil 1
IGT2 Ignition coil 2
IGT3 Ignition coil 3
IGT4 Ignition coil 4
IGT5 Ignition coil 5
IGT6 Ignition coil 6
EGR output (emissions* Exhaust gas re-circulation)
G2 Distributer input /Cam sensor 2
G1 Distributer input /Cam sensor 1
NE Distributer input /Crank sensor
G- Distributer input (Ground circuit for cam/crank sensors)
IGF Ignitor signal
TPC Turbo pressure control output (to turbo VSV)
TVIS Control Signal to TVIS solenoid
VF Check connector signal (EGO feedback signal)
TE1 Test signal Diagnostic
TE2 Test signal Diagnostic
VF Diagnostic
OX Oxygen sensor input
PIM MAP sensor input
KNK Knock sensor input
THW Coolant temperature input
IDL Idle switch on throttle position sensor
THA Intake air temperature input
VTA Throttle position input
VG Airflow sensor
THG EGR function sensor
VC 5V ouput for MAP, throttle position and airflow sensors
STA Clutch start switch input
AC Aircon request input
SPD Speed sensor input
PS Power steering signal
PSCT Power steering signal
FPR Fuel pump relay output
W Warning/check Engine light output (Ecu may ground this circuit)
STP Brake light input
ABS ABS signal
FC Fuel cut ouput
ELS idle up input

-----------------------------------------------------------------------------

Abbreviations and Toyota/SAE terms:
Glossary of SAE and Toyota Terms

ACH Air Cleaner Housing Air Cleaner
ACS Air Conditioning Sensor Air Conditioning Switch
AFS Air Flow Sensor Air Flow Meter
AIR Secondary Air Injection Air Injection (AI)
ALT Alternator Alternator
B+ Battery Positive Voltage +B, Battery Voltage
BARO Barametric Absolute Pressure Sensor HAC Sensor / P sensor
CAC Charge Air Cooler Intercooler
CARB CArburetor Carburetor
CL Closed Loop Closed Loop
CLS Closed Loop System Closed Loop System
CPS Crankshaft Position Sensor Crank Angle Sensor
DI Direct Injecttion Direct Injection
DLC1
DLC2 Data Link Connector 1: Check Connector 2: TDCL
DLI Distributerless Ignition Distributerless Ignition
DTC Diagnostic Trouble Codes Diagnostic Codes
ECTS Engine Coolant Temperature Sensor Coolant Temperature Sensor, Water Temperature Sensor or THW
EEPROM Electrically Erasable Programmable Read Only Memory Electrically Erasable Programable Read Only Memory (EEPROM), Erasable Read Only Memory (EPROM)
EFE Early Fuel Evaporation Cold Mixture Heater (CMH), Heat Control Vavle (HCV)
EGR Exhaust Gas Recirculation Exhaust Gas Recirculation
EGRS EGR Function Sensor EGR Gas Temperature Sensor
EGRV EGR Valve EGR Valve
EI Electronic Ignition Electronic Spark Advance (ESA)
EM Engine Modification Engine Modification
EPROM Electrically Programmable Read Only Memory Programable Read Only Memory (PROM)
EVAP Fuel Evaporative System Evaporative Emission Control
FPR Fuel Pump Relay Fuel Pump Relay
GND Ground Ground
HO2S Heated Oxygen Sensor Heated Oxygen Sensor
IACV Idle Air Control Valve ISC Valve
IATS Intake Air Temperaure Sensore Intake or Inlet Air Temperature Sensor
IDI Indirect Diesel Injection Indirect Injection Diesel Engine
KS Knock Sensor Knock Sensor
MAP Manifold Absolute Pressure Sensor Manifold Pressure Sensor
Turbocharger Pressure Sensor
Vacuum Sensor
MCS Mixture Control Solenoid Electric Bleed Air Conrtol Valve (EBCV)
Electric Air Control Valve (EACV)
MPI Multipoint Fuel Injection Electronic Fuel Injection (EFI)
O2S Oxygen Sensor Oxygen Sensor, O2 Sensor
OBD On Board Diagnostic System On-Board Diagnostic System
OC Oxidation Catalyst Oxidation Catalyst, CCo
OL Open Loop Open Loop
PAIR Pulsed Secondary Air Air Suction (AS)
PCME Powertrain Control Module (engine) Engine ECU
PCME&T Powertrain Control Module (engine and transmission) Engine and ECT ECU
PCMT Powertrain Control Module (transmission) ECT-ECU, Transmission ECU
PNS Park/Neutral Switch Neutral Start Switch (NSW)
PTCS Powertrain Control Signals Output Signals
PTIS Powertrain Input Signals Inp[ut Signals
RAM Random Access Memory Random Access Memory
ROM Read Only Memory Read Only Memory
SABFV Secondary Air Anti-Backfire Valve Check Valve
SABV Secondary Air By-Pass Valve Air By-Pass Valve (ABV)
SAPV Secondary Air Pulse Valve AS Reed Valve, Air Suction Valve
SASV Secondary Air Switching Valve Air Switching Valve (ASV)
SC Supercharger Supercharger
SMPI Sequential Multipoint Electronic Fuel Injection Electronic Fuel Injection (EFI), Sequential Injection
SPS Steering Pressure Sensor Air Control Valve (ACV)
TB Throttle Body Throttle Body
TBI Throttle Body Electronic Fuel Injection Single Point Injection
Central Fuel Injection (Ci)
TC Turbocharger Turbocharger
TCC Transmission/Transaxle Converter Clutch Switch Lock-Up Solenoid
TGSS Transmission Gear Selector Switch Shift Possition Switch
TOP Trap Oxidizer-Periodic Diesel Particulate Filter (DPF)
Diesel Particulate Trap (DPT)
TPS Throttle Possition Sensor Throttle Possition Sensor
TVS Thermal Vacuum Switch Bimetal Vacuum Switching Valve (BVSV)
Thermostatic Vacuum Switching Valve
TWC Three Way Catalyst Three Way Catalyst
CC80
VR Voltage Regulator Voltage Regulator
VSPG Vehicle Speed Pulse Generator Speed Sensor
VSS Vehicle Speed Sensor Vehicle Speed Sensor (reed switch type)
WOTS Wide Open Throttle Switch VL Switch
Power Switch
WUTWC Warm Up Three Way Catalyst Manifold Convertor



Haha welp Im gonna wire it to E02 and see what happens

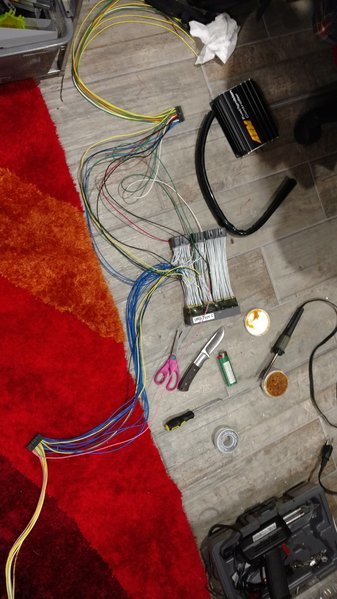

Done. Time to test it



7 out of 11 e3 plugs failed on me. 5 of them physical breaking. Never using that garbage again.



@Brice
@Clay_916
Where'd you guys get your fic from? They seem to range in price a lot. I've seem some on eBay for as low as ~$300 saying they're shipped from Thailand and Malaysia. Know anything about those? Also Brice, where'd you buy that harness from that your wiring into to? Lastly what do you guys think of this compared to the mapecu3? Asking b/c of the potential GB that may happen. Thanks



I got mine from Amazon, er my mom did since it was also a gift.

I got that extension harness from URD. Its on there website under electronics I believe.

And I had looked into the mapecu3 back when I first started this and I'd say you could probably use either one with the same results, the mapecu I believe is a bit newer so you may have more features (I believe it has two step and fast car stuff like that, not sure) and as long as the map ecu tells you what it needs to intercept and see, wiring should be fairly straightforward



I got mine off Amazon for $390. I wouldn't gamble on anything cheaper that might end up being a fic3.5 or something like that. I think the map3 is easier to configure but it has a smaller range of injector sizes that can be used because it only indirectly controls injector pulse width through the MAF while the fic can directly control pulse width. I've read the fic has issues communicating with the crank position sensor but it seems a simple resistor can fix this issue(?).

I honestly don't know a lot about the map3 and only opted for the fic because of price. At the end of the day they both will accomplish the same thing so I say buy the one that's cheaper.



Well did it power up and connect?



Thanks for the info guys. Looks like they're about the same still on Amazon so definitely a better price than the MAPECU. Brice, how much did the PNP harness end up costing? URD doesn't list a price so I'm guessing it must vary depending on the exact application.

Is there a way that either of these fuel/timing controllers replace the MAF with a MAP sensor completely?



The MAP3 can do both. Maf Intercept or Maf Delete (MAP only I.E. speed density).

Not sure about the AEM.



You can technically remove it with the fic since it has a maf offset table. I'm not sure how the map removes it but with the fic you would need to set up the entire table manually so that the computer is seeing what you want in MAP via MAF, if that makes sense.

Did some reading on the map3 last night. It looks like it has an EBC which is really nice since most I've seen are in the ball park $200-300. In general it claims to be able to do a lot more stuff but having tinkered with the 5vz ecu personally I doubt it's as capable as it claims, at least with this particular engine.

what is the GB price that you're likely to hit? $450? If it's near that I'd say just go for it for experimentation sake. In the very least you'll have a piggy back that can get you a spot on tune equivalent to the fic and at most you'll have all the extra features.



DONE YET BRO?



I thought about trying the MAFT pro piggy back too. It does MAP conversion, EBC, and a lot more. But our motors ECU is such a bitch idk if it would be worth it.



we have the $500 rate now, I think their are 5 of us in on the GB to get to 450 we would need 11 people in, and we are gonna order feb 3rd I think



Yeeees, Well no this thing will never get finished lol

Sorta

It started with the AEM plugged in but ran crazy lean for some reason. I may have messed up some wiring somewhere along the line so I may have to go back. I can use the bypass harness to troubleshoot.
Another thing is that when I installed the AEM fic 6 software, it didn't give me the bas_cal.fi6 file for a base map, and I can't find one anywhere on the internet, so I'm essentially left without any way to make a map...Not sure what to do there.

The PNP ext harness was like 189 dollars? Much more reasonable than the Boomslang one which admittedly comes pre wired but is $550 I believe lol.
That was a type C harness for a 99 V6, You would need a type D harness which is $199 You should be able to scroll to the very bottom of URD's website where the harnesses are and see the pricing

Random non-blurry pics


Where the ecu sits behind the glovebox

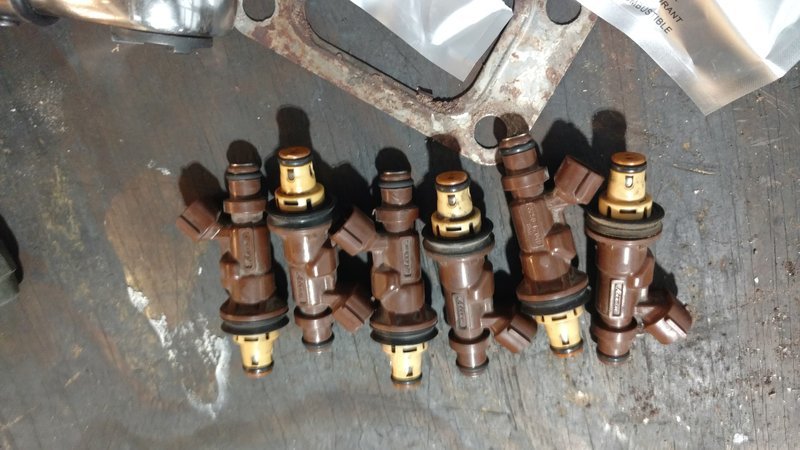

Stock Injectors, Thinking about trying to decap these and have the flow tested...

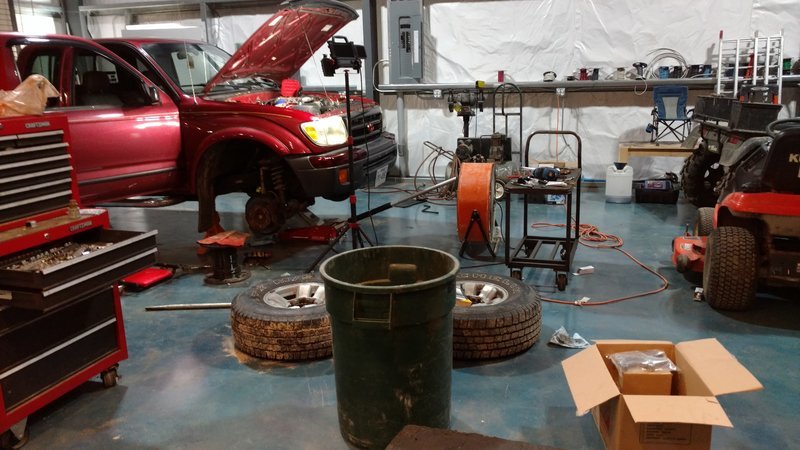

The mess in the shop this thing leaves routinley

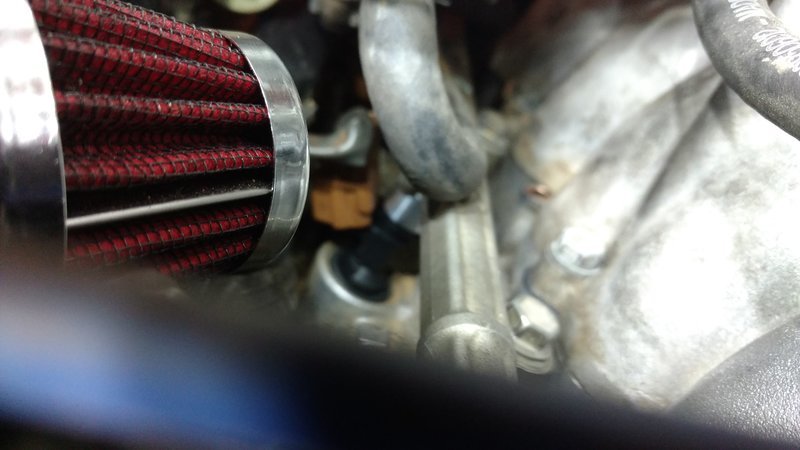

New injectors, you can kinda see em, phone didnt want to focus

touch

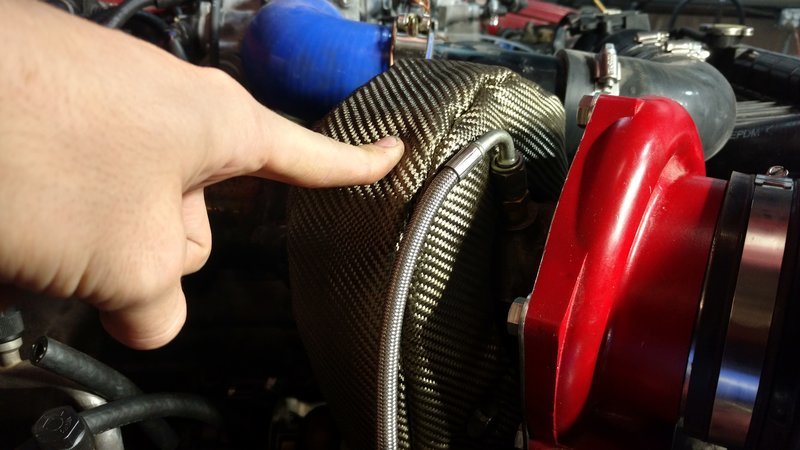

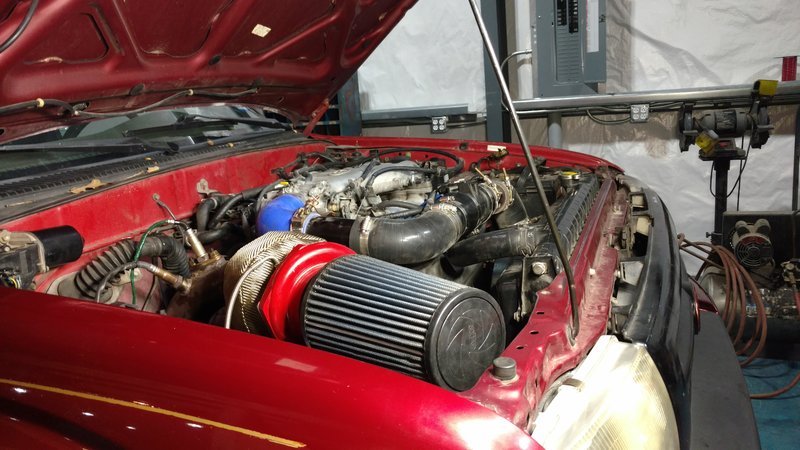

Shot of the engine bay with that slick new snail blanket



There is no base map, it just all zeroes. Running lean worries me. No idea why that would be.



So holy shit.

Mega squirt does PNP now. They don't have one for tacomas..yet. But can happen..

http://www.megasquirtpnp.com/mspnp_on_demand.php

That said, looks like they only have ecu plugs for 95-97 tacomas with manuals.

But hot damn. Id go for the program if I could find 9 others with 95-97s who wanted boost and a guy near Georgia for testing....




Not good odds. Haha



From what I read there should be a "nothing map" wherever AEM installs the software, but there's nothing there and it wont let me make one...



As I recall you can only connect to the fic from your pc once you have a map loaded on the program and you have to make the base map. Don't remember how you make it, I think I had some generic instructions that were shipped with the fic and it was pretty simple.



if only there were a website where people could post videos on how to do things
