Brief How To: Stock Rear Bumps On Flip Kit

Discussion in 'Suspension' started by jdkeller, Aug 15, 2010.

  1. Aug 15, 2010 at 10:17 PM
    #1
    jdkeller

    jdkeller [OP] How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    12,997
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    So after selling my Timbrens I was running with no bumps for a while. I decided to mount the stock ones back on my u-bolt flip kit. To do this you will need to have the pre-threaded holes in your top plates already. Some do not come with them. This wasn't hard at all to do. Just wanted to let you guys know it can be done. It's a nice alternative for the people that don't want to run the Timbrens.

    Tools needed:
    grinder
    drill with 3/8" bit
    the hardware in the picture below
    basic socket set

    1. The holes in the flip kit are 3/8". Go to Home Depot or wherever and buy 4 of these:
    [​IMG]
    and 3 packages of these. They come in packets of 3 and you need 8.
    [​IMG]

    2. Take off the u-bolt flip kit assembly if it's on the truck. Take the top plates and hold the stock bumps on the holes. Mark from underneath where the two hole are that you need to drill. There are two per top plate/bump stop. Using a 3/8" drill bit, drill out the holes.

    3. Then using a grinder you must notch the bump stops. This is to allow the washers from the u-bolts to fit.

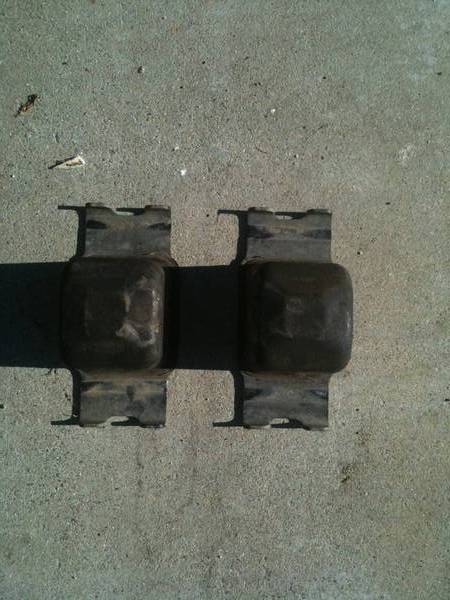

    It should look like this:
    Before:

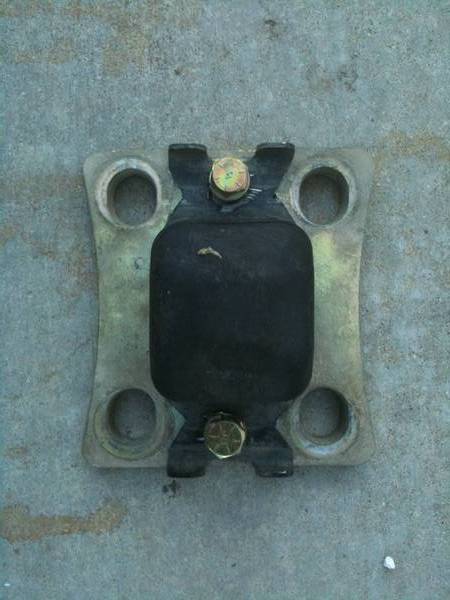

    [​IMG]
    After:
    [​IMG]

    4. Like in the above picture, use 2 locking washers per bolt. The bolts are 3/4" long and with the 2 washers and the bolt all the way tight, the end of the bolt sits flush with the underside of the top plates. Tighten those on the top plate.

    5. Finally, set the plates on your leafs, put the u-bolts through and mount them up.

    Here are my afters:

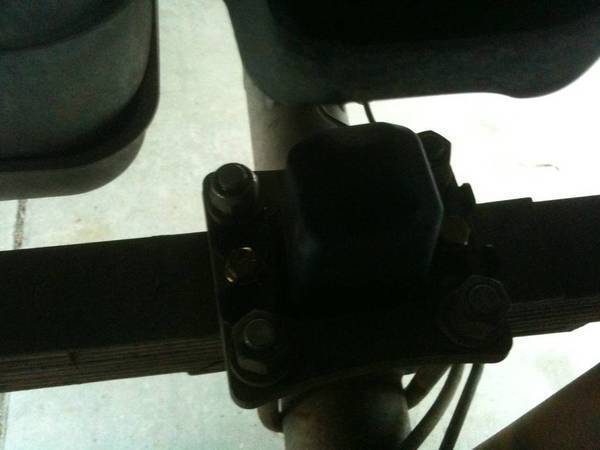

    [​IMG]

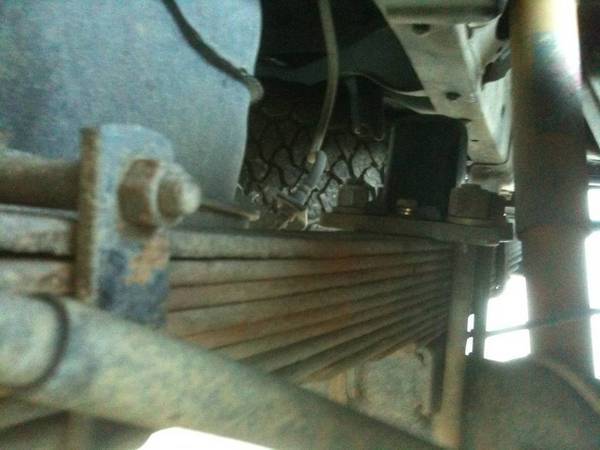

    [​IMG]

    Sorry for the terrible pictures. I was using my cell phone. I did all of this without jacking up the truck and taking the wheels off. It's unneccesary. I am not at fault for anyone who tries this and fails or messes their truck up!

    If anyone in socal wants help I am willing. Just bring food and beer. :D I'm in 92336.
