Bringing 12v Power to my Truck Bed

Discussion in '3rd Gen. Tacomas (2016+)' started by Arlaghan, Aug 7, 2017.

  1. Aug 7, 2017 at 1:22 PM
    #1
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    490
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road

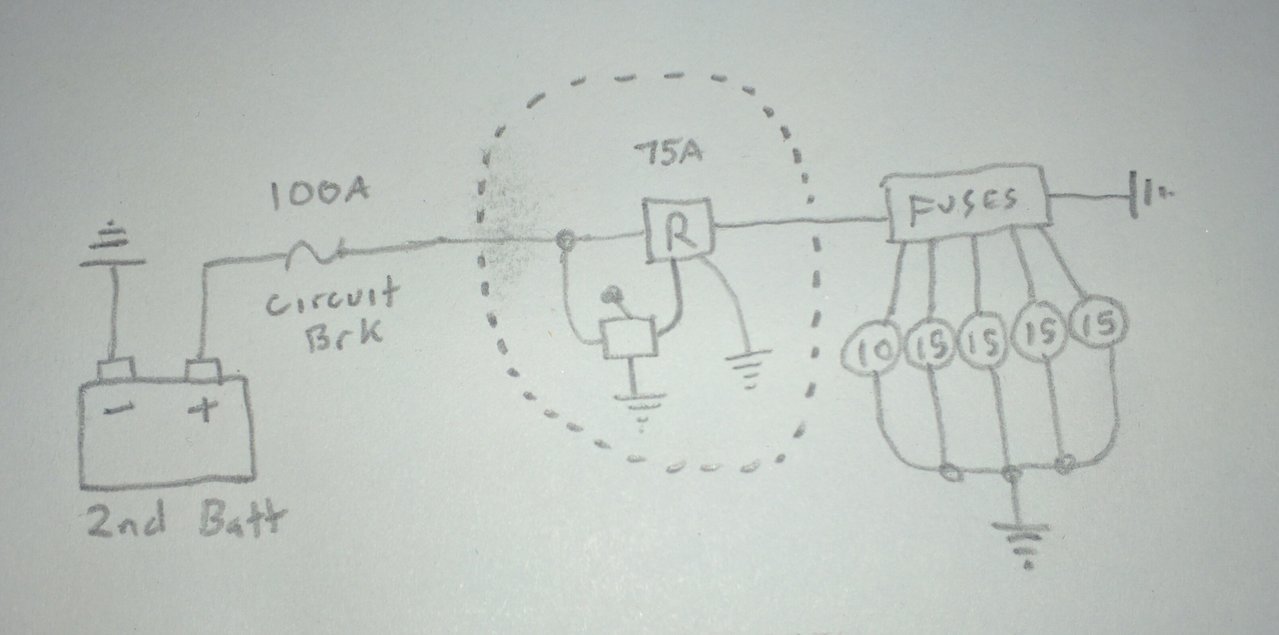

    I've ordered a dual battery kit from @HeliMedic and am trying to figure out how I want to distribute power to the rear of the truck. I will be running an ARB Fridge back there as well as various accessories (power to the CVT tent/awning, USB outlets, portable water pump, lights, etc). Right now, this is the wiring diagram I have in mind. I'd like each cig socket (rated 15A) to be able to handle a full load. Since there will be 4 of these, plus some miniscule draw from the USB outlet/voltmeter, I figured I would use a 75A relay so I can control the whole thing from a master switch. The switch included in the panel doesn't appear to be weather-proof, so I will likely replace it with something better, which got me to thinking about placement. Ideally, this switch would be routed inside the cab, so no "outside forces" can tamper with it. This means I can put the relay in the engine bay somewhere, route the switch through a grommet I am already using the the compressor switch, and then just run cables to the rear fuse panel.


    Questions:
    Is this a good approach?
    Also, from the wiring diagram, do you see any issues with the area in the dashed circle?
    The switch will have a light, so I guess it needs a fuse as well?

    Current Parts List:
    10 Position Low-Profile Mini/APS Fuse Panel - $26.83
    (I know there are better ones out there, but I chose this one since it shares the same fuse type as the truck.)

    Dual USB Socket Charger (2.1A x2) with LED Voltmeter, 12V Power Outlet, Toggle Switch - $21.99
    (Most USB outlets have one 1A, which seems useless, plus this one had a voltmeter, saving me one slot. Likely will replace the switch.)

    3 Waterproof Car Cigarette Lighter Socket 12V Power Outlet with Three-hole Panel - $17.99
    (This seems the most versatile - I can always get adapters)

    Parts to Figure Out:
    Reset-able Circuit Breaker
    Relay(s)
    Waterproof switch (if I leave it in the truck bed) or extra cig socket if I put the existing switch in the cab)

  2. Aug 7, 2017 at 4:25 PM
    #2
    i8boots

    i8boots Well-Known Member

    Joined:
    Mar 10, 2014
    Member:
    #125032
    Messages:
    179
    Gender:
    Male
    UT - 801
    Vehicle:
    2017 MGM DC SB TRDOR JBL
    Hood/bed lights, pop-n-lock, Bak X2 Tonneau, custom breaker box, Husky mudflaps, white interior LEDs
  3. Aug 8, 2017 at 9:05 AM
    #3
    Sagebrush

    Sagebrush Well-Known Member

    Joined:
    Apr 2, 2016
    Member:
    #183141
    Messages:
    419
    Gender:
    Male
    Vehicle:
    2016 Silver Double Cab Tacoma OR
    Stock plus a topper
  4. Aug 8, 2017 at 12:45 PM
    #4
    Arlaghan

    Arlaghan [OP] Well-Known Member

    Joined:
    Dec 5, 2016
    Member:
    #204138
    Messages:
    490
    Gender:
    Male
    First Name:
    Alex
    Redmond, WA
    Vehicle:
    2017 Red TRD Off-Road
    Hmmm... This gives me food for thought. If I put a cut-off switch in the engine bay, no one can tamper with it. :D (I'm not concerned about people being malicious - It's more a concern of a kid who's done charging their gaming pad and flipping the switch off.) I'm wondering now if I need one at all? The circuit breaker can act as a switch, right?

    I've had my eye on something like that, but I couldn't find one that uses APS (low-profile mini) fuses. I'm going to have to use a separate negative bus. :(
