Broke my tow plug housing thing

Discussion in 'Towing' started by thestrangebrew, Sep 25, 2009.

  1. Sep 25, 2009 at 8:32 AM
    #1
    thestrangebrew

    thestrangebrew [OP] AlphaPlanner

    Joined:
    Aug 27, 2009
    Member:
    #21878
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Dos Palos CA
    Vehicle:
    TRD 4x4 Rugged Trail Edition
    Black Badges, Black Center Console

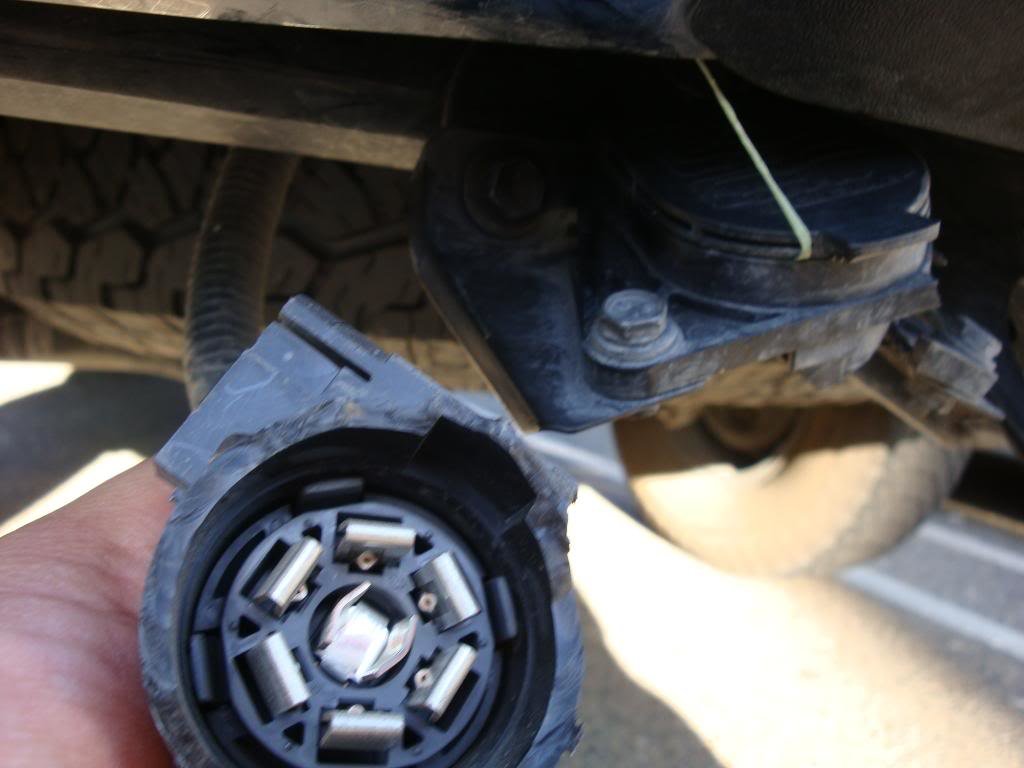

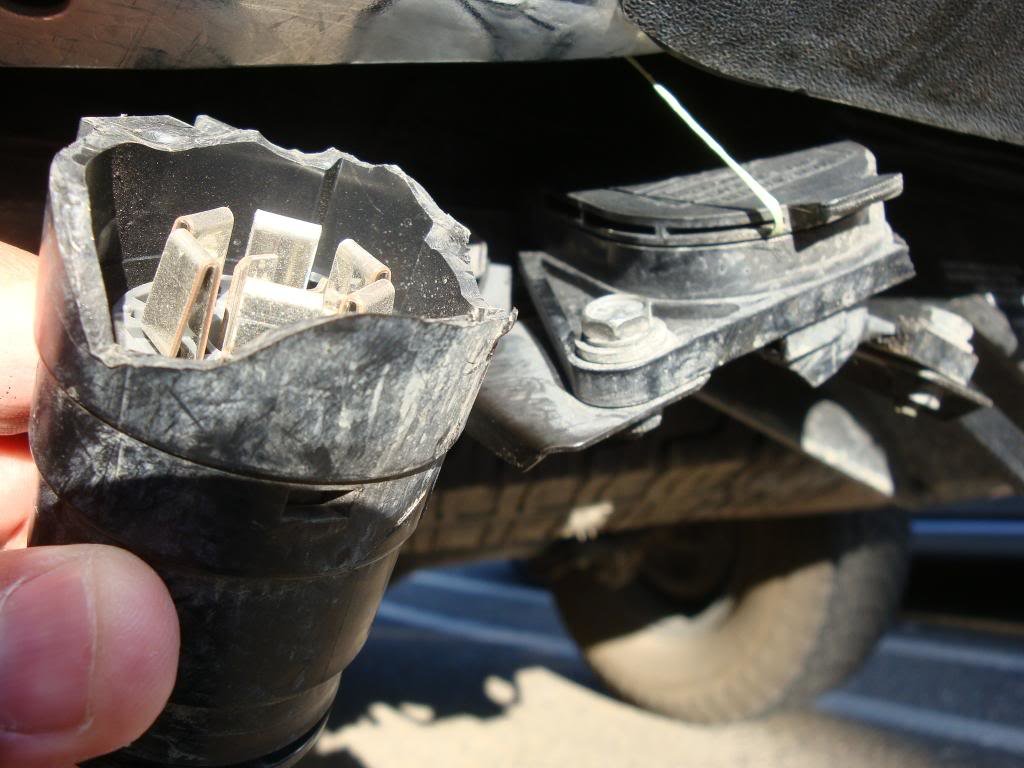

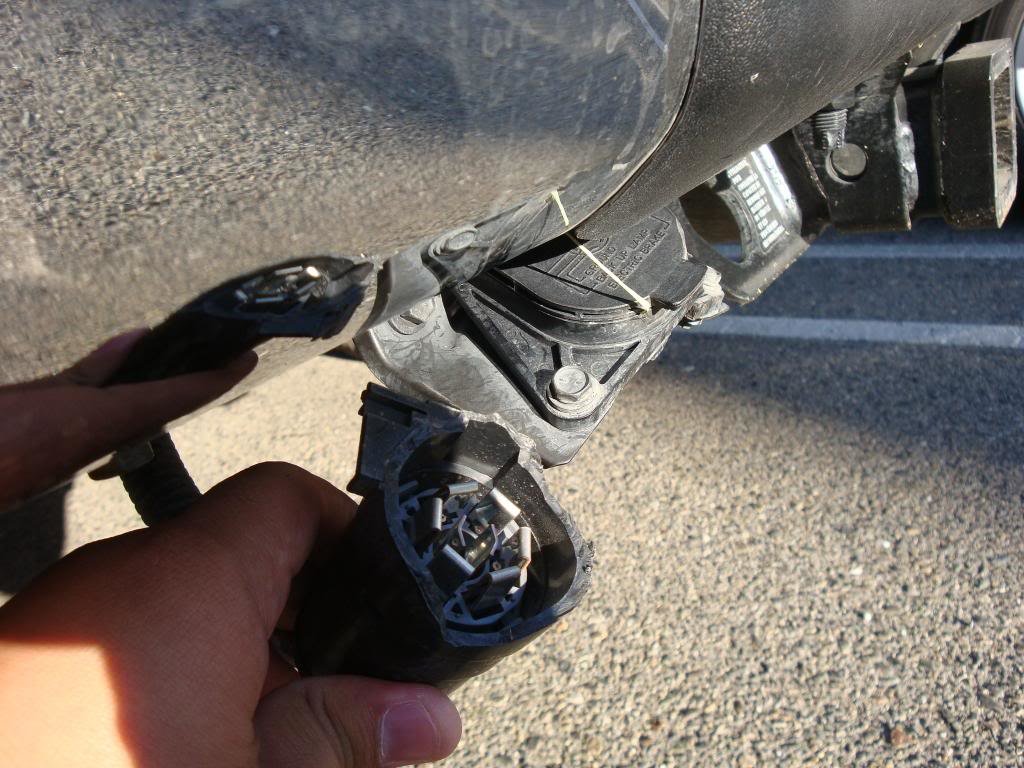

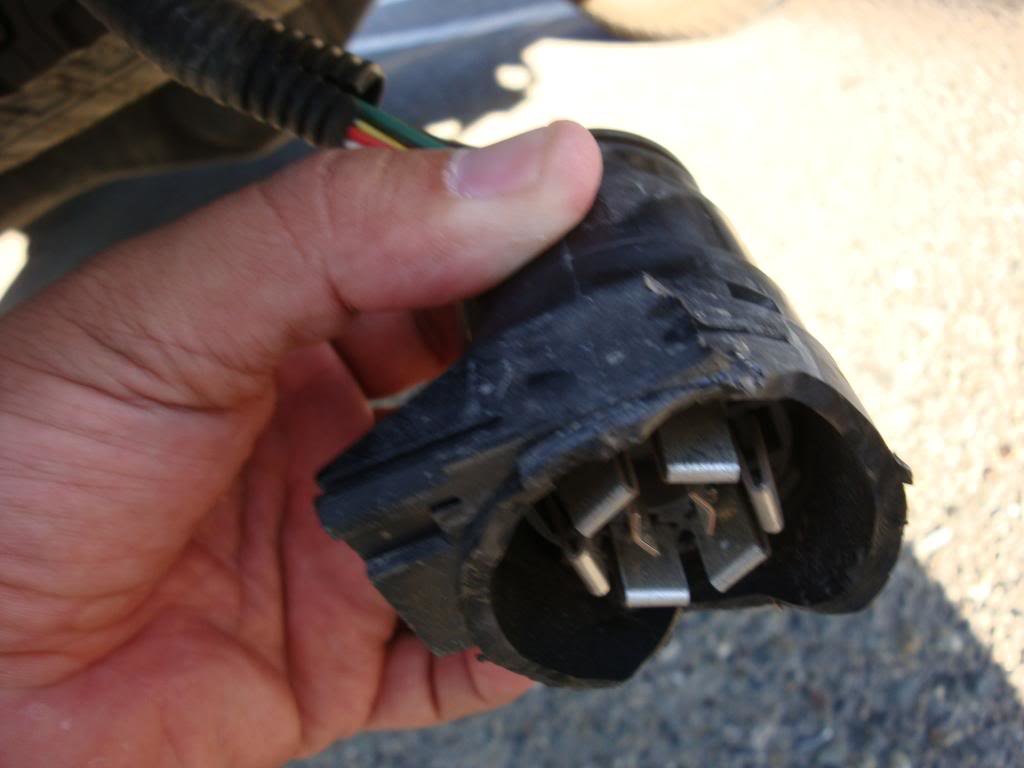

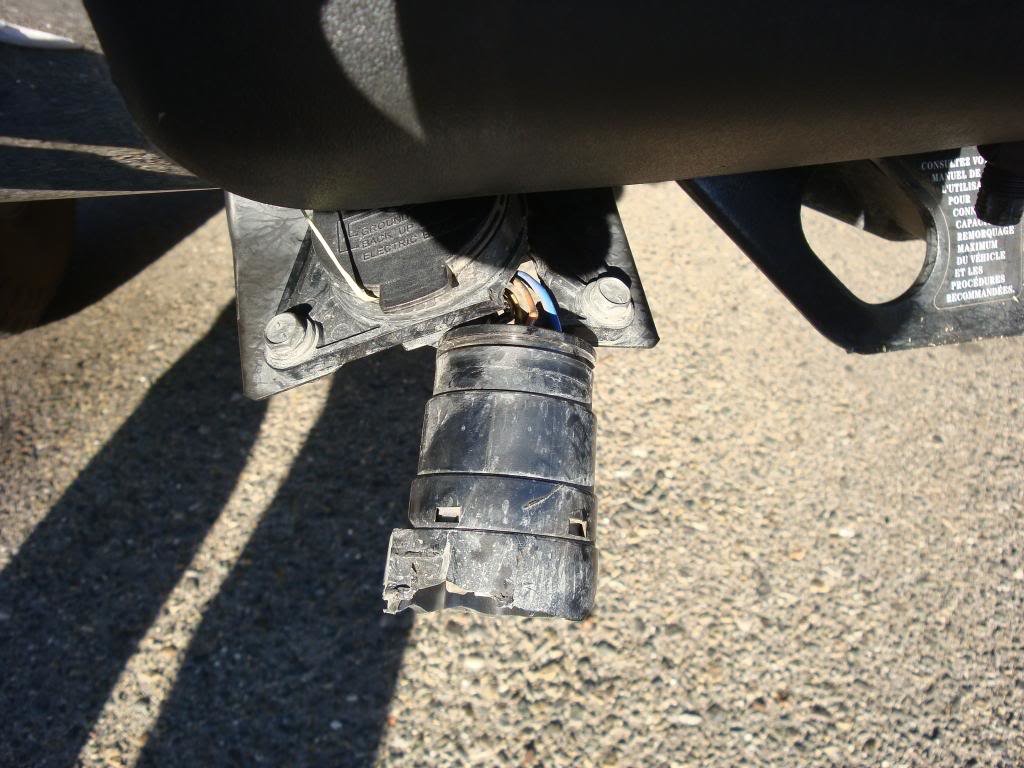

    I have no idea what this thing is called but I hit the rear end pretty hard when I went wheeling a few nights ago. How much would it cost to fix it? Alternatives?

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    The wires are all intact so I assume that's a good thing, but the part that sits right under the rear bumper is bent to hell. Thanks.

  2. Sep 25, 2009 at 8:34 AM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,136
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    You should be able to get a replacement from an auto parts store for under $20.00. Them, mount it up out of the way. Some people have drilled into the bumper, and mounted it there...

  3. Sep 25, 2009 at 8:53 AM
    #3
    thestrangebrew

    thestrangebrew [OP] AlphaPlanner

    Joined:
    Aug 27, 2009
    Member:
    #21878
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Dos Palos CA
    Vehicle:
    TRD 4x4 Rugged Trail Edition
    Black Badges, Black Center Console
    Does anyone have any pics of how they mounted it? That'd be great. Thanks Chris.

  4. Sep 28, 2009 at 1:47 PM
    #4
    SPQR

    SPQR Member

    Joined:
    Sep 28, 2009
    Member:
    #23457
    Messages:
    13
    Gender:
    Male
    Calgary
    Vehicle:
    09 SR5 TRD Offroad 6 speed
    Mud. Lots of it.
    I did the exact same thing this weekend. I could go on about how stupid it is to have the plug there, but I'll just skip straight to a question... Does anyone know which wire does what? I bought a new housing thing from an auto parts store, and the 6 colors on the thingy are as follows, with the instruction diagram's description

    1. White - ground
    2. Red - electric brakes
    3. green - tail lights
    4. Black - 12V
    5. Red - left turn/brake
    6. Brown - right turn/brake

    And it doesn't say anything for the center one

    Buuuut...

    My truck also has a yellow wire. And according to a wiring diagram I found here, and to a person that I spoke to at a hitch installation shop, yellow is left turn.

    Does anyone know which wire does what? Is there consistency with how Toyota wires it's factory trailer plug?

  5. Sep 29, 2009 at 10:07 PM
    #5
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,331
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    I suppose now is a bad time to mention the 7-pin relocation mod? :eek:

    Sorry you guys tore yours off. Mine took a real bad scrape and thank heavens I moved it.

    [​IMG]

    [​IMG]

    I took pics while doing the work but never took a final pic yet. :D

  6. Sep 30, 2009 at 12:00 PM
    #6
    thestrangebrew

    thestrangebrew [OP] AlphaPlanner

    Joined:
    Aug 27, 2009
    Member:
    #21878
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Dos Palos CA
    Vehicle:
    TRD 4x4 Rugged Trail Edition
    Black Badges, Black Center Console
    Can you post a final pic?

  7. Sep 30, 2009 at 4:02 PM
    #7
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,331
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Sure thing. Here ya go. If you look carefully at the lift tab (to open the cover) you can see where there is part of it is missing on the left. That part was scraped off while wheelin' somewhere in the desert.

    [​IMG]

    [​IMG]

  8. Sep 30, 2009 at 6:32 PM
    #8
    SamSter0077

    SamSter0077 Happy Camper

    Joined:
    Aug 7, 2008
    Member:
    #8396
    Messages:
    1,693
    Gender:
    Male
    Katy, TX
    Vehicle:
    09 Tacoma 4x4 TRD OR
    OME 886 Coils, and Struts, Rear Toytec TSB AAL/ OME shock absorbers, Fog Lamp anytime mod, Voyager Brake Controller.
    Hey, that looks great. Went wheeling the first time last weekend, Tweaked it pretty good and filled it with Mud. Silverback mentioned there was a mod.. POOF here it is. Thanks for the photos! Will work on it this weekend.

  9. Sep 30, 2009 at 9:16 PM
    #9
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,331
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    You're welcome, glad to help.

    :)

  10. Oct 1, 2009 at 8:26 AM
    #10
    SPQR

    SPQR Member

    Joined:
    Sep 28, 2009
    Member:
    #23457
    Messages:
    13
    Gender:
    Male
    Calgary
    Vehicle:
    09 SR5 TRD Offroad 6 speed
    Mud. Lots of it.
    That looks great, Coke. Next time I'm bored I'm going to do that. I ended up fixing mine by using a tester and some logic. The only crappy thing was that since the wires are so short under there, I had to extend them with the only wire I had, which was black. I know that's not at all ideal, but I was in a big rush to get some work done and didn't have time to hit a parts store for all the different colors of wire.
    So now the thing is fixed, but it's rigged up by zip ties to a factory hole in the bottom of the bumper.

  11. Oct 1, 2009 at 10:09 AM
    #11
    thestrangebrew

    thestrangebrew [OP] AlphaPlanner

    Joined:
    Aug 27, 2009
    Member:
    #21878
    Messages:
    567
    Gender:
    Male
    First Name:
    Brian
    Dos Palos CA
    Vehicle:
    TRD 4x4 Rugged Trail Edition
    Black Badges, Black Center Console
    Thanks Coke. Looks good. If my wife doesn't go into labor this weekend, it looks like I'll be doing this! +1

  12. May 27, 2011 at 1:27 AM
    #12
    atacoma

    atacoma Member

    Joined:
    Apr 4, 2010
    Member:
    #34574
    Messages:
    5
    Gender:
    Male
    First Name:
    Aaron
    canada
    Vehicle:
    tacoma trd sport
    6" Fabtech light, 35" pro comp, 20" rockstars,rbp grille, pioneer nav, black leather seats and door panels.
    Hey guys I did the same thing on the weekend, Mine looks like the one in the first picture. I was able to pick up a used one but im just wondering will the wires pull out of the back or do I have to take the plastic casing apart?
