Broke off a nut

Discussion in '2nd Gen. Tacomas (2005-2015)' started by blacktoy, Feb 3, 2012.

  1. Feb 3, 2012 at 3:42 PM
    #1
    blacktoy

    blacktoy [OP] Active Member

    Joined:
    May 11, 2011
    Member:
    #56468
    Messages:
    27
    Gender:
    Male
    NB, Canada
    Vehicle:
    Tacoma TRD
    Side Steps Tonneau Cover
    Thought I would ask for your opinion on this. Changed my tires today and a lug (the screw part on the truck) broke off. I have a 5 hour drive tomorrow and would like to know if 5 out of 6 lugs on a rear tire is sufficient. It is going into the dealer Monday to get the differential changed (changed driveshaft last week)...truck is a 2011 with 34000km...did I get a lemon...dont know!

    Should I drive short of a nut:confused::)

  2. Feb 3, 2012 at 3:43 PM
    #2
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    Do not drive it like that IMO.

    Just go to autozone and get a new stud. Easy replacement on those.

  3. Feb 3, 2012 at 3:45 PM
    #3
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,664
    Gender:
    Male
    .
    Read your title and thought "jees, that must've hurt"

  4. Feb 3, 2012 at 3:47 PM
    #4
    krimson

    krimson Nothin

    Joined:
    May 17, 2008
    Member:
    #6714
    Messages:
    3,412
    Vehicle:
    TRD Off Road
    OME 3" lift with 885 coils. OME Shocks with TSB 1.5 AAL. 285/75/16 KM2s. XD Hoss 16" wheels. DDM Tuning 6000K HIDs, H10 6000K Fogs. BHLM. Debaged. 20% tint on front windows.
    X2

  5. Feb 3, 2012 at 3:47 PM
    #5
    jackhart

    jackhart Well-Known Member

    Joined:
    Oct 30, 2011
    Member:
    #66123
    Messages:
    702
    Gender:
    Male
    Vehicle:
    11 DCLB
    if you had to drive like that, i wouldn't worry about it, but why not get a replacement and throw it on there?

  6. Feb 3, 2012 at 3:49 PM
    #6
    07TaCo07

    07TaCo07 Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34167
    Messages:
    146
    Gender:
    Male
    oregon
    Vehicle:
    07 double cab 6" lift
    6" fab tech lift, 35" toyo m/t, 17" teflon wheels
    A lot of times its mud and crap on the stud and that messes it up. I always wire brush mine before putting the lugs back on and have had no probs.

  7. Feb 3, 2012 at 3:52 PM
    #7
    blacktoy

    blacktoy [OP] Active Member

    Joined:
    May 11, 2011
    Member:
    #56468
    Messages:
    27
    Gender:
    Male
    NB, Canada
    Vehicle:
    Tacoma TRD
    Side Steps Tonneau Cover
    How do I get it off, it broke off right at the bottom. Is that something I can do myself??

  8. Feb 3, 2012 at 3:52 PM
    #8
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    well it's easy on my first gen, and I would assume it is the same basic design. Hammer the old stud out and press the new one in with a nut and some washers.

  9. Feb 3, 2012 at 3:52 PM
    #9
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    is it front or rear?

  10. Feb 3, 2012 at 3:56 PM
    #10
    blacktoy

    blacktoy [OP] Active Member

    Joined:
    May 11, 2011
    Member:
    #56468
    Messages:
    27
    Gender:
    Male
    NB, Canada
    Vehicle:
    Tacoma TRD
    Side Steps Tonneau Cover
    It is on the rear. I still dont understand how I could get it out. It broke right at the base, cannot thread on it at all....

  11. Feb 3, 2012 at 3:58 PM
    #11
    blacktoy

    blacktoy [OP] Active Member

    Joined:
    May 11, 2011
    Member:
    #56468
    Messages:
    27
    Gender:
    Male
    NB, Canada
    Vehicle:
    Tacoma TRD
    Side Steps Tonneau Cover
    I dont do mud, this is a 4x4 city truck washed every week and I try not to take it out when it rains :)

  12. Feb 3, 2012 at 3:59 PM
    #12
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    ok you need to pull the drum off. This can be tricky sometimes as they get corroded on. Make sure the parking brake is off and the drum should pull right off. If it doesn't you'll have to press it off using the threaded holes in the drum right around the lug stud area. (basically just find a bolt that fits and thread it into those holes.

    Once the drum is off you will get some kind of punch and hammer the stud towards the vehicle, they are not threaded in, they are pressed into the hub.

    Once it is out simply get the new one, get it in position and press it in using a random nut that fits the stud and a stack of washers if necessary.

    edit: someone please correct this if something is different with 2nd gens.

    edit again:

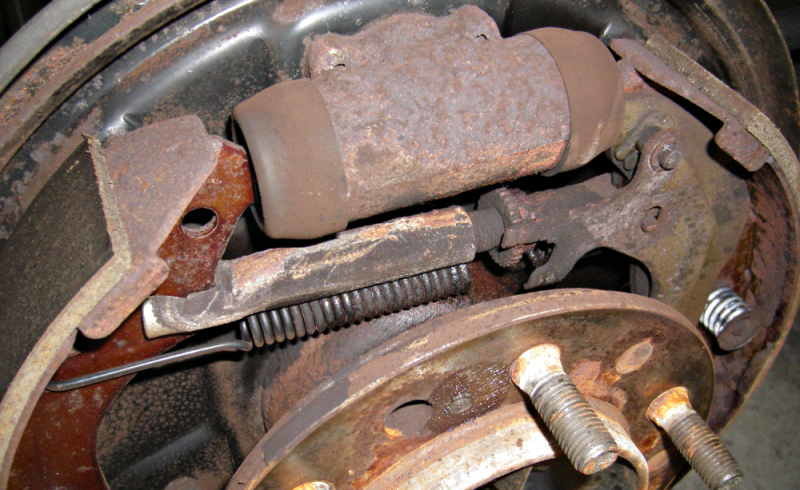

    here is a pic showing how the studs are pressed in.
    [​IMG]

  13. Feb 3, 2012 at 4:02 PM
    #13
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    824
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    This^^

    As for the guy who it took a week to get replaced, that is absolutely ridiculous. They were just putting it off to do other jobs.

  14. Feb 3, 2012 at 4:03 PM
    #14
    meafordmike

    meafordmike Well-Known Member

    Joined:
    Oct 1, 2008
    Member:
    #9618
    Messages:
    288
    Gender:
    Male
    First Name:
    Mike
    New Brunswick Canada
    Vehicle:
    08 Tacoma 4X4/ 4Dr 6 speed, Sport/ Towing
    Devil Horns, Wet Okoles, WeatherTechs, Radflo Coilovers, OME Dakar's, FJC Gun metal rims, 265/75/16 BFG All Terrain TA/KO, Rear Diff breather Mod,
    Easy fix, take off drum, knock it out, tight fit for fingers! Put new one in! Dealer will do for free, but it’s not hard.

    I did it one day with a broken one for practice:p then had Toyota do it.

  15. Feb 3, 2012 at 4:04 PM
    #15
    jsexton

    jsexton Member

    Joined:
    Nov 1, 2011
    Member:
    #66253
    Messages:
    14
    Gender:
    Male
    you will be fine. Just make sure you torque the rest of the lugs properly and take it easy. re-check the torque a few times during the trip to make sure they are not working themselves loose.

    There are plenty of other vehicles around the same size and weight on the road that only have 5 from the factory.

    replace it as soon as possible when you get home

    edit: I drove a Jeep Cherokee on 4 of 5 lugs on the rear for 20k with no problems (but i don't recommend that)

  16. Feb 3, 2012 at 4:06 PM
    #16
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    don't just try and remove the drum with force

    use the auto adjuster (in back of the drum under a rubber plug) to draw in the pads before removal or you risk the pad pulling with the drum - which leads to ripping the rubber wheel cylinder boot - which leads to a broke down truck with no brakes and a puddle of brake fluid on the ground

  17. Feb 3, 2012 at 4:13 PM
    #17
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,968
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    Good point. In my case they were slightly rusted where they slide over the hub. if the shoes have rubbed a groove in the drums ^^^that can happen if you don't back off the adjustment.

  18. Feb 3, 2012 at 4:15 PM
    #18
    surfrat

    surfrat Well-Known Member

    Joined:
    Feb 18, 2010
    Member:
    #31635
    Messages:
    401
    Gender:
    Male
    LI, NY
    icon coilover, total chaos UCA, allpr expo, icon 2.0 rear,wet okole
    before you pull it apart..goto the hardware store and get 2 m8x1.25 bolts to thread into the holes to remove the drum.. makes life simple.. tighten down both equaly and the drum will pop right off

  19. Feb 3, 2012 at 4:16 PM
    #19
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    20,913
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    oh I know :D

    [​IMG]

    [​IMG]

    70k and mine were totally toasted

  20. Feb 3, 2012 at 4:20 PM
    #20
    Snowman

    Snowman I have a problem for your solution…

    Joined:
    Sep 8, 2010
    Member:
    #42917
    Messages:
    2,909
    First Name:
    Craig
    Somewhere in Canada
    Vehicle:
    Check out my build
    haha that wouldve been more like "tore off a nut". He actually "busted a nut" which isnt normally a bad thing. heh heh

    Back on topic tho, 5/6 should be okay IMO. If one failed lug nut caused a wheel to fall off there would probably be 10 lugs. Just take it easy and get it replaced soon.
