Broken crankshaft key leads to tear down and timing service

This is a good visual: https://www.denso-am.eu/products/engine-management-systems/camshaft-crankshaft-sensors

https://www.youtube.com/watch?v=9n7eVsEmhMk



So I’m trying to set the timing and I’m having quite the issue. I get my cam sprockets all lined up but when I install the idler pulley it puts too much tension on the driver side cams and pulls them out of timing… any recommendations?



Did you take tension off the tensioners before installation? Meaning, I made sure all was aligned and everything was installed before I released tension back on the chain.



There is tension on the small cam chains but not the main. Should I take the tension off of those too when installing the main one?



Hmmm. I don't recall having an issue. I just remember making sure that the idler pulley was centered on the main chain before installing the bolt that holds it.



I can’t get it right for the life of me. I set the timing on the cams but every time I screw in the idler it just sets it off barely



Sounds like you need to start with it off a little so that when you release it, it pulls it into alignment.



Already tried that a bunch of times it still pulls it too much



This guy does the idler and cam sprockets first, then does the crankshaft. He does it with the guides/tensioners off to give enough chain slack.



Yeah I’ve been watching that video. I don’t have a goddamn gear puller so I can’t get my crank sprocket off right now unfortunately



Are you following the steps in the FSM for installing the chain? Btw, I didn't replace or remove the camshaft sprocket. I only removed the idler gear when I did my head gaskets.



Yes I am getting this issue when I follow the steps



I’m on my way to the auto parts store to pick up a gear puller. Hopefully that helps



You don't need to remove the sprocket to install the chain.



why does that man have no nipples? and whats up with his rotting zombie flesh around the rib cage?



I know I prefer not to but doing it this way obviously isn’t working for me.



Maybe I missed something earlier, were you able to replace the key(s) on the crankshaft? I thought that was the main reason why you removed the cover.

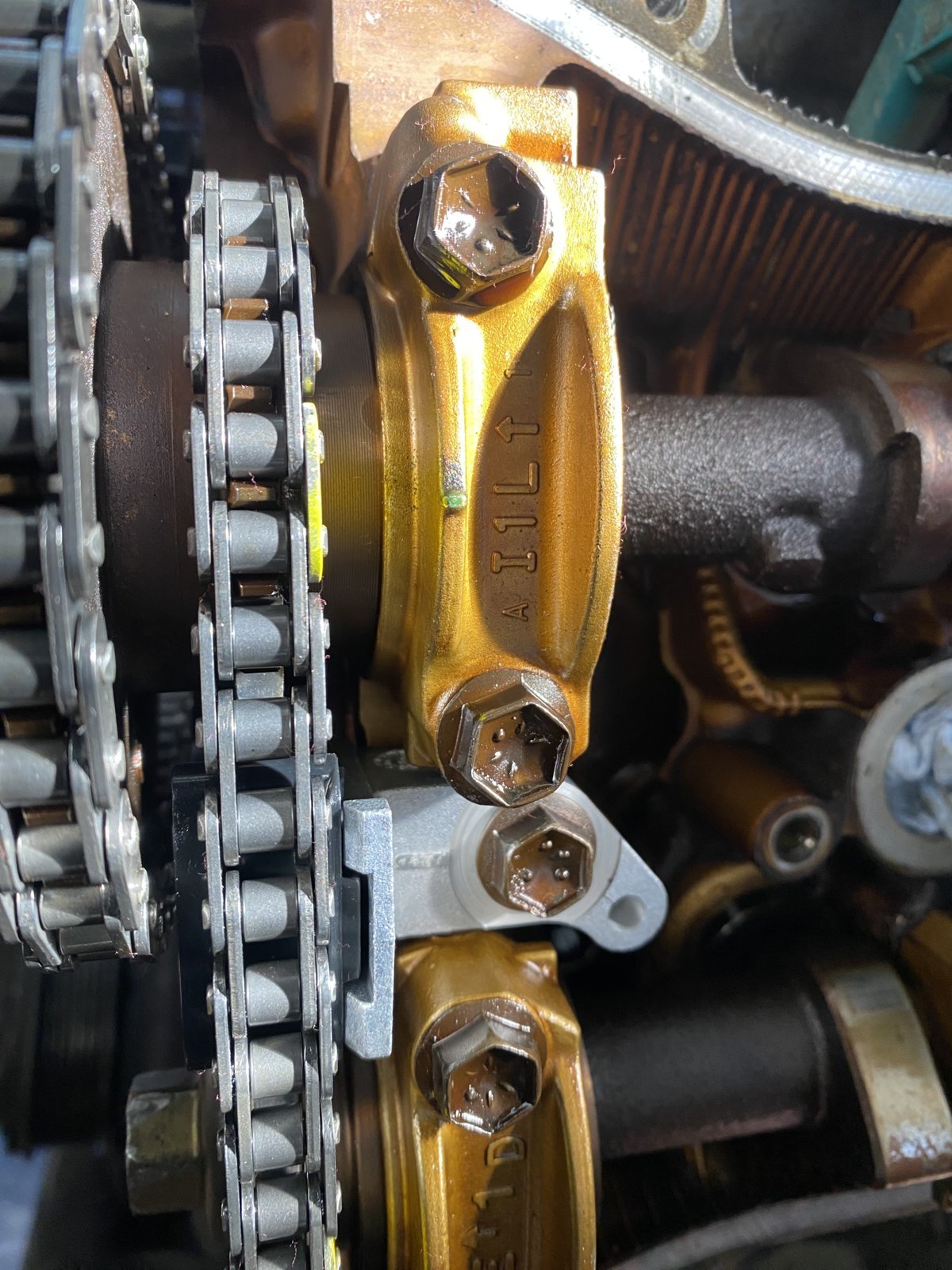

Yes I was able to remove the key. I am also doing new timing component while I’m in here. The issue I’m having is whenever I tighten the idler sprocket and it sets into place it pulls on one side of the cams and sets them slightly off.

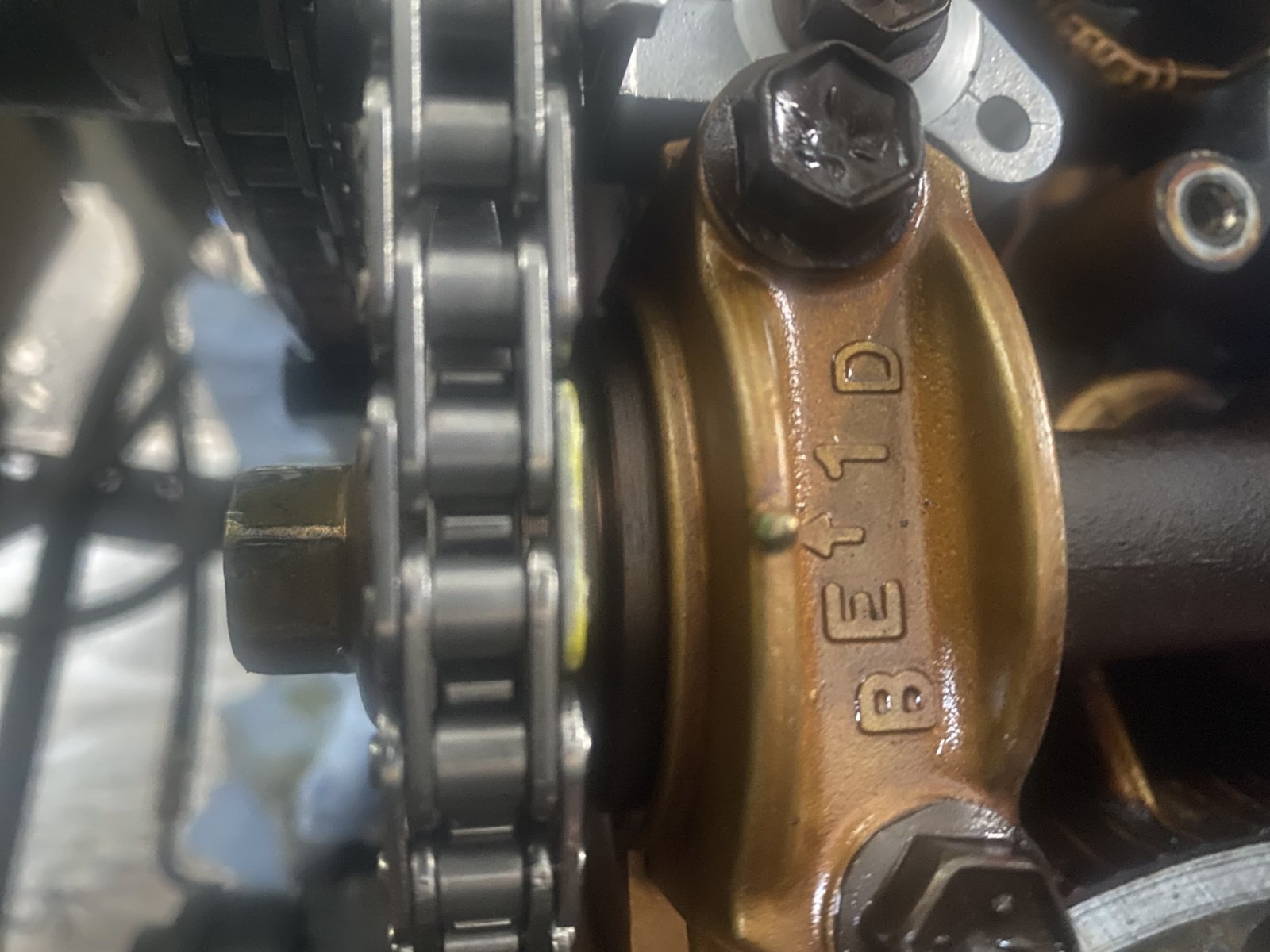

Ever so slightly

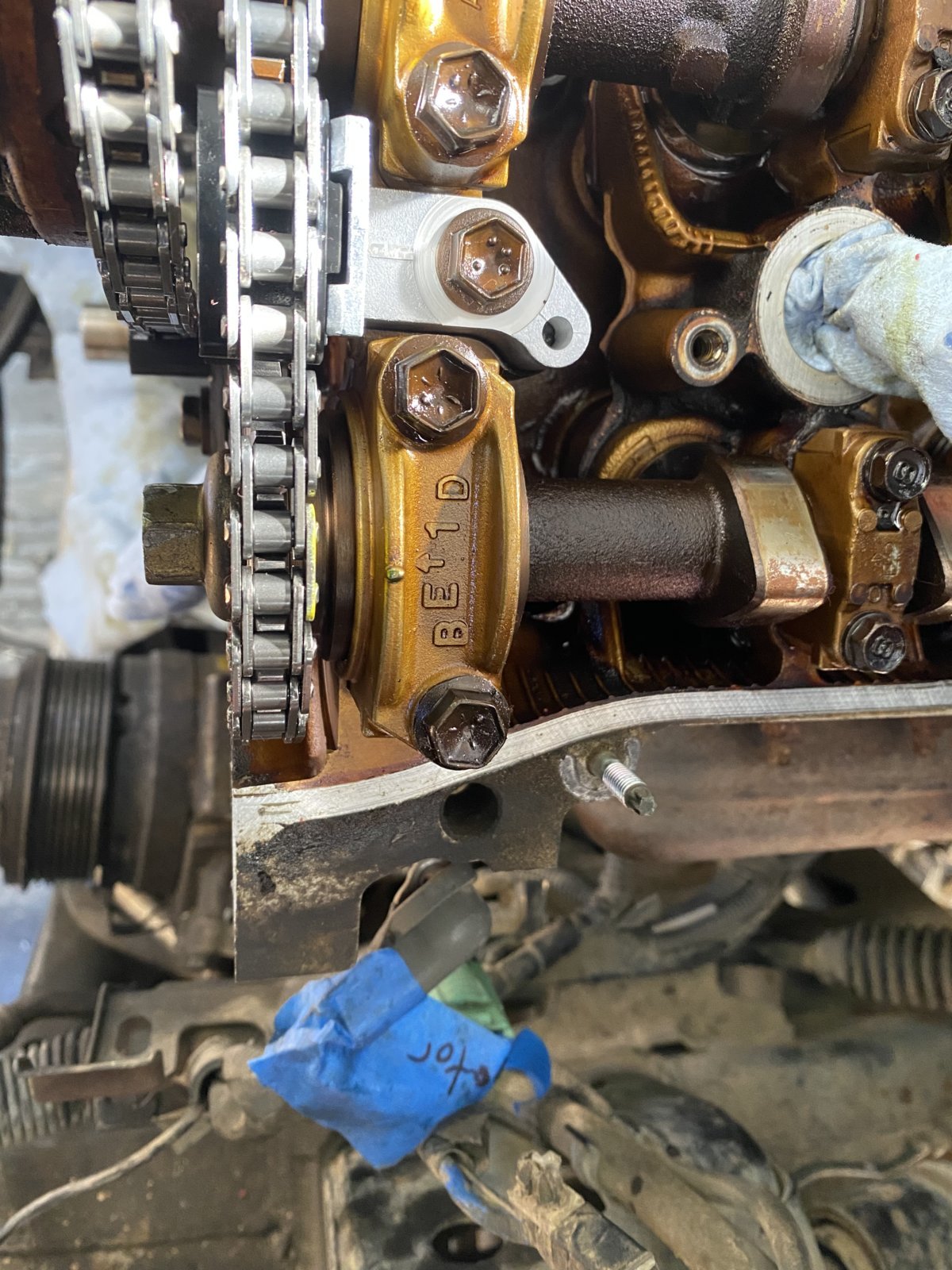

Razor blade as a straight edge for reference
