Broken crankshaft key leads to tear down and timing service

Thank you I just wanna assure myself before closing it all up I guess

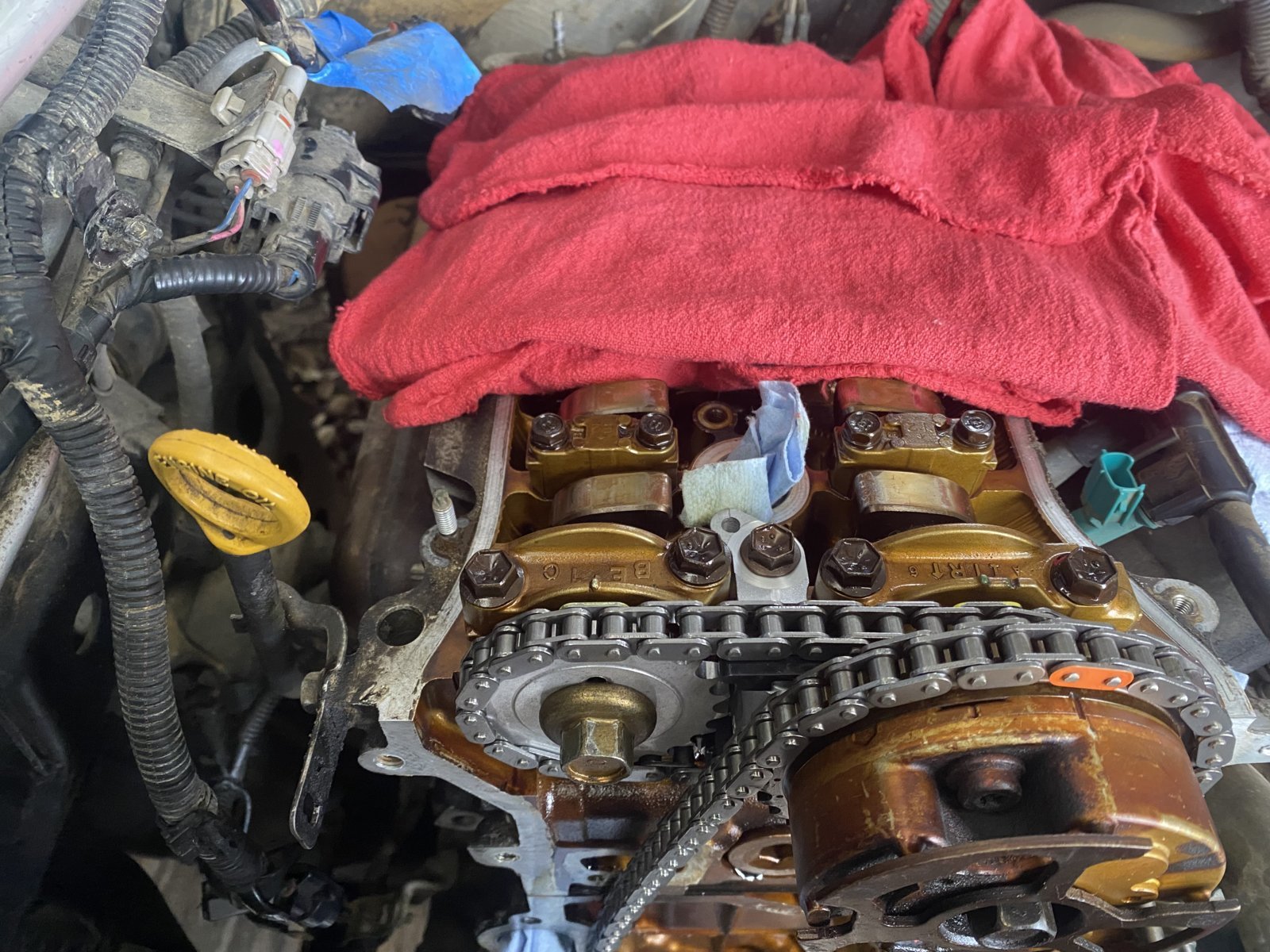

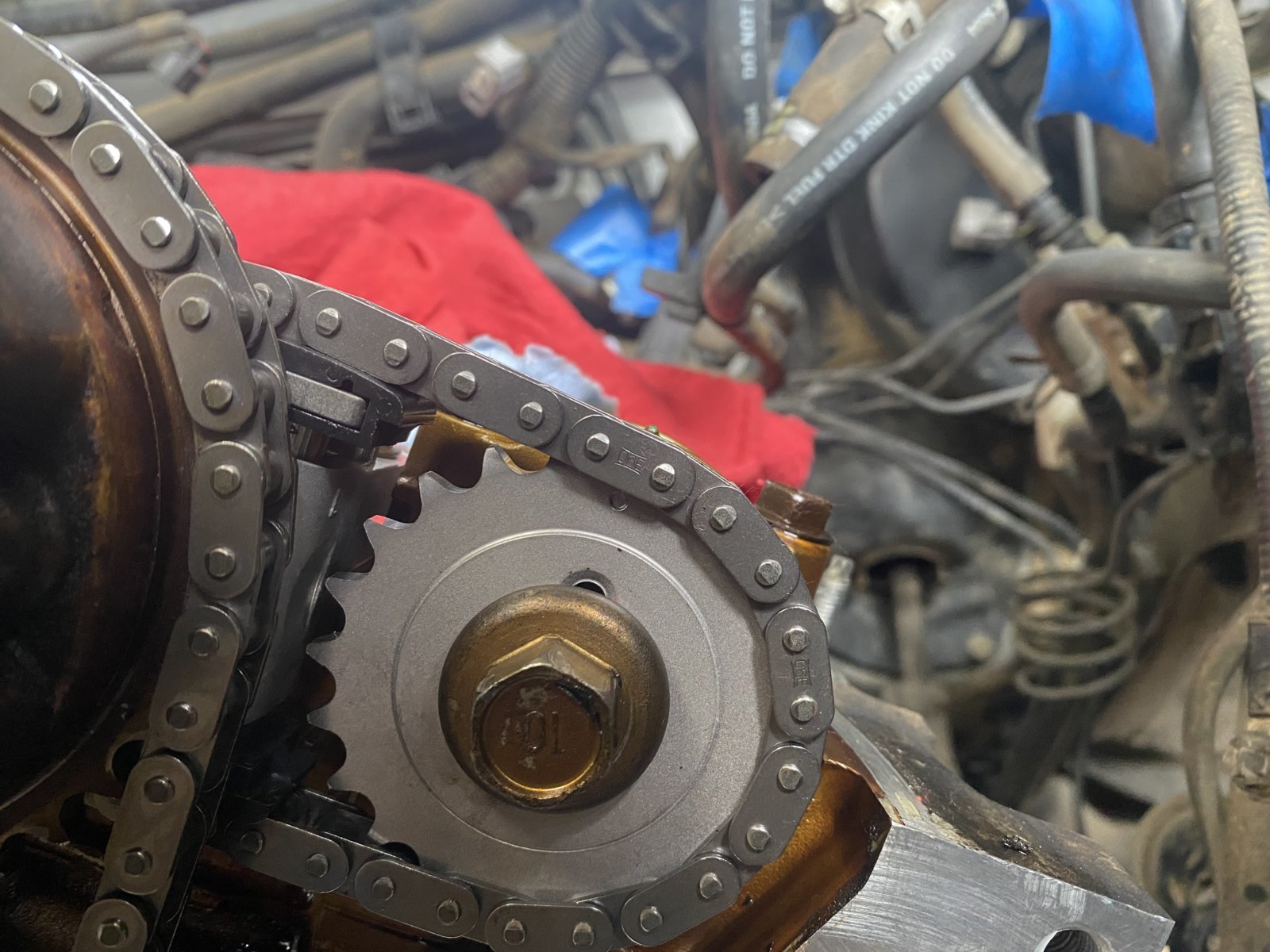

Left side is golden but right is just a little off



You are justified in being very careful, not a job you want to get wrong and have to do over again. Triple-check everything.

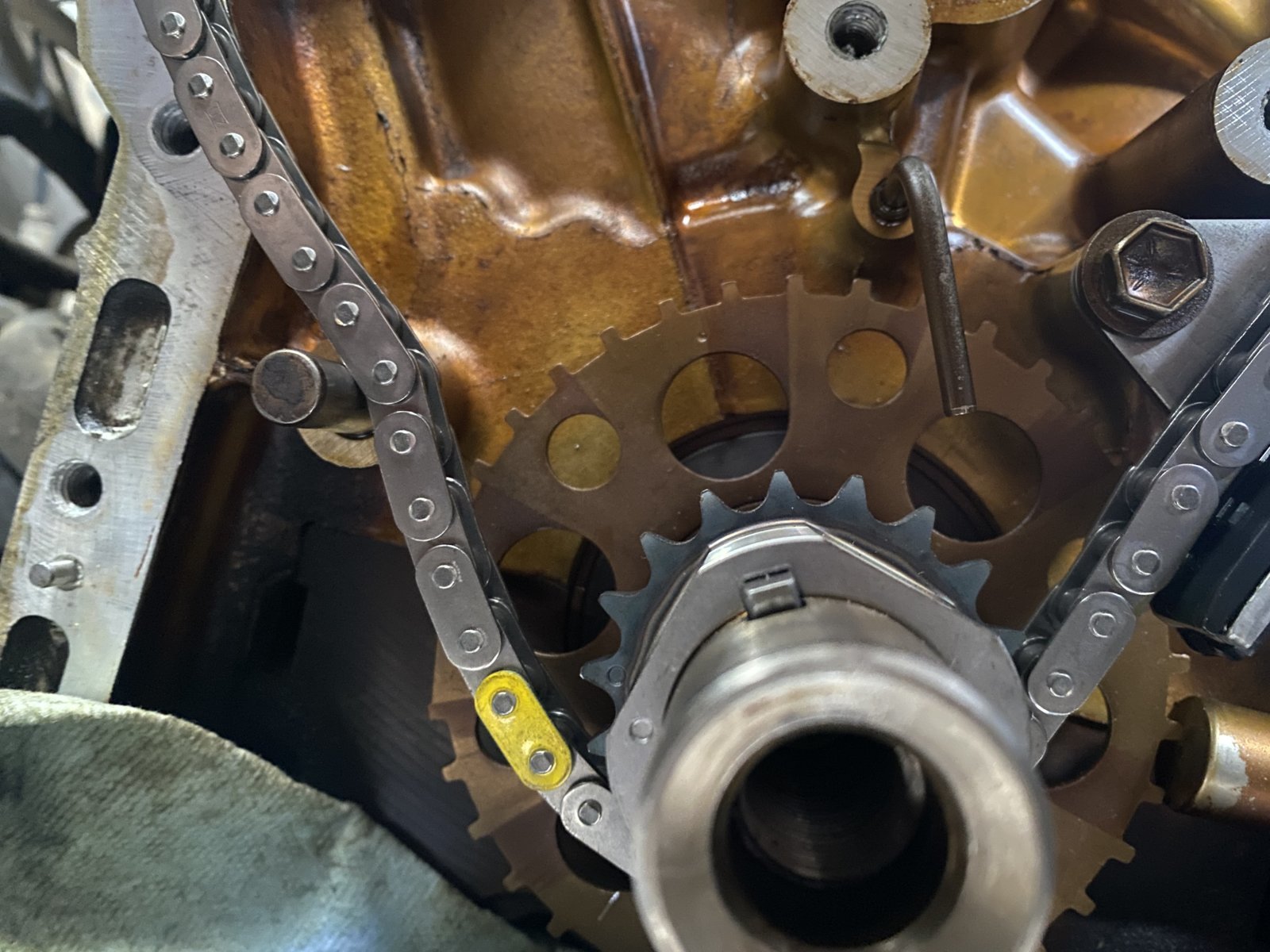

Looks fine to me. Pic of the crank sprocket?



Get those guides/tensioners back on and button 'er up.



Good



https://youtu.be/pu5ntZMvjFY?si=RaYODeuT09MZkUzG

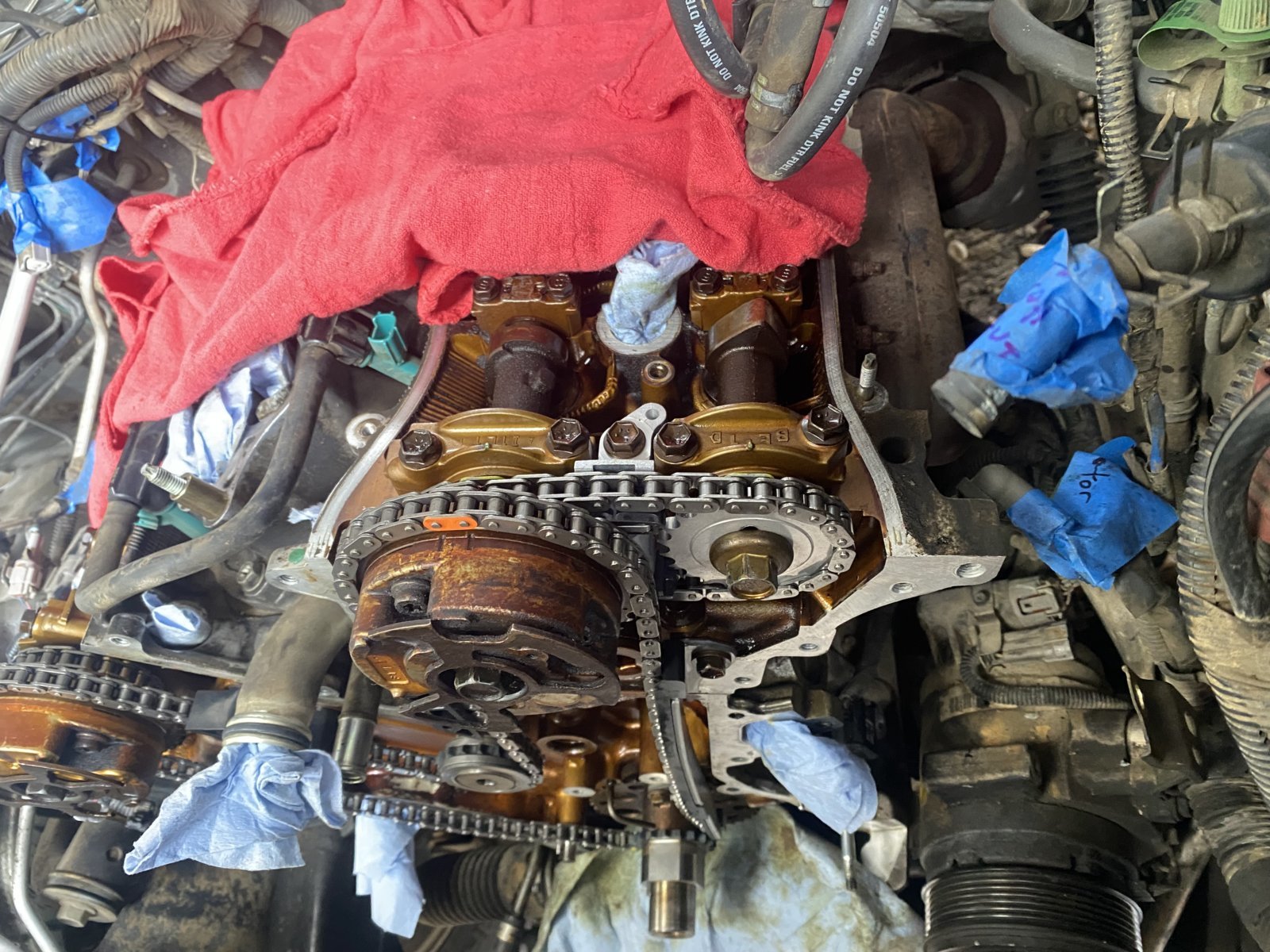

I’m gonna take the pin out of tensioner and prepare to button her up next chance I get to work on it. Here’s the final check



Also does anyone know torque spec for this tube on the inside of the timing cover. I have new o rings for it but when I take off the bolts holding it it’s like stuck on there or something and idk if I feel like prying at it or anything. Might just leave it… anyone know what those o rings purpose are? I feel like it’s keeping oil from getting into other oil lol

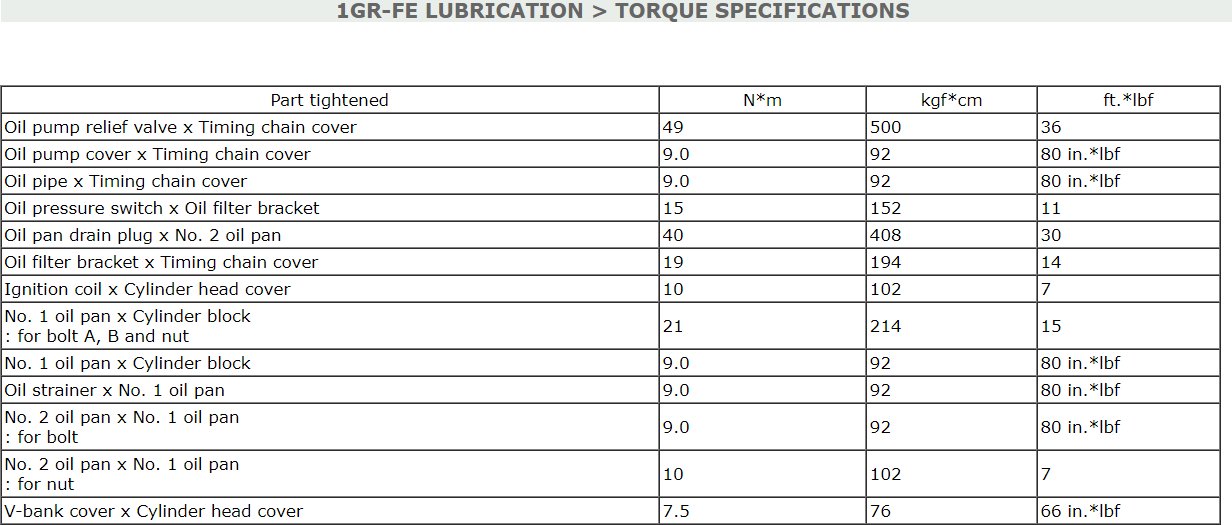

80 INCH pounds. not foot pounds. That's like 6.66 lb/f.

That tube sends oil from the oil pump to the oil filter and the rest of your engine. It's like the engine's aorta. Kinda important, lol.



Did you spin it over by hand?



I have not yet I’ll make sure to do that before I put the cover on



Thank you I was having trouble finding the torque spec in the document before but now I know



Do I get the all holy Torspd seal of approval?!



I am just one of many that agree.

As a note, most M6x1.0 on the 1GR, are 80 in/lbs.



Good to know thank you



We are not worthy lol

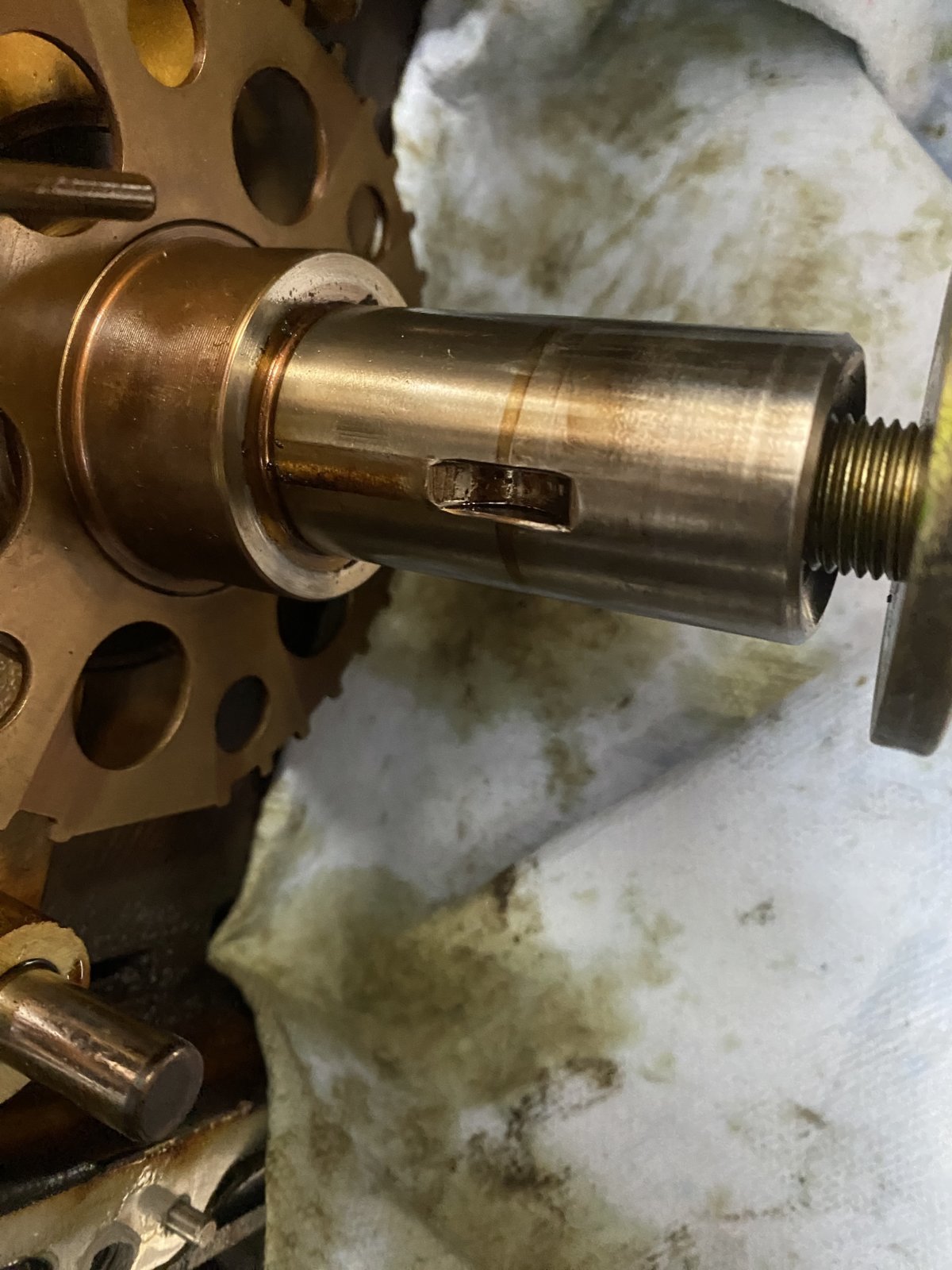

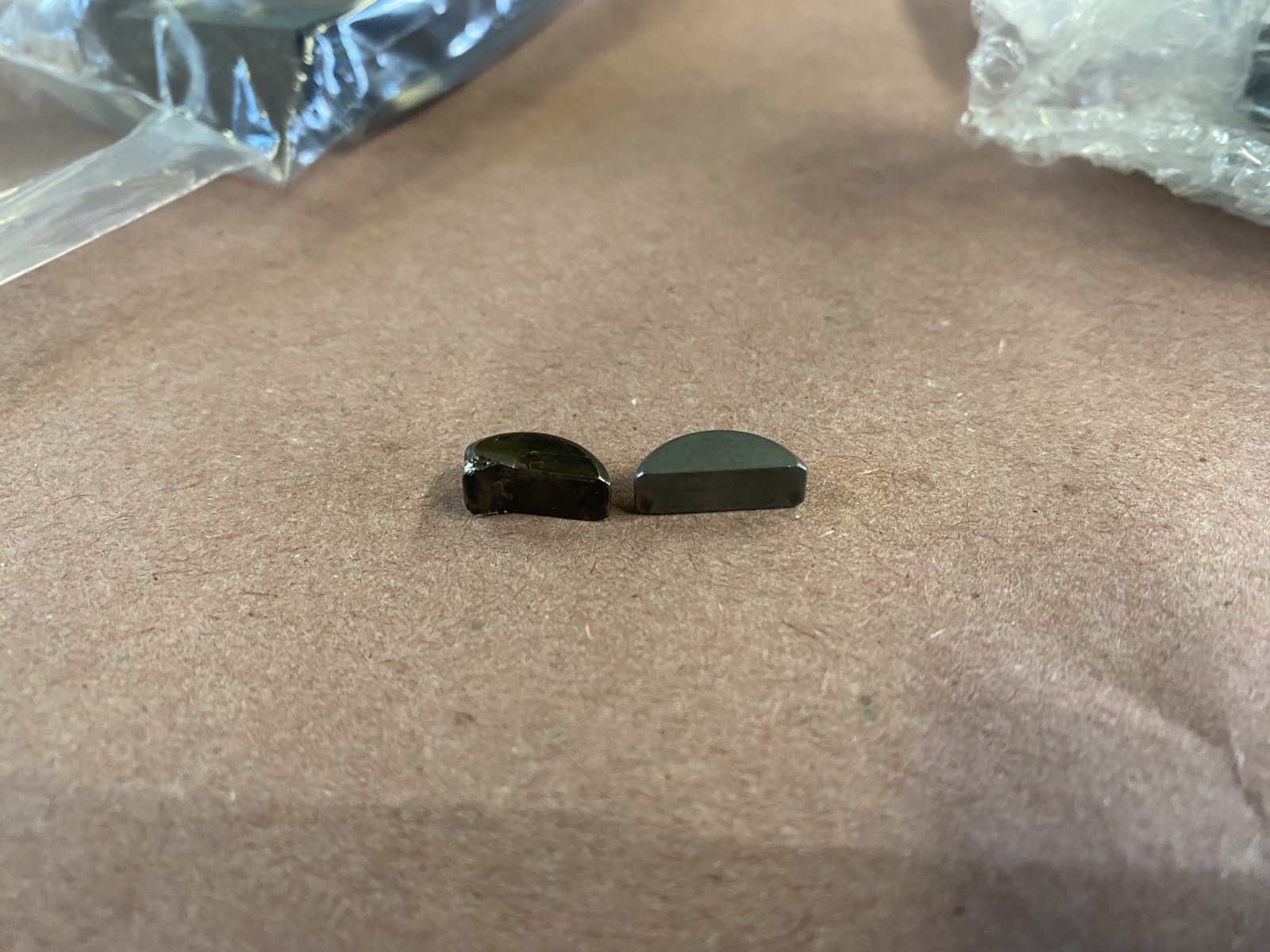

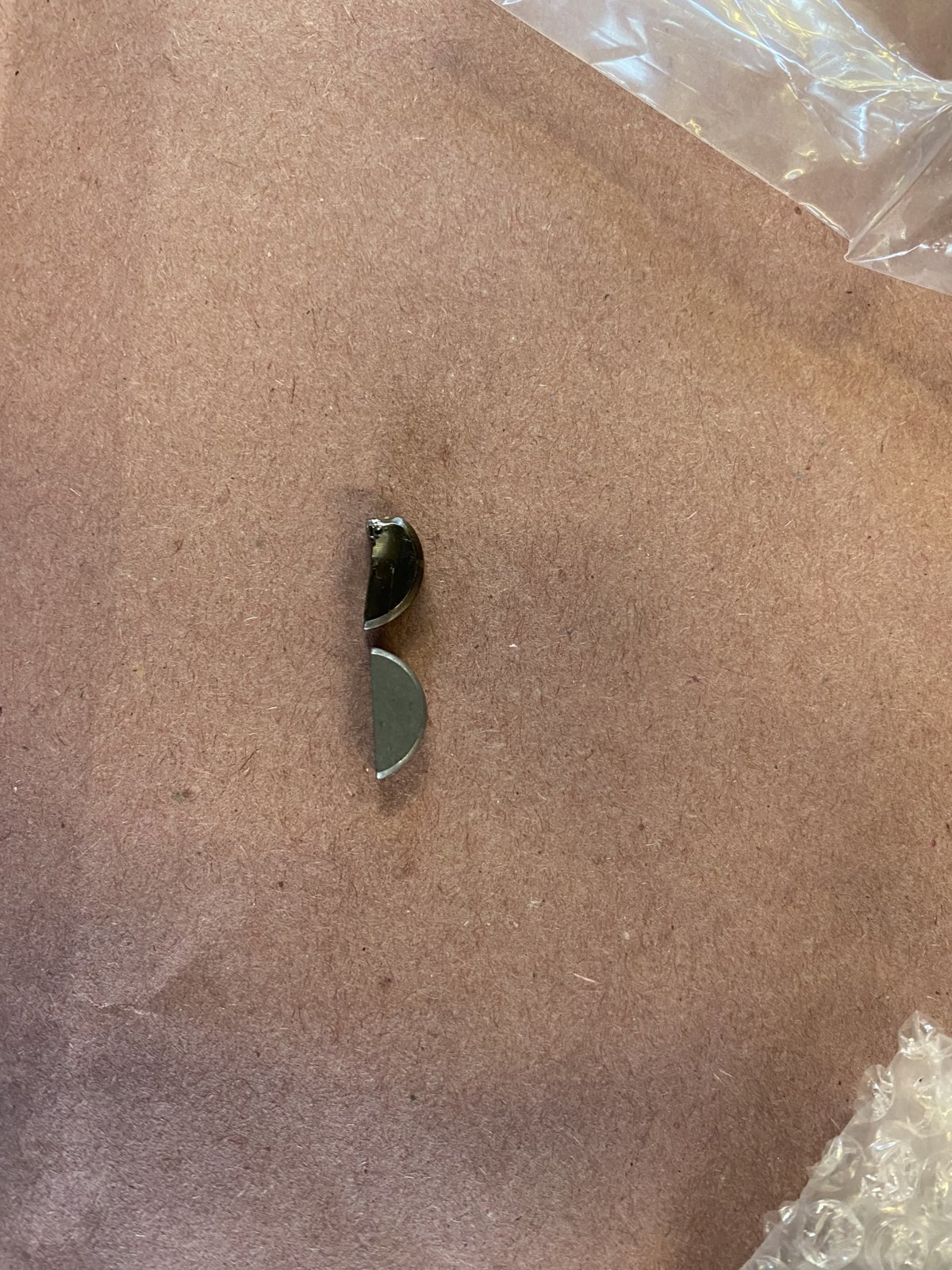

I don’t think I ever posted this but here is a comparison of the old and new key and how much of the key actually holds onto the harmonic balancer. This $6 piece of metal caused this entire tear down



Somebody in the past went in there to do something, removed the balancer and didn't tighten it back on properly. That's what caused the teardown.

When properly installed (like at the factory) it's torqued in such a way that there isn't any stress on the key. It's the tightness of the big crankshaft bolt that keeps everything from moving



Im just glad it didn’t mess with the crank at all
