BSM compatible custom rear bumper

Discussion in '3rd Gen. Tacomas (2016+)' started by zstelly, Aug 20, 2018.

  1. Aug 20, 2018 at 4:46 PM
    #1
    zstelly

    zstelly [OP] Member

    Joined:
    Feb 26, 2016
    Member:
    #179505
    Messages:
    14
    Gender:
    Male
    Northern California
    Vehicle:
    3rd Gen DCLB OR BBP

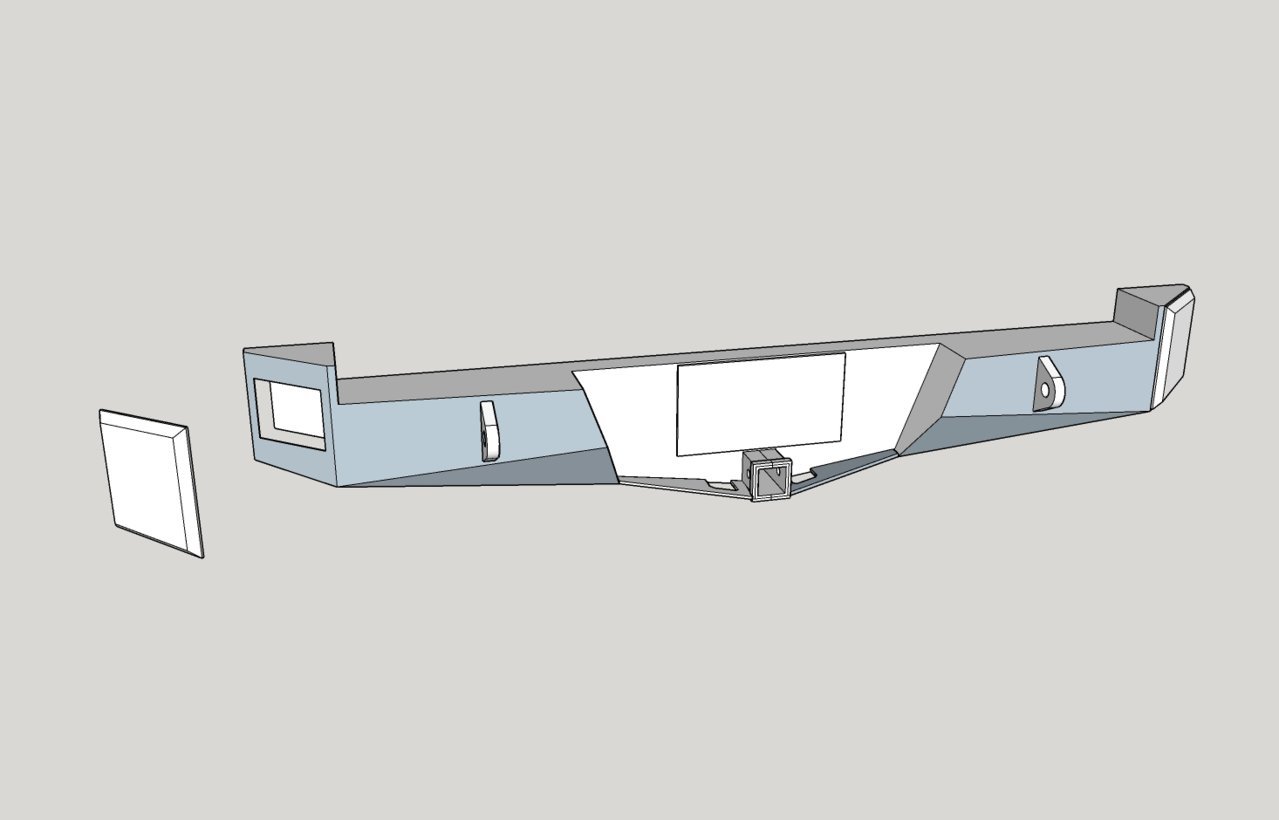

    I have been looking for a bumper that keeps the BSM functionality and improved the departure angel a bit. Since I couldn't find one I liked, I designed one myself. This one raises the hitch ~3in and covers the BSM sensors with 3/4" think UHMW. What do you guys think? Anyone know a good fabricator near Sacramento I can work with that can help me make this happen?

    Cheers

    ZakBumper v2.jpg

  2. Aug 20, 2018 at 5:00 PM
    #2
    Double Phister

    Double Phister Punch it Chewie

    Joined:
    Jul 23, 2017
    Member:
    #224795
    Messages:
    385
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    2017 DCSB TRD OR
    Don't forget cutouts for the parking sensors, license plate lights and trailer wiring.

    Shepherd12 and ScottyR like this.
  3. Aug 20, 2018 at 5:07 PM
    #3
    zstelly

    zstelly [OP] Member

    Joined:
    Feb 26, 2016
    Member:
    #179505
    Messages:
    14
    Gender:
    Male
    Northern California
    Vehicle:
    3rd Gen DCLB OR BBP
    I know, just wanted to get the design out there to get some feed back. Scaling and position are a bit off, but you get the idea. Bumper v2 w-truck.jpg

    1bad2k, Shepherd12 and shakerhood like this.
  4. Aug 20, 2018 at 5:09 PM
    #4
    here4cake

    here4cake Well-Known Member

    Joined:
    Nov 19, 2017
    Member:
    #236447
    Messages:
    344
    Nice start, but that's a pretty long away from a fully designed bumper that's ready to go to a fabricator.

    You need to figure out how it'll mount, cutouts (tow hitch, plate light, parking sensors), attachment method for BSM sensors, attachment for license plate, reinforcements, and that little detail of actual fitment/clearance.

    I suggest you buy a quality, pre-designed bumper and sacrifice the BSM functionality.

    I also suspect that with your design, you'll find that your hitch receiver will be in nearly the same spot as on the original bumper. Certainly not a 3" clearance gain (not even close).

  5. Aug 20, 2018 at 5:14 PM
    #5
    dynamicweight

    dynamicweight Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211981
    Messages:
    198
    Gender:
    Male
    I agree with what here4cake said. Also, you could buy an existing bumper, get it unfinished (no paint or plating), and then modify it to have your BSM cut outs. That way it cuts down on like 95% of the work you're redoing.

  6. Aug 20, 2018 at 5:24 PM
    #6
    dreadedsoldier

    dreadedsoldier Well-Known Member

    Joined:
    Jun 26, 2016
    Member:
    #190599
    Messages:
    204
    Gender:
    Male
    Utah
    Vehicle:
    2016 Quicksand TRDOR
    Ok the only company currently doing it is C4Fab. If you look at a side shot it hangs below the bedside of the truck. Honestly that’s the only reason I haven’t gotten that one. If you can make it work and it doesn’t hang down I’m in. Oh and it needs a swing arm or two... Not to throw shade at C4, if that’s the only way to do it because of where the bsm sits I get it. It just looks not right imo.

  7. Aug 20, 2018 at 5:28 PM
    #7
    TacoRated

    TacoRated Well-Known Member

    Joined:
    Apr 18, 2016
    Member:
    #184657
    Messages:
    219
    Gender:
    Male
    Colorado Springs
    Vehicle:
    2016 DCSB TRD OR
    High speed, special purpose duct-tape noise cancellation LCAs. Redline Tuning hood struts Hefty Fabworks Rock Sliders Trifold Bed Cover TRD Pro Grille
    Looks like a good start. Can you move the hitch up and behind the license plate? That’s a pretty common thing to do.

  8. Aug 21, 2018 at 5:17 PM
    #8
    Simpleton

    Simpleton Well-Known Member

    Joined:
    Jan 16, 2017
    Member:
    #207801
    Messages:
    532
    Gender:
    Male
    Orange County
    Vehicle:
    2017 DCSBOR
    None as of yet
    You're on a good start! Plate bumpers are great projects to learn how to weld on. If you can generate a flat pattern and get that waterjet/lasercut/plasma cut at a shop and weld it up yourself you'll save a ton in labor and have a good weekend project. 3/4 uhmw is too think in my option. Stock bumper plastic is only about 1/4in and I think abs.i would try to match that best you can to not throw off calibration.

  9. Aug 21, 2018 at 6:02 PM
    #9
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    4,044
    First Name:
    Joe
    Colorado, Africa, Europe, Asia, Middle-East,
    Vehicle:
    2017 DCSB TRD OR
    Sweet a possible second option.

  10. Aug 21, 2018 at 6:24 PM
    #10
    Osteology

    Osteology Member

    Joined:
    Apr 5, 2016
    Member:
    #183358
    Messages:
    14
    Gender:
    Male
    First Name:
    Mark
    I say keep working toward it. I think there is currently a market - C4 is the only one I know of and it has the kind of goofy angled license plate mount. I'd like a plate bumper but since mine is daily driver in Dallas traffic, I don't want to give up the BSM

    Blazingbluesport likes this.
  11. Aug 21, 2018 at 6:32 PM
    #11
    ScottyR

    ScottyR Well-Known Member

    Joined:
    Dec 7, 2015
    Member:
    #171708
    Messages:
    561
    Gender:
    Male
    Vancouver BC
    Vehicle:
    2016 DCLB TRD Sport
    I was in the same boat as you, but I find the BSM super unreliable. I want to get the Rav4 mirrors to replace the BSM when I get an aftermarket bumper on.

  12. Sep 7, 2018 at 7:45 AM
    #12
    DrewKiwi

    DrewKiwi New Member

    Joined:
    Sep 7, 2018
    Member:
    #265477
    Messages:
    1
    Gender:
    Male
    Vehicle:
    2017 off road Tacoma
    I saw this online, I’ve been waiting for a BSM compatible bumper for a while and this looks like it has the cut outs?
    Does anyone know anything about this bumper?
    Bodyguard A2RRT165X Toyota Tacoma 2016-2018 T2 Rear Bumper


    I emailed the company that makes these, no BSM at the moment but it’s being worked on. They said after SEMA they are looking to build one?
    If it’s like the photo, maybe a bit slimmed down I’d buy one today.

    Last edited: Sep 7, 2018
  13. Sep 7, 2018 at 7:51 AM
    #13
    sd1uh8as

    sd1uh8as Well-Known Member

    Joined:
    May 25, 2018
    Member:
    #254462
    Messages:
    533
    First Name:
    Ivan
    San Jose, CA
    Vehicle:
    2018 Tacoma OR DCLB
    That looks like it makes the departure angle worse since it sticks out further than stock..

    shakerhood and Shepherd12 like this.
  14. Sep 7, 2018 at 7:57 AM
    #14
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    758
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    MBRP Turndown, AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......
    I have no experience with this bumper. They do not claim it to be BSM compatible, at least not that I can find.

    Everything I have seen previously indicates the BSM module will not with trough any metal. With that said, I would not risk the cost on a "might" work with BSM if I wanted to ensure they continued to operate correctly.

  15. Sep 7, 2018 at 7:58 AM
    #15
    STexaslovestacos

    STexaslovestacos Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205817
    Messages:
    425
    Gender:
    Male
    First Name:
    Sam
    Vehicle:
    2017 MT TRD OR
    That thing looks like the back platform of a ski boat or some shit.

    rlx02 and CoastieRon like this.
  16. Sep 7, 2018 at 7:58 AM
    #16
    Osteology

    Osteology Member

    Joined:
    Apr 5, 2016
    Member:
    #183358
    Messages:
    14
    Gender:
    Male
    First Name:
    Mark
    The Rav4 mirrors only have the indicator in them, the BSM sensors are in the rear bumper just like the tacoma. See the location of the BSMs from the Rav4 owner's manual


  17. Sep 7, 2018 at 7:58 AM
    #17
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    758
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    MBRP Turndown, AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......
    I agree it looks to be at least 2 or 3 inches deeper on the corners.

  18. Sep 7, 2018 at 7:59 AM
    #18
    TC_Mic

    TC_Mic Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214625
    Messages:
    758
    Gender:
    Male
    State of confusion, aka Flori-duh
    Vehicle:
    2017 Silver Sky 2x4 Limited
    MBRP Turndown, AMP Powerstep, UC Flex, bed lights, Opt7 Tailgate bar, black tailgate lettering Pending: re-configure tail light,s custom storage pocket bags, pinch weld painting, blackout badges, ......

    I think he is referring to the Rav4 mirrors with the convex (fish eye) corner to aid in seeing the blind spot.

    ScottyR likes this.
  19. Sep 7, 2018 at 8:07 AM
    #19
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    3,014
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    I think the corner needs to be taller or the BSM sensor will hang out the bottom. That thing is huge.

  20. Sep 7, 2018 at 8:10 AM
    #20
    Alesimo

    Alesimo Well-Known Member

    Joined:
    Sep 29, 2014
    Member:
    #139352
    Messages:
    517
    Gender:
    Male
    First Name:
    Alec
    Houston, Texas
    Vehicle:
    2017 Cement TRD Pro MT
    Frontrunner Slimline II Rokblokz Mudflaps Spod SE w/ HD Switch Cali Raised Ditch Brackets w/ Rigid Industries D2 Hyperspots Rigid Industries D2 Driving Lights Exhaust Reroute Pelfreybuilt Aluminum Pro Mid, Rear, and Gas Skid Plates ARB Twin Compressor w/ ExE Bed Cubby Mount ExE TPAM RAM System w/ Hondo Garage Perfect Squeeze Meso Customs Ultimate Map and Dome Lights Docloco Rear Seat Molle Panel
    I just love the bsms cross traffic alert

    rpoint16 likes this.
