Bud Built Skid install with an Elite bumper.

Discussion in 'Elite Off-Road' started by JLee, Aug 18, 2011.

  1. Aug 18, 2011 at 8:51 AM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Okay so the questions have been out there if the Bud Built IFS skid fits with the Elite front bumper. And yes it dose "with a little modifications" This is what I did to make it fit.

    On a side note I wouldn't get the powder coated skids because your going to be grinding it off. "And I don't think you should powder coat a skid anyway it's just going to get all messed up and you will have to paint over it anyway but that's just me"

    Tools
    Drill & 5/16th drill bit
    4.5" angle grinder (with 4 to 6 cut off wheels)
    Paint pen (or sharpie)
    Straight edge
    Measuring tool (I used THIS)
    Primer & paint


    Optional Tools
    Welder
    C clamps
    3 beers :D

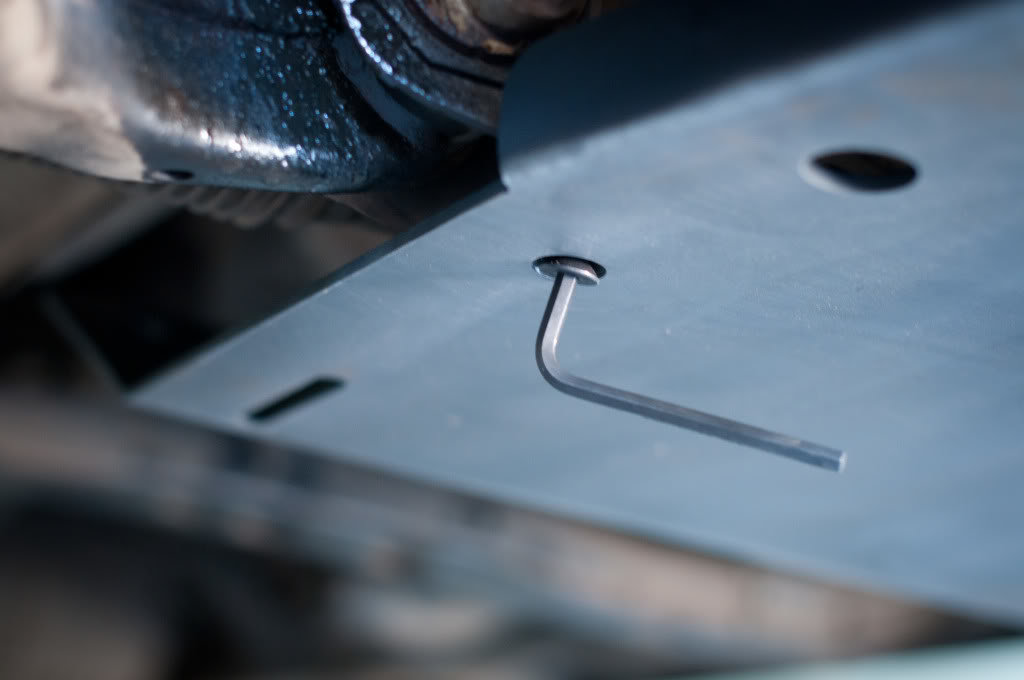

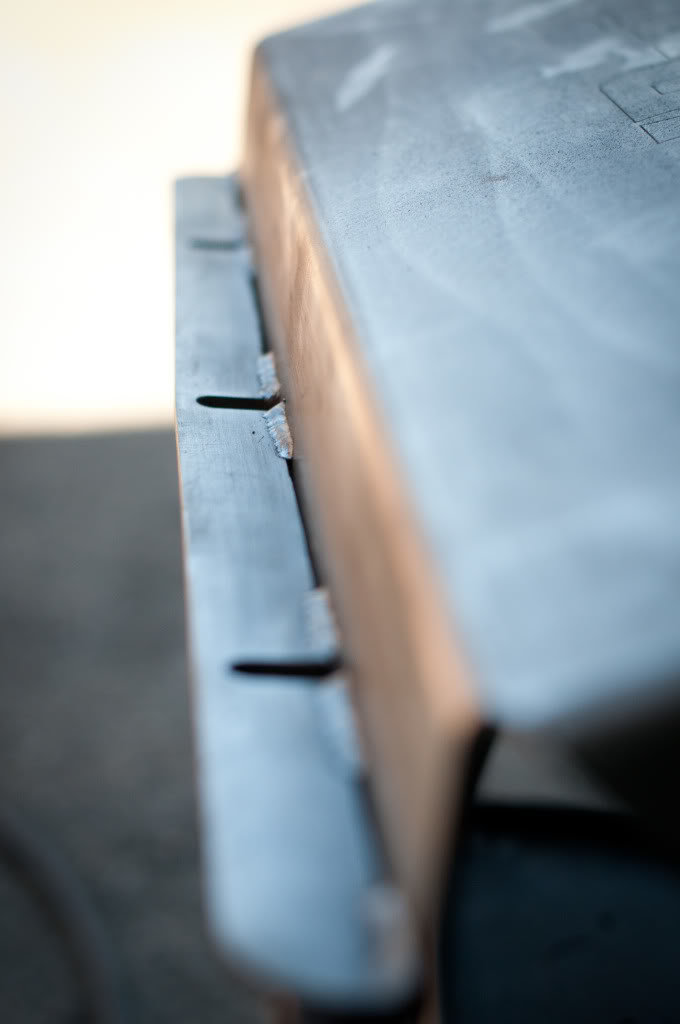

    You can see here how much the skid hangs over the edge of the bumper. This shot is with the hex bolts in place to align the skid.
    [​IMG]

    My mounting point is a little tweaked "yes I wheel my truck :p"
    [​IMG]

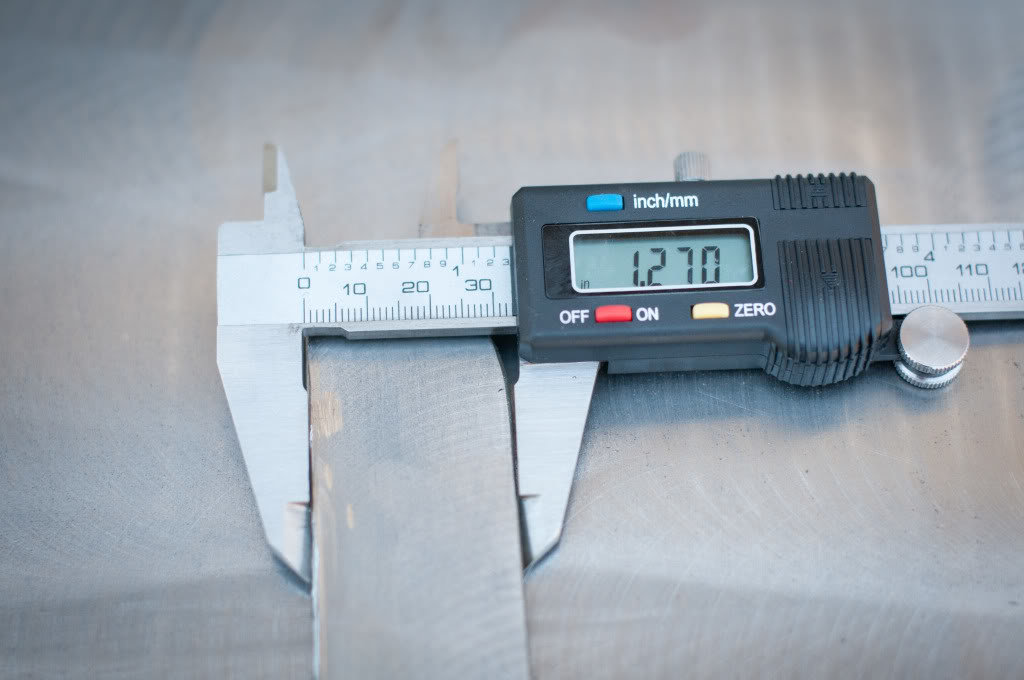

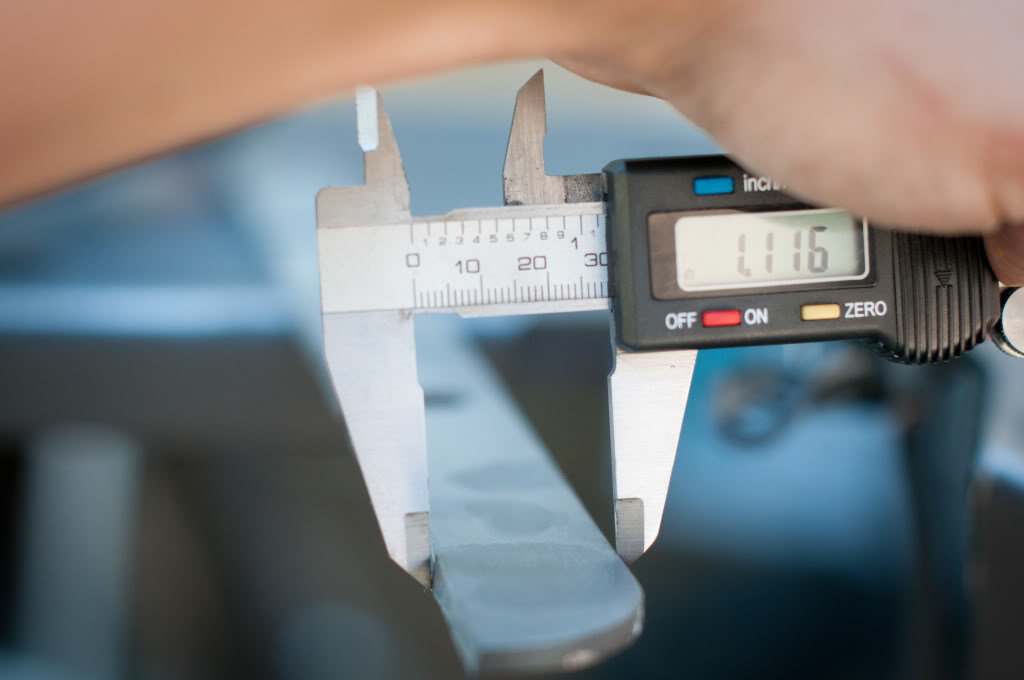

    So I took a measurement wile the skid was on the truck and came up with this.
    [​IMG]

    And broke out the angle grinder (Note) with the 4.5" angle grinder dont just bite into the edge of the plate. Do light passes over the top until you cut all the way through.
    [​IMG]

    I did it one bolt hole at a time.
    [​IMG]

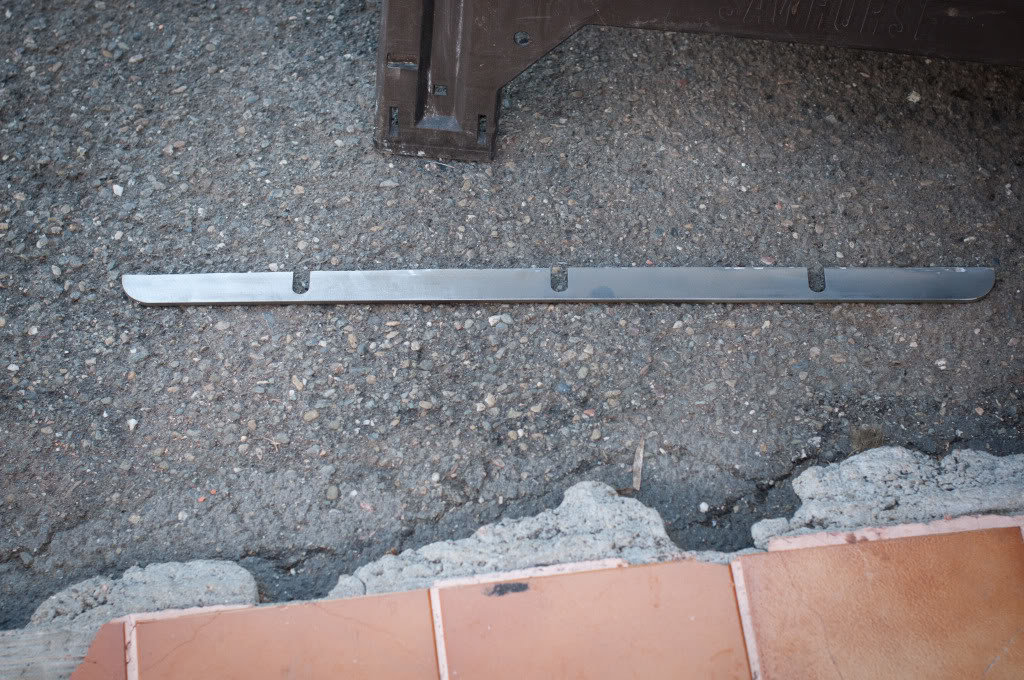

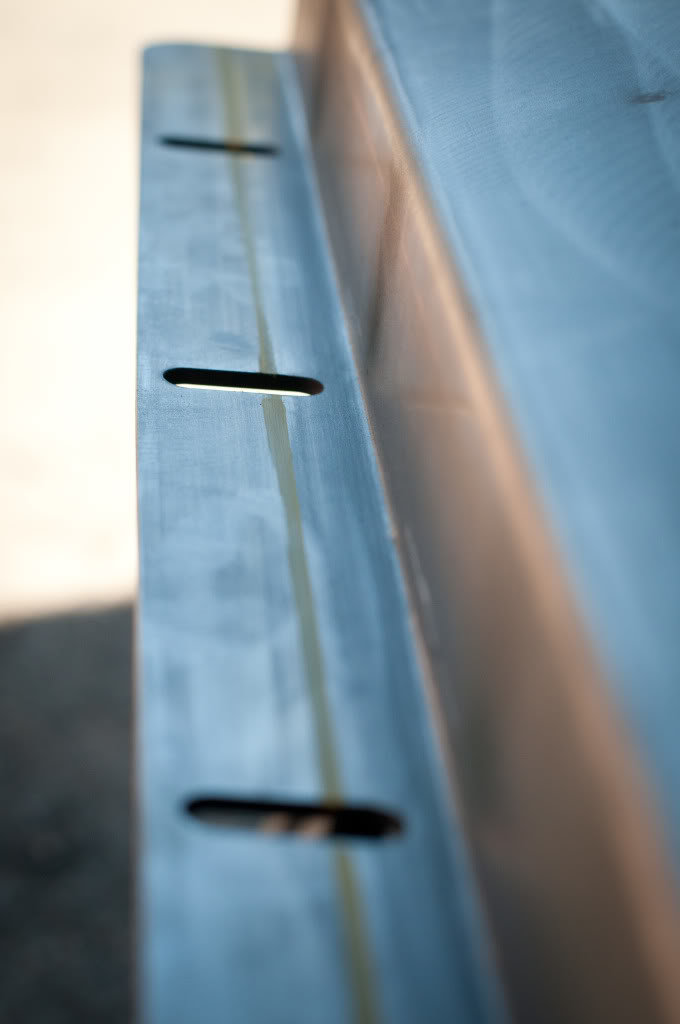

    And that's what I trimmed off.
    [​IMG]
    [​IMG]

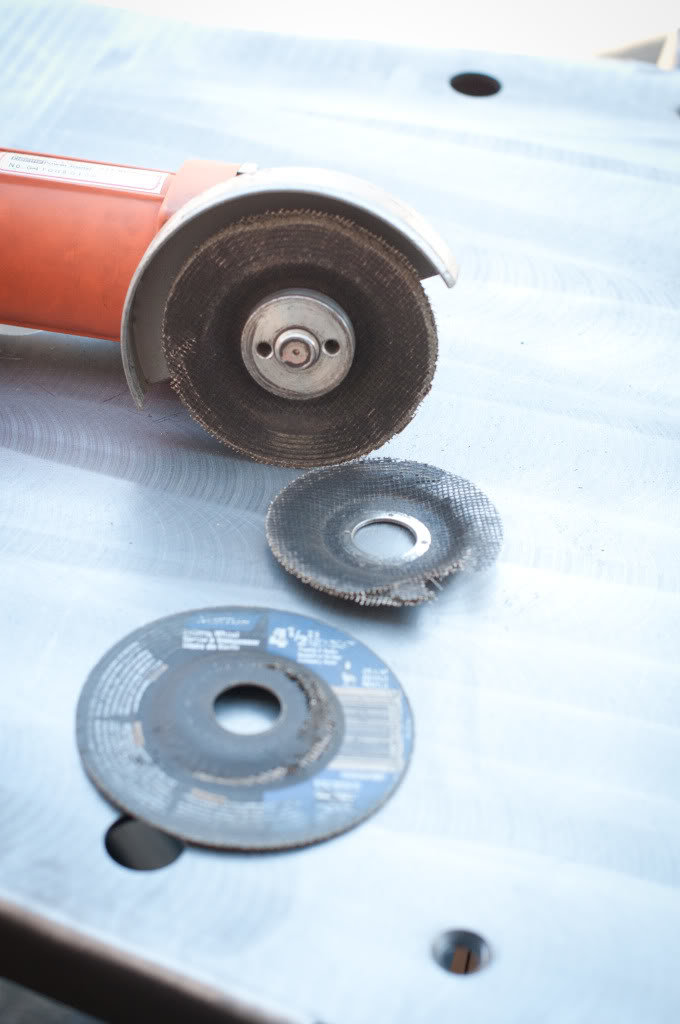

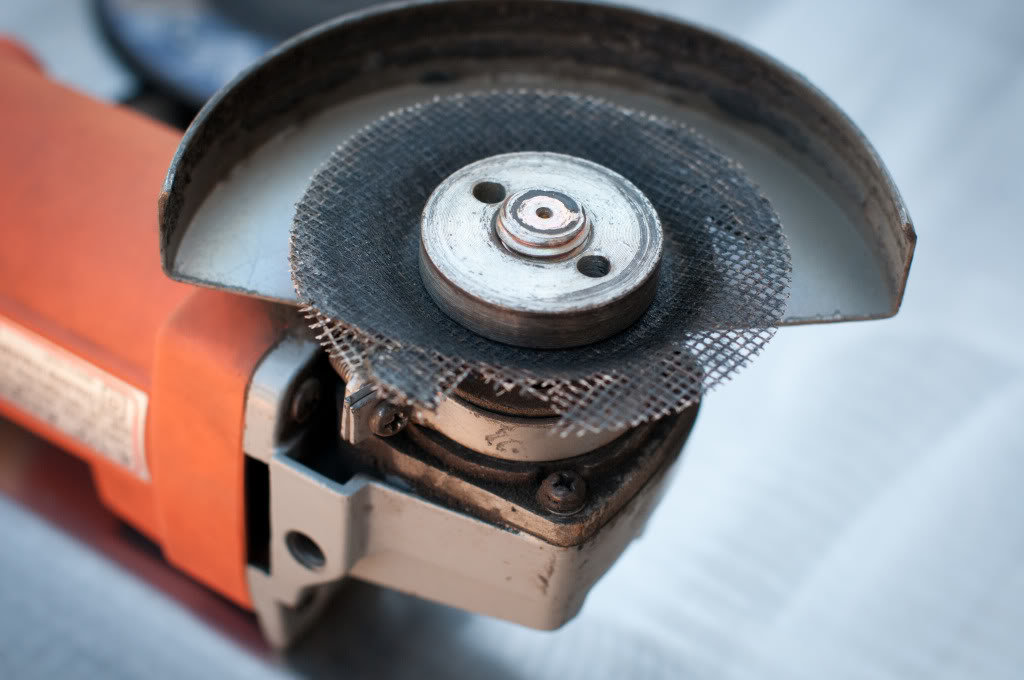

    And even if you take your time your going to eat up grinding disks I went through 3 and half of the fourth. And I took my time and didn't rush it.
    [​IMG]
    [​IMG]

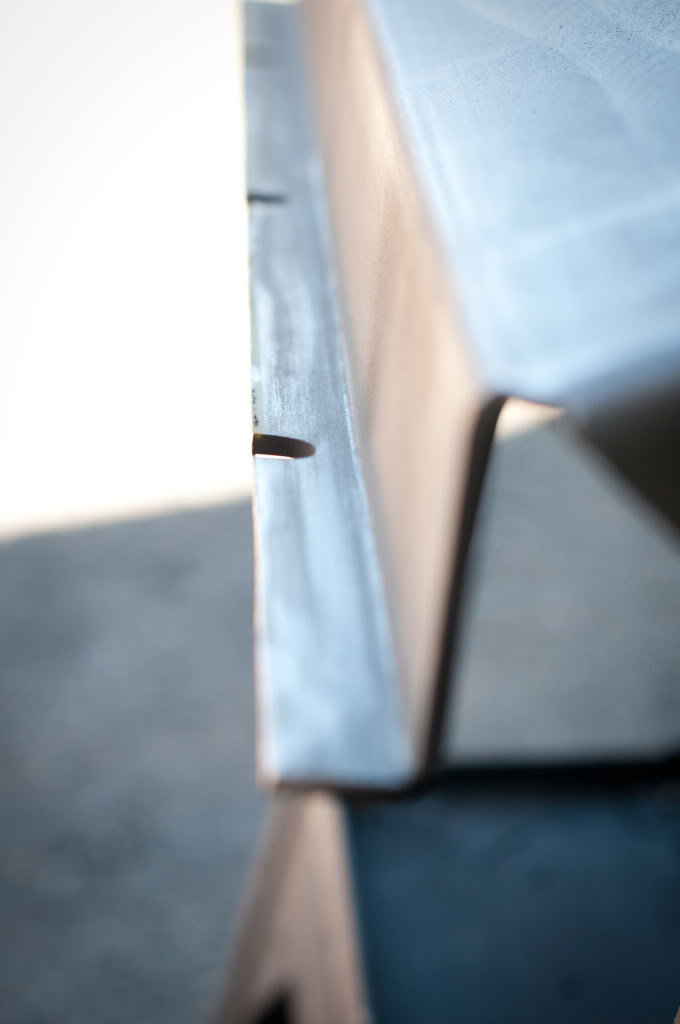

    Here is what i cut off mine "But yours will be different trust me"

    Passenger side
    [​IMG]

    Driver side
    [​IMG]

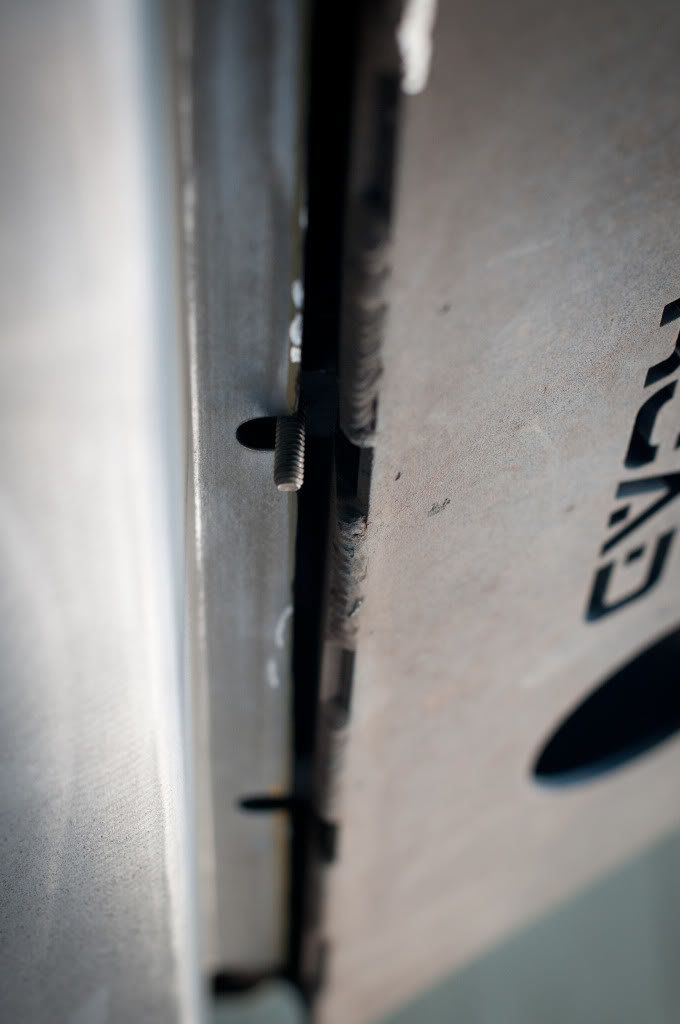

    Then mocked it up to see fitment I cut back a little much for my taste but once the hex nuts are started you couldn't get it to go into place. (Note) i would knock off about 1/8" 1/4" from your cut and it will line up better.
    [​IMG]

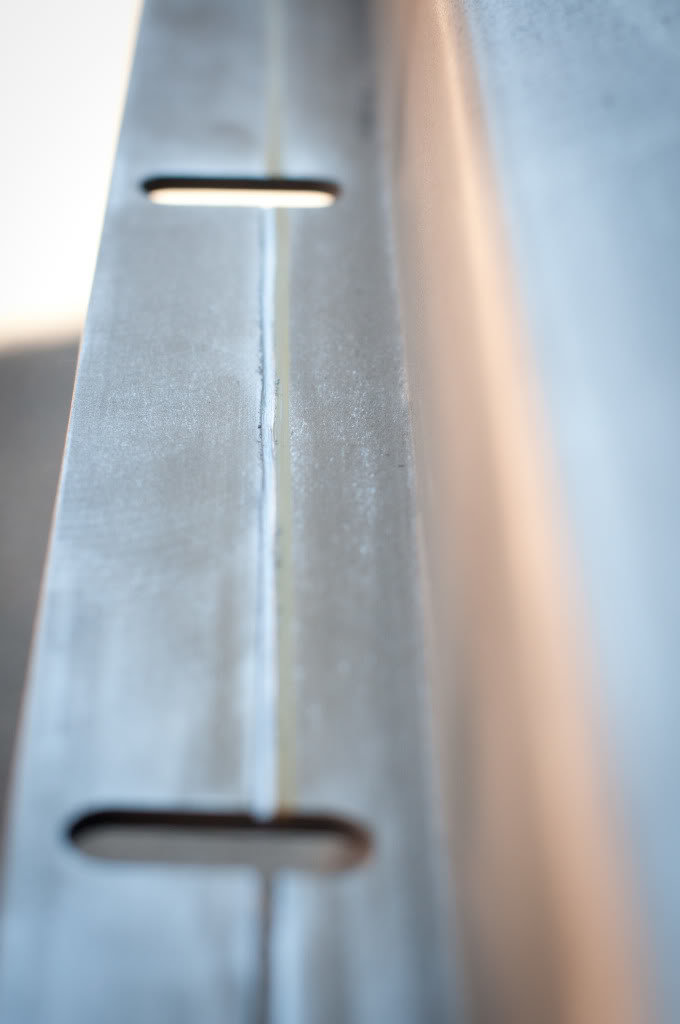

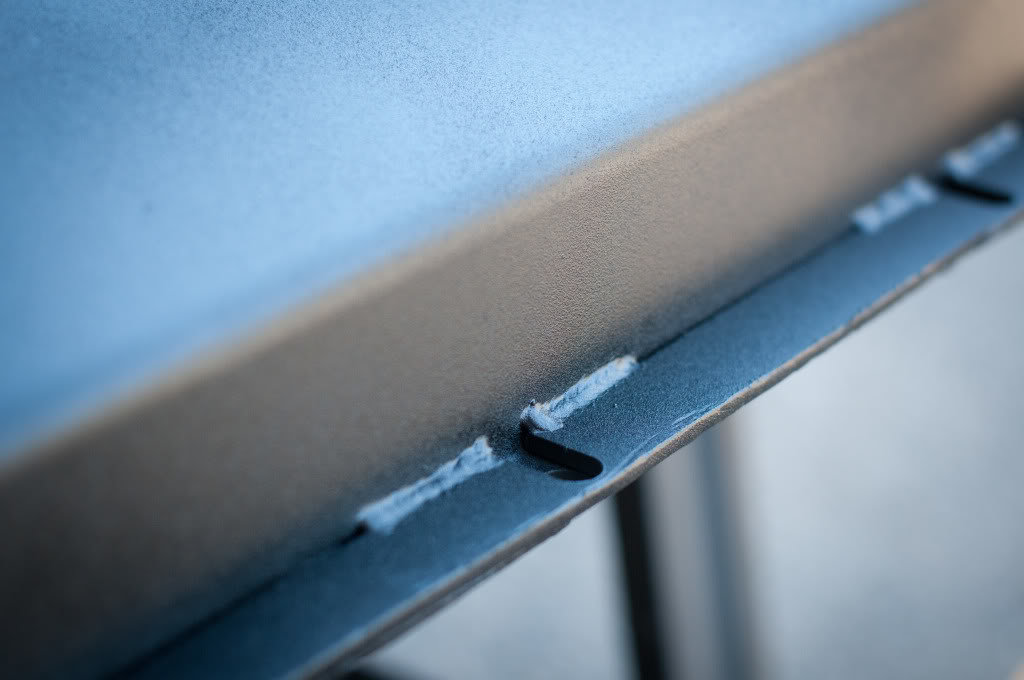

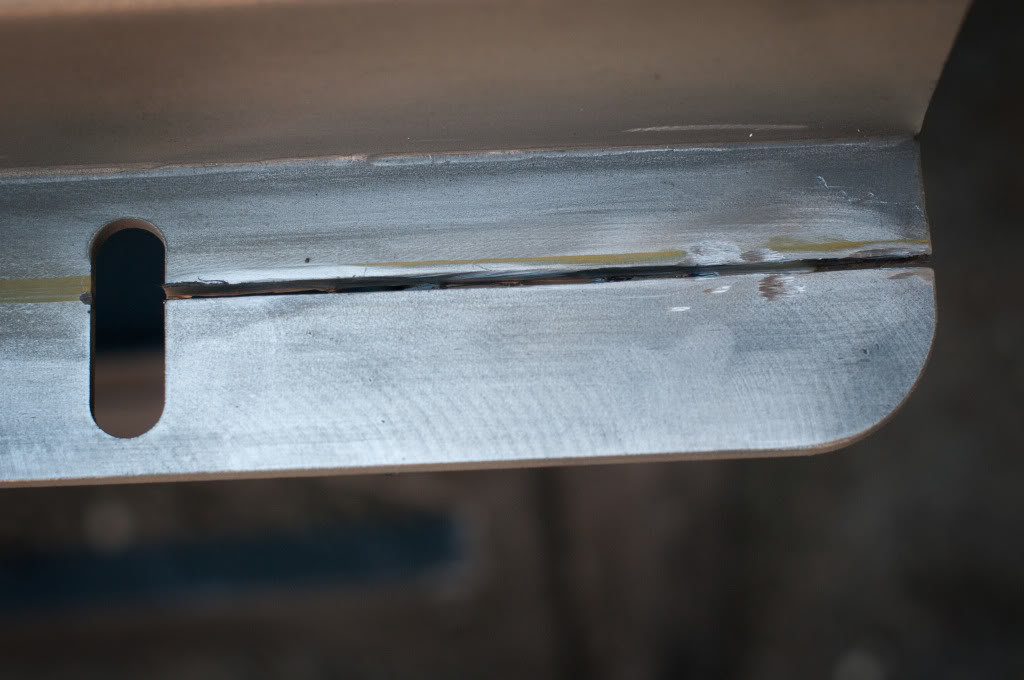

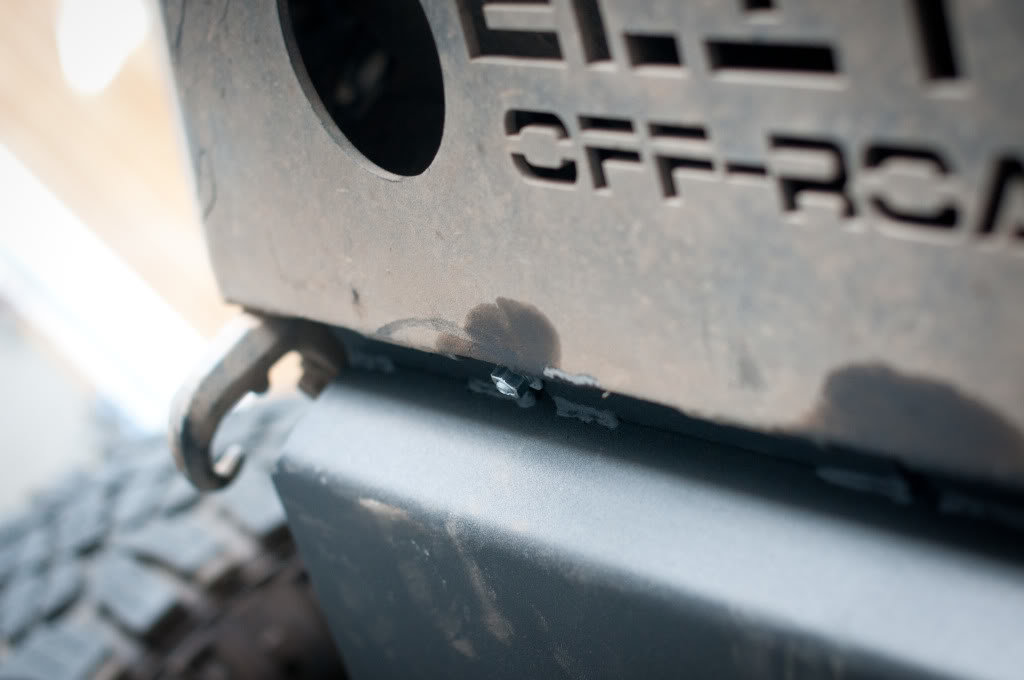

    I didn't mined the over cut too much because i didn't plan on leaving it that way. i took the trimmed steel and lined it up wit the holes and stitch welded it to the skid.
    [​IMG]

    [​IMG]

    [​IMG]

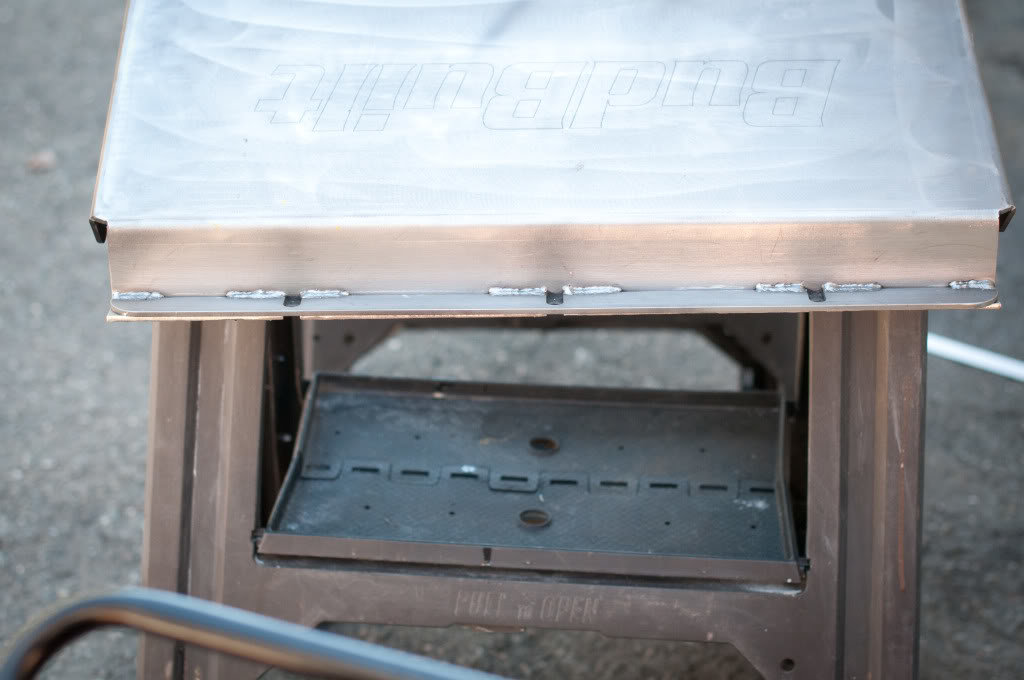

    Then tested fitted the skid and there was just a little over hang i had to trim.
    [​IMG]

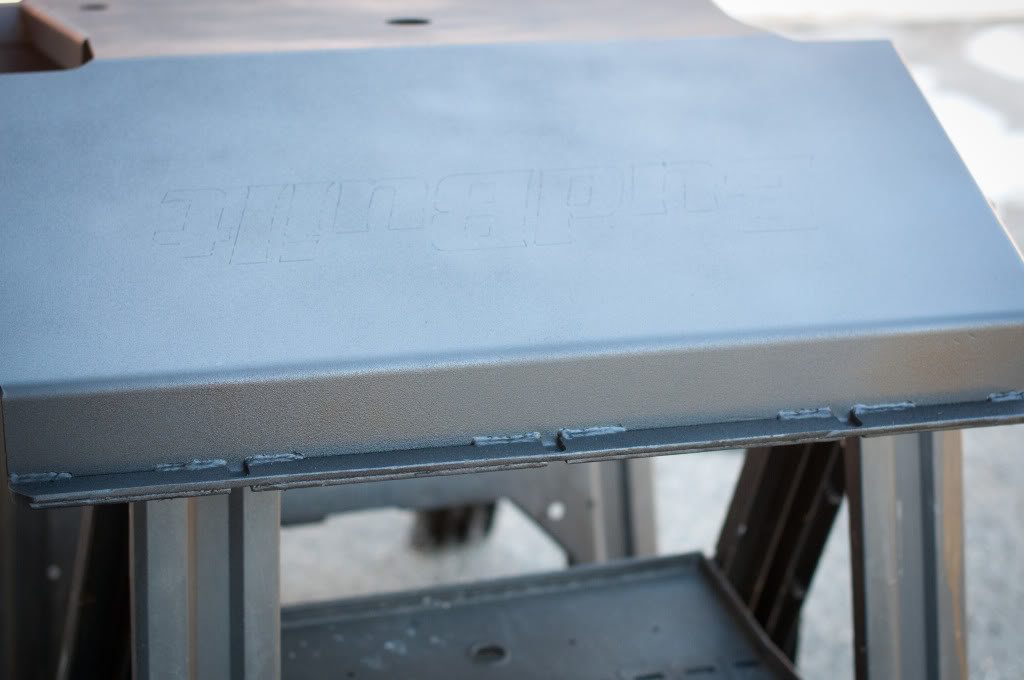

    Then I primed and painted the skid.
    [​IMG]

    [​IMG]

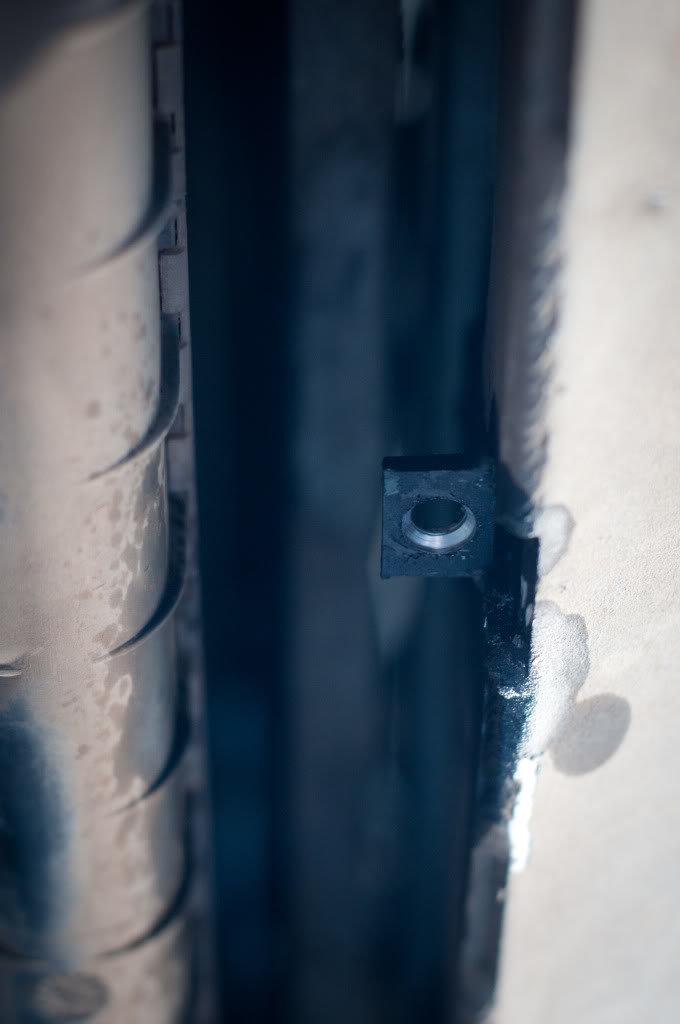

    Note you will have to drill out the hole on the bumper and buy nuts from Home Depot to bolt it to the bumper.
    [​IMG]

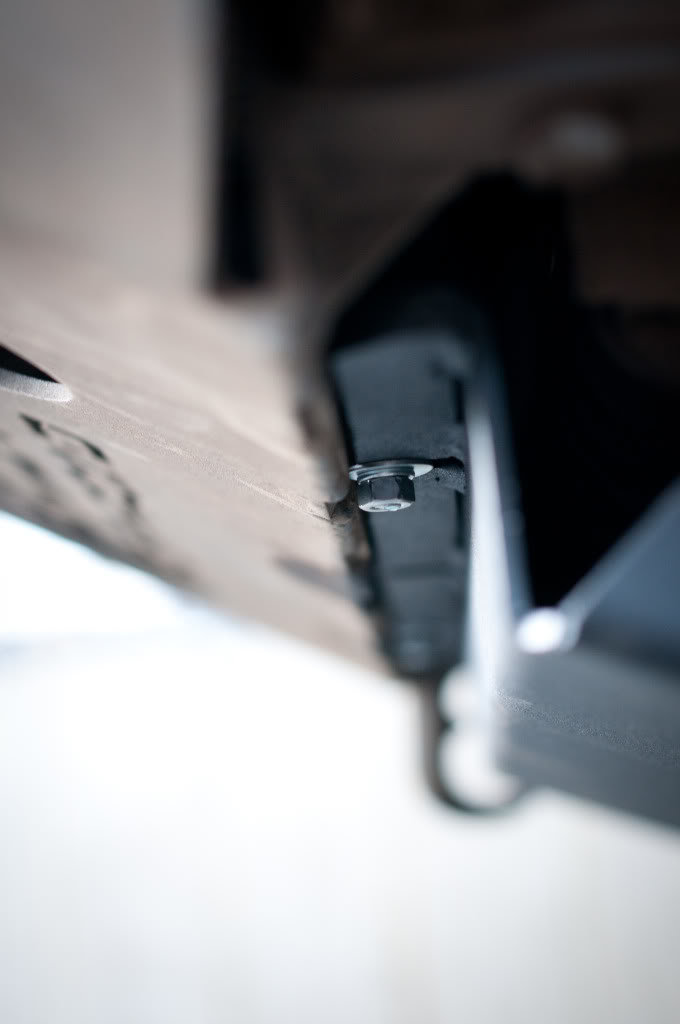

    I had some 5/16th bolts so I used those.
    [​IMG]

    [​IMG]

    Another thing if you have the Elite cut outs like I do you can forget about the middle bolt because you can get to it. You could put it in before the skid and hope it don't spin on you because you can't get to the top. The next time i take off my skid I may tack the bolt to the bumper and put it on but I'm fine with just 2 for now.

  2. Aug 18, 2011 at 8:54 AM
    #2
    1337Taco

    1337Taco Slamry

    Joined:
    May 9, 2008
    Member:
    #6504
    Messages:
    7,385
    Gender:
    Male
    First Name:
    Kevin
    NorCal
    Vehicle:
    07 Tacoma Off-Road
    Camburg Spindles, Bilstein Rear plus AAL. 285 Hankook MT.
    Looks good Jerry!

  3. Aug 18, 2011 at 8:56 AM
    #3
    Max-4_Yota

    Max-4_Yota The Welfare Cadilac

    Joined:
    Dec 10, 2009
    Member:
    #27357
    Messages:
    4,267
    Gender:
    Male
    First Name:
    Michael
    South Carolina
    Vehicle:
    04 Tacoma 4x4, V6, 5spd
    Squattin'
    Great write up, Ill be doing this once my bumper gets here. :thumbsup:

  4. Aug 18, 2011 at 8:57 AM
    #4
    hard2kill

    hard2kill Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55714
    Messages:
    3,860
    Gender:
    Male
    First Name:
    John
    Rhinebeck NY
    Vehicle:
    06 4door trd sport white 6spd
    ...315's,2in bora wheel spacers,safari snorkel,wheel spacers,bruteforcefab rear bumper and sliders,afe filter,hi-lift jack,5100 with OME 886 & 1/2in spacer,allpro expo's,icon 10in rear shox,flip kit,ss brake lines,cobra cb,fog light mod,yellow fogs,weathertech mats,fullsize spare tire and extra sport rim,tinted windows,aeroturbine 2525 muffler dumped over axle...rear diff breather mod...removed factory spare...removed 2nd air filter...THULE roof rack and fairing....bud builts front to back,allpoo front bumper,BAMF lca skids,overland Offroad roof and bed racks,
    nice write up man....

  5. Aug 18, 2011 at 9:18 AM
    #5
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Thanks guy I figured Id help everyone out so there was no guessing when installing a Bud Built skid with one of these bumpers.

  6. Aug 18, 2011 at 9:51 AM
    #6
    Digiratus

    Digiratus Adventurer/KG7VFU

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    10,829
    Gender:
    Male
    First Name:
    Mike
    the Pacific Northwest, Exploring
    Vehicle:
    The RedHead
    King ET Coilovers Camburg Uniball UCAs Alcan 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate Trail Gear U-bolt Flip Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker OBA ARB Twin Comp 15x8 D Window Steelies 33" BFG KM2s Limited Edition Elite Front Bumper Smittybilt X2O 10K Winch PIAA 510 SMR Fog Lights Lightforce 170s Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Optima Yellow Top battery Magnaflow 18" Muffler Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Nice write-up

  7. Aug 18, 2011 at 11:42 AM
    #7
    Honey badger

    Honey badger Honey badger hits whatever tree he wants to hit!!

    Joined:
    Oct 22, 2009
    Member:
    #24735
    Messages:
    2,188
    Gender:
    Male
    First Name:
    Bon
    Kinder, Louisiana
    Vehicle:
    02 DC BLACK 3.4
    Great write up man very helpful :thumbsup:

  8. Aug 24, 2011 at 12:43 AM
    #8
    Timicha

    Timicha Timicha

    Joined:
    Dec 23, 2008
    Member:
    #11854
    Messages:
    2,722
    Gender:
    Male
    First Name:
    TIM
    Tillamook / Portland , Oregon
    Vehicle:
    04 White Tacoma
    Fabtech 4 inch lift, tinted windows, diff drop, 33 inch MTZ tires on Raceline Raptor wheels, ELITE OFF-ROAD bumpers and sliders
    nice job Jerry, thanks for posting this!! rep for you

  9. Apr 1, 2012 at 10:28 AM
    #9
    Dr. Sleep

    Dr. Sleep Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4

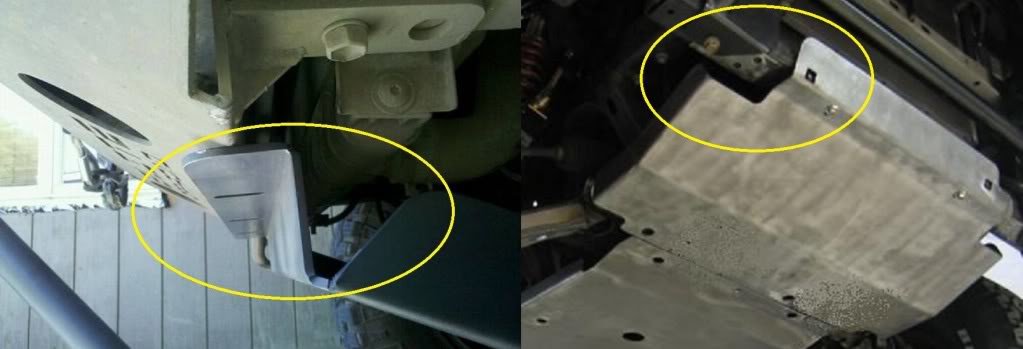

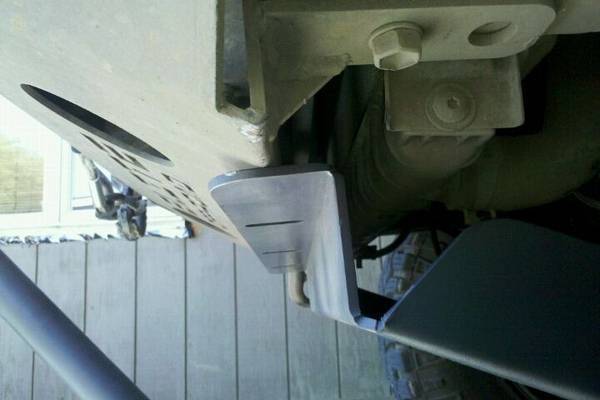

    I know this is an old thread, but was wondering if Bud Built redesigned their skid plates for the tacoma . . . . it seems the IFS one pictured here is different from previous ones.
