Buffonery and Cam Position Sensor wiring

Discussion in '1st Gen. Tacomas (1995-2004)' started by AviateGW, May 21, 2015.

  1. May 21, 2015 at 8:13 AM
    #1
    AviateGW

    AviateGW [OP] Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34121
    Messages:
    77
    Gender:
    Male
    First Name:
    Glenn
    Atlanta area
    Vehicle:
    Black '99 3.4 SR5 4x4. OME/Dakar
    16x8 KONIG Countersteer Offroads from FN, OME/881s in front, OME shocks/Dakar leafs in back. K&N CAI, and last, but not least, TRD Shift knob.
    Lesson: NEVER get in a hurry when wrenching.

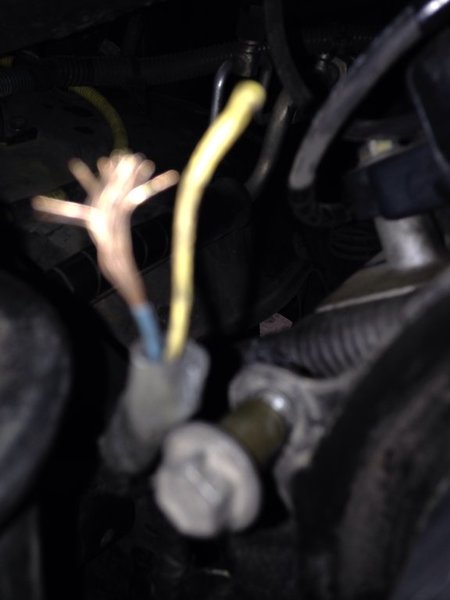

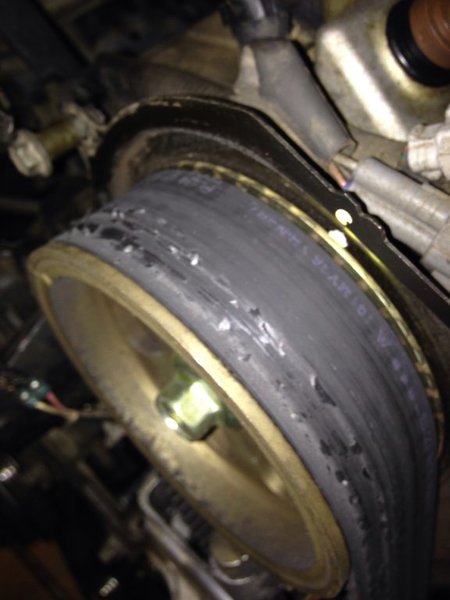

    I was at the end of a timing belt/water pump change on my '99 with the 3.4. Late at night, and after a long day, I managed to stuff the wiring for the CPS behind the timing belt cover, where, it came into contact with the timing belt. My truck ran great...until the timing belt chewed through the cam position sensor wiring. It threw a P0340 and immediately ran like crap. I was able to limp home to ultimately discover this:


    I am going to redo the timing belt, but I have no idea how to fix the connection between the cam position sensor connection to the rest of the wiring bundle that runs eventually to the ECU. I don't even know what parts to buy, if they are even possible to buy, to create a new connection.

    I'll gladly accept any jokes made at my expense as long as they are accompanied with advice on how to fix this mess.

  2. May 21, 2015 at 9:55 AM
    #2
    JJ04TACO

    JJ04TACO Well-Known Member

    Joined:
    Oct 12, 2013
    Member:
    #114311
    Messages:
    1,237
    Gender:
    Male
    First Name:
    Jim
    Dallas
    Vehicle:
    04 White DC/TRD
    Fox 2.5 RR front, 2.0 RR rear from AccuTune Offroad, OME Dakar Leafs, Camburg Uniball UCA's, CBI Offroad Bolt on Sliders w/kickout, Scangauge II Uniden Bearcat 880 w/ 3' Firestick on CBI antenna mount B&M Trans Cooler
    Any chance to splice in new section of wire? I'm guessing the connector is still good.

    No jokes from me, because we all have made silly mistakes. That and I'd be a bit flustered to say the least..

  3. May 21, 2015 at 4:23 PM
    #3
    AviateGW

    AviateGW [OP] Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34121
    Messages:
    77
    Gender:
    Male
    First Name:
    Glenn
    Atlanta area
    Vehicle:
    Black '99 3.4 SR5 4x4. OME/Dakar
    16x8 KONIG Countersteer Offroads from FN, OME/881s in front, OME shocks/Dakar leafs in back. K&N CAI, and last, but not least, TRD Shift knob.
    I've got a new cam position sensor and a new timing belt on order. I went to the dealership to order the new connector for the sensor.

    I really managed to screw this up.

    I'm going to have to splice some wire into the engine side of the CPS. Then, I'm going to have to find a way to get the wire to attach to the connector that resides on the main wiring bundle of the truck that leads to the ECU.

    I'll replace the timing belt, take the hydraulic tensioner to my future father-in-laws house (who will ridicule me) to compress it in a vise, and reinstall.

    Go big, or go home, right?
