Build a shortbed deck that extends from 4’ to a 6.5’ platform bed in a weekend!

Discussion in '3rd Gen. Tacomas (2016-2023)' started by OnHartung'sRoad, Mar 15, 2018.

  1. Mar 15, 2018 at 7:15 PM
    #1
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Heres my ongoing DIY weekend project- a sleeping platform for my OR DCSB that extends from a 4 foot to a 6.5-foot long platform bed with storage underneath it.

    The reason I’m going for a fast build here is because we are going on a week-long road trip during spring break that will include off-roading as far as Death Valley, so I’m in a hurry to get a expedition quality deck built in time for the trip. I want to build a useable platform that’s light, stows away gear above and below deck, and can be easily taken down and stored away flat in my garage when not needed. There are no nails or screws in this thing except to hold 2 hinges, it’s self suported, and only held together by dowel pins and gravity, so dont flip it!

    I’ll chronicle this Cheapo-Deck project here as it progresses. So far, I think I’ve spent the equivalent of less than 5 hours on it, including trial and error, and fitting parts.

    I am also trying to keep the total cost for this project, excluding the beer, to less than $100. I’m convinced people can build this in an easy weekend or even a day. Will it work out or end up as firewood? We’ll see!

    Materials needed:

    (2) 3/4” (edit: after testing, you may want these thicker for added support) x 7” x 6’ pine support boards.
    (1) 3/4” x 9” x 6’ pine board.
    (2) sheets 3/4” x 4’ x 8’ exterior sanded plywood
    (11) 1/2” x 1-1/2” dowels
    (2) piano hinges cut to about 26” each
    Wood glue
    Sand paper
    Exterior Latex Paint (Get oops paint to save $)
    Rug or outdoor carpet, etc.
    Beer

    Tools:
    Table or circular saw with cutting guide
    Drill with 1/2” bit
    Router with round bit (optional)
    Tape measure and pencil
    More beer


    Final board lengths (sanded or routered round edges on all corners and edges except only lightly sanded on hatch edges where hinge goes):

    (2) forward decks - 4’ x 28.5” each
    (1) rear deck - 52.5” x 31”
    (2) pine support boards - 6.75” x 57-1/8”
    (2) rear deck hatch/supports - 26.25” x 8.75” each

    Assemble as shown in pics:

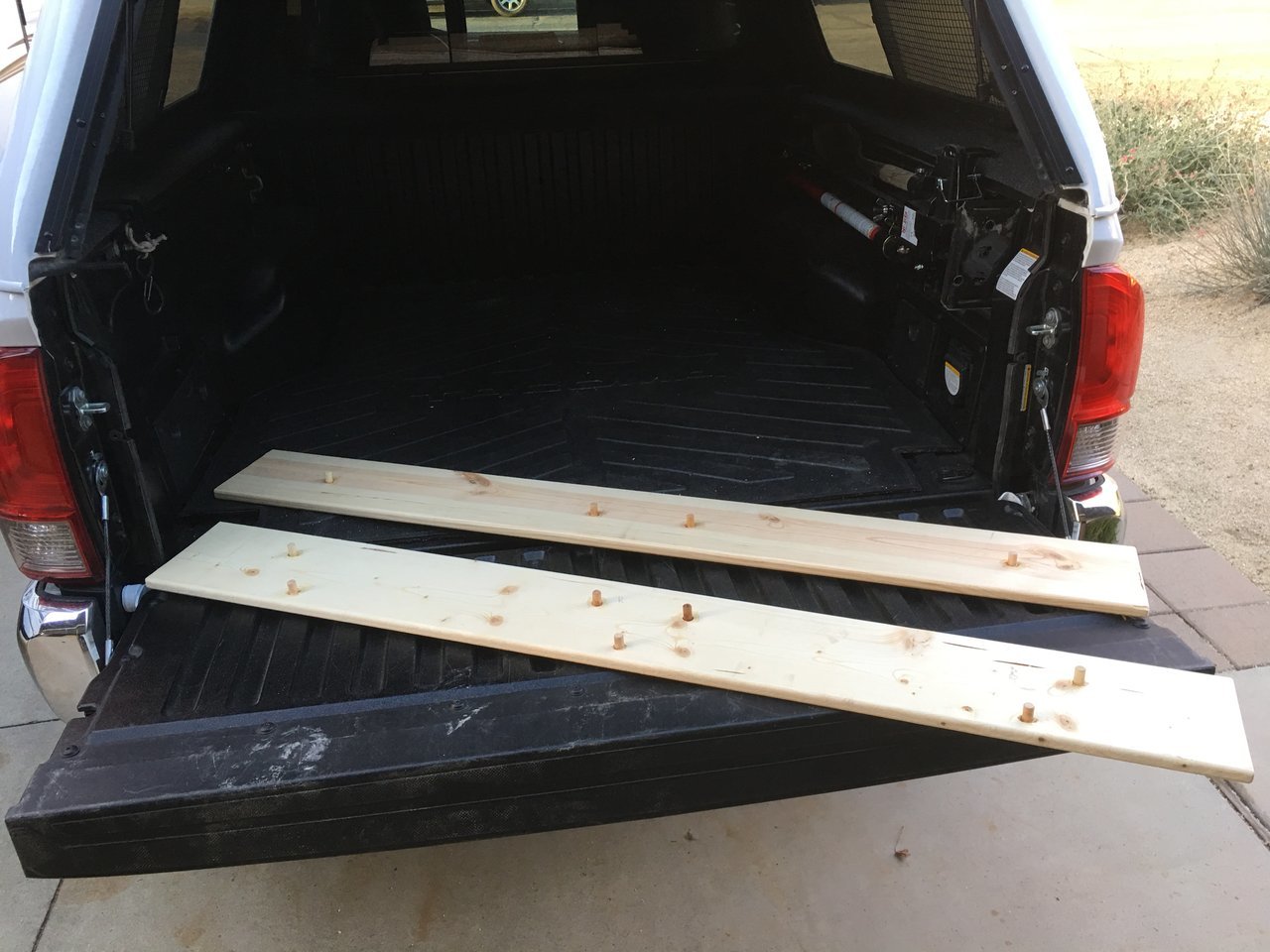

    I drilled out 1/2” holes and glued the dowels into the support boards to hold the decks from moving when they are in use.

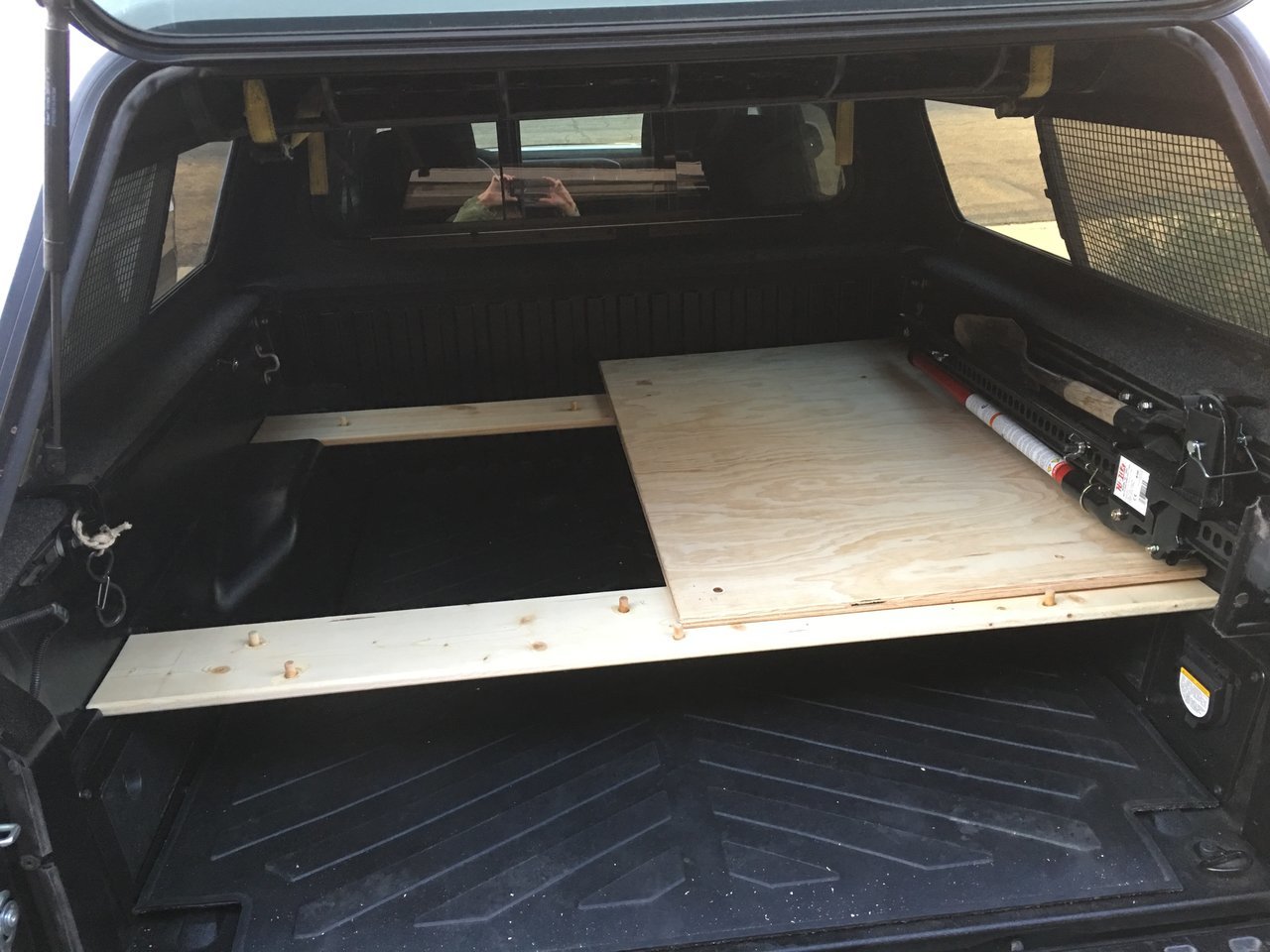

    Put the decks on first and drill through them into the support board when drilling out the dowel holes so they match up properly.

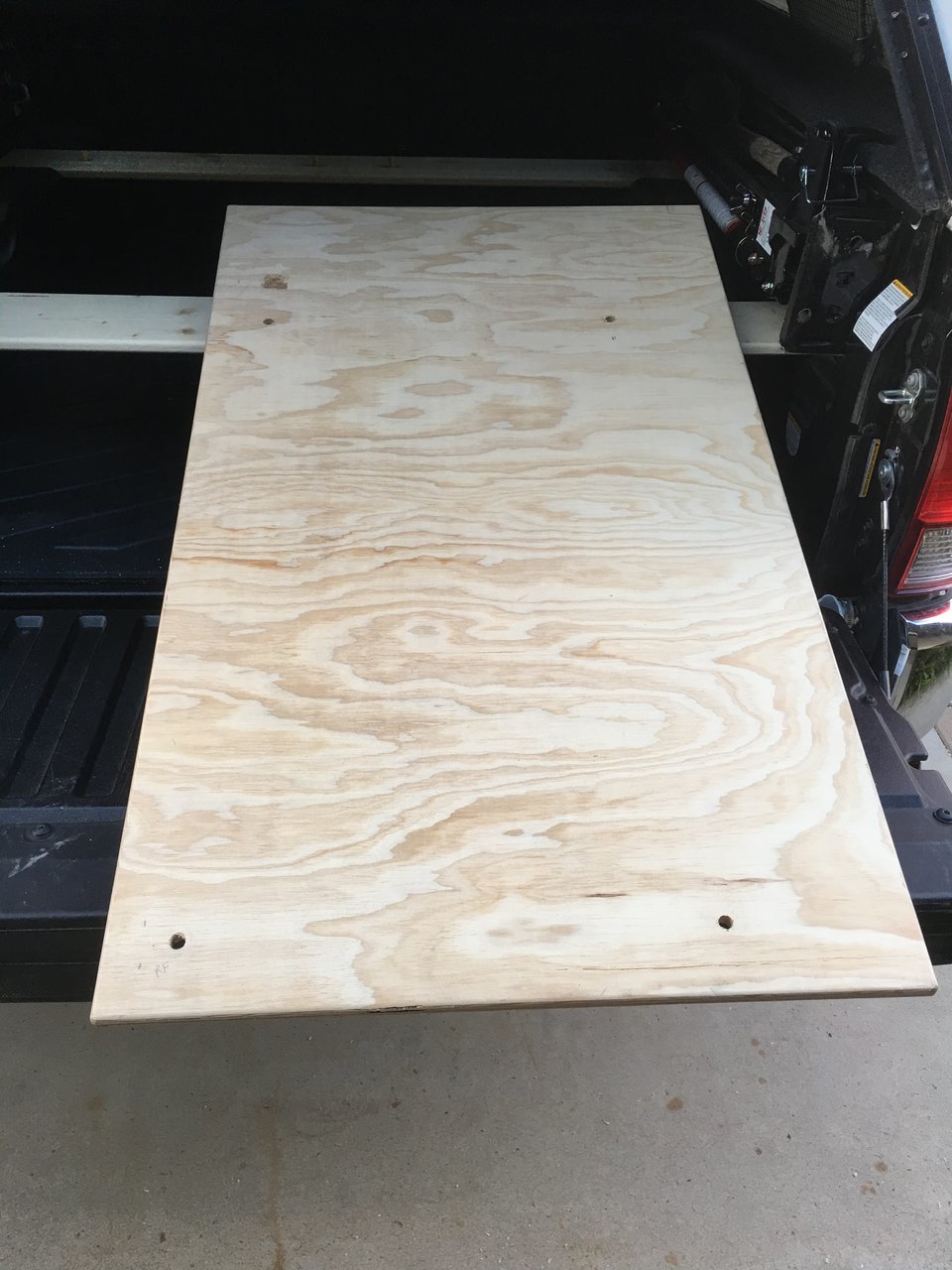

    The deck pieces have holes that match the protruding dowels that were glued into the support boards, so they can be securely placed over the dowels and will not slip or move around. When moving the boards, just lift them up to release them from the dowels.

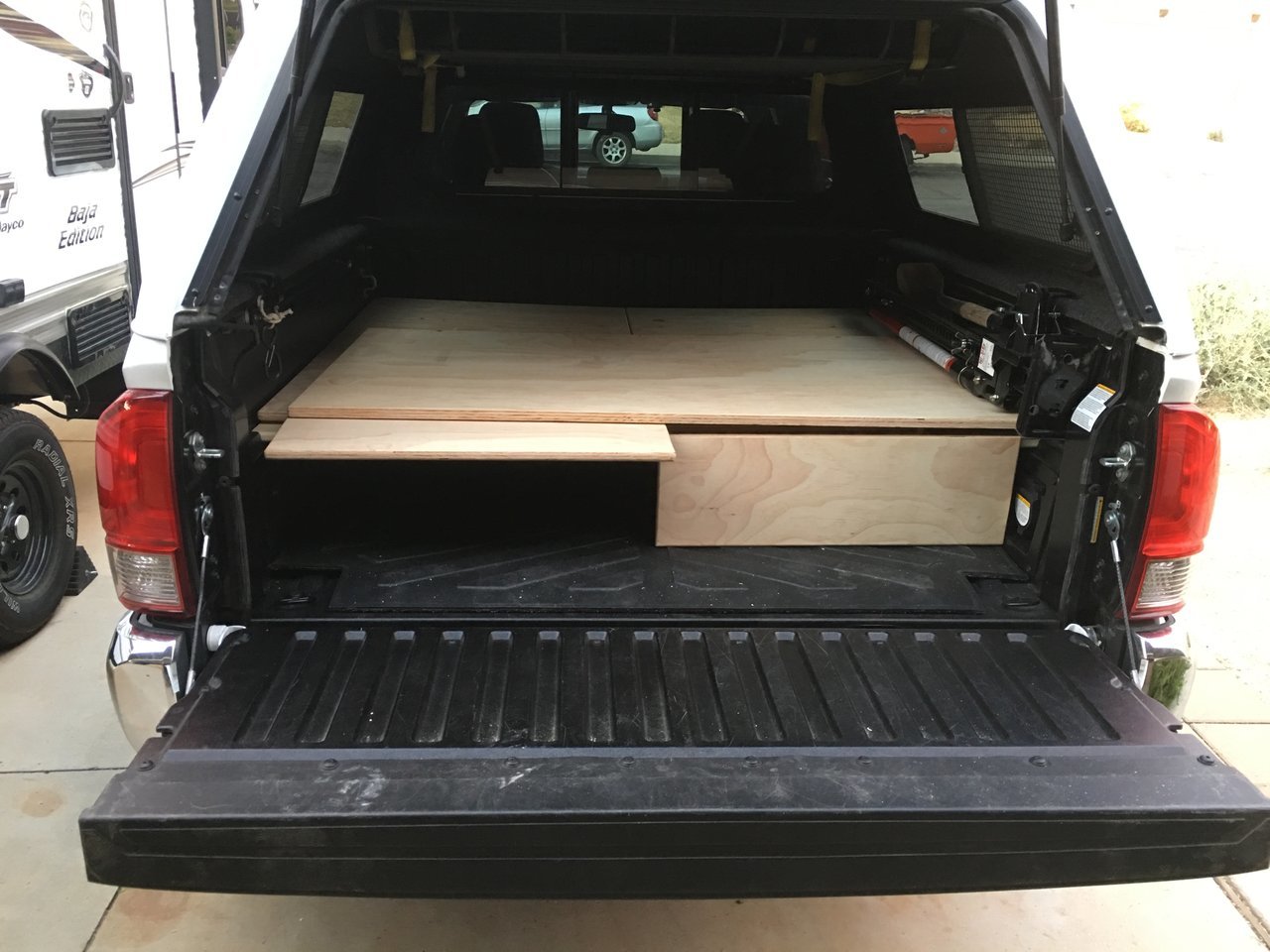

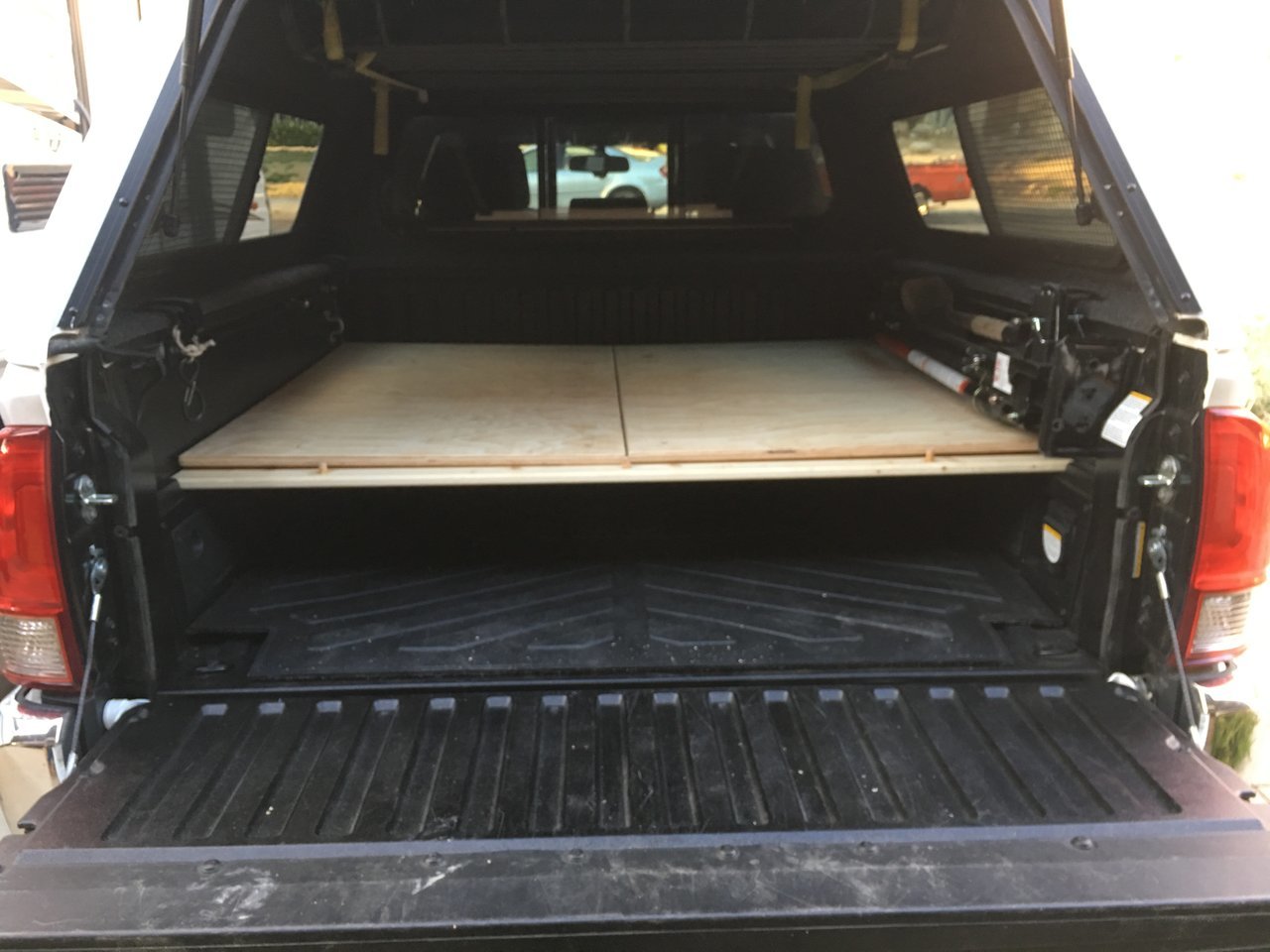

    5EBC944F-82E6-4FEE-9B32-BEF6286289B9.jpg E76833A3-EA06-4B4C-9162-C307C395E5EE.jpg

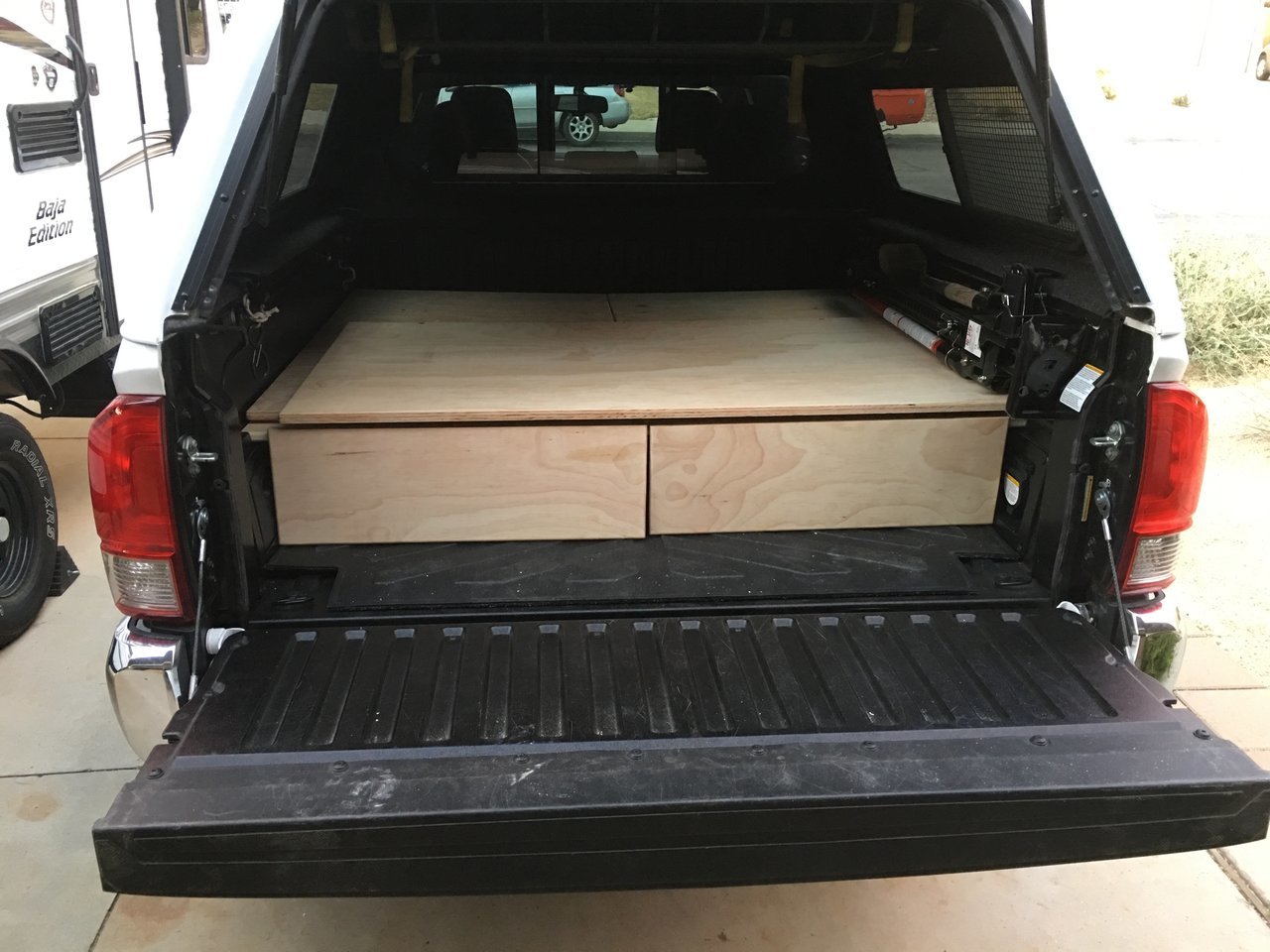

    The rear most deck sits on top of the foreward ones when not in use.395A183D-5770-414A-A0B2-492C2C051A80.jpg
    The rear hinged deck supports act as doors but also support the back part of the rear deck, allowing you to slide it in or out the the desired length.

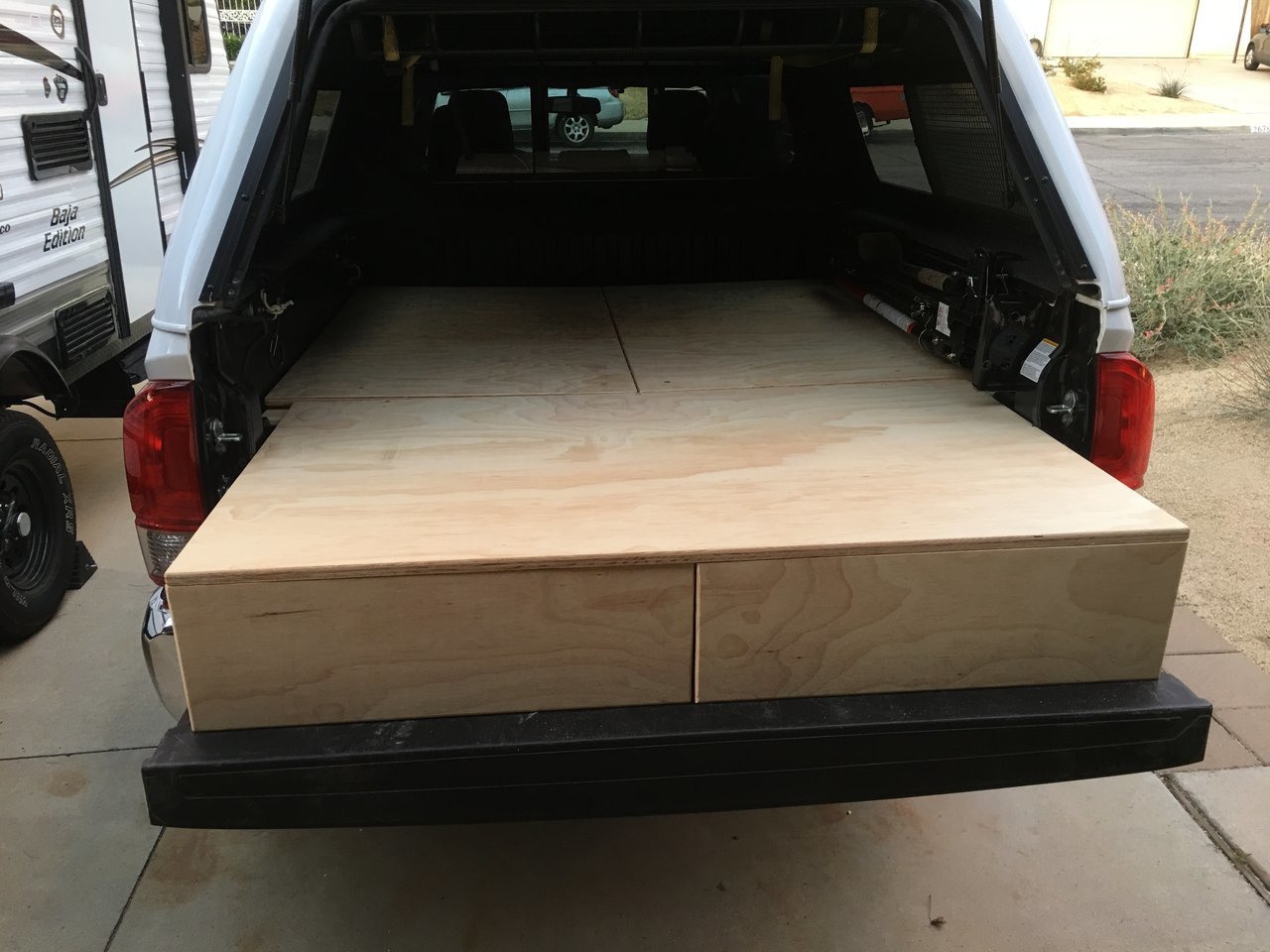

    When fully extended out to 6.5’, the rear deck seats in the dowels in the support board and makes a stable support for the bed.

    I’ll add more details such as drilling measurements for dowels and the hinge details as I complete it over the next few afternoons.


    Attached Files:

    Last edited: Sep 24, 2019
  2. Mar 17, 2018 at 6:06 PM
    #2
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4

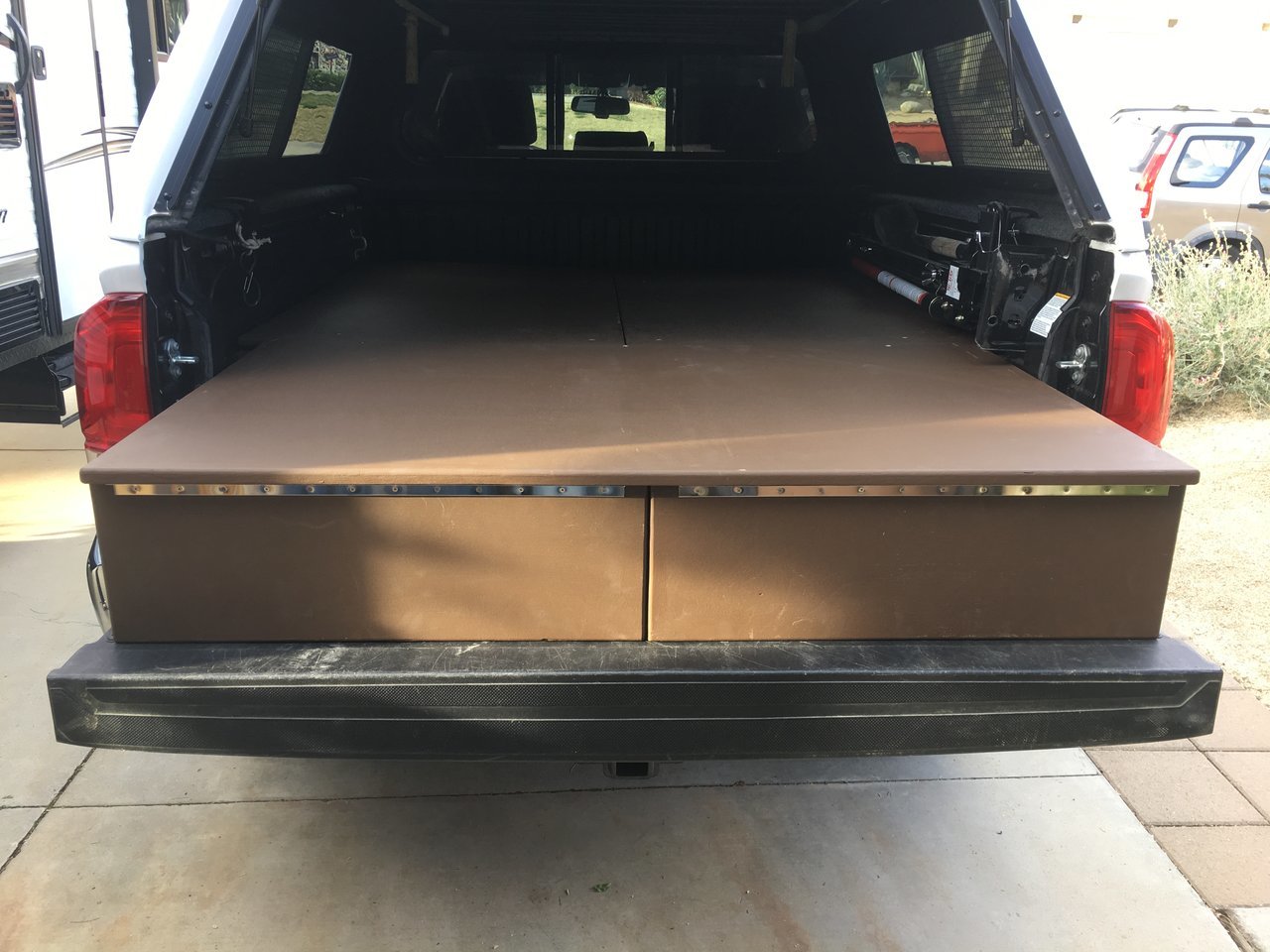

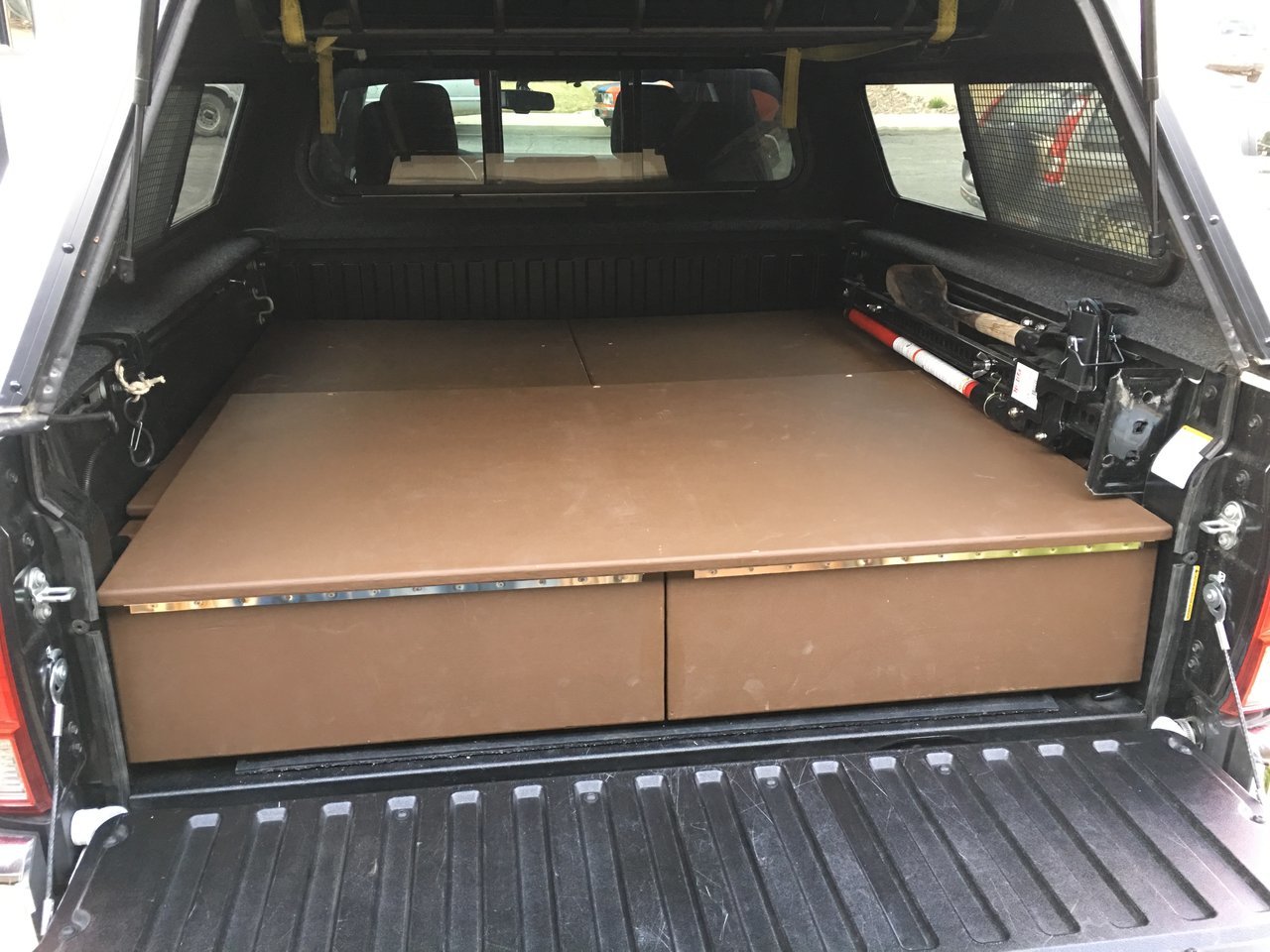

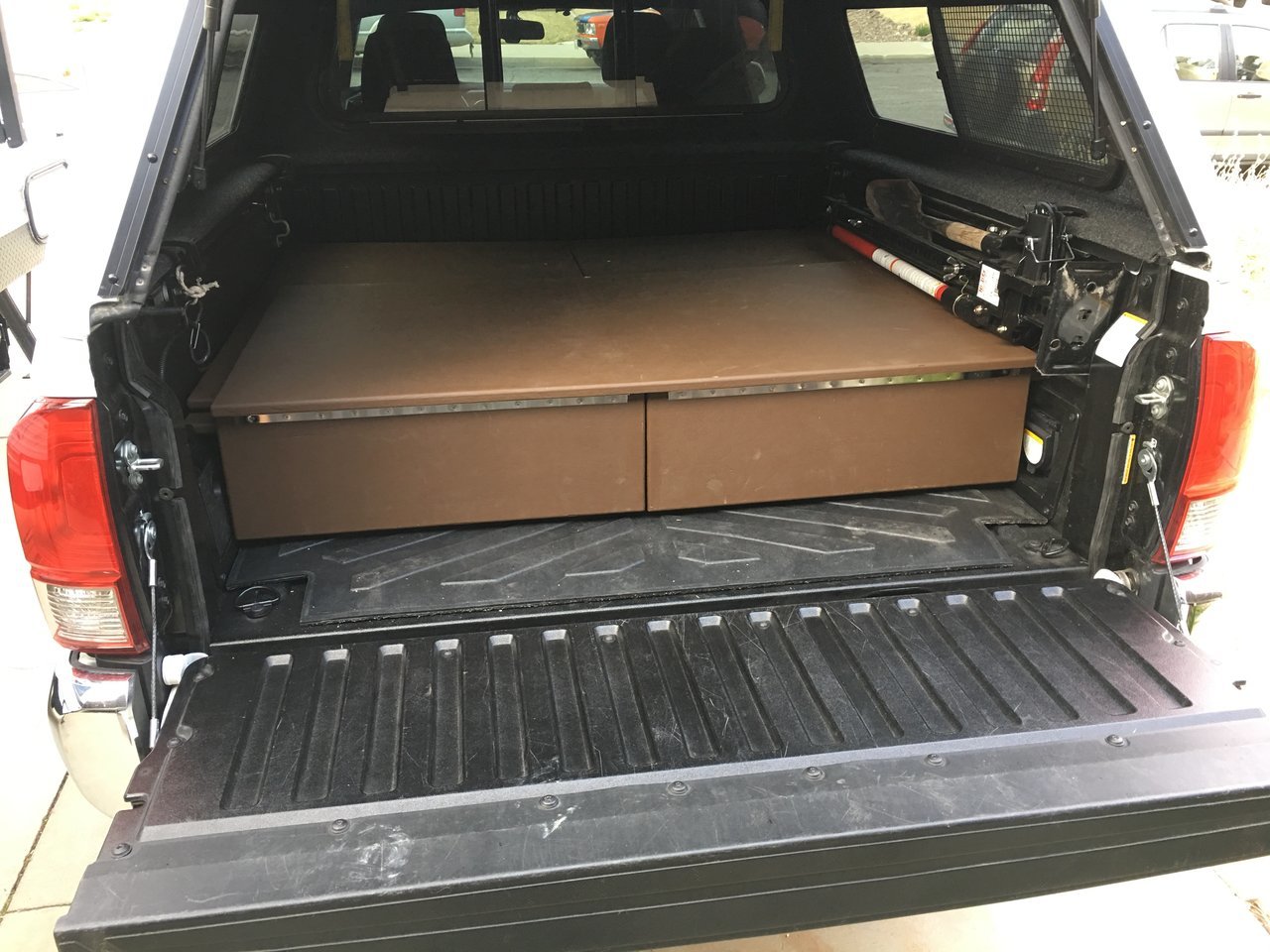

    Update: Finished! It is very stable, will work out very well. Here’s a rough sketch of the drilling measuremens and finished deck. ***Put the decks in before drilling, and drill through the deck and supports together and put in each dowel as a temporary holder as you go so all the holes will line up after gluing iin the dowels!***

    Note: dont forget to redrill out dowel pin holes after painting and try not to paint the dowels. Put wax on the dowels and inside the holes too before fiting it together (I used my kid’s crayons).

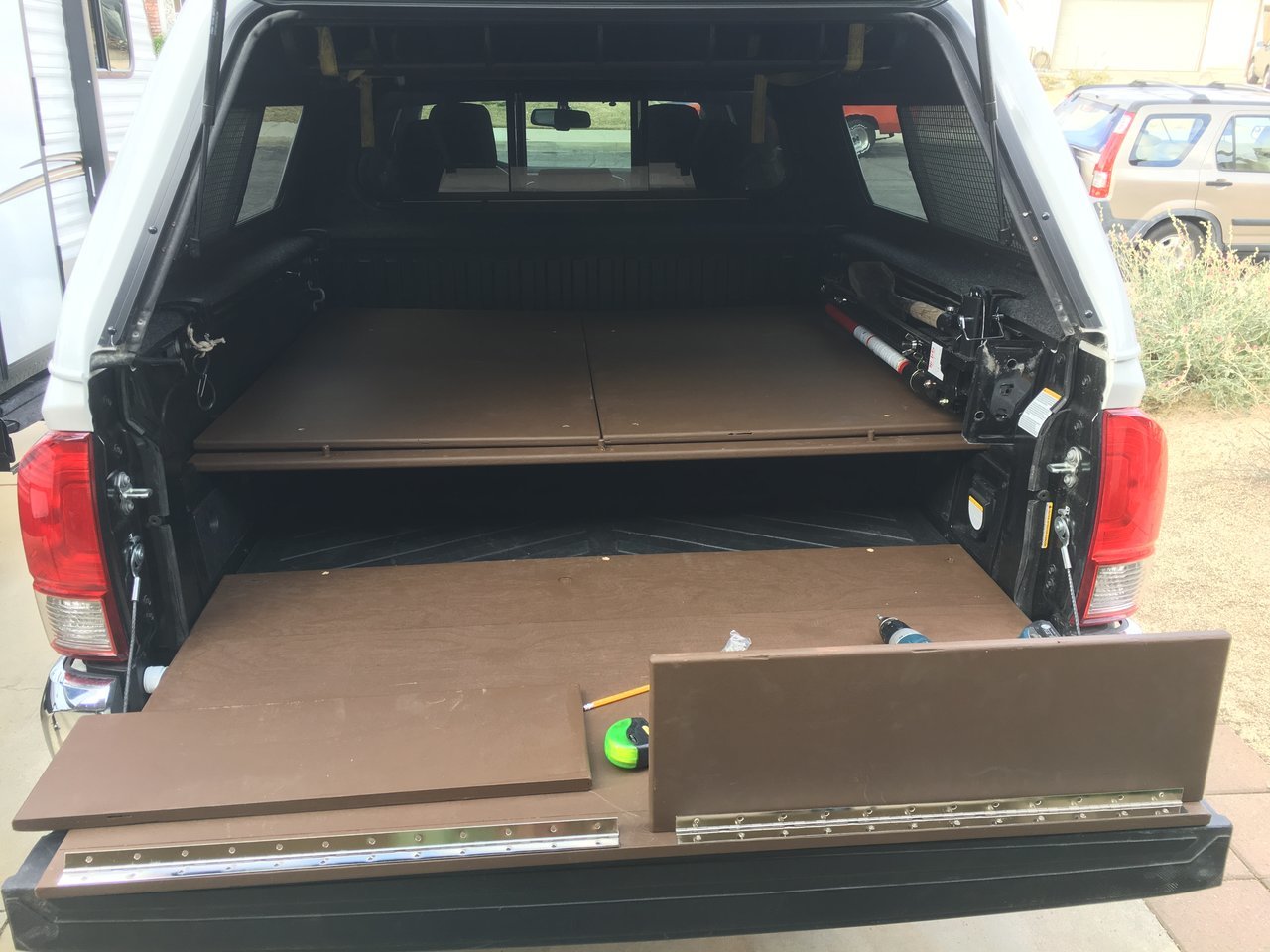

    4178AC1D-B1E6-4BCE-B7F4-E73F82E29A0F.jpg 6D31194E-F5DD-4DE7-A72B-69A01A83A61B.jpg

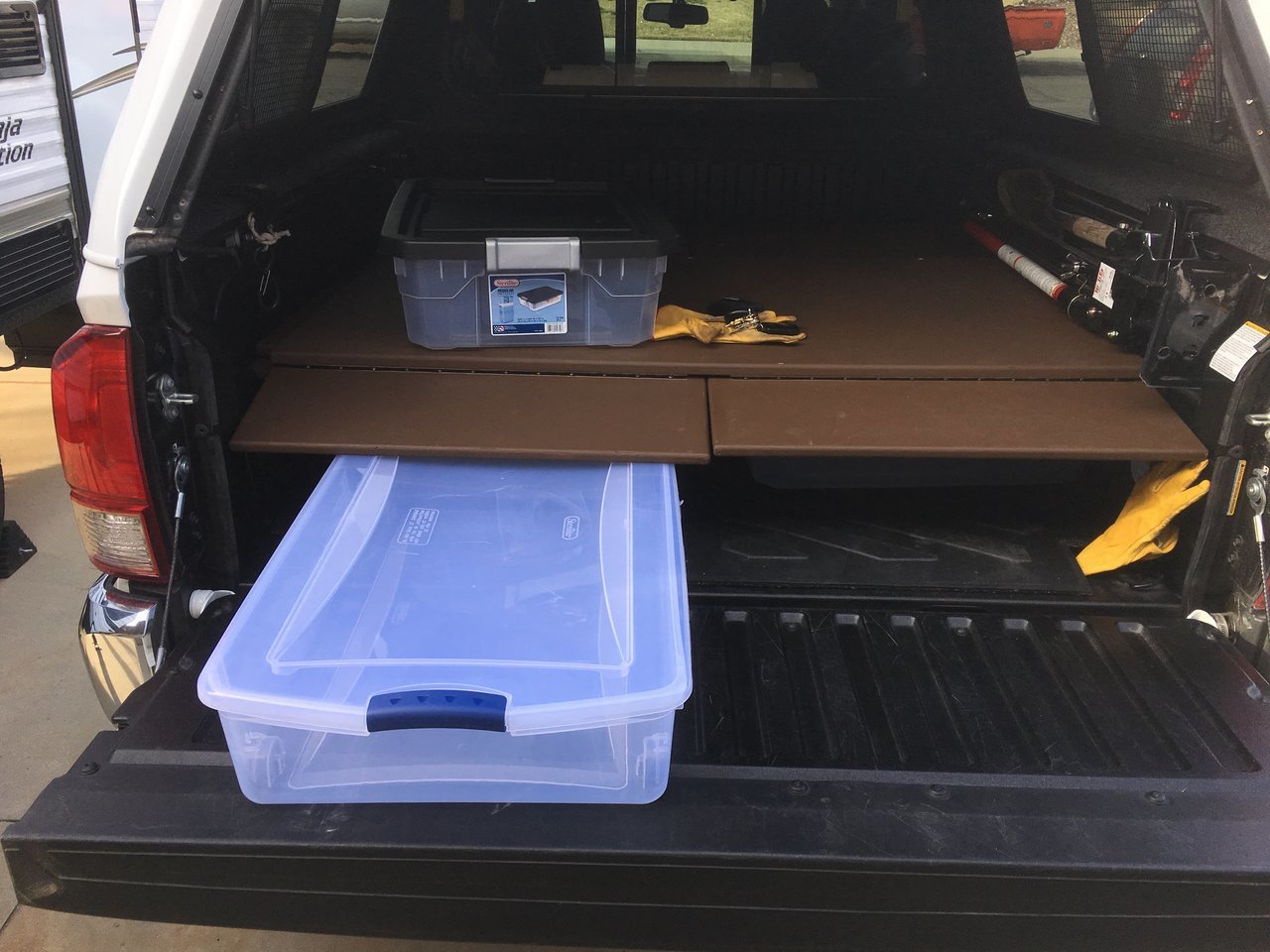

    The Walmart Sterilite rolling underbed boxes work perfectly with this bed configuration, they fit with less than 1/2” to spare above them. I can fit 4 under the bed with minimal wasted space - two 32” x 19” x 7” boxes (50qt) and two 25” x 19” x 7” boxes (10gal) under there, and they seal up well to keep dirt out. No drawers needed!

    Yeah, as for color, I would have used matching paint, but “Oops paint” in poo brown was a good choice as it only cost $9 for the already color added gallon vs. $26 for the same untouched self priming exterior latex at Home Depot :)

    Total project cost: $93 (not including the tent or beer)

    Last edited: Sep 13, 2019
  3. Mar 17, 2018 at 6:13 PM
    #3
    kluge9

    kluge9 Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211895
    Messages:
    96
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    19 DCSB OR MT
    Any chance of a video of you extending it?

  4. Mar 17, 2018 at 6:22 PM
    #4
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4

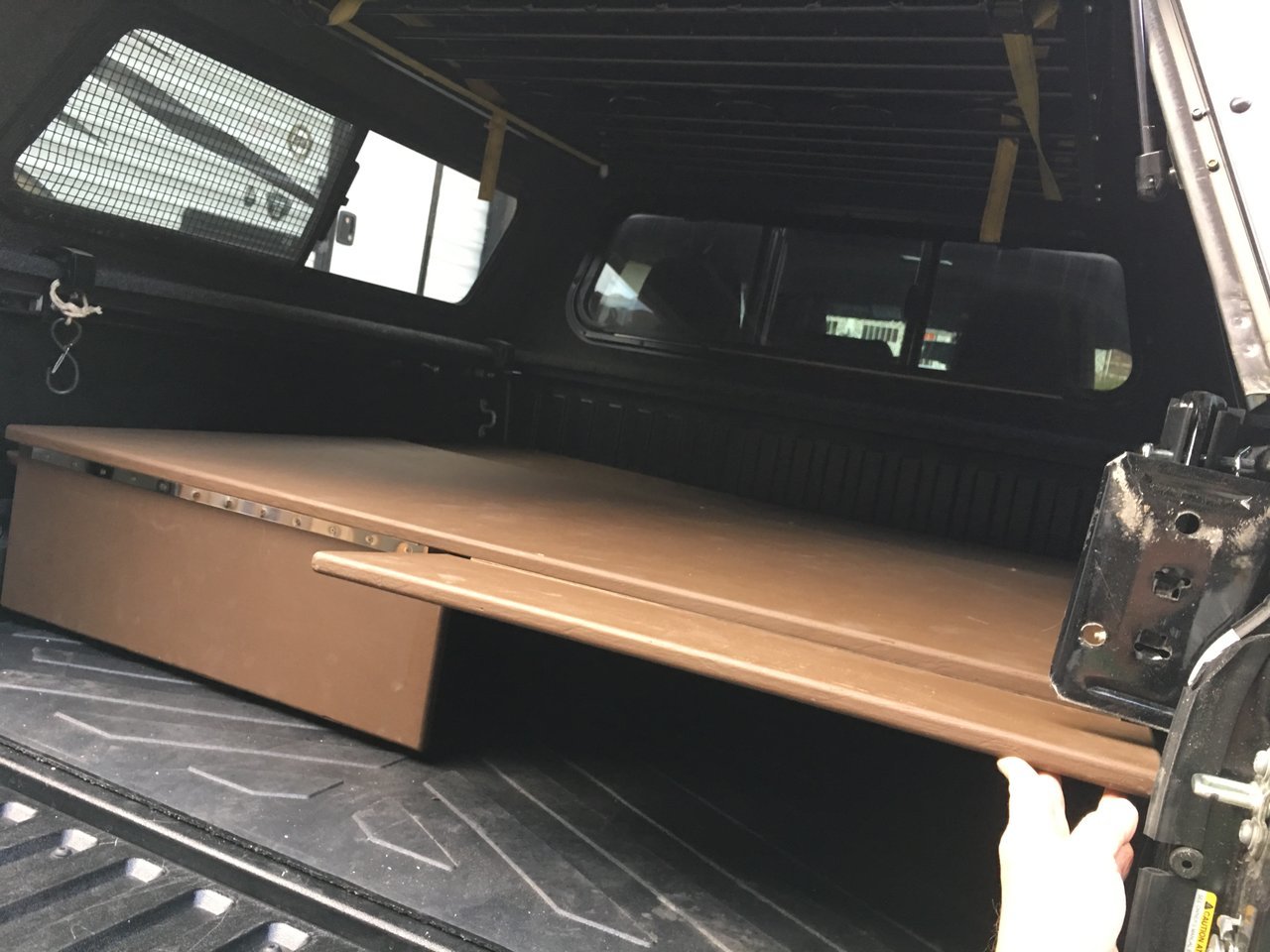

    The rear deck just slides over the top of the forward decks as you pull it out.

    Last edited: Mar 17, 2018
    kluge9[QUOTED] likes this.
  5. Mar 17, 2018 at 6:45 PM
    #5
    Topanga Taco

    Topanga Taco BUZZING NITRO

    Joined:
    Jan 6, 2018
    Member:
    #240465
    Messages:
    1,928
    First Name:
    Rick
    Topanga Canyon, Southern California
    Vehicle:
    2018 SR5 4x4 DCSB Harrop rear E-Locker
    The Magic of ALSD RCI-skid RAS-Sumos Bilstein 6112/5100
    Oh, you aint done yet! That's your prototype.

    If you live near Industrial Metal Supply, go check out their remnant pieces section. You should be able to score some extruded aluminum at a descent price. Build a sturdy light frame and at the end of the plywood extension, install 2 adjustable legs that unfold into place(2 others that unfold onto the gate). You can put an extruded piece at the edge of the plywood to strengthen it. So when you fully extend it, you would have a sturdy table to work, eat, and play off of. Would make a great place to fix equipment out in the boonies-axles, shafts, etc. Or a great place to set up your fishing gear, etc. Inside, maybe use some toggle clamps (at the cross members) on either side that can press and hold the back end of the "table" from wanting to shift out. Those wood workers ones have good clamping pressure. Make a bracket for them that can be bolted onto the extruded aluminum. Or simply using some spring actuated insert pins/dowels. Great project!

    OnHartung'sRoad[OP] likes this.
  6. Mar 17, 2018 at 7:05 PM
    #6
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Very good ideas- you are right, it is a prototype and will be going through some good field testing in Death Valley in just a couple weeks :) I like your table idea as the rear deck could easily be set up that way- and I am relatively close to Industrial Metal Supply, will check that out too. Thanks!

    Last edited: Mar 17, 2018
    Topanga Taco[QUOTED] likes this.
  7. Mar 17, 2018 at 11:34 PM
    #7
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Damn you!! And I thought I was done! Looked these up and bought them because of your idea... thanks a lot! :)

    https://www.amazon.com/dp/B073B28XZ...t=&hvlocphy=9031498&hvtargid=pla-355040597898

    Topanga Taco[QUOTED] likes this.
  8. Mar 18, 2018 at 2:42 AM
    #8
    Topanga Taco

    Topanga Taco BUZZING NITRO

    Joined:
    Jan 6, 2018
    Member:
    #240465
    Messages:
    1,928
    First Name:
    Rick
    Topanga Canyon, Southern California
    Vehicle:
    2018 SR5 4x4 DCSB Harrop rear E-Locker
    The Magic of ALSD RCI-skid RAS-Sumos Bilstein 6112/5100
    Only thing to it is to do it :cheers:

  9. Mar 18, 2018 at 9:26 AM
    #9
    Topanga Taco

    Topanga Taco BUZZING NITRO

    Joined:
    Jan 6, 2018
    Member:
    #240465
    Messages:
    1,928
    First Name:
    Rick
    Topanga Canyon, Southern California
    Vehicle:
    2018 SR5 4x4 DCSB Harrop rear E-Locker
    The Magic of ALSD RCI-skid RAS-Sumos Bilstein 6112/5100
  10. Apr 1, 2018 at 6:16 AM
    #10
    Beer Snob

    Beer Snob Well-Known Member

    Joined:
    Mar 18, 2018
    Member:
    #247675
    Messages:
    142
    Gender:
    Male
    First Name:
    Eric
    Grand Junction, CO
    Vehicle:
    2016 MGM DCSBTRDOR
    Subscribing.

  11. Apr 12, 2018 at 12:39 PM
    #11
    rogue.tacoma

    rogue.tacoma Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230771
    Messages:
    193
    Gender:
    Male
    First Name:
    Ed
    Vehicle:
    2017 TRD Off-Road 4x4 DCSB
    Any recent updates? I feel like adding a support beam down the middle would help. The wife and I are going on a CA->UT->CO->AZ road trip and sleeping in the back of camper shell would be the best plan.

  12. Apr 12, 2018 at 1:19 PM
    #12
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Yeah, after our 1 week trial I agree that it needs a bit of support in the middle, or use 2x7’s instead of 3/4x7’s cut to 2” x 6.75” cross beams - I went with thinner as per my hilift mount fits very closely to the top of the existing deck on the side. I am planning on putting two middle support legs or braces, one under the middle of each beam down to the bed - the storage boxes will still fit on both sides of those. I’ll post pics when I do it.

    Last edited: May 20, 2018
  13. Apr 12, 2018 at 3:33 PM
    #13
    rogue.tacoma

    rogue.tacoma Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230771
    Messages:
    193
    Gender:
    Male
    First Name:
    Ed
    Vehicle:
    2017 TRD Off-Road 4x4 DCSB
    I'l be waiting, so far your design I like best. Simple and cheap, keep up the good work.

  14. Apr 13, 2018 at 6:02 AM
    #14
    kgilly

    kgilly Well-Known Member

    Joined:
    Jul 26, 2016
    Member:
    #192937
    Messages:
    1,603
    Gender:
    Male
    First Name:
    Kurt
    Pennsylvania
    Vehicle:
    2016 DCSB SR5 4x4
    Bed cover and Mud flaps, OEM Audio, Super Bump stops, Sumo Springs, Bed Stiffeners, Stryker hood shocks
    Very nice...

  15. Jun 14, 2018 at 3:19 PM
    #15
    rogue.tacoma

    rogue.tacoma Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230771
    Messages:
    193
    Gender:
    Male
    First Name:
    Ed
    Vehicle:
    2017 TRD Off-Road 4x4 DCSB
    Any updates? See you got an RTT, what happened to the deck?

  16. Jun 14, 2018 at 5:10 PM
    #16
    OnHartung'sRoad

    OnHartung'sRoad [OP] -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    9,148
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma OR 4x4 (formerly 2002 OR 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    Hey there! Did you build one and go on Your trip yet? I’ll update this - I actually use the deck and the RTT. Its so nice having the seperate storage below the deck for the tools and other heavy stuff, and our softer items, sleeping gear, clothing, camera gear and even the dog go on top. Also, we plan on using the deck to sleep in the shell instead of popping open the RTT and getting it wet if it's raining when we go up the west coast in a few weeks. We will be on the road for 2 weeks, so putting the RTT away dry when we can will be important.

  17. Jun 15, 2018 at 7:46 AM
    #17
    rogue.tacoma

    rogue.tacoma Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230771
    Messages:
    193
    Gender:
    Male
    First Name:
    Ed
    Vehicle:
    2017 TRD Off-Road 4x4 DCSB
    My trip is in less than 2 weeks and I'm building the platform this weekend. I decided to go mostly with your build as others I've seen are a bit more more complicated and permanent. What would be nice would be more pics of how it extends from 4' to 6-5'. Thanks!

  18. Jun 27, 2018 at 7:55 PM
    #18
    dman100

    dman100 Well-Known Member

    Joined:
    Mar 2, 2016
    Member:
    #180009
    Messages:
    2,277
    Central Coast, California
    Vehicle:
    2016 TRD OR DCSB

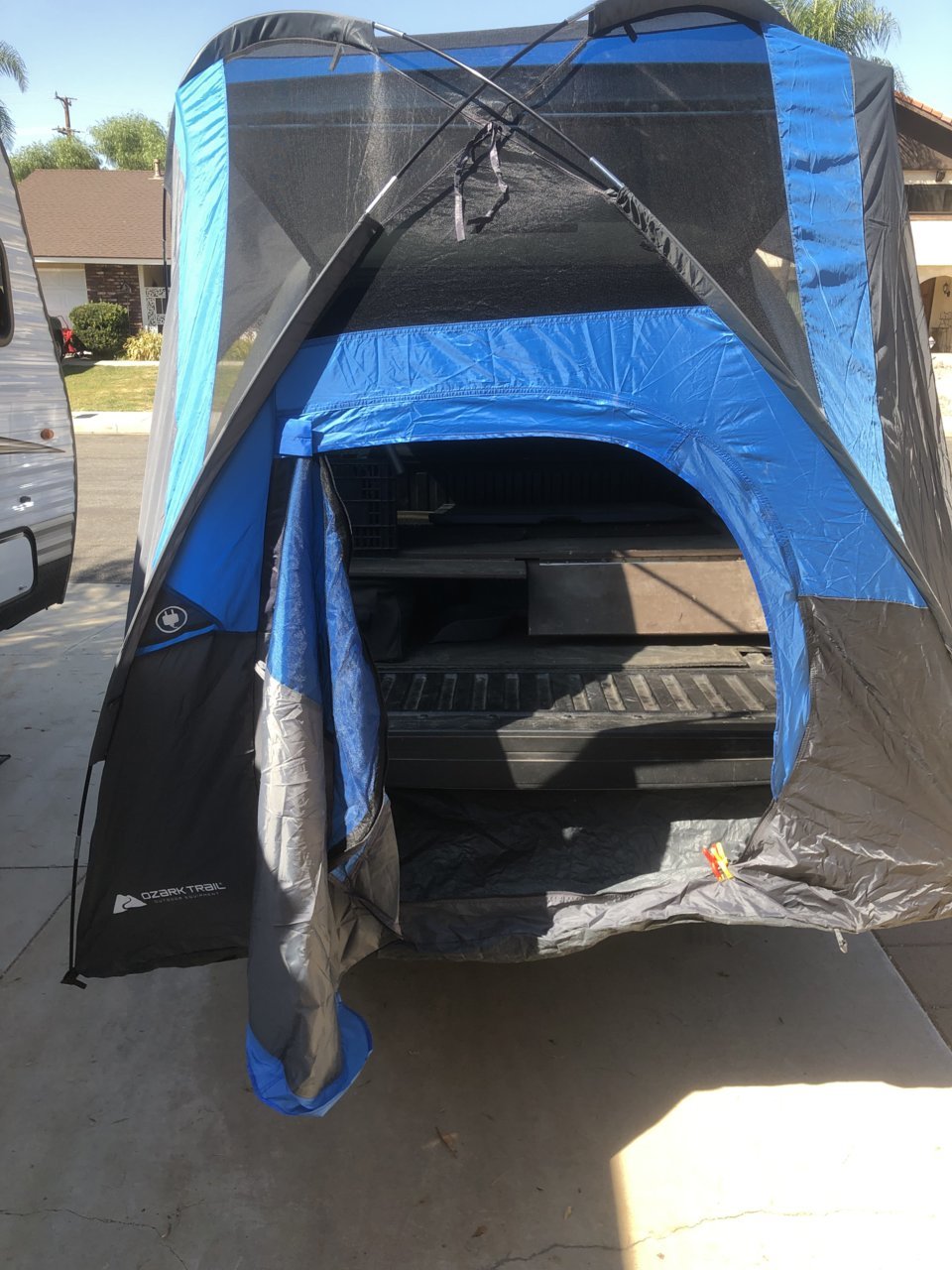

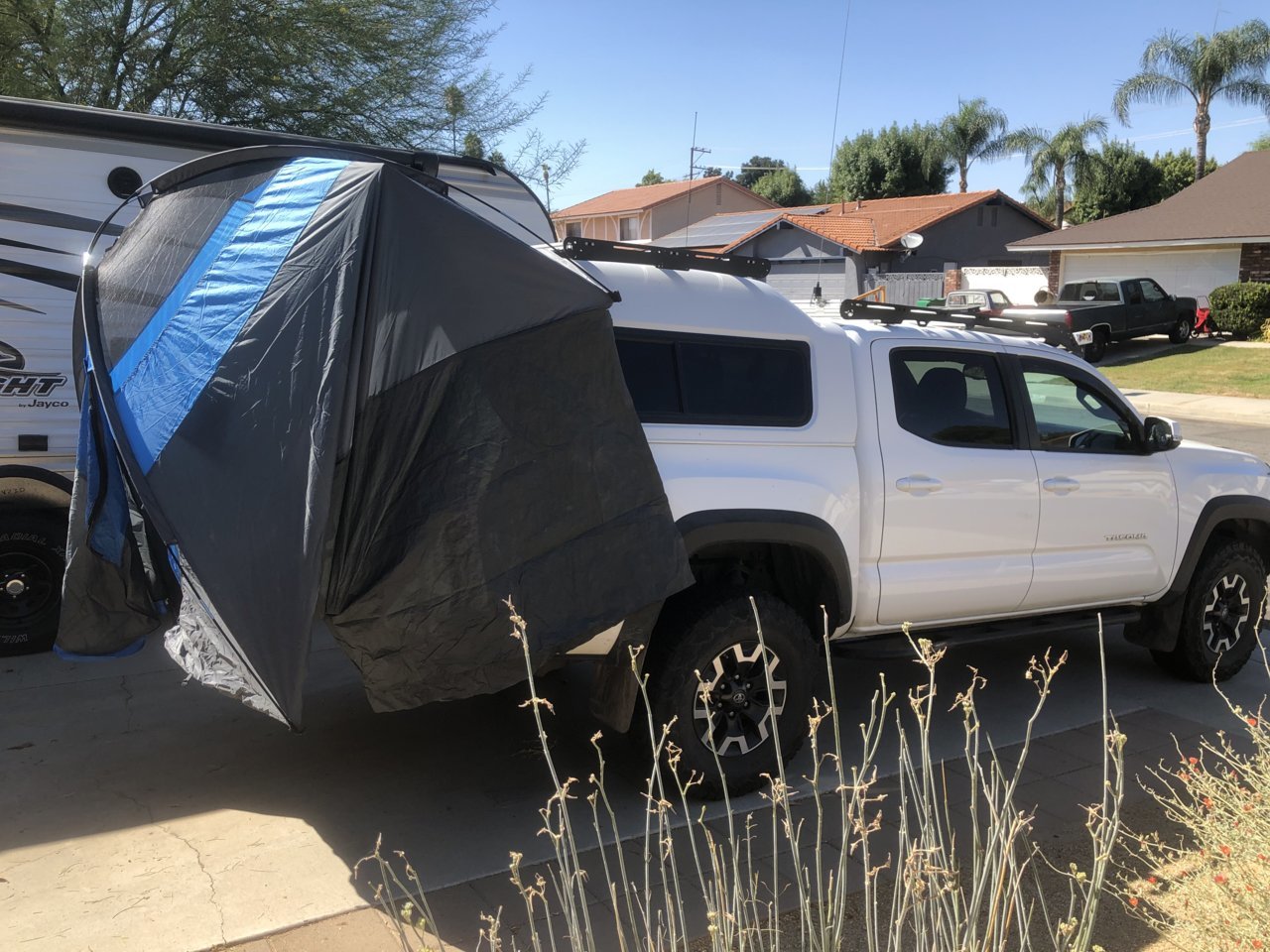

    Very cool ... not sure how I missed this till now. Any pictures of the modified Walmart tent to close off the rear? Thanks.

  19. Aug 8, 2018 at 4:35 AM
    #19
    sorgon82

    sorgon82 wanna go for a rip bud

    Joined:
    Oct 1, 2015
    Member:
    #165572
    Messages:
    1,986
    Gender:
    Male
    Ont. Canada
    Vehicle:
    2016 Grey Tacoma sport dc long bed
    Very nice and functional. Love it

  20. Aug 8, 2018 at 8:55 AM
    #20
    crymes

    crymes Well-Known Member

    Joined:
    Oct 6, 2016
    Member:
    #199099
    Messages:
    265
    Gender:
    Male
    First Name:
    Cameron
    CT
    Vehicle:
    2017 TRD OR DCSB QS
    interested to see the tent, ive been deliberating how to do that with mine
