Bussman RTMR Fuse/Relay Boxs Complete Kits and Blue Sea Mounting Plates

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by Yotamac, Sep 8, 2013.

  1. Apr 28, 2016 at 7:45 AM
    #601
    pinchetaco

    pinchetaco Well-Known Member

    Joined:
    Apr 6, 2009
    Member:
    #15658
    Messages:
    657
    Gender:
    Male
    First Name:
    Chris
    Winston Salem, NC
    Vehicle:
    06 Taco 6 inch ProComp Lift 35's
    6 inch ProComp Lift, 35s, ProComp Wheels, 4.88 gears, Debadged, BHLM, Dome Light Mod, Trailer Plug Relocated
    Do the ones you sell come wired up for all fuses? The pic on your site looks like it has 6 fuses. Just curious if its completely wired with connectors and all. Also, how long is the harness from the relays?

  2. Apr 28, 2016 at 1:00 PM
    #602
    Yotamac

    Yotamac [OP] Well-Known Member Vendor

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    1,336
    Gender:
    Male
    First Name:
    Ze
    562- Cerritos, CA
    Vehicle:
    07 PreRunner
    Stuff, stuff and more stuff
    Yes, they come prewired with all the relays and 10 fuses. The leads from the relay to accessories are 12 inches long.

  3. Apr 29, 2016 at 6:40 AM
    #603
    mach1man001

    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    20,809
    Gender:
    Male
    First Name:
    Rob
    Blackstone, MA
    Vehicle:
    '09 Sport DCLB Met Grey
    Toyota bed mat (1st mod), Toyota all season floor mats, Rear spring TSB, Map light mod, Fog light mod, Putco yellow fog bulbs, Weather Tech window vents, Extra d-rings, Mounted mag light, TRD CAI with AFE pro dry filter, '05 front mud flaps (winter only), 2 set's of wheels/tires, 285/75/16 Hankook MT's, Black Painted 1st Gen TRD wheels (wheeling set) Black powder coated FJ Cruiser with 265/70/17 BFGoodrich KO2's (everyday), painted center of grill & bumper black, Devil horns, OME with 885's + spacers front, OME shocks w/OMD designed rear springs, Front diff drop, Rear trailer plug relocate, ATO IFS skid, Relentless Trans & Transfer skids, BAMF bolt on rock sliders, Relentless tailgate reinforcement, Uniden 75 CB radio, BAMF antenna bracket, TRD exhaust, high lift jack w/ATO mounts. And of course ProEFX Towing Mirrors!
    So the standard plate that @Yotamac sells will interfere with hood struts?

  4. Apr 29, 2016 at 8:03 AM
    #604
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    This is great if you don't have the 80 amp breaker on the same plate.

  5. Apr 29, 2016 at 11:28 AM
    #605
    Blackouts

    Blackouts Well-Known Member

    Joined:
    Feb 10, 2016
    Member:
    #177762
    Messages:
    433
    Las Vegas, NV
    Vehicle:
    2014 Tacoma TRD Off Road DCSB
    Correct, and unless you bend it the plate will also be at a funny angle. The fender bolt locations on a 2ng gen Tacoma are not 90 degrees to level but the plate is bent at 90 degrees.

    We really need a vehicle specific mounting plate made that will account for hood struts and the angle of the fender bolt locations.

    I might see about designing one if no one else is interested in making it.

    taczilla likes this.
  6. Apr 29, 2016 at 11:31 AM
    #606
    Blackouts

    Blackouts Well-Known Member

    Joined:
    Feb 10, 2016
    Member:
    #177762
    Messages:
    433
    Las Vegas, NV
    Vehicle:
    2014 Tacoma TRD Off Road DCSB
    The RFRM plate doesn't have a place for a breaker. If you mean to put it on the bent "lip" on the side, it could still be done.

  7. Apr 29, 2016 at 12:09 PM
    #607
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    I noticed that when I did my mock up. I also used rubber washers between the plate and fender wall as vibration insulators.

    I intend to use my bevel square to find the right angle for horizontal and re-dress the mounting plate bend angle before I complete the final install. I'm just going to pinch the plate between two plates of wood in a big ass vice and take a rubber mallet to it. Precision machining at its finest.

    Do it once, do it right!

    :smash:

  8. Apr 29, 2016 at 2:51 PM
    #608
    Yotamac

    Yotamac [OP] Well-Known Member Vendor

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    1,336
    Gender:
    Male
    First Name:
    Ze
    562- Cerritos, CA
    Vehicle:
    07 PreRunner
    Stuff, stuff and more stuff
    You can also trim the lip down a little if needed. Does the RFRM fit between the ATRAC and the fender. The non ATRAC models brake reservoir and cylinder are much smaller. The fitment was tested on a Tacoma non ATRAC and it cleared.

  9. Apr 29, 2016 at 5:02 PM
    #609
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    What's the difference between a RFRM and a RTRM ??

    Would it be the diff b/n 10 and 5 relays?

  10. Apr 29, 2016 at 5:38 PM
    #610
    bry838

    bry838 Well-Known Member

    Joined:
    Sep 3, 2014
    Member:
    #137527
    Messages:
    2,403
    Gender:
    Male
    oregon
    Vehicle:
    '00 tacoma 2.7 4x4 reg cab 5speed x's 2. '01 T4R 3.4 5 speed
    Yip 5 relays and 10 leads to 10 relays and 20 leads.

  11. Apr 30, 2016 at 8:07 AM
    #611
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    Figured as much. Thanks!

    I'd be afraid to see what one can hook up with ten relays and 20 extra fused links.

  12. Apr 30, 2016 at 9:58 AM
    #612
    JoeySauce

    JoeySauce Well-Known Member

    Joined:
    Jan 8, 2013
    Member:
    #94744
    Messages:
    626
    Gender:
    Male
    First Name:
    Joe
    Eagle PA
    Vehicle:
    11 DCSB

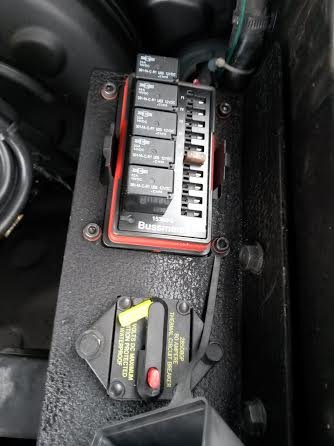

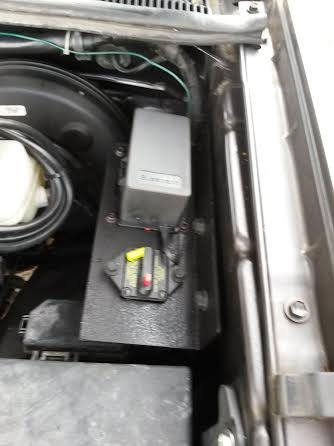

    anyone have pics of where they are placing the breaker? if using a RFRM or RTRM

  13. Apr 30, 2016 at 10:28 AM
    #613
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel



  14. May 1, 2016 at 8:38 AM
    #614
    JoeySauce

    JoeySauce Well-Known Member

    Joined:
    Jan 8, 2013
    Member:
    #94744
    Messages:
    626
    Gender:
    Male
    First Name:
    Joe
    Eagle PA
    Vehicle:
    11 DCSB

    Looks great!

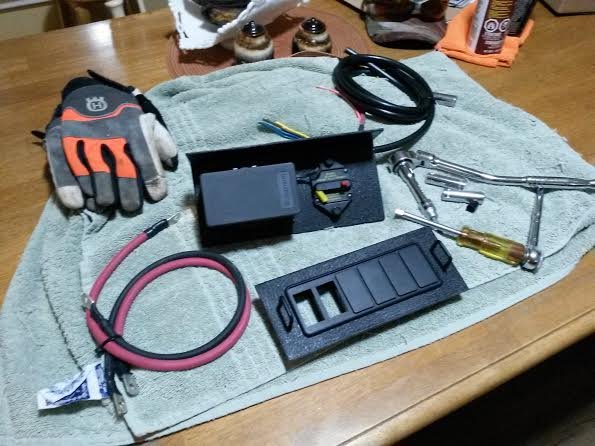

    I just put in an order for box/plate/switchbacks for my iggy

    I got the 10 relay box so I don't think i'm going to have any room for the breaker

  15. May 1, 2016 at 8:11 PM
    #615
    taczilla

    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,500
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    Some guys are putting the breaker on the side of a custom battery box.

  16. May 17, 2016 at 8:37 PM
    #616
    Yotamac

    Yotamac [OP] Well-Known Member Vendor

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    1,336
    Gender:
    Male
    First Name:
    Ze
    562- Cerritos, CA
    Vehicle:
    07 PreRunner
    Stuff, stuff and more stuff

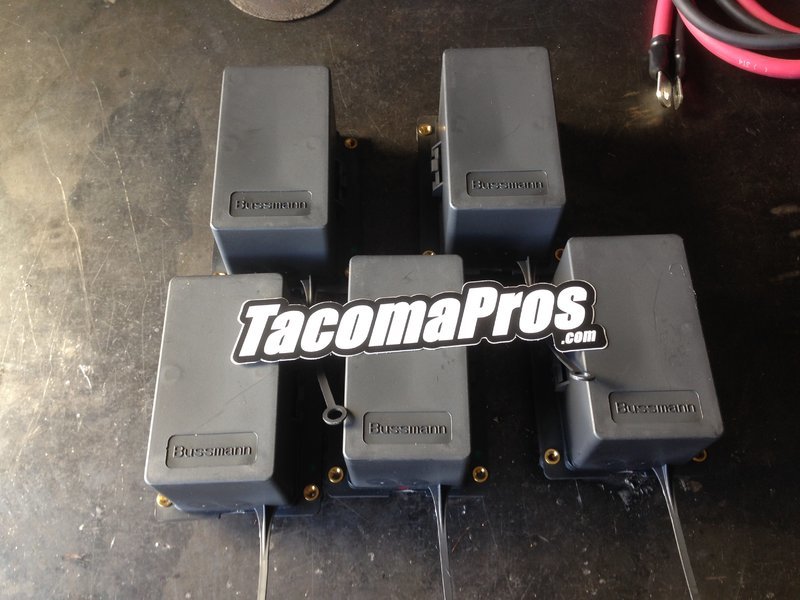

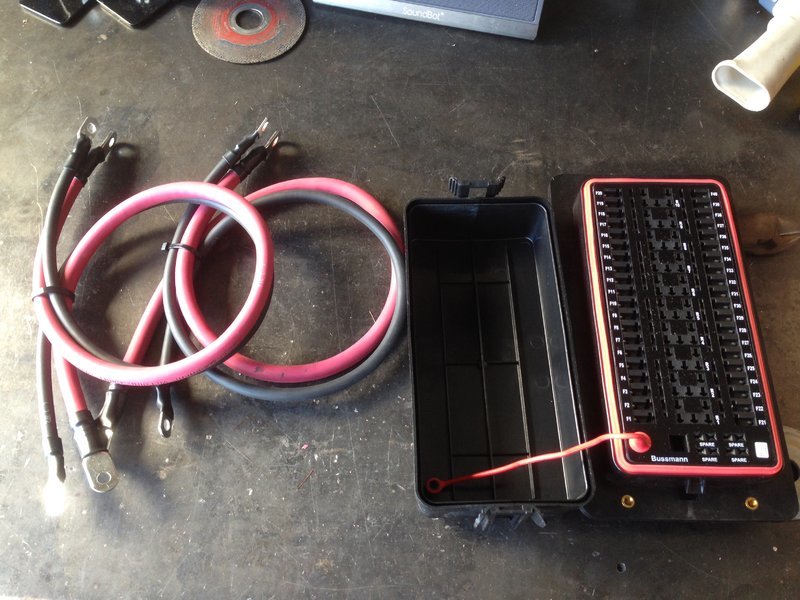

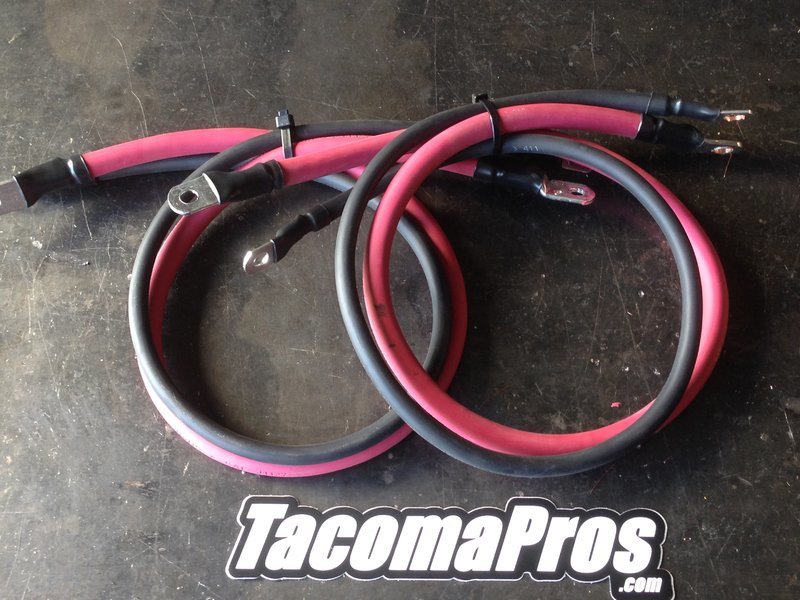

    We upgraded our RTMR and RFRM power cable from 4 ga to 2 ga. As always,US made pure copper welding cable. PM us for custom cable lengths.
    IMG_4574.jpg IMG_4575.jpg IMG_4569.jpg

    Ugly Betty likes this.
  17. May 29, 2016 at 7:35 PM
    #617
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,736
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    Anybody running the basic RTMR mounting plate on the passenger side of a first gen with Redline hood struts? Just not sure if the 2" mounting flanges are long enough to reach the stock 6mm hole in the fender and still allow the 2" tall RTMR cover to clear the struts.

    Also, can the mounting flange angle be bent slightly to allow the RTMR plate to sit horizontal? The first gen fenders slope out slightly on the inside where the mounting holes are. The plates are just aluminum so I'm thinking I could bend them a bit, or perhaps they could be ordered with the correct bend.

    TIA

    MtRSQ likes this.
  18. Jun 4, 2016 at 11:38 AM
    #618
    cciummo

    cciummo New Member

    Joined:
    Jun 4, 2016
    Member:
    #188693
    Messages:
    2
    Gender:
    Male
    RTMR MOUNTING PLATE WITH BREAKER CUTOUT

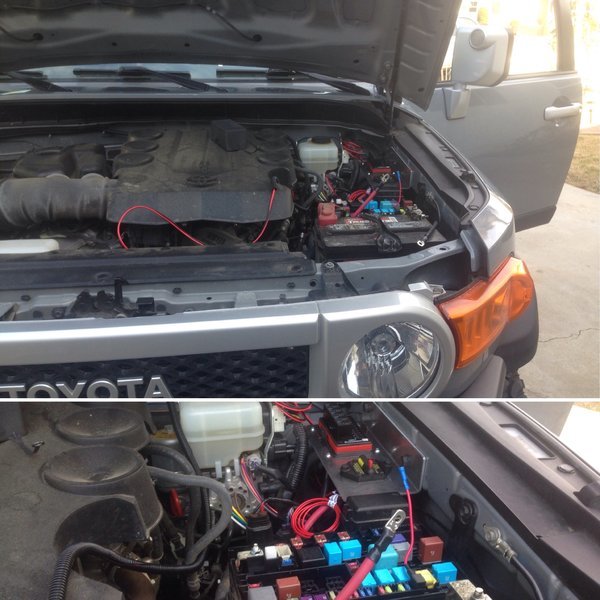

    Do you by chance make one of these for a 2007 FJ Cruiser? I already have the RTMR built to my specs and am having a real issue with the Bussmann mount. I've got a 36" power/ground and would like to be able to mount it as close to the battery on the drivers side as possible. Please let me know if you need to see a pic of the configuration under the hood. I do have A-Trac and it is AT.

    Thanks!

  19. Jun 4, 2016 at 12:52 PM
    #619
    Yotamac

    Yotamac [OP] Well-Known Member Vendor

    Joined:
    Mar 30, 2013
    Member:
    #100909
    Messages:
    1,336
    Gender:
    Male
    First Name:
    Ze
    562- Cerritos, CA
    Vehicle:
    07 PreRunner
    Stuff, stuff and more stuff
    These do fit the FJ with ATRAC. Both the RTMR/breaker mounting plate and basic RTMR mounting plate fit.



    Last edited: Jun 5, 2016
  20. Jun 4, 2016 at 9:32 PM
    #620
    cciummo

    cciummo New Member

    Joined:
    Jun 4, 2016
    Member:
    #188693
    Messages:
    2
    Gender:
    Male
    Great because I just ordered both the plate w/breaker mount and the breaker. Looking forward to this! Order#136
