Bussmann RTMR Relay/Fuse Block $215

Nice can't wait!

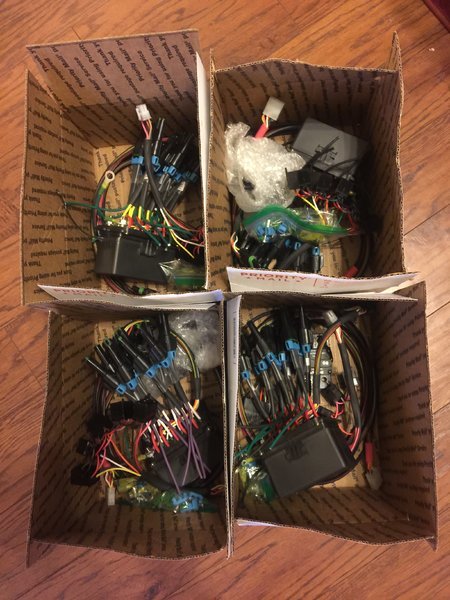

Boxes are finished! PM me your address so I can ship it out tomorrow.



Got mine today! Very very nice work!



Received mine as well. A real pro here. Saved me a lot of dough and time.



Mine showed up also, very nicely set up



Last but not least, mine showed up as well. Looks great - can't wait to get it installed.

Hey, @Roo1041, can you post up some quick instructions on wiring up the connectors, and where all the loose ends go? I'm guessing the free ends on the switch trigger harness are for power, ground, and dash illumination - where are the best spots to tie those in?

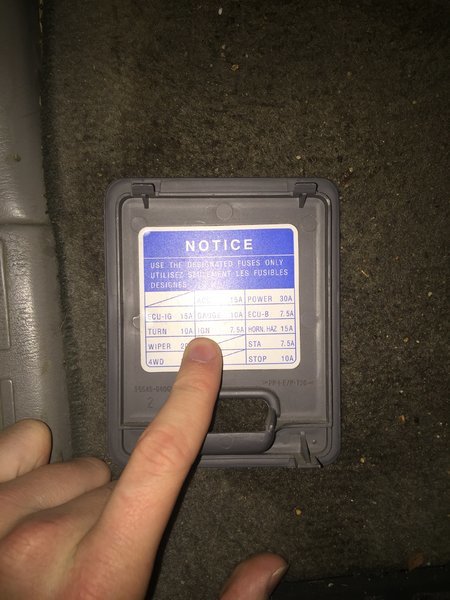

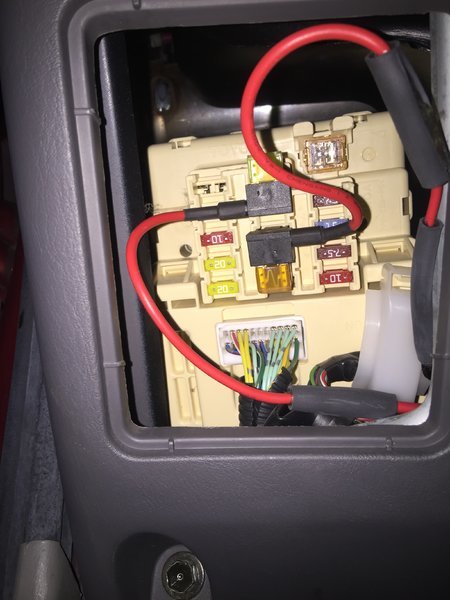

Yes, the free ends on the switch trigger harness are for your switches to light up. The single red wire can be tapped into your in-cab fuse panel. I tapped mine into the "IGN 7.5A" (ignition) spot.


As for the other two free wires (the pink and brown wire), you want to tap them into something that is dimmable. I tapped mine into the ash tray light, mainly because I had to pull the ash tray out for my switch holder plate and then the light was really bright so I just cut the lights wiring and tapped my wires from the switch trigger harness in there. The brown wire is the ground wire, and the pink wire is the positive wire.

This write-up is what my builds are based off of, https://www.tacomaworld.com/threads...n-rtmr-fuse-relay-block.399454/#post-11086094 "Part 6- Installation" will explain a lot more detail about the wiring. And pretty much the only difference is he uses red/black wire where I use pink, and he uses blue where I used tan.

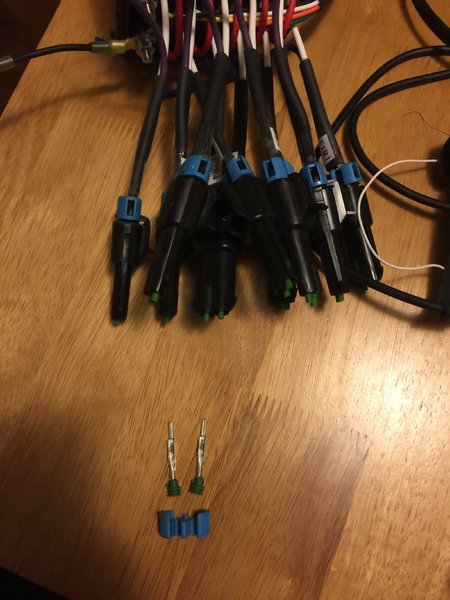

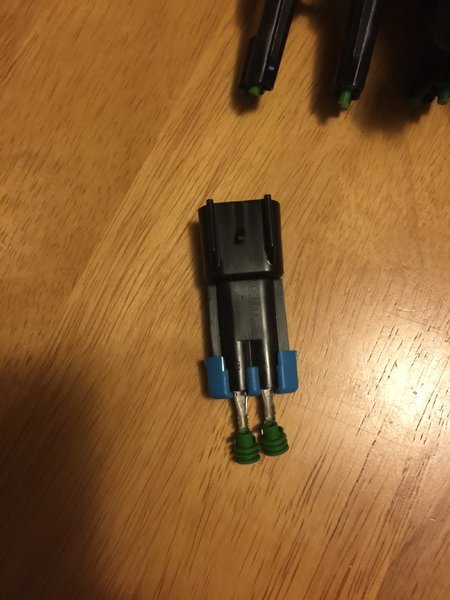

As for wiring you accessories to the box, I included some male terminals that you will have to crimp to your accessories positive and negative wires. The plastic connector you need is already on the box with the plugs in the ends so water will not get up in your leads. These pictures should give you an idea of how you need to wire them, but let me know if you need more help.

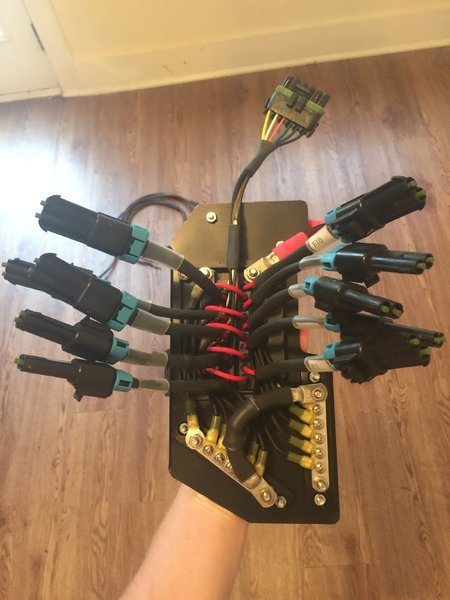

The ten loose ends coming off of the accessory leads on the box are for your grounds. I included some ring terminals for you to ground them to blue sea busbars. This picture might help with that.



Also, there are two terminals on the box. The right one (where wires are already hooked up) is the negative internal busbar. The left one is the positive internal busbar. You can hook your battery power wire for the positive lead directly from your breaker to the left terminal. It will be easier to hook the battery ground wire to the blue sea busbars.



Awesome, thanks man. I'll let you know if I have any more questions.



@Yung_Taco this



Bump, still have one left.



Does it come with everything that you listed in the first post? I don't really need or want the switch back wiring.



Definitely saving for my list. Very nice!



Bump!! I know it's been awhile. But I've got 3, only need 1 more.



Bump
