BUYER BEWARE: 2nd & 3rd Gen Tacoma In-Cab 120vAC 400W Anytime Power Outlet

Discussion in '3rd Gen. Tacomas (2016-2023)' started by KTJO 4x4, Aug 2, 2019.

Thread Status:
Not open for further replies.
  1. Aug 2, 2019 at 6:58 PM
    #1
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    MODERATOR NOTE: KTJO4X4 has been permanently banned and will not be able to answer your questions or sell her items on TW. Do your research regarding long lead times and lack of customer service.



    Hi Everyone! :wave: Welcome to the NEW thread for the OFFICIAL ORDERING of the PLUG-N-PLAY IN-CAB AC 120V 400W POWER OUTLET HARNESS! This thread is an extension of the T-Harness for InCab 120vAC Tap - Interest List. I figured since @caribe makaira has laid out all the ground work and he has been able to collect the needed amount of orders to start the process of this Kit and then some, it has come that time to create this official information and ordering thread. We will continue to monitor the other one for Q&As as they pop up as a thumbnail to this one too. Again, I’d like to thank @caribe makaira for all that he has done so far and will continue to do for this Community throughout this process!

    Most of you that have followed my build with my Truck are aware that I originally started off as someone that spliced into my factory wiring, but has recently made a HUGE impact with making sure other Do-It-Yourselfers can do the same Mods Cleaner and more Professional the first go around unlike I did. Well my friends, this mod was no different for me. I originally accomplished this mod following this amazing write up 3rd Gen - AC Outlet in Cab and 400w Anytime by @djembefola back in August of 2017. Since then, during this past year or so, I’ve really been trying hard to clean up my wiring on my Truck. I have found a NEW love for Plug-N-Play Harnesses. They just make your life so much easier. It not only makes for a professional installation, it is extremely easy to connect and disconnect whenever necessary.

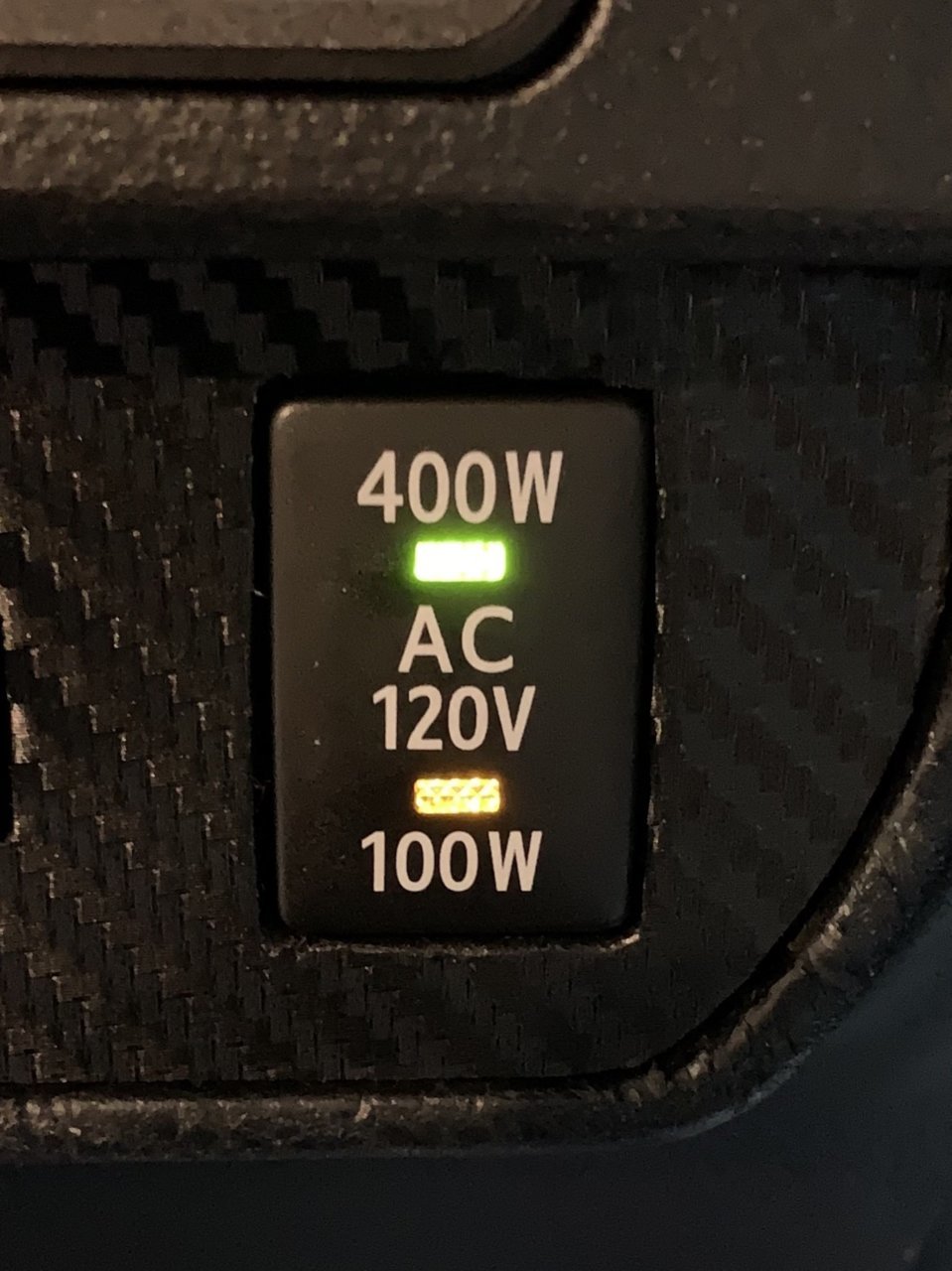

    PLUG-N-PLAY IN-CAB AC 120V 400W POWER OUTLET HARNESS BY KTJO 4x4

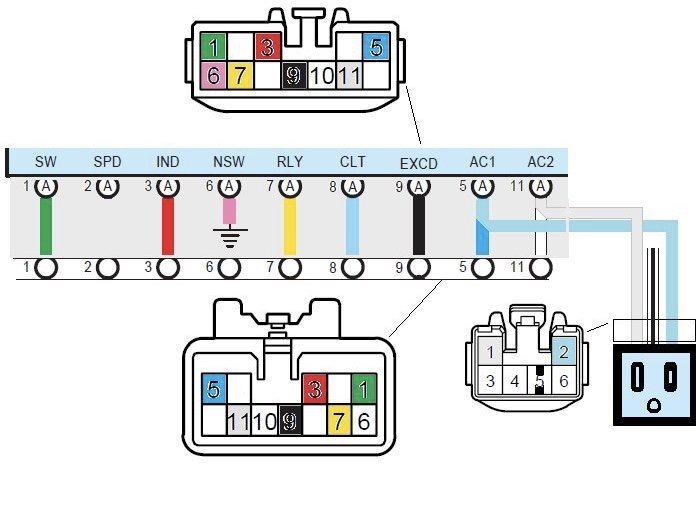

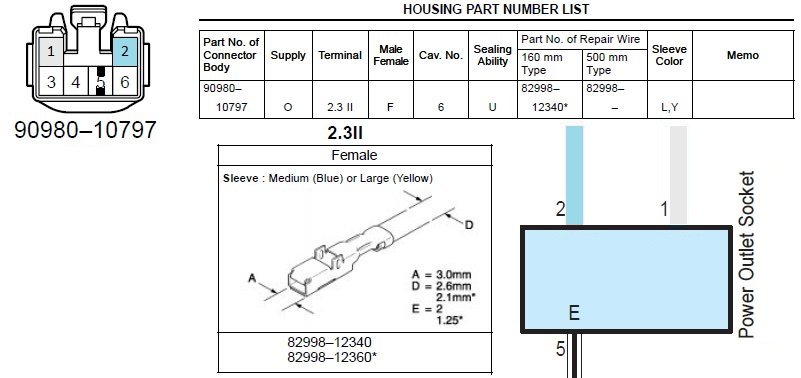

    AC Outlet Connector Wire Diagram.jpg

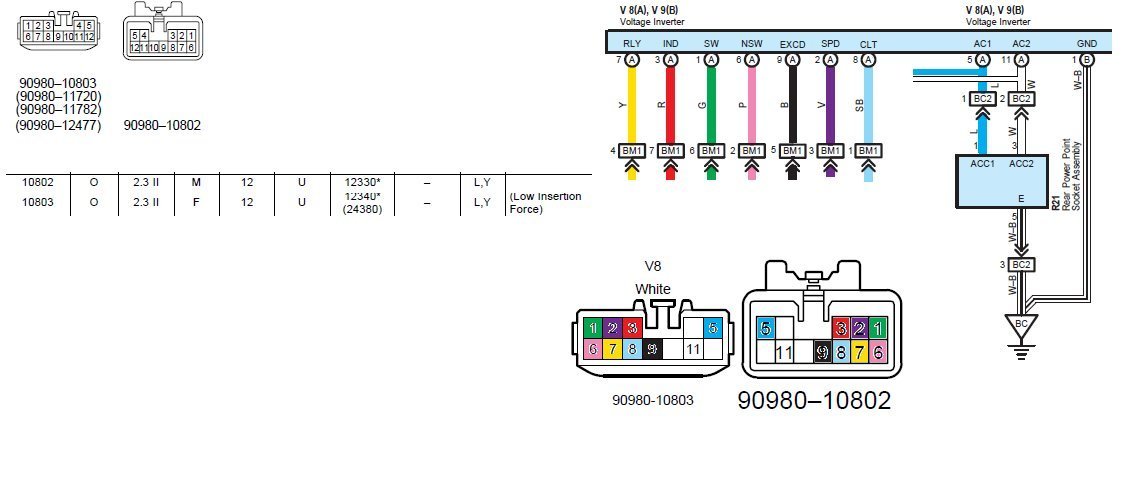

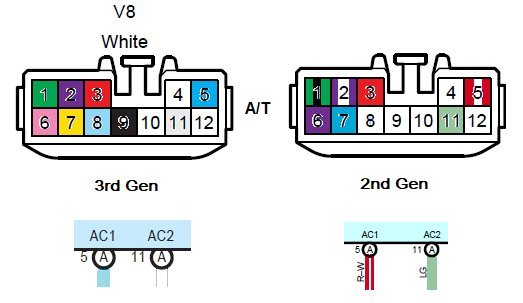

    2ND & 3RD GEN TOYOTA TACOMA V8 OEM INVERTER CONNECTOR COMPARISON

    Inverter Connector 2nd Gen and 3rd Gen.jpg

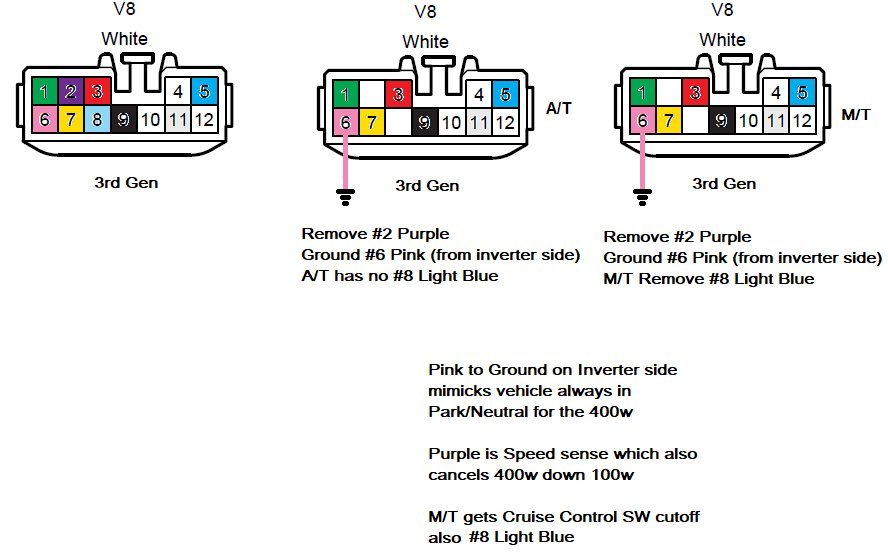

    Here is the Breakdown from the OEM V8 Connector to what is needed for an A/T and then what is needed for a M/T.

    Inverter Connector Breakdown.jpg

    I hope you find this thread helpful and useful. I truly feel that Toyota should have incorporated AC Power Outlets in all of their vehicles! It’s crazy how some of the smallest things didn’t come in the Tacoma. However, I enjoy being able to help others out with this mod and I will continue to make these Kits as long as there are individuals requesting them. Thank You for your purchase and support with the PNP IN-CAB AC 120V 400W POWER OUTLET. It was a pleasure doing business with you. Enjoy your New Mod! - KTJO 4x4

    Last edited: Feb 14, 2020
  2. Aug 2, 2019 at 6:58 PM
    #2
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    PURPOSE:

    The purpose of this feature is to add a PNP IN-CAB AC 120V 400W POWER OUTLET inside the Cab of a 2nd or 3rd Gen Toyota Tacoma, where one might actually use it on-the-go!


    PRODUCT DETAIL:

    The AC Power Outlet is connected directly to the OEM Inverter located under the Center Console. In the process, the OEM Inverter has been transitioned to stay on 400W when you shift from Park instead of kicking down to 100W as designed.


    REQUIREMENTS:

    This will require removing the Center Console, as well as, a couple other parts such as the shift knob to have access to your OEM Inverter that is located directly underneath. This is where you will connect the PNP Harnesses that are needed for this PNP IN-CAB AC 120V 400W POWER OUTLET. This is 100% Plug-N-Play. You may also be required to cut a hole in your panel to mount your 400W Power Outlet inside your Cab.

    [Photo Courtesy of @kecknj]

    *This thread explains how to remove the Center Console on an AT

    *This thread explains how to remove the Center Console on a MT

    LEGAL TERMS, LIMITED WARRANTY, TERMS AND CONDITIONS:

    This thread and kits contain the information necessary for installing and operating your In-Cab AC 120V 400W Power Outlet. If any questions arise, contact your installation dealer or KTJO 4x4.

    This thread and kit is designed for the installer or individual with an existing understanding of automotive electrical systems, along with the ability to test and connect wires for proper operation. To ease installation, we suggest that you READ THESE THREADS set before you as well as the current one you are on before beginning your installation.

    *CHECK OUT KTJO IN-CAB POWER OUTLET PACKAGE 1 INSTALL HERE*

    This thread and kit is provided as a GENERAL GUIDELINE and the information contained herein may differ from your vehicle.

    DISCLAIMER:

    KTJO 4x4 and its vendors shall not be liable for any accident resulting from the use of this product. This system is designed to be professionally installed into a vehicle in which all systems and associated components are in perfect working condition. END OF TERMS AND CONDITIONS

    PACKAGES AVAILABLE TO PURCHASE SOON:

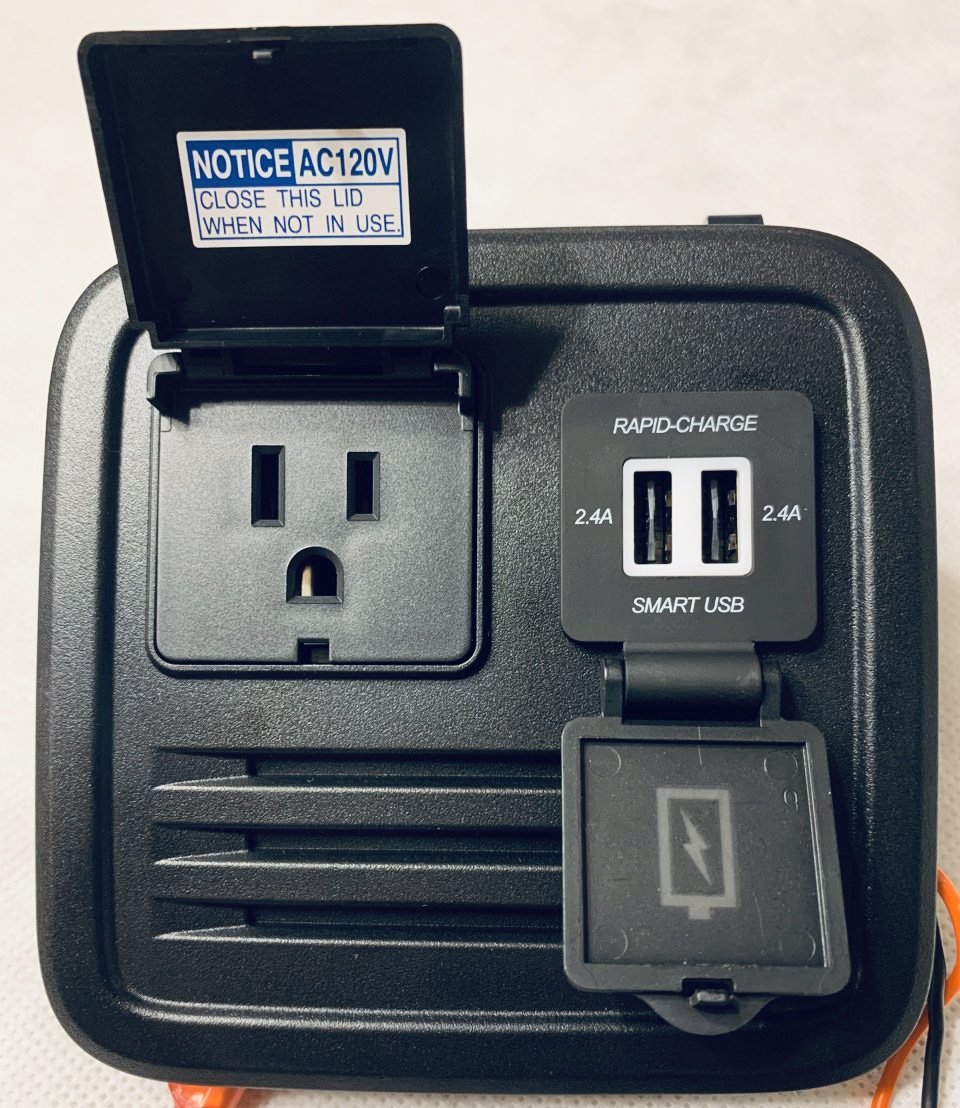

    PACKAGE 1 - “2nd & 3rd Gen IN-CAB AC 120V 400W POWER OUTLET” for those members that are not wanting to take the time to mod their own Wiring Harnesses and would rather purchase them ready to install. To qualify for this option you need to be able have the ability to remove your Center Console, as well as, a couple other parts such as the shift knob to have access to your OEM Inverter that is located directly underneath. This is where you will connect the PNP Harnesses. This is a true “Plug-N-Play” Package that will directly connect to One Brand New Toyota OEM In-Cab AC 120V 400W Power Outlet.


    [​IMG]


    This Package includes:

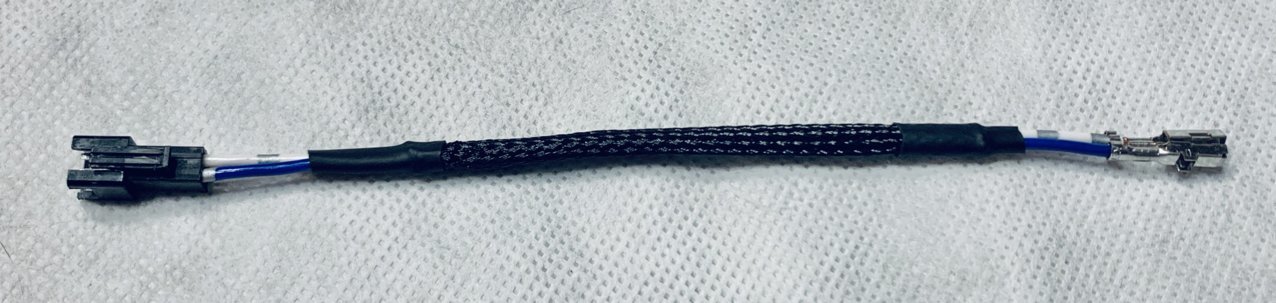

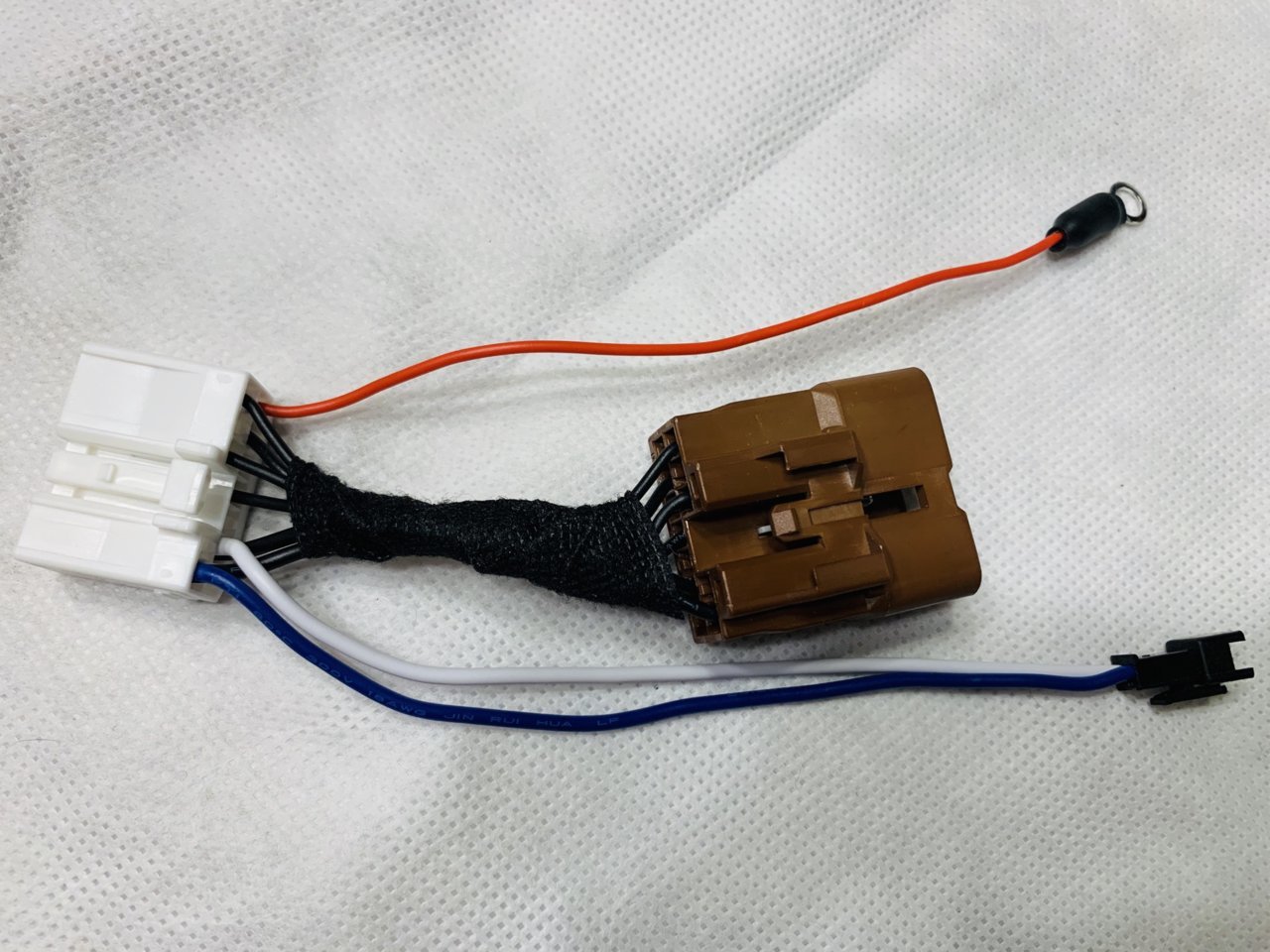

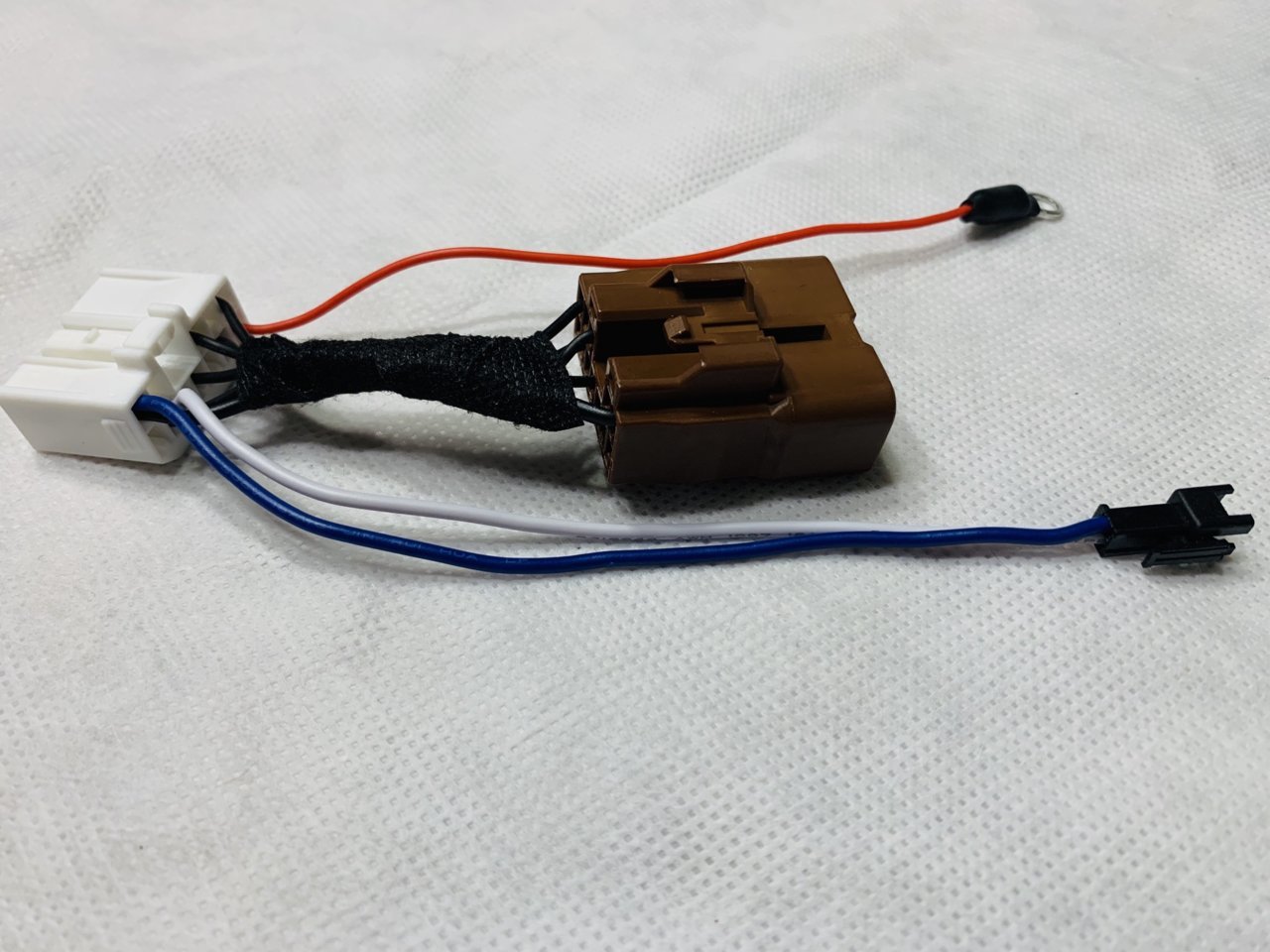

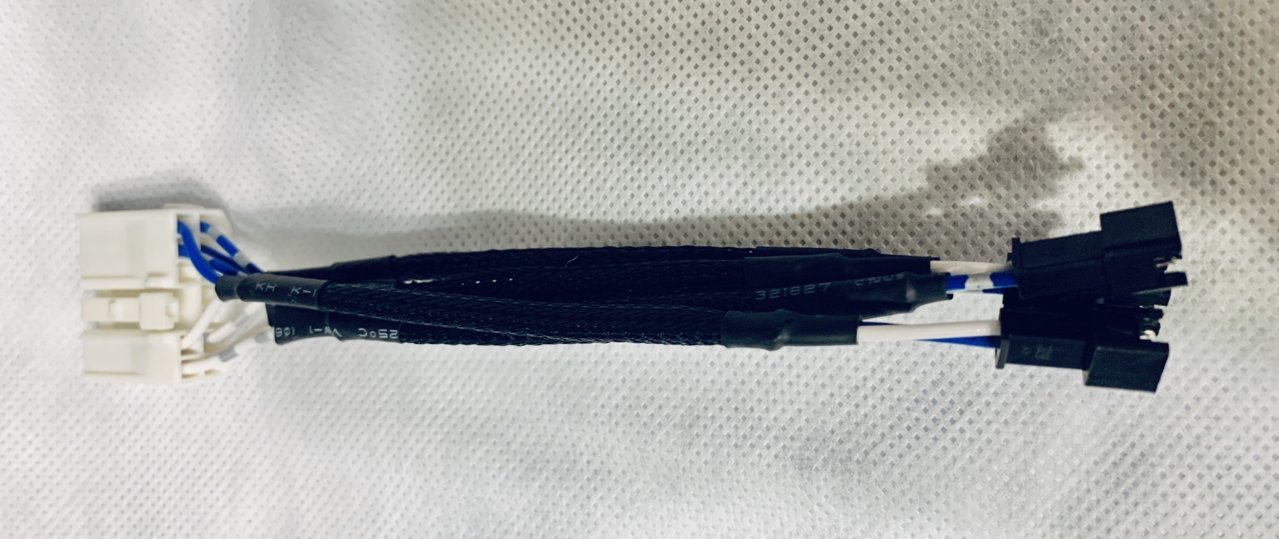

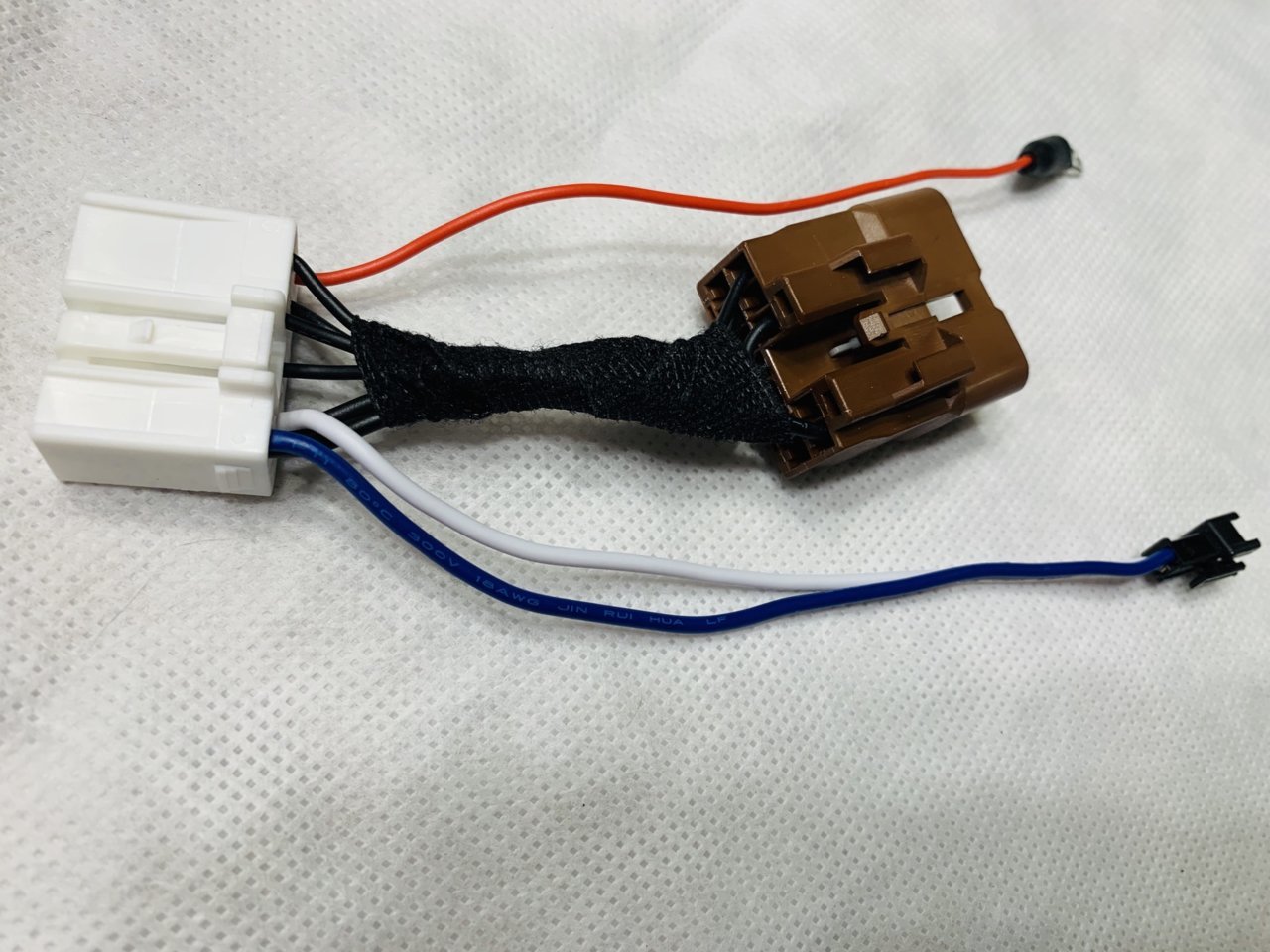

    1. Inverter In-Cab AC 120V 400W Anytime Power Outlet Plug-N-Play Wire Harness w/ Red (6”) Wire Grounding Terminal


    [​IMG]

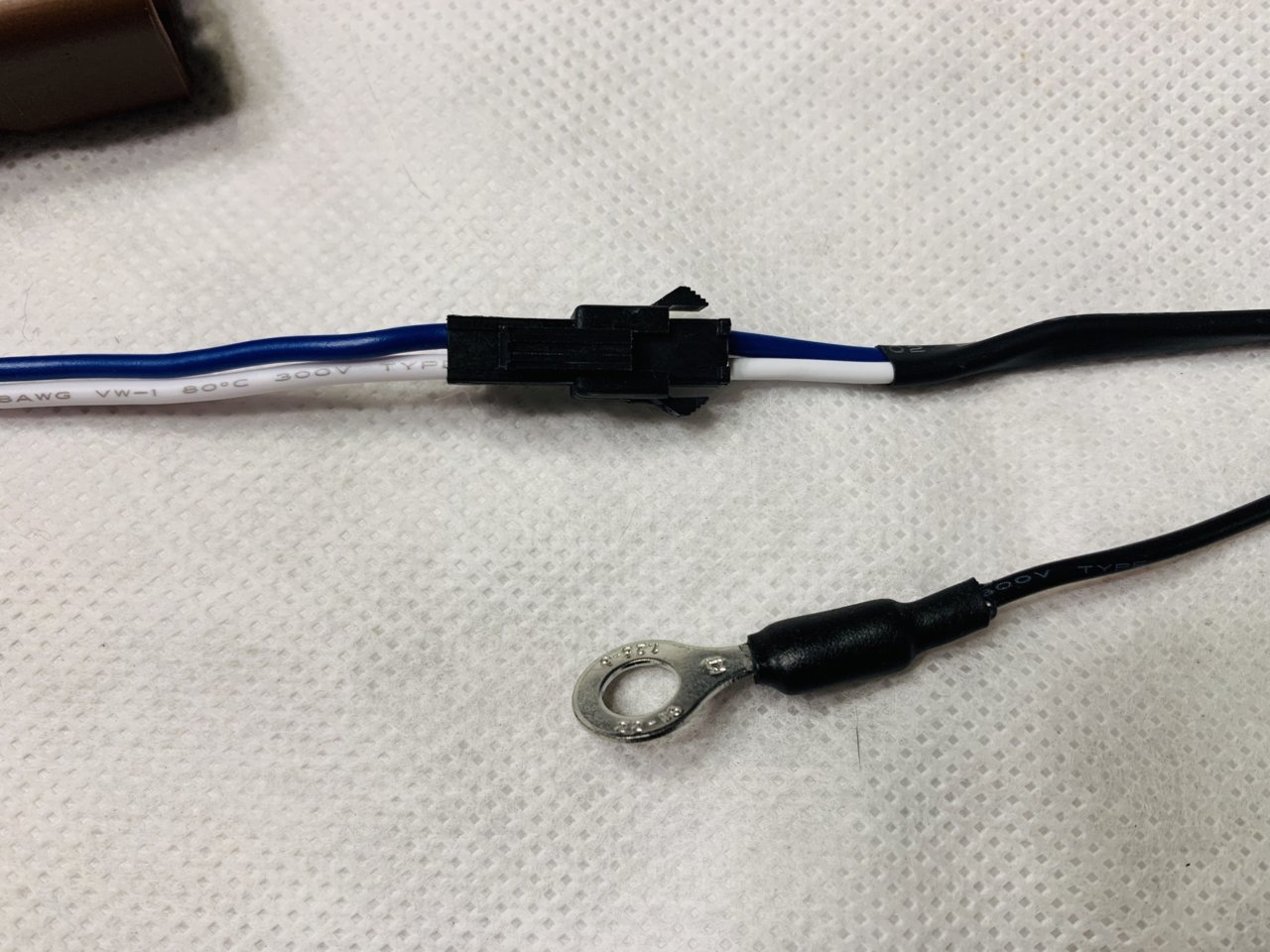

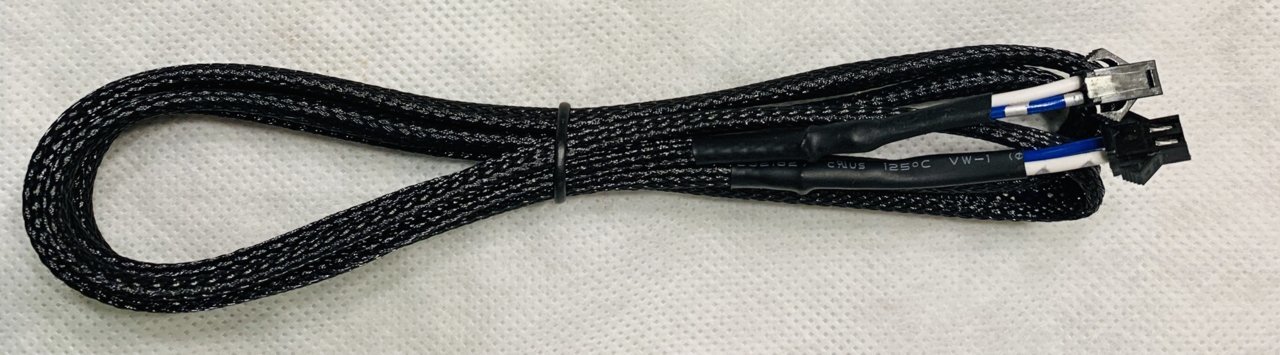

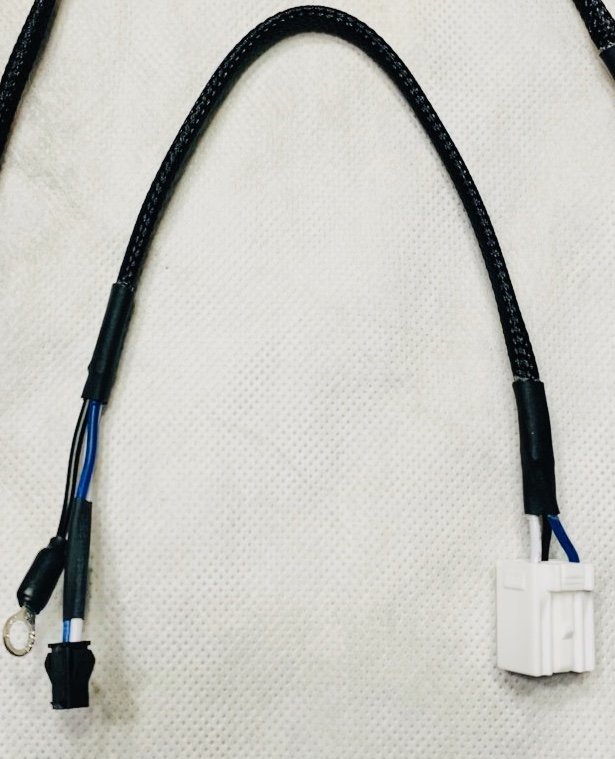

    2. 19" In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness: JST 2Pin w/ Black Wire Grounding Terminal


    [​IMG]

    PRICE: $60.00 (FREE SHIPPING LOWER 48)


    PACKAGE 2 - “2nd & 3rd Gen IN-CAB AC 120V 400W POWER OUTLET” for those members that are not wanting to take the time to mod their own Wiring Harnesses and would rather purchase them ready to install. To qualify for this option you need to be able have the ability to remove your Center Console, as well as, a couple other parts such as the shift knob to have access to your OEM Inverter that is located directly underneath. This is where you will connect the PNP Harnesses. This is a true “Plug-N-Play” Package that will directly connect to Two Brand New Toyota OEM In-Cab AC 120V 400W Power Outlet (Part No. 85530-35050-C0).

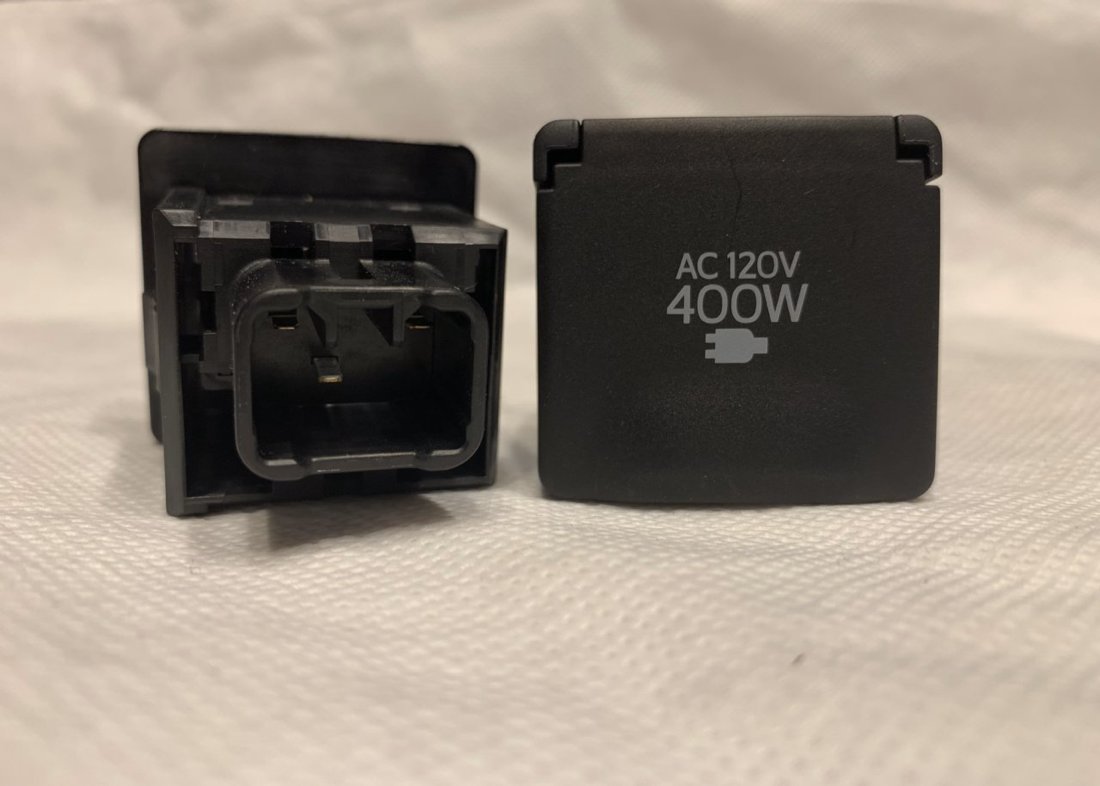

    two outlets.jpg

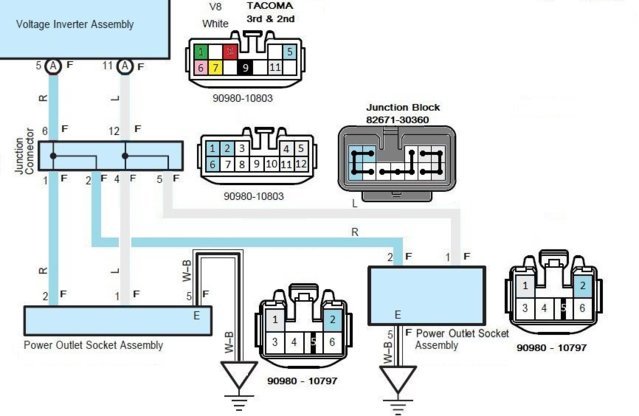

    two outlet wire diagram.jpg


    This package includes:

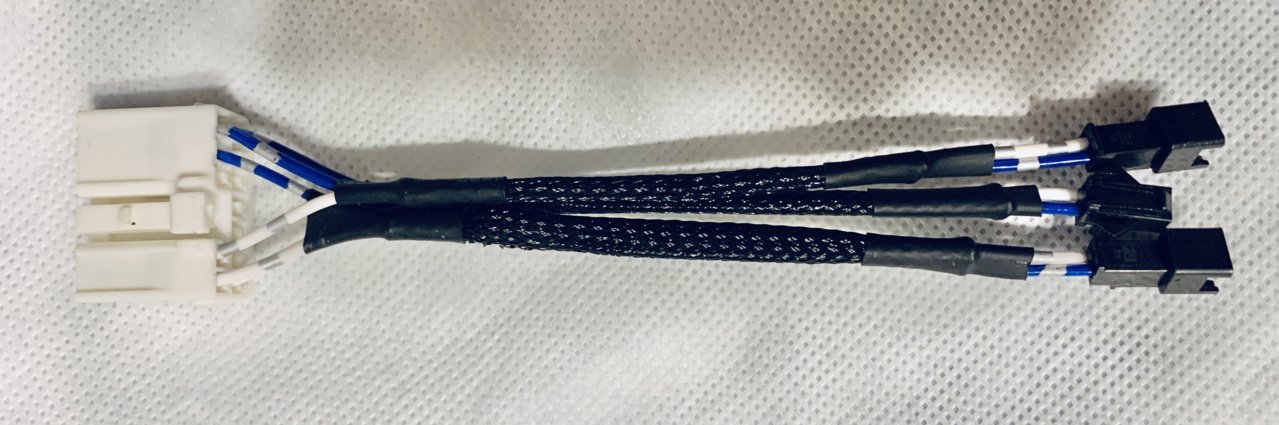

    1. Junction Block In-Cab AC 120V 400W Anytime Power Outlet Plug-N-Play Wire Harness (Junction Block Not Included)

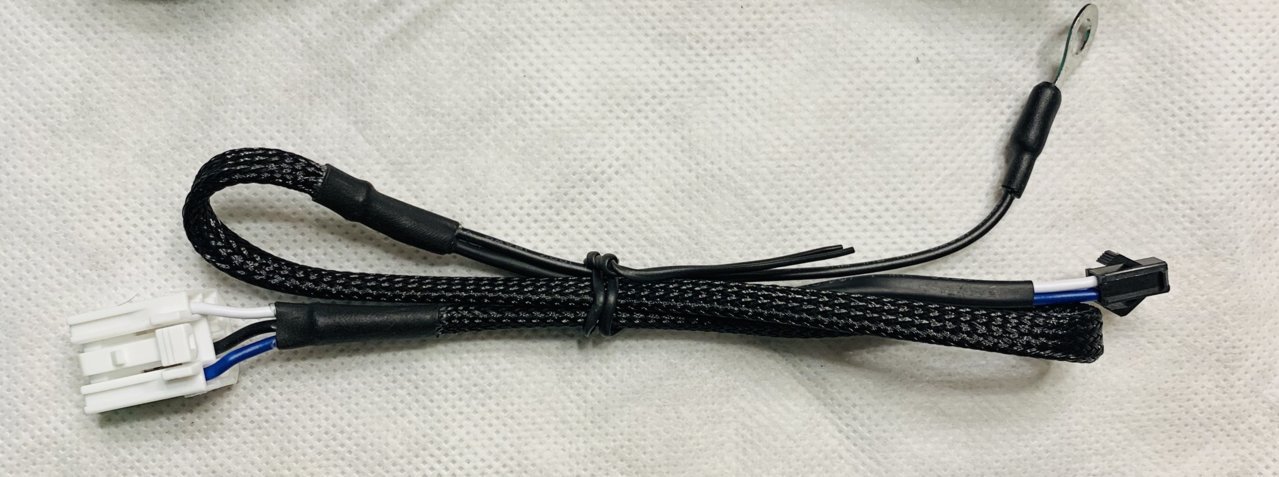

    2. 12” In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness: JST 2P w/ Black Wire Grounding Terminal



    *You may upgrade to 19ft Wire Harness if necessary

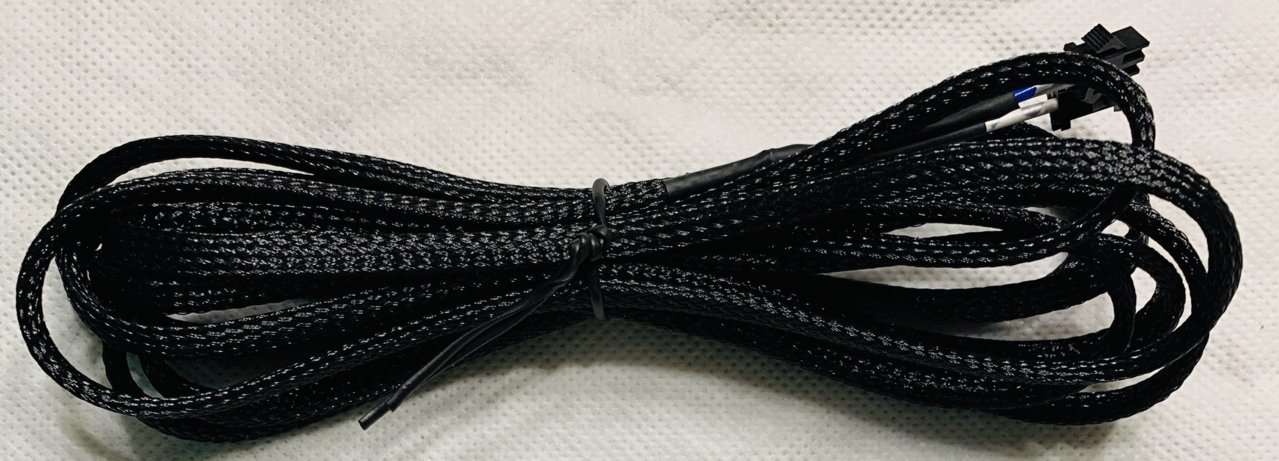

    3. 5ft In-Cab AC 120V 400W Power Outlet Plug-N-Play Extension Wire Harness: JST 2P w/ Blue and White Wire

    [​IMG]
    *You may upgrade to 10ft Extension if necessary

    PRICE: $50.00 (FREE SHIPPING LOWER 48)

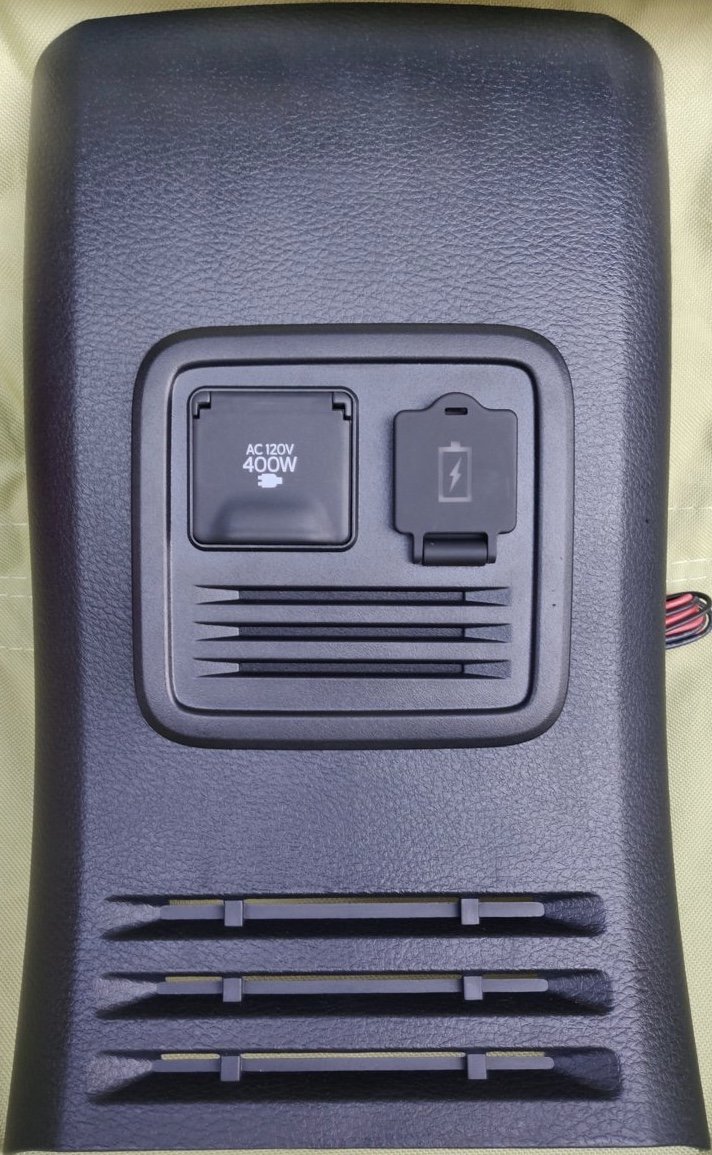

    PACKAGE 3 - “2nd & 3rd Gen IN-CAB AC 120V 400W POWER OUTLET” for those members that are not wanting to take the time to mod their own Wiring Harnesses and would rather purchase them ready to install. To qualify for this option you need to be able have the ability to remove your Center Console, as well as, a couple other parts such as the shift knob to have access to your OEM Inverter that is located directly underneath. This is where you will connect the PNP Harnesses. This is a true “Plug-N-Play” Package that will directly connect to Three Brand New Toyota OEM In-Cab AC 120V 400W Power Outlet (Part No. 85530-35050-C0).


    [​IMG]

    This package includes:

    1. Junction Block In-Cab AC 120V 400W Anytime Power Outlet Plug-N-Play Wire Harness

    (Junction Block Not Included)



    2. 12” In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness: JST 2P w/ Black Wire Grounding Terminal x 2




    *You may upgrade to 19ft Wire Harness if necessary


    3. 5ft In-Cab AC 120V 400W Power Outlet Plug-N-Play Extension Wire Harness: JST 2P w/ Blue and White Wire x 2

    [​IMG]

    *You may upgrade to 10ft Extension if necessary


    PRICE: $70.00 (FREE SHIPPING LOWER 48)

    RECOMMENDED ITEMS:

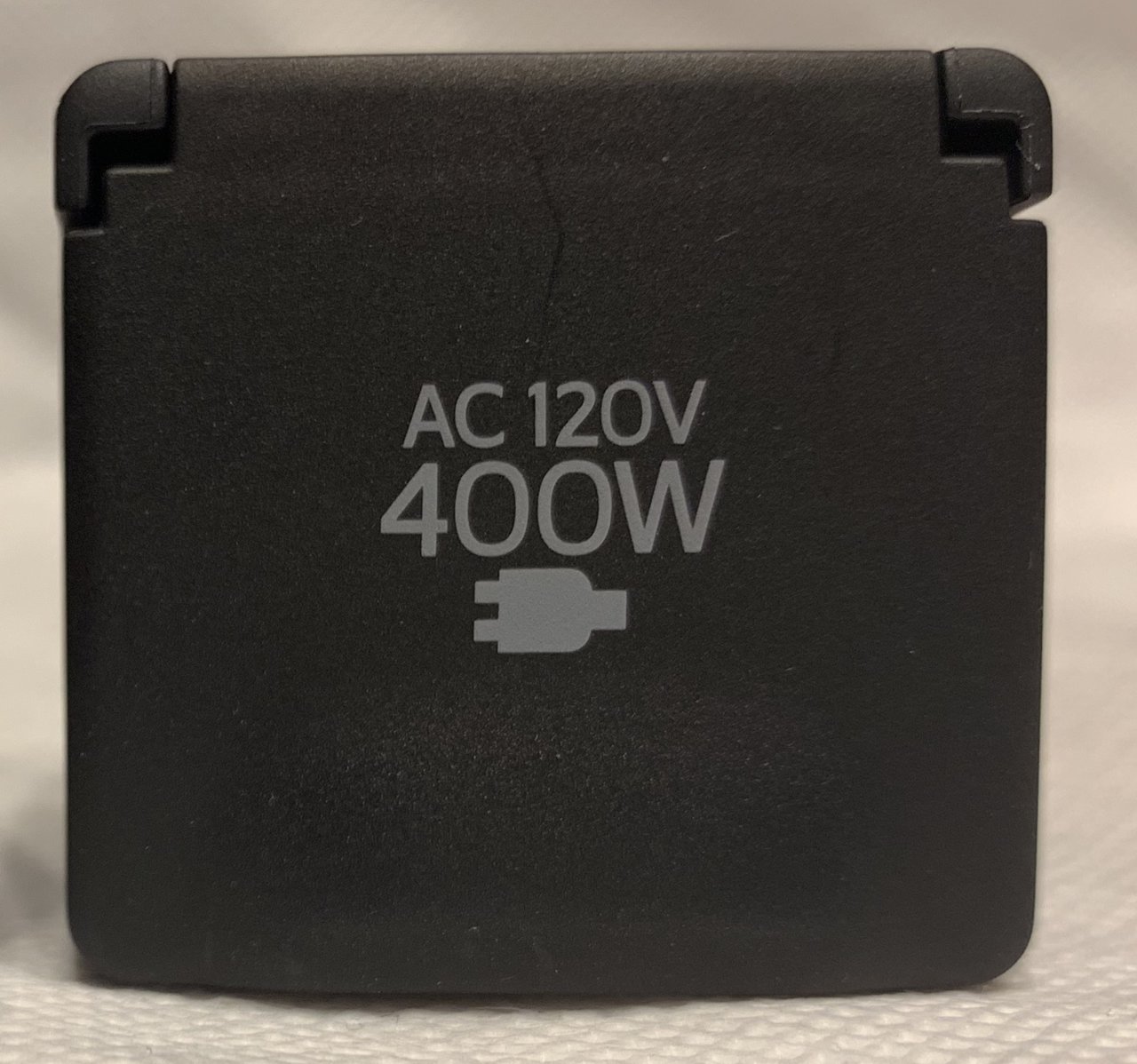

    1. AC 120V 400W Power Outlet (Part No No 85530-35050-C0).
    2. Bezel Power Outlet (Part No 85536-35020).
    3. USB Power Port (Part No 00016-00225).
    4. Toyota Power Outlet Socket Assembly (Part No 85530-35100-B0)
    5. Junction Block (Part No 82671-30360)
    INDIVIDUAL OPTIONS AVAILABLE TO PURCHASE:

    12” In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness: JST 2P w/ Black Wire Grounding Terminal
    PRICE: $15.00 + SHIPPING



    19” In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness: JST 2P w/ Black Wire Grounding Terminal
    PRICE: $15.00 + SHIPPING


    6” Add-On In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness: JST 2P w/ Blue and White Wires
    PRICE: $5.00 + SHIPPING


    5ft In-Cab AC 120V 400W Power Outlet Plug-N-Play Extension Wire Harness: JST 2P w/ Blue and White Wire
    PRICE: $15.00 + SHIPPING


    10ft In-Cab AC 120V 400W Power Outlet Plug-N-Play Extension Wire Harness: JST 2P w/ Blue and White Wire
    PRICE: $15.00 + SHIPPING



    PACKAGE 1 Inverter In-Cab AC 120V 400W Power Outlet Plug-N-Play Wire Harness w/ Red (6”) Wire Grounding Terminal
    PRICE: $45.00 (FREE SHIPPING LOWER 48)


    PACKAGE 2 Junction Block In-Cab AC 120V 400W Anytime Power Outlet Plug-N-Play Wire Harness
    (Junction Block Not Included)
    PRICE: $25.00 (FREE SHIPPING LOWER 48)


    PACKAGE 3 Junction Block In-Cab AC 120V 400W Anytime Power Outlet Plug-N-Play Wire Harness
    (Junction Block Not Included)
    PRICE: $30.00 (FREE SHIPPING LOWER 48)


    SHIPPING FEES:

    SHIPPING OUTSIDE LOWER 48
    PRICE: (Request for Quote)


    *PLEASE DO NOT FORGET TO ADD YOUR SHIPPING FEES TO YOUR ORDER

    Done! All of these options provided above are super clean and will look very professional once they are installed in your truck in my opinion. Plus, if you have done the earlier Mod like me, it’s always nice to revisit your earlier mods on your truck and clean up wiring when there have now been other ways of connecting to the OEM system developed over time that are just simply cleaner and better. I would like to say a quick thanks to @caribe makaira for giving me this idea in the first place!

    If you have any questions regarding any of these packages or individual options for purchase, please don’t hesitate to send me a PM. I truly feel that everyone needs to be able to have the conveniency at their fingertips at all time! It’s crazy to me that once again Toyota makes these options for some of their vehicles, but not all. I enjoy being able to help others out with this mod and I will continue to make these Kits available as long as there are individuals requesting them. Let me know if you need help making your selection - KTJO 4x4

    Last edited: Feb 17, 2020
    ca08tacoma, PNWTacoma and ponts like this.
  3. Aug 2, 2019 at 6:58 PM
    #3
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    PAYPAL PAYMENT INFORMATION:

    PayPal Email: kjkelley24@hotmail.com

    PayPal Link: PayPal.Me/KTJO4x4 - ORDER NOW!

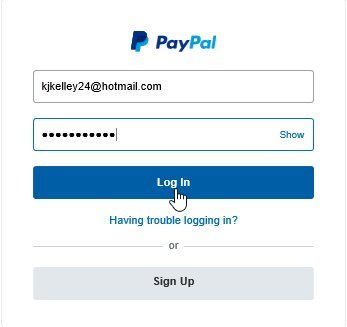

    Step 1: Sign In


    Step 2: Send & Request Payment


    Step 3: Enter Email Address for Payment


    Step 4: Select your Preferred Payment Option

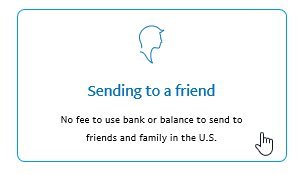

    Option 1: If you select Sending to a Friend, please make sure to list your Forum Username in the Notes Section and then PM me your Full Name and Shipping Information.


    Option 2: If you select Paying for an Item or Service, please make sure to cover the additional charges that are listed below:


    17BD1842-CC8D-41D5-9312-B54AAECBDD6D.jpg 217AC999-D075-4AC7-9EB3-B83680345678.jpg

    Step 5: Enter your Total Amount and Complete your Payment!

    PLEASE NOTE:


    Your order is only secure once you have completed your payment! Please send me a PM with your Full Name and Shipping Address for confirmation that I have received your payment. Once I have received payment, I will add your Forum Username to the Current Order List.
    Thank You for your Purchase! :spending:

    Last edited: Nov 23, 2019
    silver.surfer and ponts like this.
  4. Aug 2, 2019 at 6:58 PM
    #4
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    PLUG-N-PLAY IN-CAB AC 120V 400W ANYTIME POWER OUTLET HARNESS







    Last edited: Oct 16, 2019
    Jessrin, silver.surfer and ponts like this.
  5. Aug 2, 2019 at 6:58 PM
    #5
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    Last edited: Jan 15, 2020
  6. Aug 2, 2019 at 7:35 PM
    #6
    elmontemike

    elmontemike Well-Known Member

    Joined:
    Mar 2, 2017
    Member:
    #212154
    Messages:
    4,254
    Gender:
    Male
    First Name:
    Mike
    I'm ready to order

  7. Aug 2, 2019 at 9:04 PM
    #7
    uploadadventure

    uploadadventure It’s all @ColoradoTJ’s fault

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    9,877
    Gender:
    Male
    Dixon, Mo
    Vehicle:
    2019 Cavalry Blue Tacoma TRD OR (sold) 05 Duramax
  8. Aug 2, 2019 at 10:16 PM
    #8
    CAG Gonzo

    CAG Gonzo Ascendant Spaghetti

    Joined:
    Oct 25, 2018
    Member:
    #270558
    Messages:
    1,683
    Gender:
    Male
    Vehicle:
    2018 OR DCLB BarRed
    My body wallet is ready.

    ILiketoFish likes this.
  9. Aug 3, 2019 at 3:45 AM
    #9
    tacodnr

    tacodnr Well-Known Member

    Joined:
    Jun 16, 2018
    Member:
    #256574
    Messages:
    190
    I am in as well . Ready to order .

    KTJO 4x4[OP] likes this.
  10. Aug 3, 2019 at 4:25 AM
    #10
    DakoTaco

    DakoTaco Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175133
    Messages:
    635
    Gender:
    Male
    North Coast
    Vehicle:
    2016 MGM OR Tacoma
    Avid front bumper guard OVtune HPS Intake Tube Meso designs counting
    I'm interested in this, but can't seem to see what it costs, clicked the links but can't seem to locate it.

    KTJO 4x4[OP] likes this.
  11. Aug 3, 2019 at 5:46 AM
    #11
    Txsrooster

    Txsrooster Well-Known Member

    Joined:
    Dec 13, 2018
    Member:
    #275726
    Messages:
    431
    Gender:
    Male
    I'm interested to but also can't find a price.

    KTJO 4x4[OP] likes this.
  12. Aug 3, 2019 at 8:18 AM
    #12
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    That’s bc I’m not done updating guys. I’m still waiting on the quote. I haven’t even listed all the kits I’m going to offer yet. Give me a little more time :thumbsup:

    VirusCage and DakoTaco like this.
  13. Aug 3, 2019 at 9:04 AM
    #13
    Txsrooster

    Txsrooster Well-Known Member

    Joined:
    Dec 13, 2018
    Member:
    #275726
    Messages:
    431
    Gender:
    Male
    Oh I was confused since the post made it seem like you were taking orders even listed payment instructions just no price. I'll keep an eye out for when you update with pricing.

    DakoTaco likes this.
  14. Aug 3, 2019 at 11:04 AM
    #14
    DakoTaco

    DakoTaco Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175133
    Messages:
    635
    Gender:
    Male
    North Coast
    Vehicle:
    2016 MGM OR Tacoma
    Avid front bumper guard OVtune HPS Intake Tube Meso designs counting
    Okay, I guess add me to that list.

    KTJO 4x4[QUOTED][OP] likes this.
  15. Aug 6, 2019 at 1:41 PM
    #15
    Txsrooster

    Txsrooster Well-Known Member

    Joined:
    Dec 13, 2018
    Member:
    #275726
    Messages:
    431
    Gender:
    Male
    Well add me to the list as well. Ill send the money once they are announced.

    KTJO 4x4[OP] likes this.
  16. Aug 7, 2019 at 3:32 PM
    #16
    Medcomm

    Medcomm Well-Known Member

    Joined:
    Jul 20, 2019
    Member:
    #299772
    Messages:
    57
    Gender:
    Male
    First Name:
    Mike
    Texas
    Vehicle:
    2019 Tacoma TRD Off-Road 4x4
    Too many to list... Ask if you have any questions.
    Yup, I'm in! I will send money once announced.

    KTJO 4x4[OP] likes this.
  17. Aug 7, 2019 at 3:38 PM
    #17
    R242

    R242 I want a dog

    Joined:
    Oct 14, 2017
    Member:
    #232974
    Messages:
    1,210
    Gender:
    Male
    First Name:
    Rick
    Milford, OH
    Vehicle:
    2019 Sport AC 6spd
    Yep in. Add me as well

    KTJO 4x4[OP] likes this.
  18. Aug 7, 2019 at 4:49 PM
    #18
    Aggiesdm

    Aggiesdm Well-Known Member

    Joined:
    Jun 29, 2011
    Member:
    #59058
    Messages:
    314
    Gender:
    Male
    San Antonio
    Vehicle:
    17 TRD OR 4X4
    SnugTop topper, WeatherTec mats, thats all for now
    Same. KTJO's pop/lock was awesome. I'm ready for some 110V! I'll pay once $$ is announced.

    KTJO 4x4[OP] likes this.
  19. Aug 7, 2019 at 8:58 PM
    #19
    R Trujillo

    R Trujillo 2018 Quicksand Tacoma TRD Off Road 4x4

    Joined:
    Nov 19, 2014
    Member:
    #142722
    Messages:
    109
    Gender:
    Male
    First Name:
    Richard
    So Cal
    Vehicle:
    2018 Quicksand Tacoma TRD Off Road 4x4
    King Suspension - 5.29 Nitro Gear - 17x8.5 Black Rhino Reno Beadlocks - Falken Wildpeak M/T's - Baja Designs 30" & Squadrons - Faux TRD Pro Grille, Headlights and Brake Lights - MESO goodies - CBI Bed Rack - Tuff Stuff 4x4 Ranger Tent - CMC - Pelfreybilt front & Rear bumpers - Beastfab Rock Sliders
    Please add me to the list.

    Thanks!

    KTJO 4x4[OP] likes this.
  20. Aug 8, 2019 at 10:30 AM
    #20
    BigBeej

    BigBeej Well-Known Member

    Joined:
    Mar 14, 2018
    Member:
    #247293
    Messages:
    477
    Gender:
    Male
    First Name:
    Bryan
    Vista, Ca
    Nice. Already on the list. Following to purchase

    ryandsouza and KTJO 4x4[OP] like this.
Thread Status:
Not open for further replies.

Products Discussed in

To Top
