CALI RAISED LED BED MOLLE SYSTEM FOR 2005-2023 TOYOTA TACOMA

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CaliRaisedLed, Mar 19, 2018.

  1. Mar 20, 2018 at 7:00 PM
    #41
    Thompson486

    Thompson486 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245340
    Messages:
    284
    Gender:
    Male
    Sherwood Park, AB
    Vehicle:
    2022 AC Off-Road Blue Crush
    Damn... Won’t be able to afgord these anytime soon. With shipping to Canada via UPS on top as well as UPS’ insane brokerage fees.

    Guess I’ll be waiting a while before I can buy em.

  2. Mar 20, 2018 at 7:23 PM
    #42
    CaliRaisedLed

    CaliRaisedLed [OP] Well-Known Member Vendor

    Joined:
    Apr 23, 2015
    Member:
    #153803
    Messages:
    8,281
    Gender:
    Male
    First Name:
    Jake
    Texas (DFW)
    For Canada we do about $20 for shipping

  3. Mar 20, 2018 at 7:32 PM
    #43
    Thompson486

    Thompson486 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245340
    Messages:
    284
    Gender:
    Male
    Sherwood Park, AB
    Vehicle:
    2022 AC Off-Road Blue Crush
    That’s not bad for shipping.
    Too bad UPS would charge me $200 for brokerage.

    Would you ship with Fedex? They’re much more reasonable on the brokerage fees.

  4. Mar 21, 2018 at 6:48 AM
    #44
    Swisscosmo

    Swisscosmo Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231049
    Messages:
    59
    Gender:
    Male
    Edmonton AB
    Vehicle:
    2015 Tacoma AC OR
    Subbed. I’d be interested to know also.

  5. Mar 21, 2018 at 7:01 AM
    #45
    Thompson486

    Thompson486 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245340
    Messages:
    284
    Gender:
    Male
    Sherwood Park, AB
    Vehicle:
    2022 AC Off-Road Blue Crush
    Group buy?

    mtmudrunner and OneFastGeek like this.
  6. Mar 21, 2018 at 7:20 AM
    #46
    OneFastGeek

    OneFastGeek Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    569
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    More Molle for the Tacoma, awesome!!! With @docloco awesome rear cab panel, @mesojdm forthcoming interior roof panel, @Yo_Hec console panels, and now @CaliRaisedLed bed panels, this is great.
    [​IMG]

    Last edited: Mar 21, 2018
    ready6delta, fatfurious2 and docloco like this.
  7. Mar 21, 2018 at 7:24 AM
    #47
    OneFastGeek

    OneFastGeek Grand Master Fu

    Joined:
    Dec 24, 2012
    Member:
    #93685
    Messages:
    569
    Gender:
    Male
    Treasure Valley, Idaho
    Vehicle:
    2010 TRD Sport 4x4
    Do you offer a non-powder coated option at a discount? I'd like to take them to a local shop to color match my bed rack.

    fatfurious2 and skatefreak282 like this.
  8. Mar 21, 2018 at 7:52 AM
    #48
    Swisscosmo

    Swisscosmo Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231049
    Messages:
    59
    Gender:
    Male
    Edmonton AB
    Vehicle:
    2015 Tacoma AC OR
    Definitly would be down to do that.

    Atlas86 and Thompson486[QUOTED] like this.
  9. Mar 21, 2018 at 8:45 AM
    #49
    Beerline123

    Beerline123 Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126719
    Messages:
    409
    Gender:
    Male
    Vehicle:
    07 Tacoma access 4x4
    Any dimensions on these. Thanks

  10. Mar 21, 2018 at 10:20 AM
    #50
    CaliRaisedLed

    CaliRaisedLed [OP] Well-Known Member Vendor

    Joined:
    Apr 23, 2015
    Member:
    #153803
    Messages:
    8,281
    Gender:
    Male
    First Name:
    Jake
    Texas (DFW)
    Shoot us a PM

    fatfurious2 likes this.
  11. Mar 21, 2018 at 10:21 AM
    #51
    CaliRaisedLed

    CaliRaisedLed [OP] Well-Known Member Vendor

    Joined:
    Apr 23, 2015
    Member:
    #153803
    Messages:
    8,281
    Gender:
    Male
    First Name:
    Jake
    Texas (DFW)
    Shoot us a pm

    skatefreak282 likes this.
  12. Mar 21, 2018 at 10:27 AM
    #52
    CaliRaisedLed

    CaliRaisedLed [OP] Well-Known Member Vendor

    Joined:
    Apr 23, 2015
    Member:
    #153803
    Messages:
    8,281
    Gender:
    Male
    First Name:
    Jake
    Texas (DFW)
    This will be an option 99.99 at your door.


  13. Mar 21, 2018 at 11:29 AM
    #53
    inesshell

    inesshell blah blah blah

    Joined:
    Aug 2, 2011
    Member:
    #60986
    Messages:
    7,166
    Vehicle:
    All stock Superwhite 10' AC
  14. Mar 21, 2018 at 11:43 AM
    #54
    MojaveMadman

    MojaveMadman Cali Raised LED

    Joined:
    Feb 20, 2013
    Member:
    #98029
    Messages:
    2,276
    Gender:
    Male
    First Name:
    Chris
    Los Angeles, CA
    Vehicle:
    2010 Tacoma TRD OR
    All New Everything
    Hey everyone,

    Chris here from Cali Raised. You may remember me formerly selling LED mounts as Apex Fabworks. I am working on the Cali Raised team now as their product engineer and a few other rolls.

    I wanted to share with you guys a detailed explanation of the Molle system so you guys can get an idea of what we have to offer, and why we think it's a great product.

    Let me start with some facts. Jake has mentioned some already.

    Material: 10 gauge cold rolled steel, 0.14" in thickness to be exact
    Manufacturing Process: CNC laser cut, CNC formed on our Amada press brake. All done in the USA by us and a couple local processing companies.
    Coating: Sand blasted and powder coated semi gloss black mini texture.
    Hardware: All specifically spec'd for each need. All zinc coated for anti corrosion.
    Dimensions: Rear panel 30" x 12" Full System 54" x 12" when assembled

    So to give you guys the break down I am going to go through a few things. First I am going to start with hardware. The Molle system and rear panel both use some very specific high quality hardware. From the simple stuff down to the more complex. Everything has the correct washers that are required and all fasteners use a lock nut to ensure they will stay tight. We also use high quality T-Slot nuts to ensure that you get a very solid mount in the rail. Additionally a VERY important feature to note is the use of rubber bumpers. Every accessory mount I have seen on the market for the Tacoma bed seems to have a metal flange near the bottom that contacts the bed as a support. While this does work as a support you have metal contact on your composite bed. Over time as the mounts vibrate around, especially under load this can cause damage and rub markings to the bed surface. With the rubber bumpers you have zero damage and you can remove the system with zero blemishes to the bed.

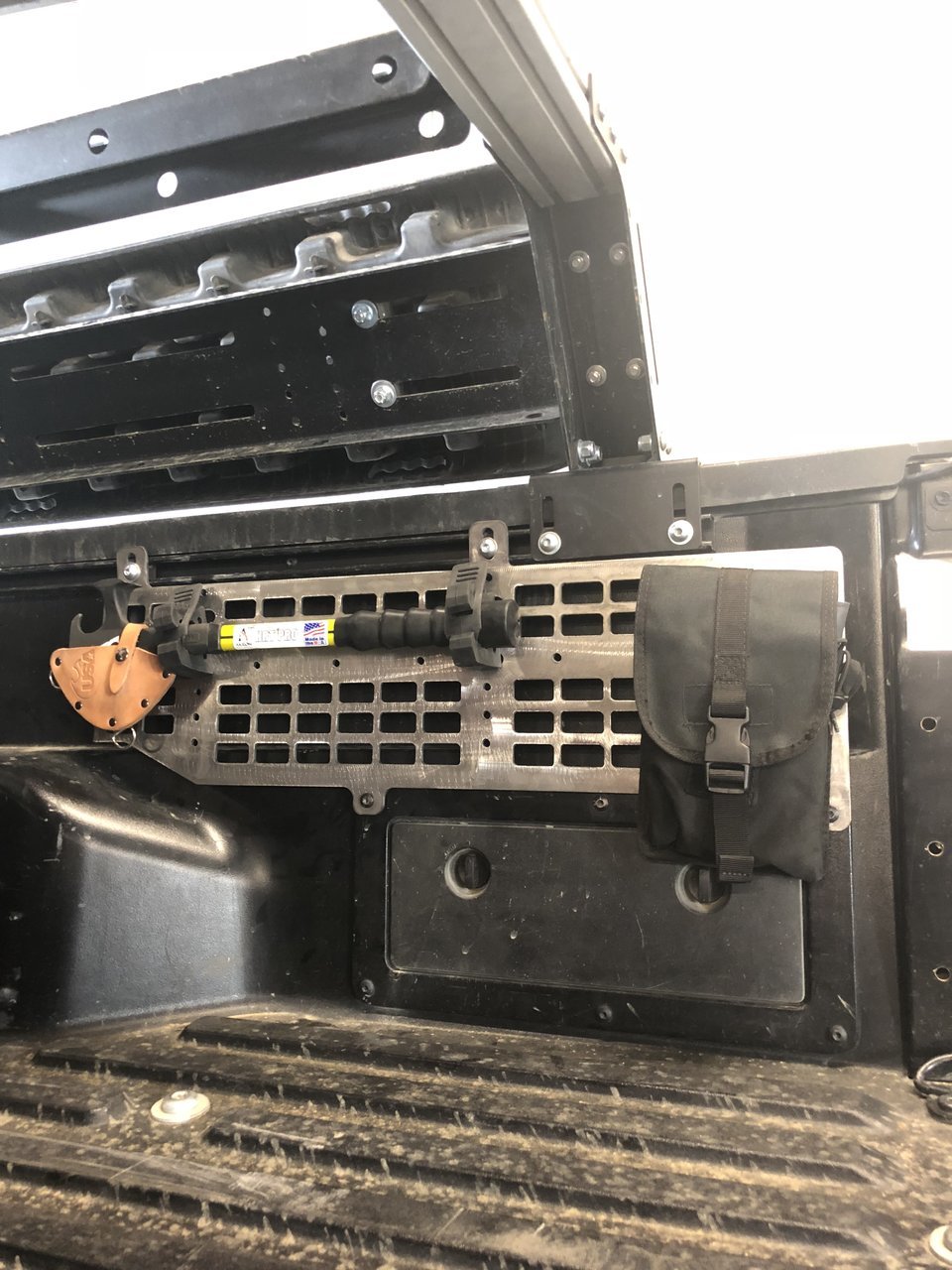

    You can also see in the pictures our optional High Lift Jack hardware kit. Designed to stay in place when the jack is not in use, but easily allow install and removal if needed with the simple turn of a knob.




    Next I want to showcase the system and some of the features. Ultimately the sky is the limit on these and you will be able to do a lot more than we show you, we can't wait to see what you think of. So first an important detail to point out is where the Molle system bolts to the accessory rail. Notice it is three tabs that seem to be in weird spots. This is all intentional. The Molle system is designed to work WITH most bed racks. If the bed rack system uses two or three posts and doesn't cover the entire accessory rail, then it should not interfere. We don't know the details on all racks on the market, but this should stay out of the way of most we reviewed. Also with these tabs it still allows the use of the accessory rail hooks. You can still install and move the hooks around and use them as you need. Sorry guys with bed covers that drop the rail system down, we do not think this is compatible. The space is limited and we wanted to maximize mounting options.

    Next you will see the obvious Molle rectangles. These are 1.5" wide to accept standard Molle bags. Also you see the 1/2" slotted holes in 6 specific locations. this is so jacks can be mounted in a few places along with other heavier accessories. Then there are the 1/4" holes all over the rack. These work great for a large number of accessories and also many of the Quick Fist offerings. Your imagination is the limit here.



    Next I have included a couple of alternate views so you can see what is going on. While these are largely flat panels you can see there is a lot going on here. These are designed to fit the shape of the bed and to allow things to be mounted in 3D space while keeping clutter of the bed of the truck.





    Last I have a few examples of the panels separately. First is the rear panel that is offered as a stand alone. This is a good demonstration of what you will get when ordering just the rear panel. It is a very easy install with four mounting locations and then you can start mounting all your fun stuff. The second picture is the extension that is available if you do the entire system. This one has a lot more hardware included and allows for the mounting of longer items like fishing poles, shovels, axes, jacks, etc.




    If you guys have any technical questions please feel free to post them up or shoot me a DM. I will do my best to get to them quickly and provide the details you need!

  15. Mar 21, 2018 at 11:52 AM
    #55
    mtmudrunner

    mtmudrunner Well-Known Member

    Joined:
    Jan 15, 2018
    Member:
    #241318
    Messages:
    464
    Gender:
    Male
    First Name:
    Wes
    Tomcreek corner, MT
    Vehicle:
    1985 Toyota 4x4 p/u
    Rust
    I know that more short beds are out there but will you offer a long bed model or will that extra foot or so make a difference?

  16. Mar 21, 2018 at 11:54 AM
    #56
    MojaveMadman

    MojaveMadman Cali Raised LED

    Joined:
    Feb 20, 2013
    Member:
    #98029
    Messages:
    2,276
    Gender:
    Male
    First Name:
    Chris
    Los Angeles, CA
    Vehicle:
    2010 Tacoma TRD OR
    All New Everything
    We had intended on doing a long bed version but after we installed the version above in a long bed we determined it was not needed. It's pretty far back in there and most will not be mounting bags back there. You are still able to mount all the long accessories with this version so it made sense to just end at the fender. It still looks great, doesn't look out of place or short. Plus a long bed version would be more expensive, this way you save!

    mtmudrunner[QUOTED] likes this.
  17. Mar 21, 2018 at 12:03 PM
    #57
    RCRcer

    RCRcer Well-Known Member

    Joined:
    Jul 14, 2015
    Member:
    #159476
    Messages:
    879
    Gender:
    Male
    Vehicle:
    2015 OR DC

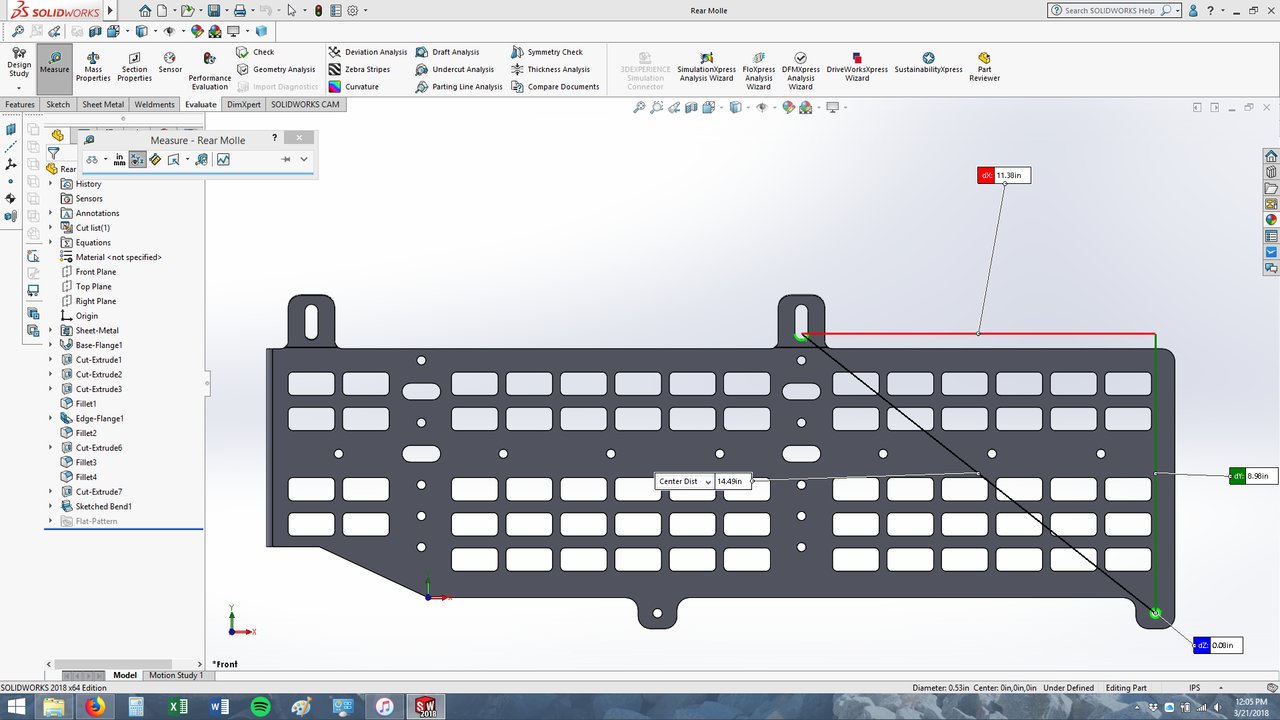

    Can I get some o/c measurements from the end of the bed rail where the mounting tabs hit and how wide the tabs are? Does it come with the rail hardware?
    Need to see if it will clear what I have mounted already on the rail. Thanks

  18. Mar 21, 2018 at 12:05 PM
    #58
    MojaveMadman

    MojaveMadman Cali Raised LED

    Joined:
    Feb 20, 2013
    Member:
    #98029
    Messages:
    2,276
    Gender:
    Male
    First Name:
    Chris
    Los Angeles, CA
    Vehicle:
    2010 Tacoma TRD OR
    All New Everything

  19. Mar 21, 2018 at 12:13 PM
    #59
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    49,823
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    inesshell[QUOTED] likes this.
  20. Mar 21, 2018 at 12:22 PM
    #60
    RCRcer

    RCRcer Well-Known Member

    Joined:
    Jul 14, 2015
    Member:
    #159476
    Messages:
    879
    Gender:
    Male
    Vehicle:
    2015 OR DC
    Thanks @MojaveMadman! Damn, not gonna work for me with my current setup.
    Great looking functional product you made there.
