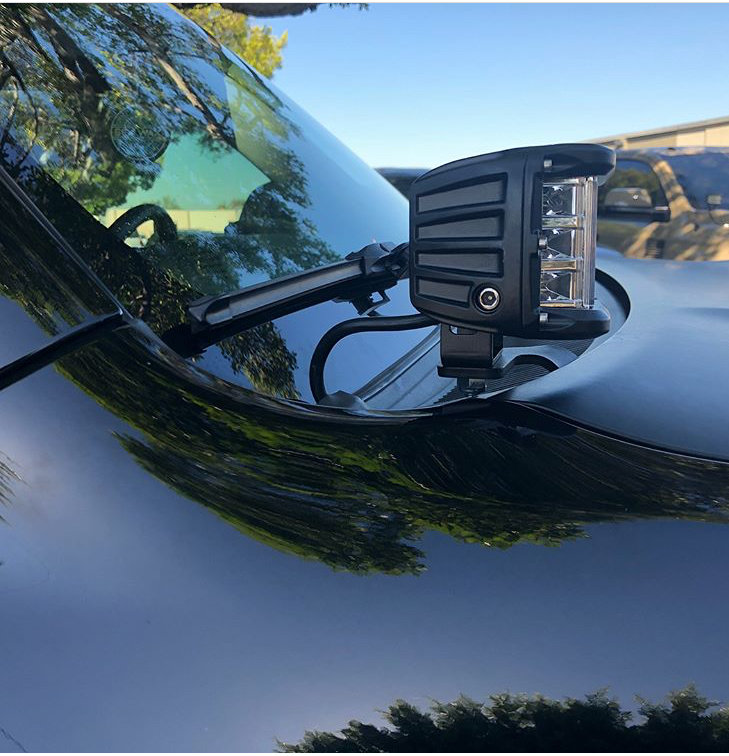

Cali Raised LED Side Projecting LED Pods *NEW PRODUCT*

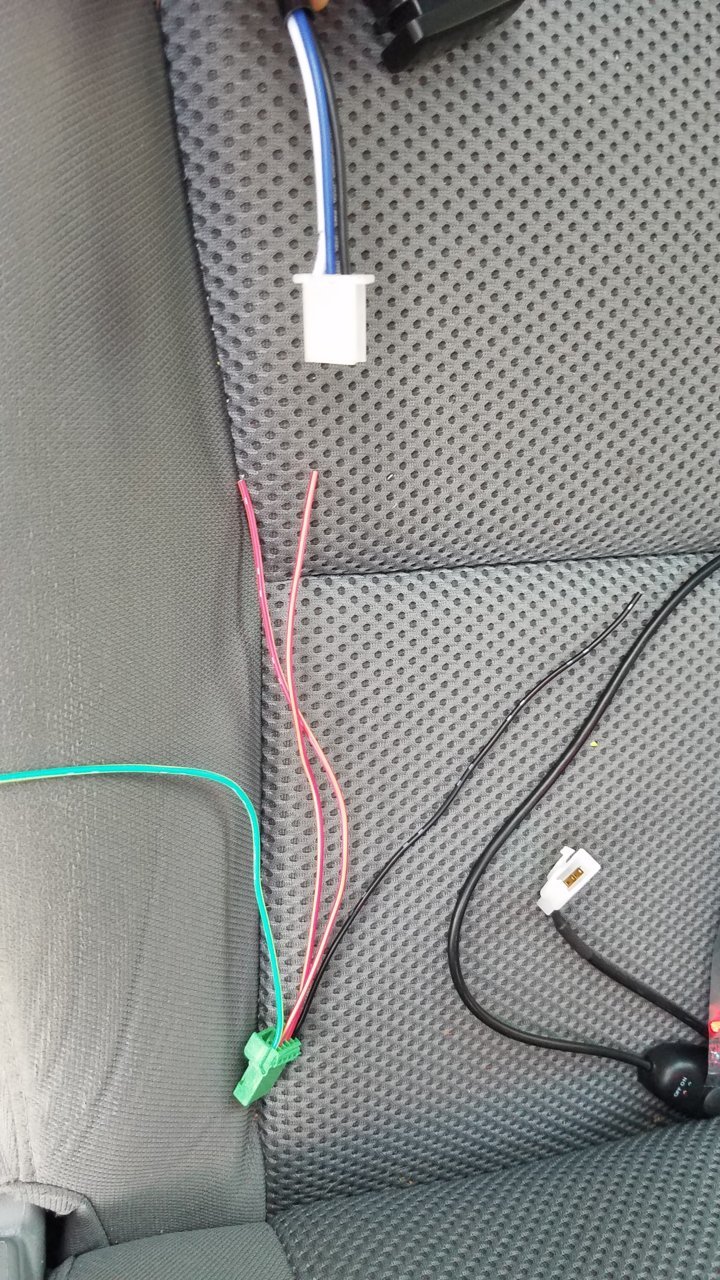

Green - White.
Red/Yellow (closest to green) - Blue
Red/Yellow (closest to black) - to Add-a-fuse
Black - Black

You tap the add-a-fuse into the panel right under the switch blank (I believe fuse 4a or 5a) and it will allow the OEM switch to light up with all your other stock switches when you turn your headlights on.
If you don't care about that little detail and want it lit all the time then wire both red/yellows to blue. And if you don't want the switch lit at all until your ditch lights are actually on then only wire the red/yellow closest to green to the blue and leave the other red/yellow unconnected. Hope that made sense.



Had to read it a couple of times, but yes, it did, haha. Thanks for the tip. I already wired it in, but for the future if i want to change it or add another switch/light, I'll try to remember this post. Thanks!



No problem, It took me a while to figure it out. I'm sure its all out there but I could not for the life of me find a schematic on the ditch light install.



Thanks for helping out guys!



Am I correct in that the two in the middle of the switch attach to the the middle wire in the harness, regardless of the colors? and then the black to black for ground, and then the others connect?



That is correct!

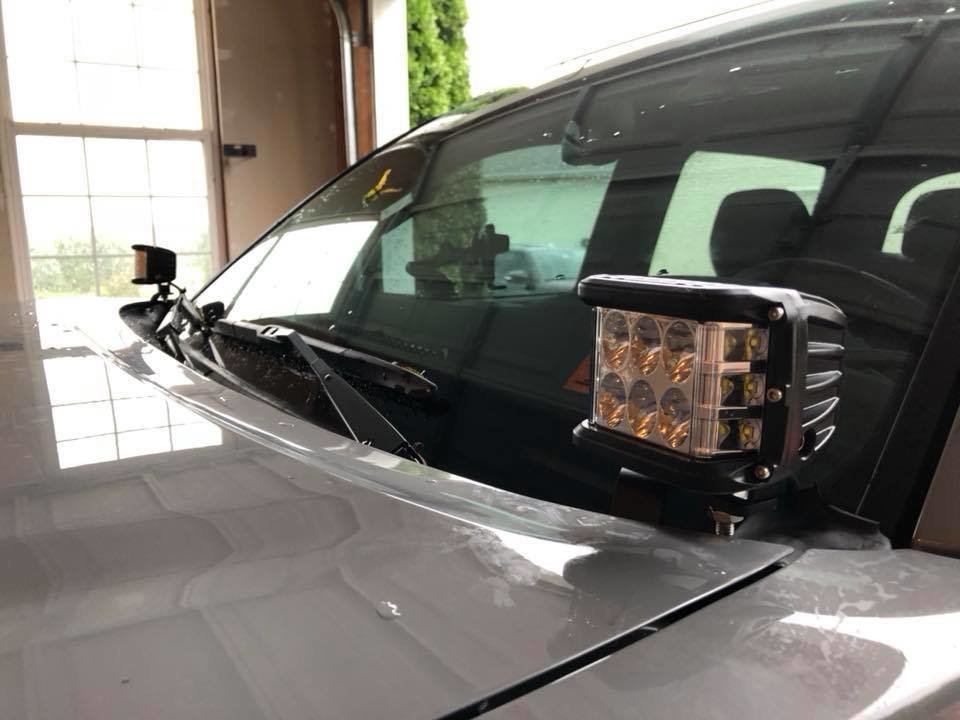

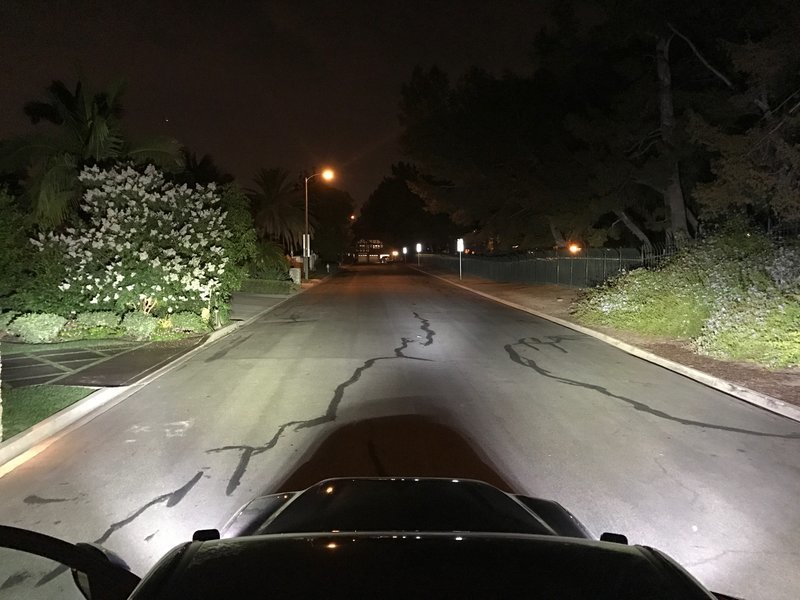

Got mine installed today, man they’re bright.

Does anyone know where I can get a ditch light switch that will fit the center console blanks? They’re more square than the switch provided in the kit.

I have the trd offroad so all my switches on the left side are taken. Im trying to put it right next to the atrac button behind the shifter



https://caliraisedled.com/collectio...all-style-toyota-oem-style-ditch-light-switch

Here you go!
Let me know if you have any questions.
Thanks



https://caliraisedled.com/collectio...roducts/side-projecting-led-pods-sold-as-pair



Jeez I wish I saw that on the order entry dropdowns, it's not listed on there is it? I ordered one off Amazon already, would have ordered it from you but I didn't see it on the site. I checked thru accessories and it doesn't list the small button either.

Either way, I love the lights. Having the wrong button was minor, using it in the meantime until the small one shows up.



Thank you for choosing us!

Lets see some pictures when you get them!



https://caliraisedled.com/collections/rock-sliders

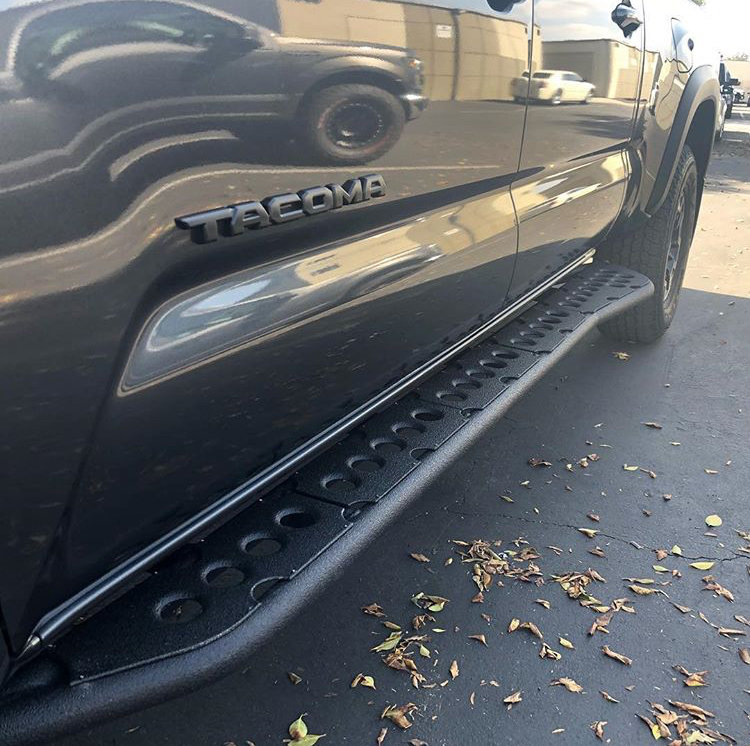

Here are our 0-degree rock sliders that we installed and got them Line-x.

Our sliders are made the best way we know how for the best fit and protection standard, no up charge. You can choose between Bolt-On or Weld-On. Bolt-On sliders come with all the required hardware you need for the install and are installed with zero modification to your truck



https://caliraisedled.com/collectio...roducts/side-projecting-led-pods-sold-as-pair



https://caliraisedled.com/collectio...ducts/2016-toyota-tacoma-ditch-light-brackets
Check out our 2nd and 3rd Gen Tacoma Ditch brackets and LED lighting pods.

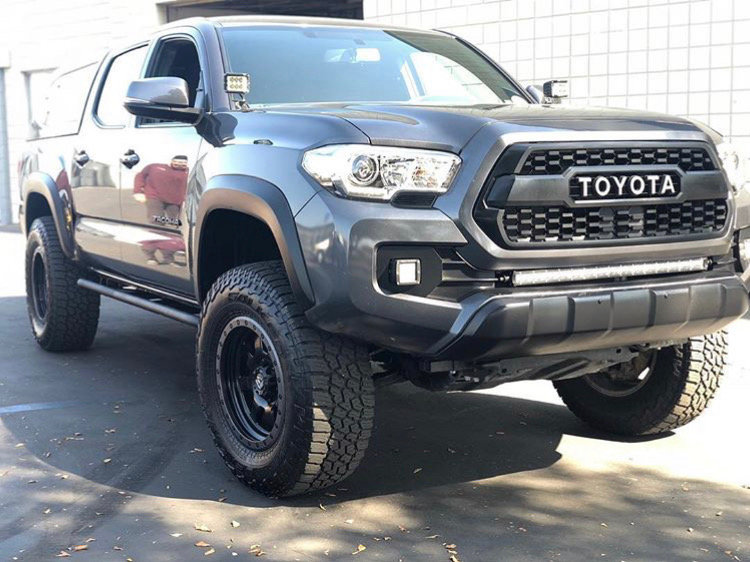

Here is an install we did yesterday. The customer has our 25 Degree Sliders, Ditch, Bumper and Fog kit.
https://caliraisedled.com/collections/2016-toyota-tacoma



I already have the caliraised 32" led light bar, is there anyway to wire these ditch lights to the light bar switch?



Yes, all you would need to do is buy a harness and tie that harness into the 32" bar harness.

https://www.tacomaworld.com/threads...-friday-cyber-monday-end-tuesday-27th.578511/

Take advantage while there is still time. Sale ends Tuesday Night!



I just got mine installed, but I can't figure out what the 2 hex bolt with 2 lock nut is used for. It was included in the same packaging as the low profile brackets. This is for the ditch lights.



do you have any pics from inside the cab, showing hood glare? if there is any.



Those are to attach the Light and the Lo profile brackets together. The hardware is a little smaller than the ones provided with the actual lights.

Let me know if you have any questions.
