Camper shell brake light wiring

Discussion in '3rd Gen. Tacomas (2016-2023)' started by 1776Taco, Oct 23, 2020.

Post Reply

Oct 23, 2020 at 6:23 AM

#1

#1
1776Taco [OP] Well-Known Member

Joined:

Oct 19, 2019

Member:

#308453

Messages:

726

Vehicle:

2019 2.7 4x4 SR

added rear seats access cab LEER 100R Curt hitch receiver Curt trailer lights Carthart seat covers 255/85/16 Toyo MT for trails 265/70/16 W/ OR wheels for DD TRD PRO skid OR fuel tank skid Warn tubeless winch bumper Smittybilt XRC 9.5k winch HS 1/4 inch coil spacers RCI rock sliders Wheelers 1.5 AAL Bilstein 5100 rear Decked

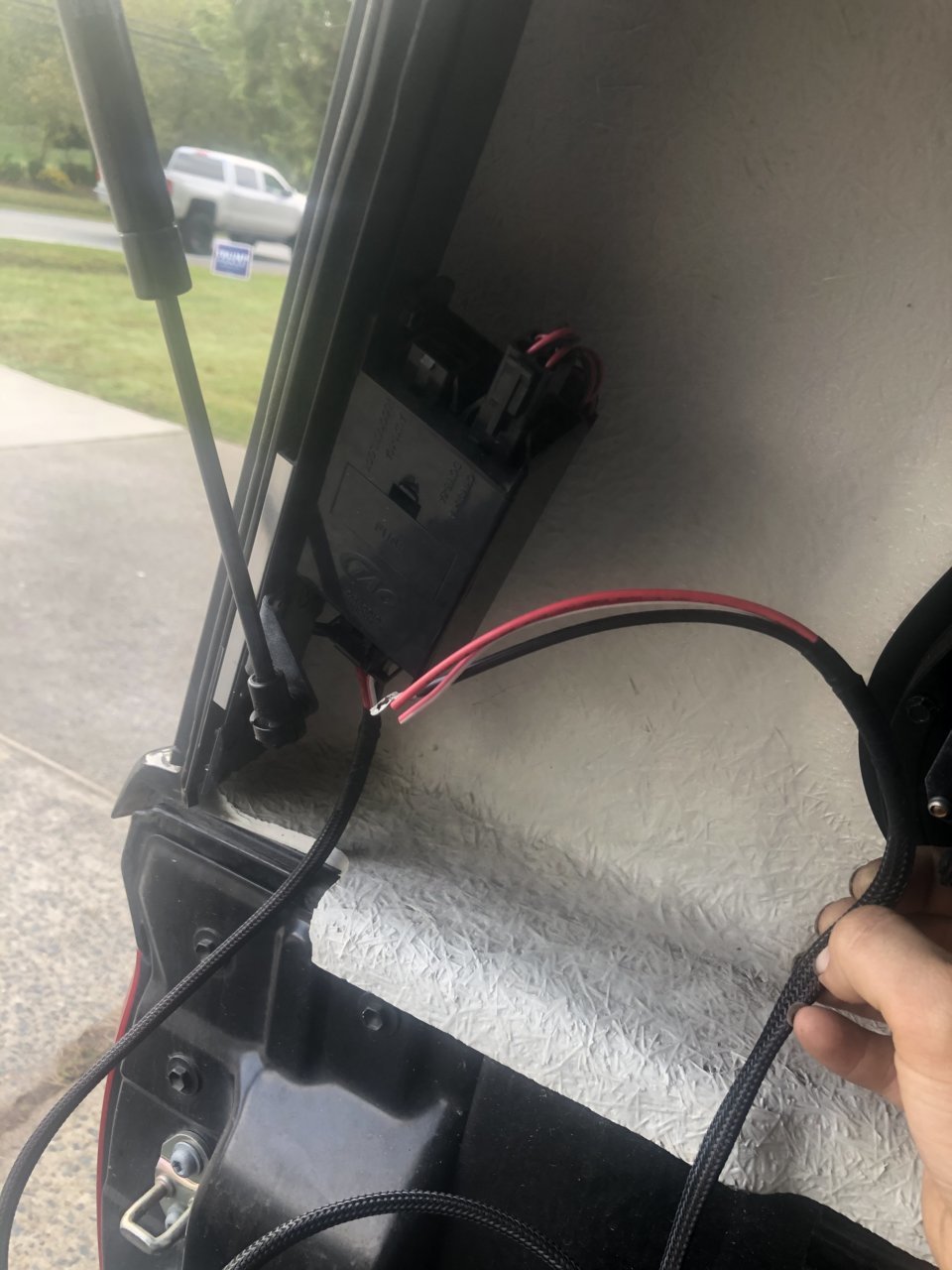

Got to get truck inspected. Need third brake light wires up. I just need to splice the two red wires and ground the black and all is well? Don’t want the brake override malfunction light coming on.

1776Taco, Oct 23, 2020

#1

Oct 23, 2020 at 8:24 AM

#2

#2
Tnc Well-Known Member

Joined:

Nov 6, 2019

Member:

#309983

Messages:

479

Gender:

Male

First Name:

Tim

NE Oklahoma

Vehicle:

2017 DCLB TRD OR

Mine only had one red and one black but that’s all I did. Tied into the rear brake light on the driver’s side.

Tnc, Oct 23, 2020

#2

Oct 23, 2020 at 8:54 AM

#3

#3
dilbert AI Member

Joined:

Mar 14, 2016

Member:

#181276

Messages:

2,858

Gender:

Male

PNW

Vehicle:

2019 DCLB TRD Off-Road

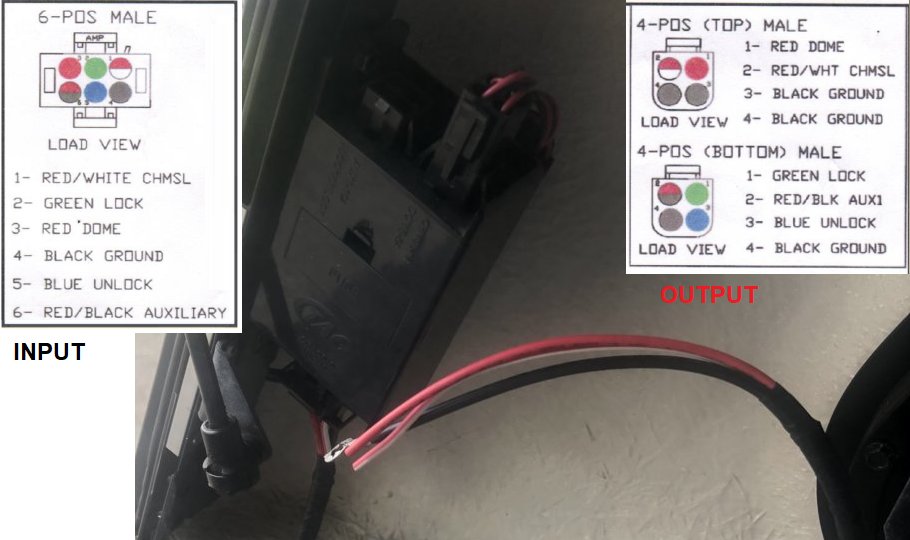

It looks like the red/white is for your CHMSL. That and ground are what you need to connect.
Attached Files:
- leer_fuse_box_harness_installation.pdf

  File size:

  318.2 KB

  Views:

  10
dilbert, Oct 23, 2020

#3

Skydvrr likes this.

Oct 23, 2020 at 11:58 AM

#4

#4
caribe makaira Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,786

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

Might this way...

caribe makaira, Oct 23, 2020

#4
