Camper wiring

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Bdiddy11, Jan 24, 2020.

  1. Jan 24, 2020 at 7:07 PM
    #1
    Bdiddy11

    Bdiddy11 [OP] Well-Known Member

    Joined:
    Apr 6, 2010
    Member:
    #34706
    Messages:
    104
    Gender:
    Male
    Unknown lift, 31's
    Posted this in the camper/tonneau section but it appears it gets very little traffic.

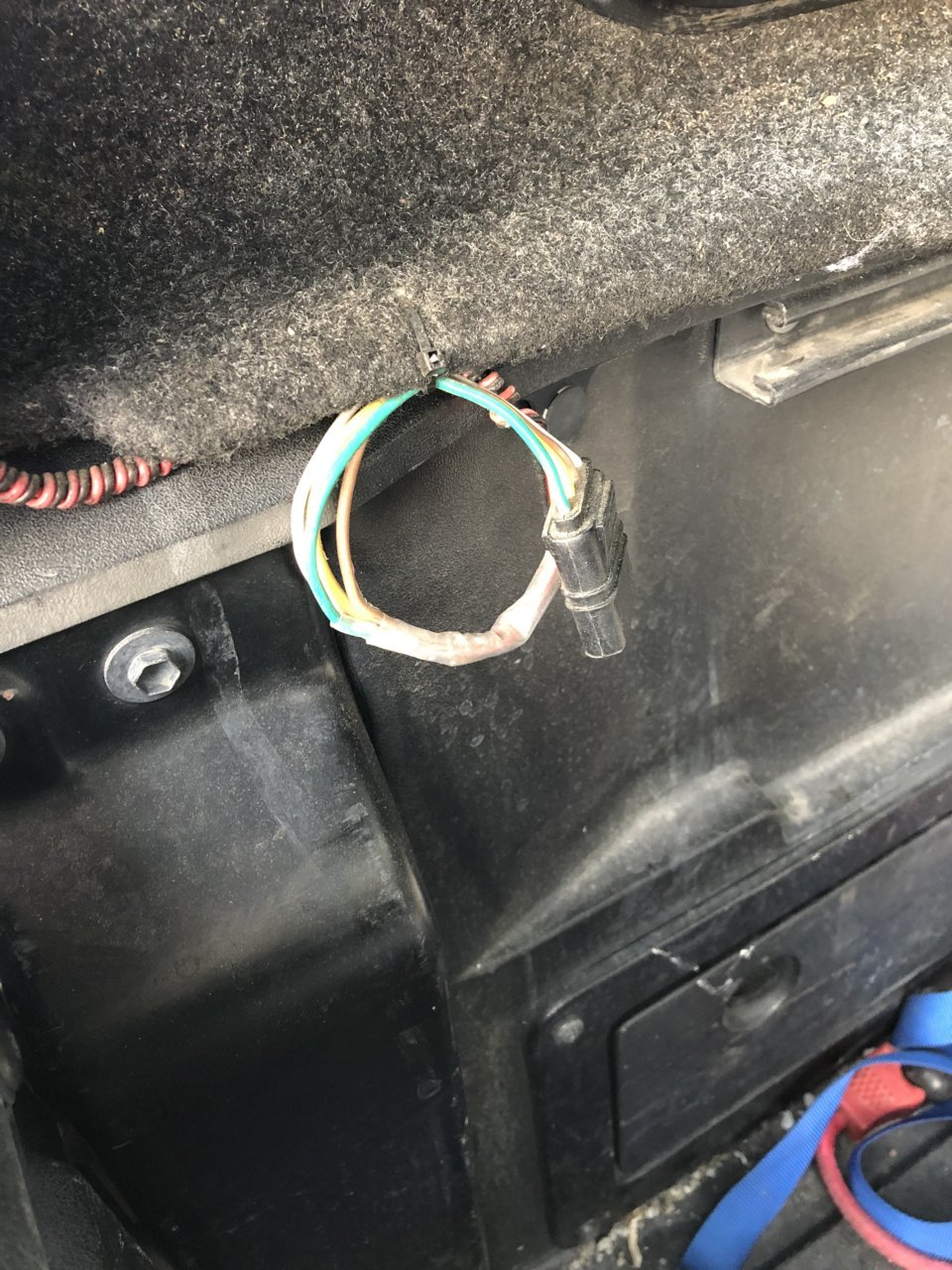

    I have a 2008 and bought a secondhand Leer topper with the following trailer plug already installed. What wires on the other end of male plug that I will install need to be tapped into where?

    The topper also has a dome light with an on/off switch.


  2. Jan 24, 2020 at 7:32 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,194
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    That looks like some one used a 4-Pin trailer plug.
    You’d need know what wire goes to what component (Light) on the Camper Top first.
    After you figure that, then you can find out where each wire goes to the truck.

    Muddinfun likes this.
  3. Jan 24, 2020 at 10:00 PM
    #3
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,273
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Undo that shrink wrap around the connections and wire and we should be able to tell you something.

    TnShooter likes this.
  4. Jan 25, 2020 at 12:58 AM
    #4
    muddog321

    muddog321 Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    1,136
    Gender:
    Male
    FL
    Vehicle:
    09 Tacoma DCSB 4wd TRD Off-Road w/e-locker Pyrite Mica
    TW 1-piece driveshaft with 1310 u-joints All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 1.75" (3rd groove up) with stock springs Falken Wildpeak A/T3W 265/70R16 2018 TRD Offroad wheels 16x7J with +25mm offset Powerstop rotors with Z36 pads and rebuilt with OEM caliper kit Complete rebuilt rear brakes drums, shoes, springs, wheel cylinders Rebuilt rear diff with Yukon 3.73 ring/pinion Denso 130A rebuilt alternator AGM 24F Battery New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Walker SS Quiet Flow muffler Denso Iridium long life plugs #3421 (SK20HR11) OEM coolant, cap, and thermostat NAPA CV axles and new seals ECGS bushing Rhino front guard Shortened mud flaps Alziria Black Tail Lights Nilight Headlights X-Bull Traction Boards Maaco full single stage paint job 2023 Nat CV to Knuckle seals 710573 New SKF wheel bearings/hubs BR930978 New Moog stabilizer links K80946 & 948 New MOOG K80819 Suspension Stabilizer Bar Bushing 28mm New Dorman rear wheel bearings using complete axles 926-139 & 140 New Radiator support bushings Dorman 924-267 (front body mounts)
    Googled it and here is a link from a tunda site so page down to the pdf file with wiring and as expected dome and brake light wires.
