Camshaft position sensor location

No. The solenoid control valve is either actuated or it's not. The magic lies in how the oil is ported thru it in either position. I think somewhere here I posted a generic Youtube video which animates how it works. I'll see if I can find it.

Edit:

See if these help.

valve operation:

https://youtu.be/OtRlQrAc5IY?t=110

Actuator operation:

https://www.youtube.com/watch?v=qZbaDZPrl_0



Yes that makes sense now that Im thinking about it more. Initially I thought it was a three position spool valve, but that is unnecessarily complicated.

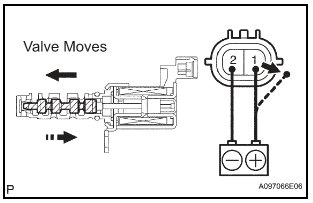

For future, the below screen shot shows the polarity



Incredible! I’m hoping this is my problem. Thank you
