Camshaft sensor pin location on ECU for 1999 Tacoma 3.4 manual trans

Discussion in 'General Tacoma Talk' started by Foxdog33, Oct 25, 2023.

  1. Oct 25, 2023 at 11:52 AM
    #1
    Foxdog33

    #1
    Foxdog33 [OP] Member

    Joined:
    Sep 15, 2023
    Member:
    #433555
    Messages:
    16
    ECU Pin location for camshaft sensor G+ and G- 99 Tacoma 3.4 manual trans any help please

    Foxdog33, Oct 25, 2023
    #1
  2. Oct 25, 2023 at 5:59 PM
    #2
    Dm93

    #2
    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,606
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Cam Sensor Signal (G+) goes to Connector E7 Pin 17 (Yellow).
    Cam and Crank Sensor Ground (G- & N-) are spliced together and go to Connector E7 Pin 6 (Green).
    Crank Sensor Signal (N+) goes to Connector E7 Pin 5 (Red).

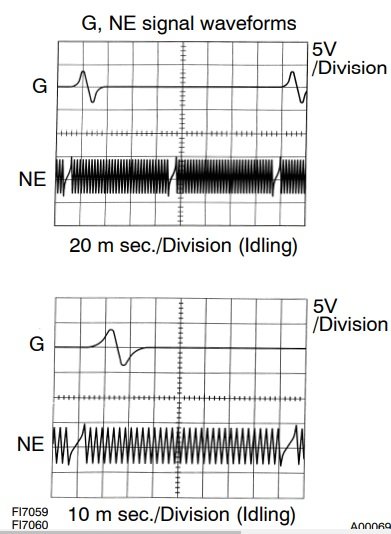

    Reference waveforms.
    97 3.4L Cam-Crank Signals.jpg


    Attached Files:

    Dm93, Oct 25, 2023
    #2
    b_r_o and treyus30 like this.
  3. Oct 25, 2023 at 9:14 PM
    #3
    treyus30

    #3
    treyus30 70% complete 70% of the time

    Joined:
    Jun 24, 2015
    Member:
    #158054
    Messages:
    8,405
    Gender:
    Male
    First Name:
    Trey
    Mesa / AJ, AZ
    Vehicle:
    '99 5VZ-FE Twin K03s w/Haltech
    Historic plates and 2 bar
    OP I have a color coded spreadsheet I can find if this doesnt work for you

    treyus30, Oct 25, 2023
    #3
  4. Dec 6, 2023 at 1:03 PM
    #4
    Foxdog33

    #4
    Foxdog33 [OP] Member

    Joined:
    Sep 15, 2023
    Member:
    #433555
    Messages:
    16
    Can I get spread sheet and can I get the same info as above for a 97 auto 3.4 please sir

    Foxdog33, Dec 6, 2023
    #4
  5. Dec 6, 2023 at 1:34 PM
    #5
    TnShooter

    #5
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,193
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    TnShooter, Dec 6, 2023
