Can’t find GPS cable for Sony XAV6000 installation

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Deadsquiggles, Dec 15, 2024.

  1. Dec 15, 2024 at 7:40 AM
    #1
    Deadsquiggles

    #1
    Deadsquiggles [OP] Well-Known Member

    Joined:
    Jan 6, 2018
    Member:
    #240451
    Messages:
    100
    Gender:
    Male
    VA
    Vehicle:
    2019 Tacoma SR V6 Double Cab 4WD Barcelona Red
    None
    I’m in the middle of installing the Sony XAV6000 kit I got from Trail Grid Pro. Everything was plug n play and works, except I can’t find the GPS cable behind the dash to plug into the head unit so I can’t use CarPlay.

    Truck is a 2019 SR. Did some SRs come without GPS? I’ve never tried using the map in the Entune but I know my 2017 SR had it.

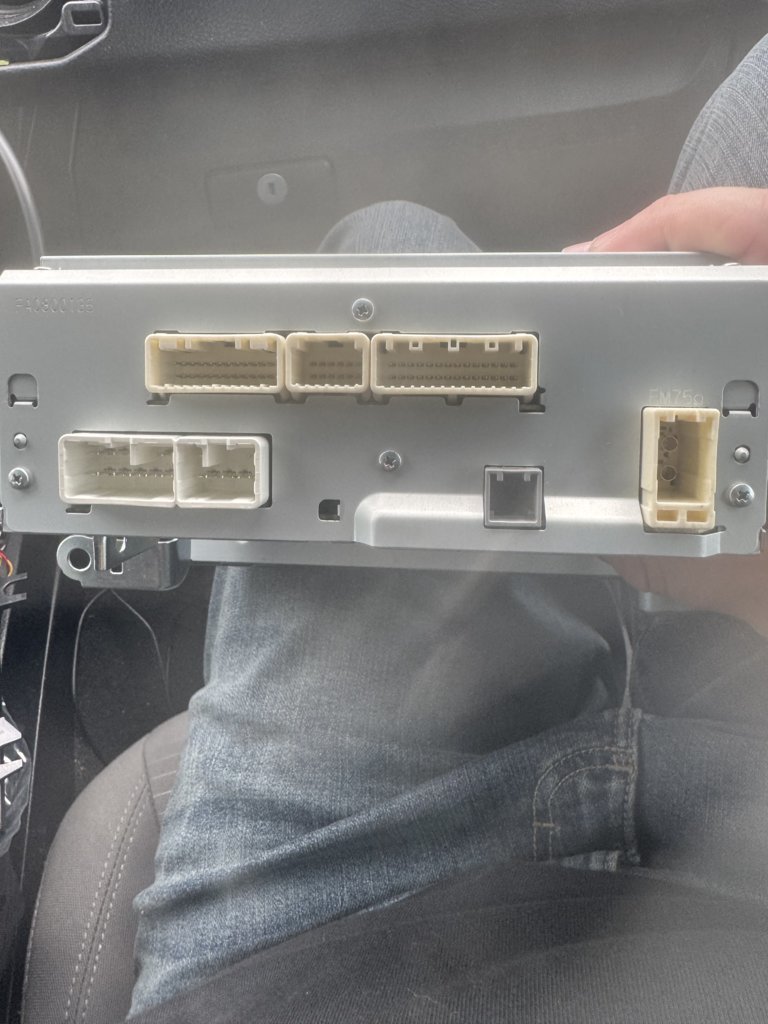

    This is wire coming off the back of the head unit, but I’m not seeing the GPS cable that’s supposed to plug into it.


    Last edited: Dec 15, 2024
    Deadsquiggles, Dec 15, 2024
    #1
  2. Dec 15, 2024 at 9:52 AM
    #2
    Vlady

    #2
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4
    Sat radio and gps are square connectors. You need to buy maestro sat cable adapters

    Vlady, Dec 15, 2024
    #2
  3. Dec 15, 2024 at 9:53 AM
    #3
    Deadsquiggles

    #3
    Deadsquiggles [OP] Well-Known Member

    Joined:
    Jan 6, 2018
    Member:
    #240451
    Messages:
    100
    Gender:
    Male
    VA
    Vehicle:
    2019 Tacoma SR V6 Double Cab 4WD Barcelona Red
    None
    Gotcha. But even with the adapters, my problem is that I have no idea where they’re supposed to plug in on the truck itself.

    Deadsquiggles, Dec 15, 2024
    #3
  4. Dec 15, 2024 at 9:59 AM
    #4
    Vlady

    #4
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4

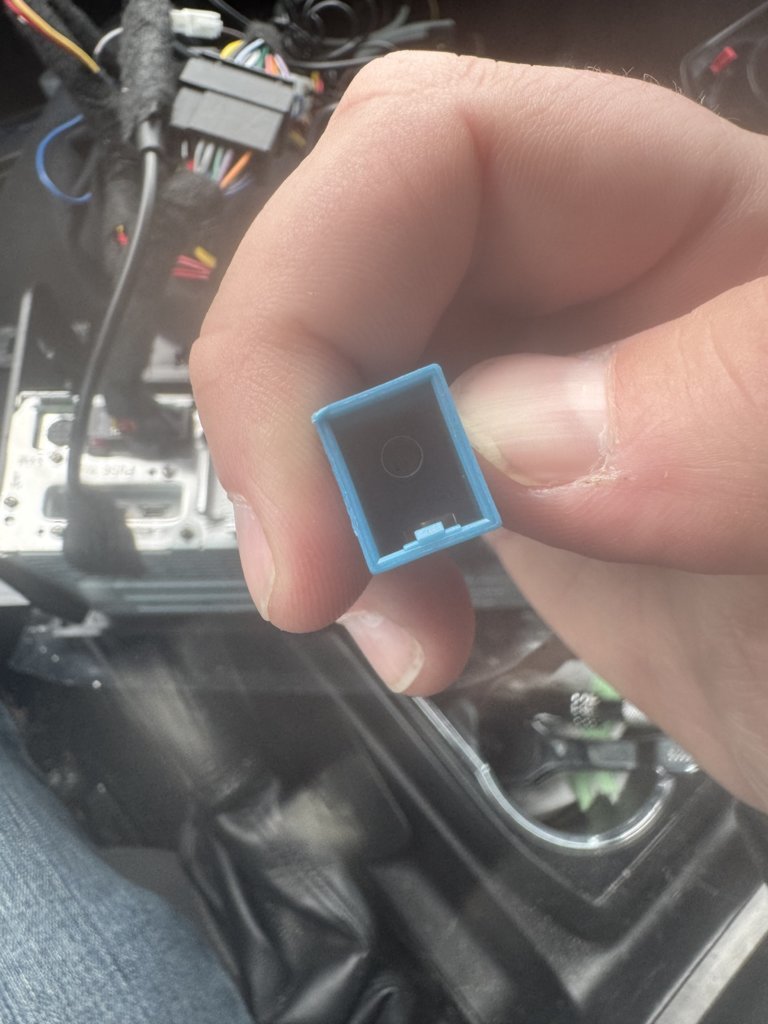

    Are there any square looking connectors, like that blue one, on the right side of the opening? Should be coming from the roof via the passenger side pillar.

    Vlady, Dec 15, 2024
    #4
  5. Dec 15, 2024 at 10:03 AM
    #5
    Deadsquiggles

    #5
    Deadsquiggles [OP] Well-Known Member

    Joined:
    Jan 6, 2018
    Member:
    #240451
    Messages:
    100
    Gender:
    Male
    VA
    Vehicle:
    2019 Tacoma SR V6 Double Cab 4WD Barcelona Red
    None
    This is the only one coming from the passenger side.


    Deadsquiggles, Dec 15, 2024
    #5
  6. Dec 15, 2024 at 10:07 AM
    #6
    Vlady

    #6
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4
    The connector does look different compare to SR5. Do you know what the original radio model was?

    Vlady, Dec 15, 2024
    #6
  7. Dec 15, 2024 at 10:09 AM
    #7
    Deadsquiggles

    #7
    Deadsquiggles [OP] Well-Known Member

    Joined:
    Jan 6, 2018
    Member:
    #240451
    Messages:
    100
    Gender:
    Male
    VA
    Vehicle:
    2019 Tacoma SR V6 Double Cab 4WD Barcelona Red
    None

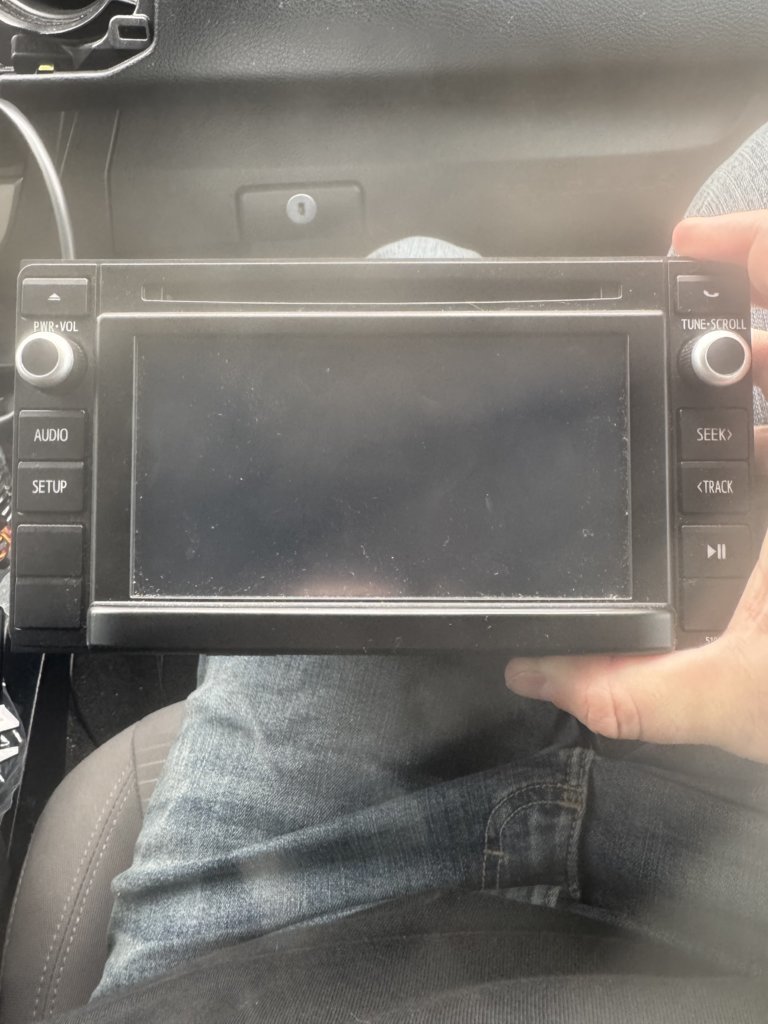

    The original was the stock head unit.


    Deadsquiggles, Dec 15, 2024
    #7
  8. Dec 15, 2024 at 10:13 AM
    #8
    Vlady

    #8
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4
    Ok, I had the same radio + satellite module.
    Let me check how I wired my headunit

    Vlady, Dec 15, 2024
    #8
  9. Dec 15, 2024 at 12:45 PM
    #9
    Vlady

    #9
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4

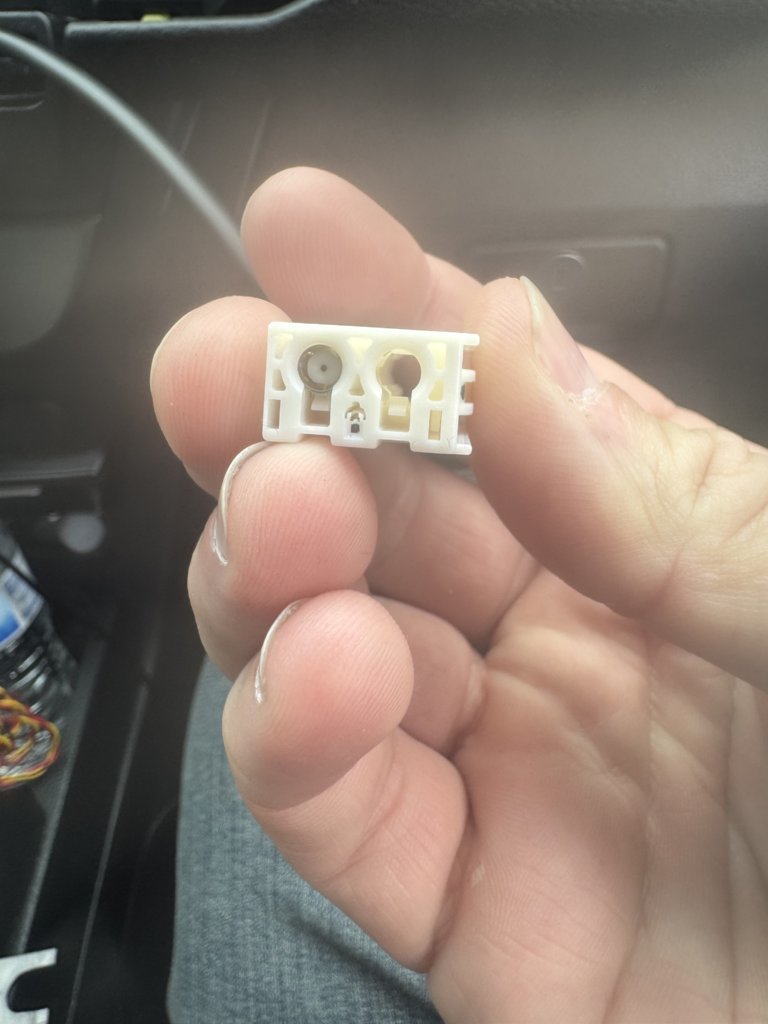

    this is fm/am antenna connector.

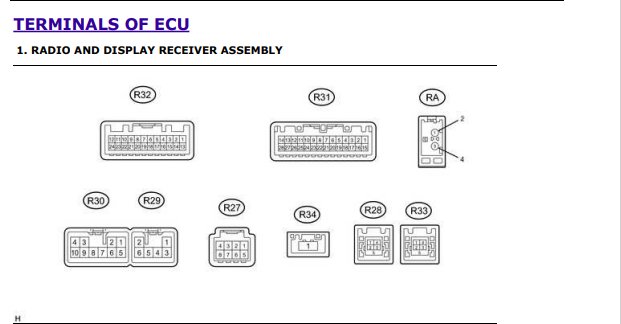

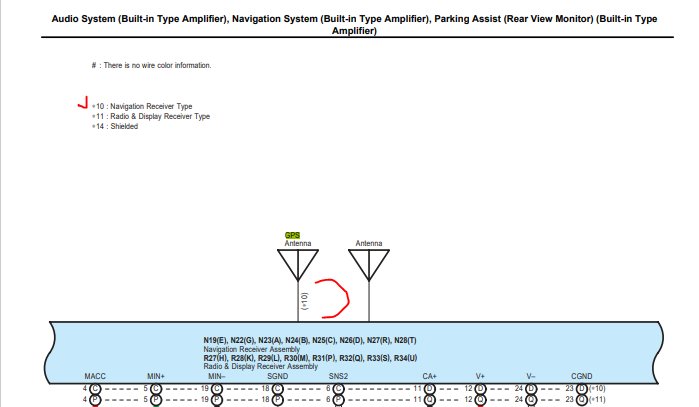

    looking at the service manual, looks like this type of radio does not have gps antenna. RA is antenna, R34 is backup camera

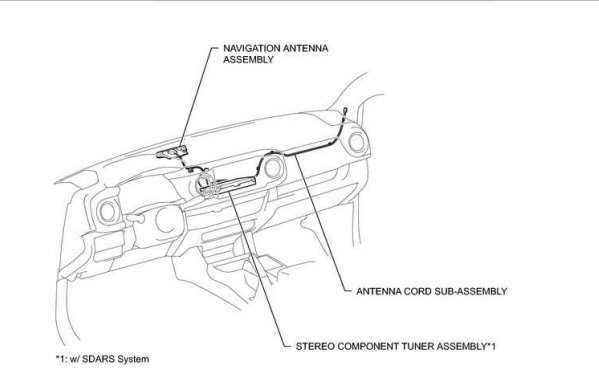

    Location if the satellite/gps antenna


    Last edited: Dec 15, 2024
    Vlady, Dec 15, 2024
    #9
    eurowner likes this.
  10. Dec 15, 2024 at 1:49 PM
    #10
    Deadsquiggles

    #10
    Deadsquiggles [OP] Well-Known Member

    Joined:
    Jan 6, 2018
    Member:
    #240451
    Messages:
    100
    Gender:
    Male
    VA
    Vehicle:
    2019 Tacoma SR V6 Double Cab 4WD Barcelona Red
    None
    Thanks for that diagram. That wire coming from the passenger side seems to match the shape of the RA2/RA4 connection. There’s just no pin in one of them.

    Deadsquiggles, Dec 15, 2024
    #10
  11. Dec 15, 2024 at 3:29 PM
    #11
    Toycoma2021

    #11
    Toycoma2021 Well-Known Member

    Joined:
    Jan 3, 2021
    Member:
    #351607
    Messages:
    1,854
    Northern California, Temporarily
    Vehicle:
    2021 Access Cab, LB, AT, V6, Off Road
    I realize your 2019 will not be the same as my 2021; but on my 2021 OR the AM/FM antenna goes to the shark fin on the roof plus the SAT or SDARS antenna, the navigation GPS antenna is on the underside of the dash as shown above.

    Toycoma2021, Dec 15, 2024
    #11
  12. Dec 15, 2024 at 4:29 PM
    #12
    Vlady

    #12
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4

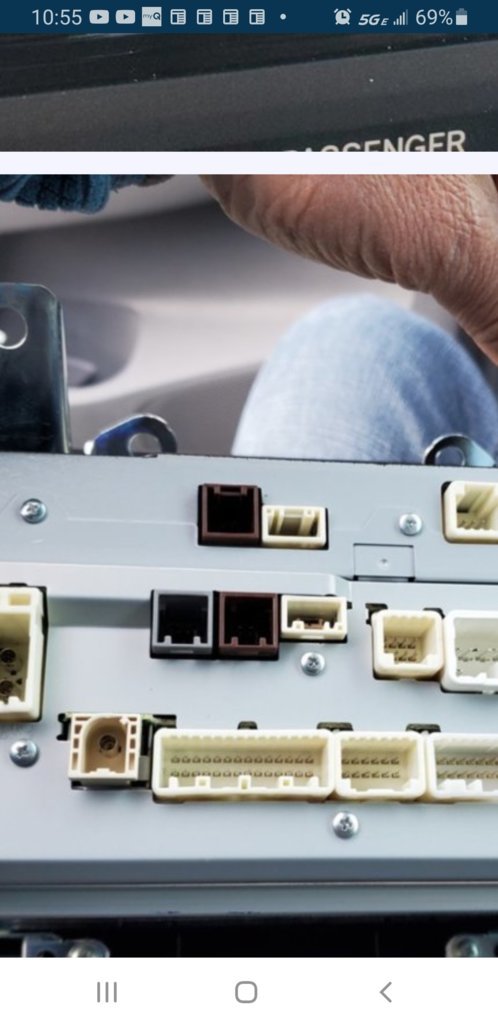

    I dug out the image of my headunit. The bottom left small square connector is GPS one.

    Screenshot_20241215-105505_Samsung Internet.jpg

    Vlady, Dec 15, 2024
    #12
  13. Dec 15, 2024 at 6:22 PM
    #13
    Ronk44

    #13
    Ronk44 Well-Known Member

    Joined:
    Jan 6, 2020
    Member:
    #315332
    Messages:
    639
    Gender:
    Male
    Rockerville, SD
    Vehicle:
    2017 MGM Sport
    Leveled with Bilstein 5100 shocks, Falken Rubitrek AT 265/75 tires, Redline hood struts, R4T tailgate lock, Matt Gecko LED strips in bed and under hood, WeatherTech hood guard, OEM bed mat, Husky floor mats, Carhart seat covers, Grille replacement with Toyota letters, Sony AX6000 head unit, OTT lite/mild tune, and an occasional splash of fuel additive.
    Suggest you contact Trail Grid Pro Technical Support to discuss specifics. Supposed to be plug in and play, simple.

    Ronk44, Dec 15, 2024
    #13
  14. Dec 15, 2024 at 7:45 PM
    #14
    Vlady

    #14
    Vlady Well-Known Member

    Joined:
    Dec 20, 2017
    Member:
    #238986
    Messages:
    4,672
    Gender:
    Male
    Issy, WA
    Vehicle:
    2017 White SR5 DCSB V6 4x4
    I think you don't have navigation antenna on your truck. Your options are to get OEM part # 86860-04030($$) or those cheap gps antennas for Toyota's, like Fakra brand. Some folk disassembled the connector and connect the cable directly and secure with a tape
    $10 Eightwood Waterproof Active Navigation GPS Antenna Fakra Blue C Female Right Angle Magnetic Base for Car Stereo Head Unit
    https://www.amazon.com/Eightwood-Antenna-Fakra-Female-Extension/dp/B0107LPEWK

    Vlady, Dec 15, 2024
    #14
    Toycoma2021 likes this.
