Can I please receive a little assistance here.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by GoDeacsWFU23, Dec 19, 2011.

  1. Dec 19, 2011 at 2:48 PM
    #1
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

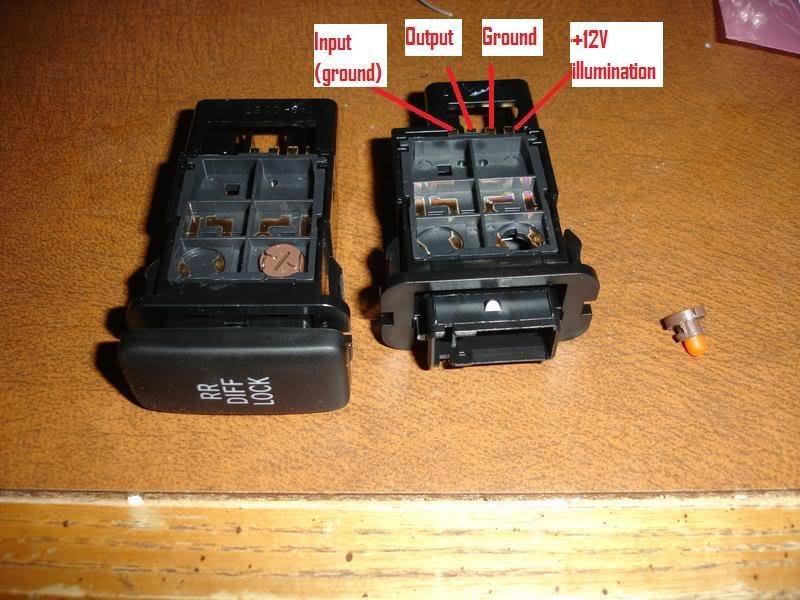

    I finally got in one of my factory fog switches with the harness and 4 connectors. Now, how in the heck do I hook it up to my fog lights? I found this picture of what each plug is but it might as well be in German because I have no idea where each one should go. If someone could help me out with this I would be much abliged!

    [​IMG]


    THIS IS WHAT I HAVE:
    [​IMG]

  2. Dec 19, 2011 at 4:01 PM
    #2
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    Anyone? Bueller? Anyone?

    Trying to get this done tonight, not trying to be to pushy.....

  3. Dec 19, 2011 at 4:13 PM
    #3
    RCBS

    RCBS "Cause I'm mighty proud of that ragged old flag."

    Joined:
    Apr 9, 2008
    Member:
    #5845
    Messages:
    2,517
    Gender:
    Male
    Appalachia
    Vehicle:
    06 Main Runner OR
  4. Dec 19, 2011 at 4:17 PM
    #4
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
  5. Dec 19, 2011 at 4:20 PM
    #5
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    well for starters....your truck did not come with fog lights (from what i see)

    correct??

  6. Dec 19, 2011 at 4:21 PM
    #6
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    it has fog lights, this is for a set of after market lights in the grille

    [​IMG]

  7. Dec 19, 2011 at 4:23 PM
    #7
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    ah alright...then if your wiring up new lights you need to add the relay and from what ive been told that top diagram should help

  8. Dec 19, 2011 at 4:24 PM
    #8
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

    It helped, but I would love to have that diagram for a 4 prong switch, Im sorry but when it comes to wiring im an idiot.

  9. Dec 19, 2011 at 4:28 PM
    #9
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    the relay is in place, i cut the old switch off and have 3 wires to run somewhere

  10. Dec 19, 2011 at 4:30 PM
    #10
    newertoy

    newertoy Well-Known Member

    Joined:
    Feb 27, 2010
    Member:
    #32204
    Messages:
    1,564
    Gender:
    Male
    First Name:
    Kevin
    East Tn
    Vehicle:
    2003 4x4 extra cab
    2" lift AAL and Bilstiens-front-rear,front diff drop. main drive drop
    top two go together-( are associated w/ each other)-- bottom two go together
    Bottom two for switch illumination- top two for fog lights.
    Thats if your labling is correct.

  11. Dec 19, 2011 at 4:33 PM
    #11
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    ok from what i remember the top 2 connections (on the stock fog light switch) are the "trigger" or in this case completes the circuit to work...

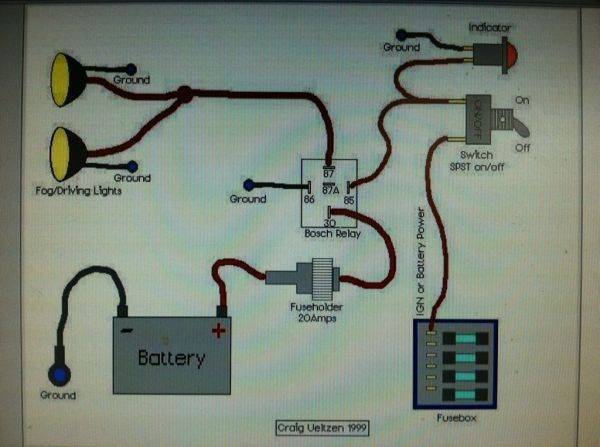

    the diagram below, i used it to wire up some fog lights on another members truck a while back...might help you a bit :thumbsup: i cant be to sure because i need to be able to see all the stuff in order for me to tell you :(
    [​IMG]

  12. Dec 19, 2011 at 4:34 PM
    #12
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    i will get some pictures up in a sec, hold tight

  13. Dec 19, 2011 at 4:44 PM
    #13
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    These are the 3 wires I need to connect to the factory 4 pring switch

    [​IMG]

  14. Dec 19, 2011 at 4:46 PM
    #14
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    Westin 55W

  15. Dec 19, 2011 at 4:47 PM
    #15
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    Those three wires orignally ran to the switch that came with the lights

  16. Dec 19, 2011 at 5:02 PM
    #16
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    Ya most of the time it is...cut into the wires and test them with the fog light button...that the best way to do it...those new lights have a fuse right?

  17. Dec 19, 2011 at 5:05 PM
    #17
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

    yes they do

  18. Dec 19, 2011 at 5:07 PM
    #18
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport
    how do i cut into the lights and test them with the fog light button?

  19. Dec 19, 2011 at 5:07 PM
    #19
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    16,380
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar, CA
    Vehicle:
    08 TRD Sport
    Wong Travur brah
    Ok, try this first...connect the black wire to the first prong on the switch n the red to the last one...

  20. Dec 19, 2011 at 5:09 PM
    #20
    GoDeacsWFU23

    GoDeacsWFU23 [OP] Well-Known Member

    Joined:
    Jun 9, 2011
    Member:
    #57986
    Messages:
    1,162
    Gender:
    Male
    First Name:
    Jonathan
    Clemmons, NC
    Vehicle:
    2013 Tacoma PreRunner TRD Sport

    even though the last plug is for illumination?
