Can I wire aftermarket fog lights to my factory switch?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by cactuscorn, Jan 2, 2021.

  1. Jan 2, 2021 at 1:06 PM
    #1
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.

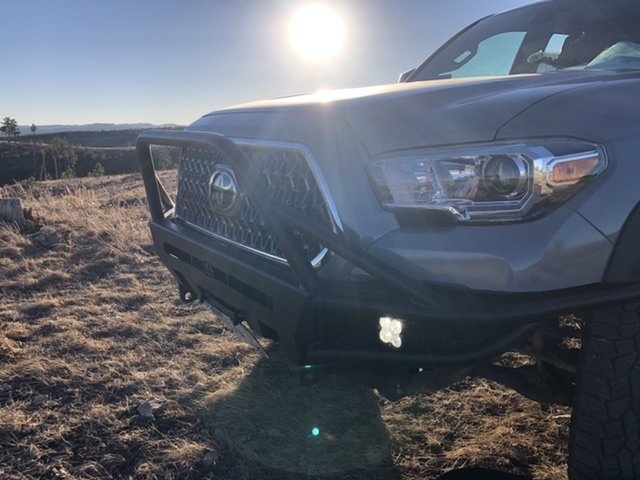

    02A0A85D-4195-4502-B9F9-72F5889E480B.jpg Hi guys. Been awhile. I’m doing some work to the taco lately and I just can’t seem to find what I’m looking for. Here’s the plan and my confusion:

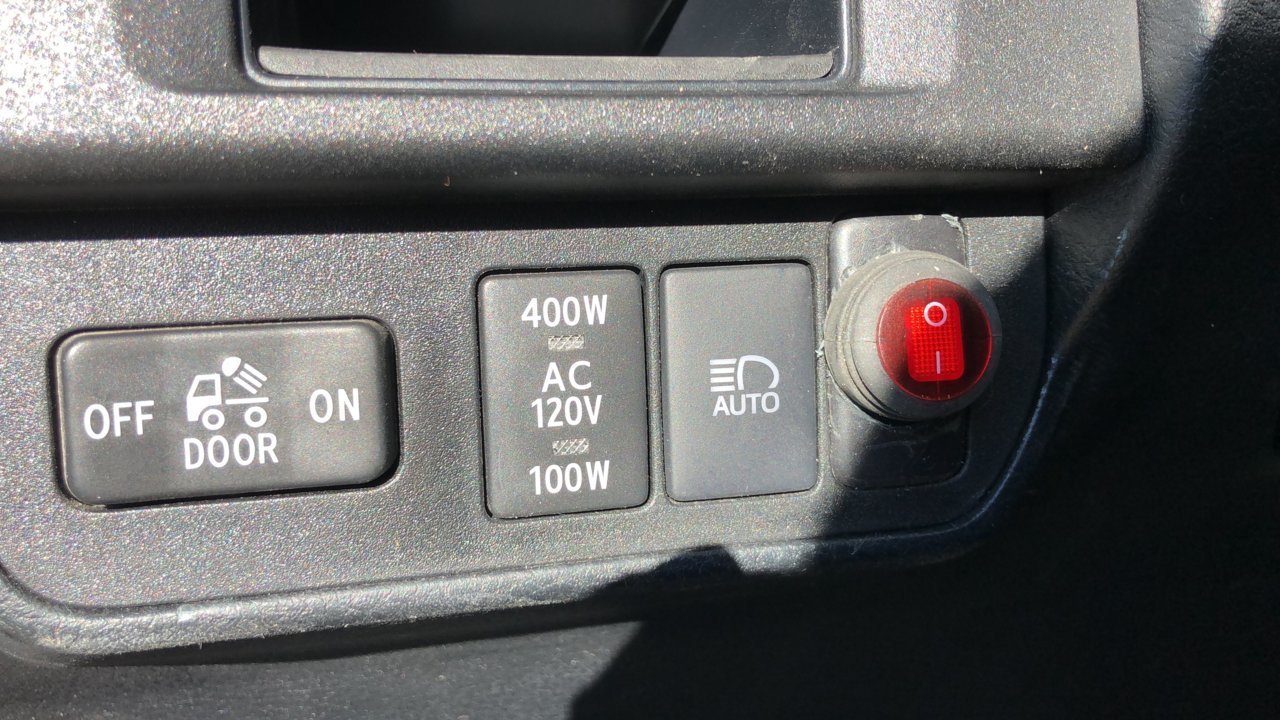

    I’ve installed a C4 Fab Hybrid bumper and Added some Baja Designs Squadron lights (via the simple 2 wire, Inline fuse harness provided) with the switch installed into the tall dummy plug to the right of the factory fog switch and I’m not at all pleased with the results. It looks like ass and doesn’t shut off with the ignition, obviously. Is it possible to wire into the factory switch or add a aftermarket switch which will allow the fogs to power on/off with the ignition, preferably a blue backlit LED push button type?

    I know there’s tall and short switch openings and I’ve destroyed the tall dummy plug and can’t seem to locate a replacement. Got a idea?

    I know the factory fog switch is a short opening. I don’t have a overwhelming preference on where the new switch would fit if I can’t use the factory fog switch.

    I’m just competent enough to wire into the battery so if this gets complicated I’ll need the install for dummies version.

    I’m strongly considering a remote 6 way blade type fuse block under the hood for easy/safe additions such as these fogs, the cb I just got and additional lights and accessories down the road. Good idea?

    Who’s willing to pop by and hook all this up for me while I recover from a concussion? Doc says I should avoid stressing my brain for awhile. I’ll buy the beer.

    davidstacoma likes this.
  2. Jan 2, 2021 at 1:09 PM
    #2
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    8,644
    Gender:
    Male
    Alaska
    Vehicle:
    Aprilia Tuareg 660
    Get pigtail harnesses that plug into the factory fog lights plug and wire them to your pods. Done.

    CaptainBart45 and cactuscorn[OP] like this.
  3. Jan 2, 2021 at 1:10 PM
    #3
    verynearlypure

    verynearlypure Clean & Decent

    Joined:
    Feb 12, 2017
    Member:
    #210398
    Messages:
    1,216
    First Name:
    Ernest
    The Buckeye State
    Vehicle:
    2015 BRM DCSB TRD OR
    Ray 10’s & Basic Bastard Goodies
    cactuscorn[OP] likes this.
  4. Jan 2, 2021 at 1:11 PM
    #4
    4x4Runner

    4x4Runner Sam’s gone, man. Moderator

    Joined:
    Sep 9, 2006
    Member:
    #7
    Messages:
    25,228
    Gender:
    Male
    First Name:
    Drunken Sailor
    Not north, not south, not west, mostly east
    Vehicle:
    1WD
    nuttin fancy
    Use a relay for them too. Don’t rely on the switch to power them as most aren’t rated for too much current.

    RachaelSP and cactuscorn[OP] like this.
  5. Jan 2, 2021 at 1:13 PM
    #5
    RCRcer

    RCRcer Well-Known Member

    Joined:
    Jul 14, 2015
    Member:
    #159476
    Messages:
    879
    Gender:
    Male
    Vehicle:
    2015 OR DC
    ^^^this, easy as this!

    cactuscorn[OP] and davidstacoma like this.
  6. Jan 2, 2021 at 1:26 PM
    #6
    Tarl_Cabot

    Tarl_Cabot Well-Known Member

    Joined:
    Dec 16, 2020
    Member:
    #349887
    Messages:
    120
    Gender:
    Male
    SC
    Vehicle:
    Gen 1 2000 2x4 2.7 A/C SR5 Gen 3 2021 4x4 3.5 A/C SR
    always....relay! never direct wire on/off, power/ground...YES, but on/off = relay, preferably OEM for switch

    cactuscorn[OP] likes this.
  7. Jan 2, 2021 at 1:42 PM
    #7
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
    Is there a particular pigtail and relay you suggest? Is there a wiring diagram with cartoonishly simple pictures I can reference?

  8. Jan 2, 2021 at 1:46 PM
    #8
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
    This is how much suckage I’m currently dealing with


  9. Jan 2, 2021 at 1:49 PM
    #9
    MikeyMcFly

    MikeyMcFly This is heavy, Doc.

    Joined:
    Aug 11, 2012
    Member:
    #84551
    Messages:
    6,041
    Gender:
    Male
    I'm a Masshole
    Vehicle:
    2016 TRD Off-Road 6MT / 1999 Corvette 6MT
    Building a Broja
  10. Jan 2, 2021 at 1:53 PM
    #10
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    8,644
    Gender:
    Male
    Alaska
    Vehicle:
    Aprilia Tuareg 660
    No need for a relay with running it off the factory harness. It's about the easiest wiring you'll do for any mods.

    CaptainBart45 likes this.
  11. Jan 2, 2021 at 2:09 PM
    #11
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
  12. Jan 2, 2021 at 2:15 PM
    #12
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
  13. Jan 2, 2021 at 2:20 PM
    #13
    MikeyMcFly

    MikeyMcFly This is heavy, Doc.

    Joined:
    Aug 11, 2012
    Member:
    #84551
    Messages:
    6,041
    Gender:
    Male
    I'm a Masshole
    Vehicle:
    2016 TRD Off-Road 6MT / 1999 Corvette 6MT
    Building a Broja
  14. Jan 2, 2021 at 2:50 PM
    #14
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
    CaptainBart45 likes this.
  15. Jan 2, 2021 at 3:16 PM
    #15
    MikeyMcFly

    MikeyMcFly This is heavy, Doc.

    Joined:
    Aug 11, 2012
    Member:
    #84551
    Messages:
    6,041
    Gender:
    Male
    I'm a Masshole
    Vehicle:
    2016 TRD Off-Road 6MT / 1999 Corvette 6MT
    Building a Broja
    No, but my mindset is to minimize cutting the wiring on the truck. By using the plug you can remove the lights and the truck remains stock, at least in terms of that.

  16. Jan 2, 2021 at 4:20 PM
    #16
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
    Maybe I misunderstood in the beginning. Is what you’re saying is I should have NOT removed the Y harness extension from the core support to the factory fog lamps, and that these pigtails will plug into THAT harness, then I cut the pigtails and splice THOSE into my aftermarket lights? Told ya I wasn’t very competent.

  17. Jan 2, 2021 at 4:23 PM
    #17
    crazysccrmd

    crazysccrmd Well-Known Member

    Joined:
    Mar 17, 2016
    Member:
    #181592
    Messages:
    8,644
    Gender:
    Male
    Alaska
    Vehicle:
    Aprilia Tuareg 660
    That sounds like what I did. I basically unplugged the fog lights when removing the factory bumper, spliced pigtails onto the LED pod replacements in the steel bumper and then plugged those right back into the truck side harness.

  18. Jan 2, 2021 at 4:32 PM
    #18
    cactuscorn

    cactuscorn [OP] Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    983
    Gender:
    Male
    Rapid City, South Dakota
    Vehicle:
    2019 Cement TRD OR AT DCLB w/JBL Premium Package
    Ironman Stage 2 FCP 3" lift kit, Ironman skid plate kit, C4 Fab Hybrid front bumper and frame supports, C4 Fab sliders, Smittybuilt X2O 10k lb winch, Diode Dynamics Pro fogs, Baja Designs Sport fogs, Falken Rubitrek AT's, Midland Micro MXT275 GMRS radio, Victory 4x4 hood hinge antenna mount, ARE MX shell, 12 Volt Solutions remote starter w/ phone app module, Overland Equipped aux power tray/Blue Sea 12 circut ST blade fuse block w/ 187 series 100a circut breaker, OEM bedmat and floor mats, Hooke Road tailgate cover, JDM ASTAR 800 lumen LED reverse bulbs, iOttie wireless phone charger, blue LED dome light, back seat dog bed and rear seat12v/USB ports, Ironman diff breather, ac drain mod,, tons of rad recovery equipment and every cubbyhole filled with crap. On order: Method MR 316 wheels and 285/70R/17 BFG KO2's.
    Well that’s a pig of a completely different smell! Thanx for the assistance man. I should have asked this before I spent 2 days arguing with the dealer and the manufacturer About which of the 2 harnesses I was sold then rerouting the entire thing through the firewall. My mistake.

  19. Jan 2, 2021 at 7:05 PM
    #19
    CaptainBart45

    CaptainBart45 Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230761
    Messages:
    4,033
    Gender:
    Male
    First Name:
    Bart
    Vehicle:
    2017 Tacoma Sport 4x4
    Work in progress...
    Bingo! Exactly how I wired 2 led pods. That way my center and outside Offroad lights work off the add on switch.

  20. Jan 2, 2021 at 7:12 PM
    #20
    CaptainBart45

    CaptainBart45 Well-Known Member

    Joined:
    Sep 22, 2017
    Member:
    #230761
    Messages:
    4,033
    Gender:
    Male
    First Name:
    Bart
    Vehicle:
    2017 Tacoma Sport 4x4
    Work in progress...
    The two lower outside pods work off the fog wiring. They only operate on low beam, I use them as fog lights, Not that we get any fog here.


    cactuscorn[OP] and davidstacoma like this.
