Can you identify the size of this bolt, with thread pitch?

Discussion in 'Technical Chat' started by KaptainH, Jan 11, 2019.

  1. Jan 11, 2019 at 3:14 PM
    #1
    KaptainH

    KaptainH [OP] Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    No dealer or parts vendor can tell me the size of this bolt and the shipping on it is 5 days. No dealer has it in stock. I need it to prevent front diff fluid from spewing all over the place.

    Can you tell me the size of this bolt and thread pitch? Part# is 90119-A0141.

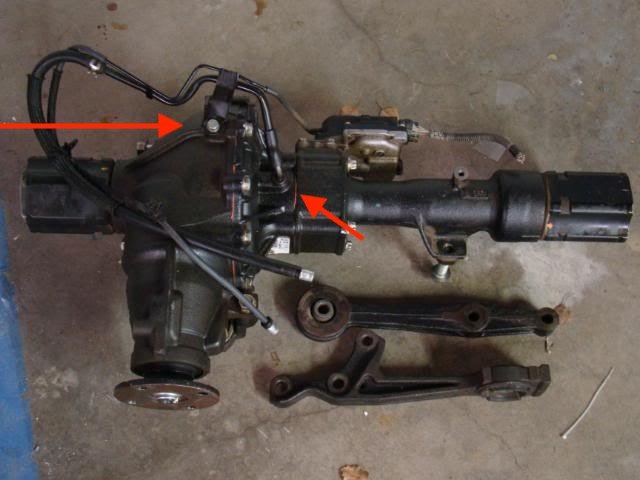

    Long arrow

    Last edited: Jan 12, 2019
  2. Jan 12, 2019 at 1:22 AM
    #2
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    5,074
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck
    Super Springs
    Since your pictures failed to load .

    Maybe tell us just what bolt you need.

    Toyota Hardware for the Most is not expensive .

  3. Jan 12, 2019 at 1:36 AM
    #3
    black coffee

    black coffee A is A.

    Joined:
    Aug 4, 2017
    Member:
    #225972
    Messages:
    4,836
    Gender:
    Male
    First Name:
    Glenn
    509
    Vehicle:
    2010 AC 4x4 SR5 V6
    Is there an auto dismantled anywhere nearby? That looks like a standard diff plug that you could find on different Toyotas.

    :notsure:

  4. Jan 12, 2019 at 6:42 AM
    #4
    KaptainH

    KaptainH [OP] Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    Not a plug

  5. Jan 12, 2019 at 6:42 AM
    #5
    KaptainH

    KaptainH [OP] Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    Fixed- it’s the bolt for the diff breather bracket...

  6. Jan 12, 2019 at 7:13 AM
    #6
    deadpocketss

    deadpocketss Dingus

    Joined:
    Aug 15, 2018
    Member:
    #263002
    Messages:
    347
    Gender:
    Male
    First Name:
    Ian
    Colorado Springs, Colorado
    Vehicle:
    2010 Red PreRunner (Mia)
    Mostly patches.
    Should be a 12mm head. Don't know how long or what the pitch is.

  7. Jan 12, 2019 at 7:35 AM
    #7
    KaptainH

    KaptainH [OP] Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    Yeah I saw the head size from ECGS- so I'm gonna guess it's an 8mm bolt. Just don't know length now. It's almost impossible to get to without removing other stuff.. so trial and error isn't really that easy.

  8. Jan 12, 2019 at 10:16 AM
    #8
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    5,074
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck
    Super Springs
    M8 x1.25 I would guess 20 to 25mm

    Something is wrong if fluid is pushing out of that that hole .

    Or is it pushing out the breather because it is falling off

  9. Jan 12, 2019 at 10:54 AM
    #9
    KaptainH

    KaptainH [OP] Well-Known Member

    Joined:
    Aug 16, 2015
    Member:
    #161948
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Kris
    Gainesville, GA
    Vehicle:
    Black 2013 DCLB Sport
    Yeah- because the bracket isn’t secure the breather tube got pulled off

  10. Jan 14, 2019 at 6:52 AM
    #10
    96carboard

    96carboard Well-Known Member

    Joined:
    Sep 14, 2018
    Member:
    #266237
    Messages:
    863
    Go to HD and buy a bunch of metric bolts of different sizes. Cost you a couple $.

    Gunshot-6A likes this.
  11. Jan 14, 2019 at 8:01 AM
    #11
    Troyken

    Troyken Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151577
    Messages:
    199
    Gender:
    Male
    NY
    Vehicle:
    2013 DCSB v6 off road 4x4 6 spd. MT
    If you are ever in this bind- Measure the diameter of the bolt as best you can either directly with a scale or clamp on it with an adjustable wrench and measure the gap in MM between the jaws. Then measure how many thread peaks there are in 1 mm distance along the length of the bolt. That gives your diameter and thread pitch. Use a magnifier if you need to see finer threads. An M12 x P=1.0 will have thread peaks that line up exactly on each mm mark for example. You can estimate other pitches from there.This works for standard bolts in the same way except that you count the number of thread peaks in an inch 13,16, 18,20, 24,32 ect. You can tell a "fine" or "coarse" thread pitch that way if you can't by sight or comparison.

    If you have a caliper and a thread pitch gauge all the better. I think even the cheaper HF tap and die kits still come with both thread pitch gauges.

  12. Jan 14, 2019 at 8:05 AM
    #12
    96carboard

    96carboard Well-Known Member

    Joined:
    Sep 14, 2018
    Member:
    #266237
    Messages:
    863
    For anybody reading that, he means clamp onto the actual threads with the adjustable wrench, not the head where you normally put the wrench!

    @Troyken : I suspect that he doesn't actually *have* the bolt that was in there.

    Gunshot-6A likes this.
  13. Jan 14, 2019 at 8:16 AM
    #13
    Troyken

    Troyken Well-Known Member

    Joined:
    Mar 23, 2015
    Member:
    #151577
    Messages:
    199
    Gender:
    Male
    NY
    Vehicle:
    2013 DCSB v6 off road 4x4 6 spd. MT
    Yes that is correct, the bolt body not the head, this was meant as a general post on this topic. Many people refer to a bolts size by its head size. That makes it easier if you are only looking for the correct wrench though.
