Can you run 5100s on first notch with 887’s?

Discussion in 'Suspension' started by cementnotgray, Jun 23, 2020.

  1. Jun 23, 2020 at 10:18 PM
    #1
    cementnotgray

    #1
    cementnotgray [OP] Well-Known Member

    Joined:
    May 13, 2020
    Member:
    #327982
    Messages:
    343
    Gender:
    Male
    Denver, Colorado
    Vehicle:
    2019 TRD OR M/T
    35s, 5.29s, OVT
    I have OME 887s and Dakar heavies in the rear. I want the nose higher to level it out but I don’t know if 5100s are meant to handle that extra 0.65in on an already 2in lift.

    cementnotgray, Jun 23, 2020
    #1
  2. Jun 23, 2020 at 11:13 PM
    #2
    jmauvais

    #2
    jmauvais Received 2 votes in a poll one time.

    Joined:
    Oct 13, 2016
    Member:
    #199716
    Messages:
    3,643
    Gender:
    Male
    First Name:
    Jason
    NorCal
    Vehicle:
    2018 TRD OR 4x4 DCSB
    ...stuff
    It’s not recommended but some do run on that perch. Do not go any higher though.

    jmauvais, Jun 23, 2020
    #2
    cementnotgray[OP] likes this.
  3. Jul 1, 2020 at 9:08 AM
    #3
    01 dhrracer

    #3
    01 dhrracer Well-Known Member

    Joined:
    Aug 27, 2013
    Member:
    #111316
    Messages:
    1,918
    Gender:
    Male
    Palm Desert/Bermuda Dunes
    Vehicle:
    Still Shopping

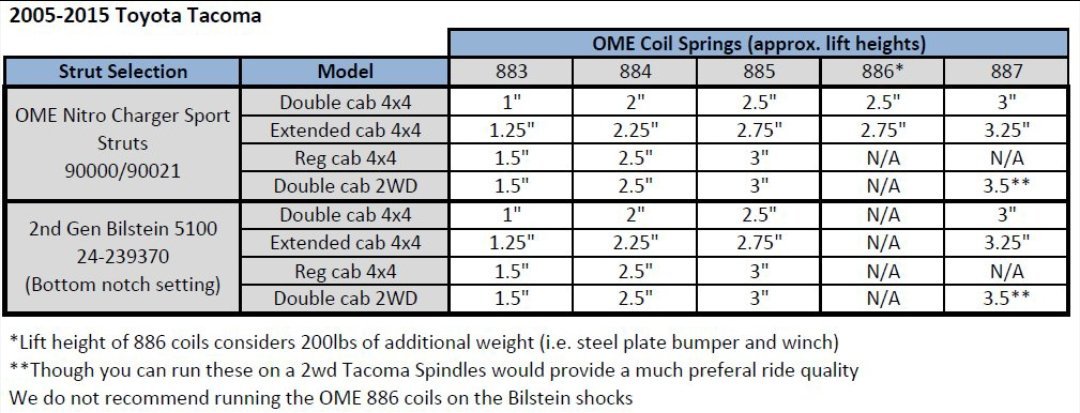

    OME spring chart.

    OME spring lift chart.jpg

    01 dhrracer, Jul 1, 2020
    #3
