Cathodes in bed(shell) / DIY dome light

Discussion in 'Lighting' started by hour, Jan 24, 2013.

  1. Jan 24, 2013 at 5:46 PM
    #1
    hour

    hour [OP] TL;DR BOSS

    Joined:
    Jul 22, 2012
    Member:
    #83174
    Messages:
    395
    Gender:
    Male
    First Name:
    Brandon
    Fort Collins, CO
    Vehicle:
    '12 Tacoma RC 4x4 (Sold) '14 Ram 1500, '99 4R
    Level 8 Trackers, Hankook Dynapro LT265/75/16, Bilstein 5100's @ 2.5, Wheelers 3-Leaf Progressive w/ factory overload, 5100s all around // Ranch Camper Shell, BHLM, hacked reverse lights, auxiliary reverse lights // Pioneer AVH-P1400DVD, RF Prime Components, BOSS 10" Sub
    Needed some light back there for getting stuff out. My cargo net (narrow one that spans bed width, not one that covers entire bed) is in the very rear of the truck so I can pop the glass of my shell and put groceries in as if I had a trunk still :eek:

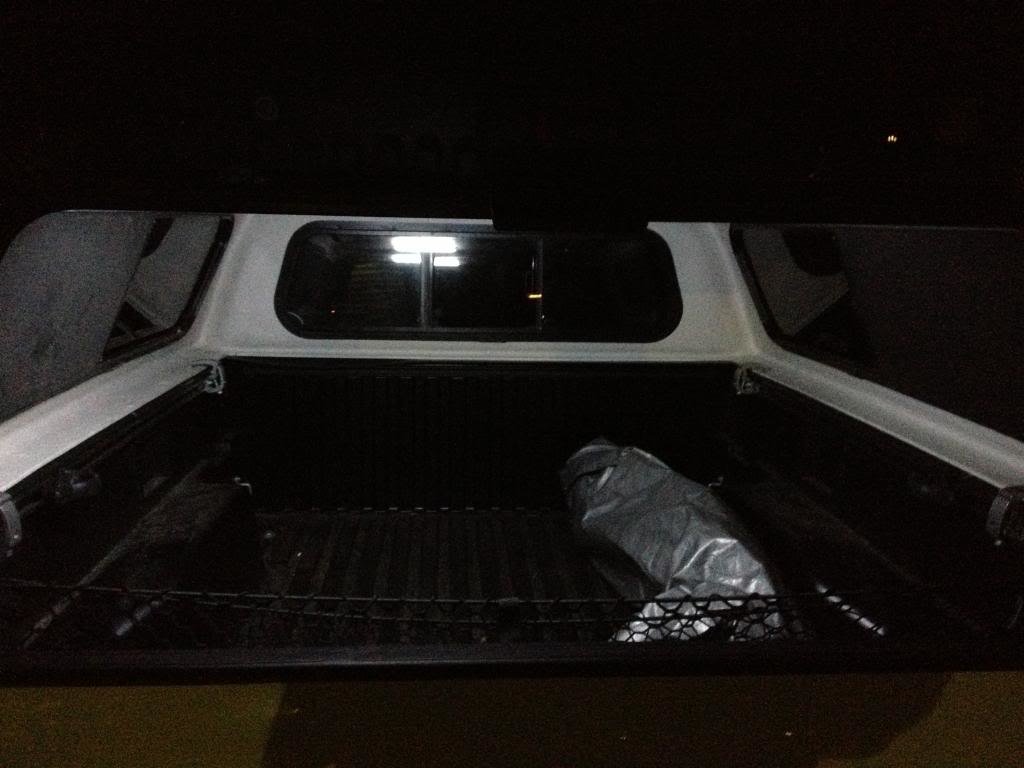

    Already had fused wire running from battery to rear for auxiliary reverse lights relay, decided to run that to a $6 6 circuit fuse panel in bed and wire these up / have easy way to add stuff in the future. Got some $7 cold cathodes (white) with free shipping, put them at the very end of the shell closest to tail gate on the ceiling. Going to play with them tomorrow and clean up wiring, thinking of replacing the rocket switch I have on them with magnetic switch in near future. Just took a pic though since it got dark and they're pretty damn impressive. Not sure how they'll like frigid winter temperatures but we shall see - if I had thought to use LEDs I would have done that instead but it's okay. Now to clean the dog shit that I stepped in while taking this pic from my shoe.

    [​IMG]

  2. Jan 24, 2013 at 6:06 PM
    #2
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    828
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    Can I see some pics of the cathodes in the light? And maybe some more pics just for fun, Looks like a cool project. :cool:

  3. Jan 24, 2013 at 6:20 PM
    #3
    hour

    hour [OP] TL;DR BOSS

    Joined:
    Jul 22, 2012
    Member:
    #83174
    Messages:
    395
    Gender:
    Male
    First Name:
    Brandon
    Fort Collins, CO
    Vehicle:
    '12 Tacoma RC 4x4 (Sold) '14 Ram 1500, '99 4R
    Level 8 Trackers, Hankook Dynapro LT265/75/16, Bilstein 5100's @ 2.5, Wheelers 3-Leaf Progressive w/ factory overload, 5100s all around // Ranch Camper Shell, BHLM, hacked reverse lights, auxiliary reverse lights // Pioneer AVH-P1400DVD, RF Prime Components, BOSS 10" Sub

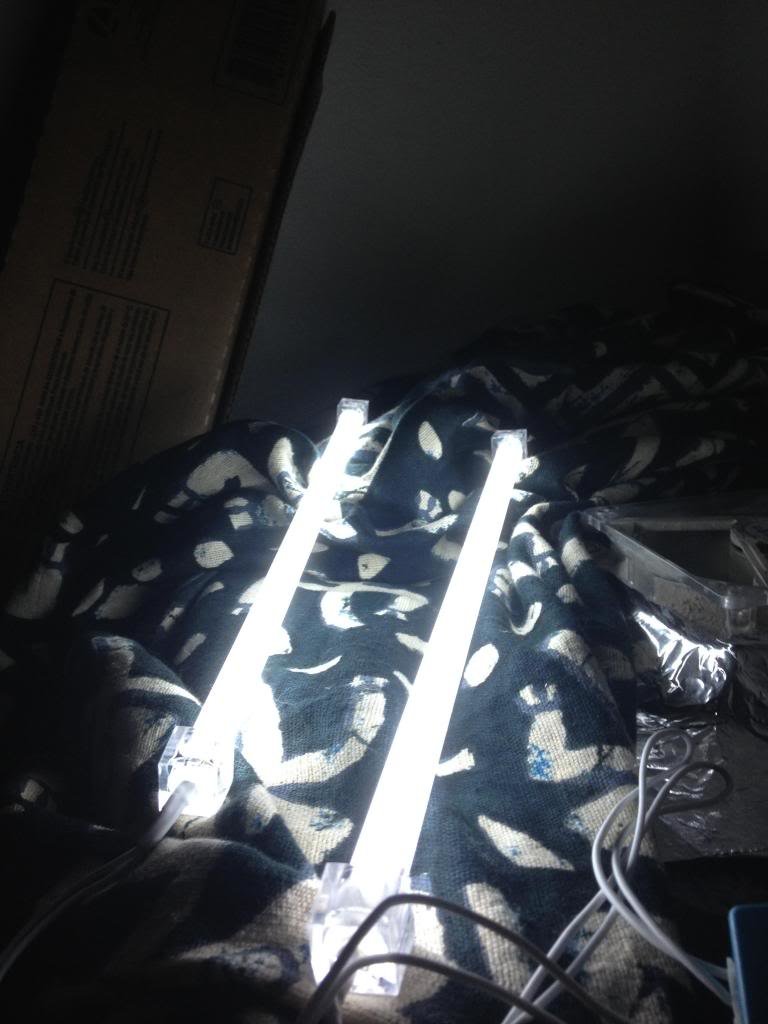

    Only other pic I have was a test inside using a 12v dc adapter that I had stripped +/- to. They're 1ft long each and have a small power box. You can extend the wires as long as you want really to the actual control box (for power/ground), but for the cathodes you really shouldn't touch em. I think I have 6" from the control box with each cathode. If you extend these wires (and even use same gauge of wire), they won't function properly. Something about how cathodes work, thankfully I learned this before I hacked up anything due to the millions of people using these in PC cases.

    Gonna clean up wiring and relocate them a smidge (center power box on roof of shell, light on each side of box) once the sun comes up so I'll snap some daytime pics then. I used industrial velcro to put everything up which should work fine, the bars and the box weigh practically nothing. I got some split wire loom at home depot the other day for cheap, like $8 for 30 feet of 3/8" (compare to autozone/advance auto parts prices) and will be using that to cover the wires going up to the roof, and putting it everywhere I can underneath the truck for a more OEM look. I sent power from the battery to the bed pretty cautiously and hung all my other wires for aux backup lights and stuff out of harms way/no chance of chafing, but still want clean appearance.

    [​IMG]
