CB antenna location with camper shell ???

Discussion in 'Tonneau Covers, Caps and Shells' started by Cannonball, May 19, 2011.

  1. May 19, 2011 at 5:11 PM
    #1
    Cannonball

    Cannonball [OP] Well-Known Member

    Joined:
    Mar 31, 2010
    Member:
    #34350
    Messages:
    714
    Gender:
    Male
    First Name:
    Justin
    Phoenix
    Vehicle:
    2012 F-250 FX4 6.7 diesel / 1979 Jeep CJ-5
    Ordered up a Cobra 75 and 4' firestik and was wondering where folks with a fiberglass camper shell are installing their antennas. Rear bumper? Would it work mounted between the truck cab and the camper shell with a couple feet sticking out above?

    I looked through some of the installs but didnt see anyone with a camper....

    Suggestions welcomed. Thanks!

  2. May 19, 2011 at 6:01 PM
    #2
    Jerry Bear

    Jerry Bear Well-Known Member

    Joined:
    Feb 23, 2011
    Member:
    #51743
    Messages:
    146
    Gender:
    Male
    First Name:
    Jerry
    Mesquite, Texas
    Vehicle:
    2010 Access Cab
    tint, topper, receiver hitch, trailer wiring, topper lighting, cruise control, intermittent wipers, backup camera, auto-dim mirror
    Best place is on the roof. But, if you drive in a garage, you have to take off the antenna.

    Second best would be on the front fender, driver's side. The same place that the factory AM/FM antenna is mounted, but on the driver's side.

    The rear bumper is a decent third choice.

    I'm having trouble visualizing a mount between the cab and the shell. It doesn't seem like there would be enough room.

    Mounting it on a non-metal shell won't work well.

    Mounting it on a metal shell might work pretty well if the shell is well bonded to the metal truck body.

  3. May 19, 2011 at 6:09 PM
    #3
    TacomaBuzz

    TacomaBuzz Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,159
    Gender:
    Male
    First Name:
    Matt
    CT
    Vehicle:
    2014 RegCab 4x4 TX Special Edition
    Sirius, Bugflector,back-rack, stepsides.
    X10000, This guy knows his stuff. I had mine mounted on the drivers side fender with a hood lip mount, No visible screws, and i had a really good reach.

  4. May 19, 2011 at 9:08 PM
    #4
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,254
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    By far the best reception will be with a magnetic mount in the center of the roof. You just have to be willing to remove it when going into the garage.

  5. May 19, 2011 at 9:28 PM
    #5
    ian408

    ian408 Well-Known Member

    Joined:
    Nov 8, 2009
    Member:
    #25619
    Messages:
    11,408
    Gender:
    Male
    First Name:
    Ian
    Santa Clara, CA
    Vehicle:
    09 Tacoma
    3" lift, custom rims, snug top shell, shrockworks bumper, warn winch.
    If you read the directions for the firestick, you will need to run at least 2/3's of the antenna above the roof line (regardless of whether it uses a ground plane or not). So you could mount a non-ground plane antenna on a fiberglass shell if you used a thru hole mount.

    If you use a 2' antenna on a hood mount, performance may suffer because the cab blocks a good portion of the antenna's radiation pattern.

    FWIW, I just received the same combo (with an NGP antenna). I am considering putting the antenna box (or whatever you call it) within the center console somewhere--there are specific directions to avoid the heater motor though so maybe under the dash somewhere. I was thinking about the front bumper for the antenna...now I'm not so sure so it might go on the roof.

  6. May 19, 2011 at 9:33 PM
    #6
    ViperJay

    ViperJay These are the voyages...

    Joined:
    Oct 29, 2010
    Member:
    #45416
    Messages:
    312
    Gender:
    Male
    First Name:
    Chris
    El Paso, TX
    Vehicle:
    05 Radiant Red DCLB Sport 4x4
    URD CAI, DTLT Headers, Vibrant Ultra Quiet Resonator, Aero 2540i muffler, NST Pulleys, URD MAF Calibrator, Icon 2.5 Coilovers , Bilstein 5100s in rear with All Pro 3" Leaf pack, Total Chaos UCAs, 2 Kicker 12" CVT Subwoofers w/Kicker ZX350.2 Amp, JVC KD-AVX77 stereo, ARE Camper Shell, 1 20" LED bar and 2 7" LED bars in front, 4 KC 6" HID Slimlites mounted on Bajarack roof rack, sliders, Cobra 29 XLR CB Radio, Icom IC-207H UHF/VHF Radio, Bed Lighting, Fog light mod, Projector Retrofit Headlights HID 5000k, HID fog lights 4300k, BHLM, LED taillights and turn signals, Glassworks front fenders, Blue Sea Fuse Box, Mil-Spec Battery Terminals, Odyssey PC2150 battery, Satoshi Grill, All-Pro Front Bumper
    x2 This setup works well for me

  7. May 19, 2011 at 9:40 PM
    #7
    kj6cm59

    kj6cm59 Active Member

    Joined:
    Aug 6, 2009
    Member:
    #20771
    Messages:
    29
    Gender:
    Male
    Huntington Beach
    Vehicle:
    tacoma 4x4
    TRD cold air and exhaust
    Best bet would be to get a Larson base load 10 meter antenna an tune it to 11 Mtrs. And use an NMO UHF mount in the center of the roof. Check it out at Ham Radio Outlet( HRO) The wipe is black ss steel and flexible.

  8. May 20, 2011 at 1:02 PM
    #8
    Cannonball

    Cannonball [OP] Well-Known Member

    Joined:
    Mar 31, 2010
    Member:
    #34350
    Messages:
    714
    Gender:
    Male
    First Name:
    Justin
    Phoenix
    Vehicle:
    2012 F-250 FX4 6.7 diesel / 1979 Jeep CJ-5
    Based on some more research I decided to cancel the firestik order and got a Wilson Lil Wil coming. I will figure out a way to run the coax line to the back and out the slider. I only plan on using it when wheeling so I can either leave the antenna stowed in the back somewhere or in the garage.

    Thanks!

  9. May 20, 2011 at 6:06 PM
    #9
    kj6cm59

    kj6cm59 Active Member

    Joined:
    Aug 6, 2009
    Member:
    #20771
    Messages:
    29
    Gender:
    Male
    Huntington Beach
    Vehicle:
    tacoma 4x4
    TRD cold air and exhaust
    Diamond antenna makes a mount that has verv thin coax and a3 and 5/8 thread . Then you get a quick disconnect . The coax will go through the door and not crimp.

  10. May 20, 2011 at 6:14 PM
    #10
    Yoytoda

    Yoytoda The Little Truck That Could

    Joined:
    Oct 2, 2009
    Member:
    #23690
    Messages:
    4,949
    Gender:
    Male
    First Name:
    Roland
    Big Bear,CA / Upstate NY(Saratoga)
    Vehicle:
    2010 Tacoma Regular Cab 4x4
    completely stock
    i welded a mount directly to my bumper that i made.

    wherever you mount it remember you dont need a ground. it has to be a ground plane. so trying to ground the mount with wire will rarely work, it has to be a mag mount which uses magnetic flux to create a ground plane connection or mounting it solid. You can sometimes get away with making a connection to a ground plane by creating an electrical ground but the wire should be at least 8 gauge and no more than 2' long or you will have trouble with getting your standing wave ratios to an acceptable level.

    [​IMG]

  11. May 20, 2011 at 7:33 PM
    #11
    joes06tacoma

    joes06tacoma Well-Known Member

    Joined:
    Jan 1, 2010
    Member:
    #28588
    Messages:
    3,056
    Gender:
    Male
    First Name:
    Joe
    Central Coast, CA
    Vehicle:
    06 4x4 Off Road Access Cab v6 6spd
    LEER Shell with dome lights operated with 3 way switches, aux backup lights with relay and 3 position switch, modified wiring to compass/temp display and clock to include switch that disables dimming function (poor man's DRL solution), Scan Gauge 2

  12. Dec 6, 2011 at 12:31 PM
    #12
    08pretaco

    08pretaco Almost there

    Joined:
    Sep 26, 2008
    Member:
    #9502
    Messages:
    9,059
    Gender:
    Male
    First Name:
    Oliver
    az
    Vehicle:
    2014 Tundra 4x4 CM 5.7L SR5
    AFE pro dry s, Husky X-act Contour
    how do you like the wilson lil will antenna? looking into a CB set-up

  13. Mar 24, 2012 at 5:41 AM
    #13
    NHCrewcab2008

    NHCrewcab2008 Well-Known Member

    Joined:
    Jan 14, 2012
    Member:
    #70638
    Messages:
    84
    Gender:
    Male
    Thornton, NH
    Vehicle:
    SR5 TRD
    I am currently fabbing up a mount for my taco that will go between the cab anc camper shell on the drivers side, it will mount bhing the bed rail and slip under the camper shell and just poke out at the corner between the cab and shell on the drivers side. I will try to remeber to post pics and maybe make 2 at the same time so someone else can utilize it.

  14. Mar 24, 2012 at 5:50 AM
    #14
    PSJ

    PSJ Prerunners Work

    Joined:
    Nov 9, 2008
    Member:
    #10620
    Messages:
    1,348
    Gender:
    Male
    Sebastian Inlet
    Vehicle:
    09 Access Cab Prerunner
    Rear Leaf spring TSB, Bilstein 5100's all around w/ front set at 1.75", 265/75R/16 Mickey Thompson Baja STZ's, Trailer hitch w/custom wiring, AFE drop in dry filter, Rear Diff breather mod, Debadged truck, customized stock TRD wheel center caps, added factory fog lights, bed mat, door sills, tinted windows
    I want one! Thought about a fabbed mount that sounds like your idea. :)

  15. Mar 24, 2012 at 11:28 AM
    #15
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    4,488
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    Dirt Designs LT kit DMZ LT Kit TRD Supercharger SCS Wheels BAMF

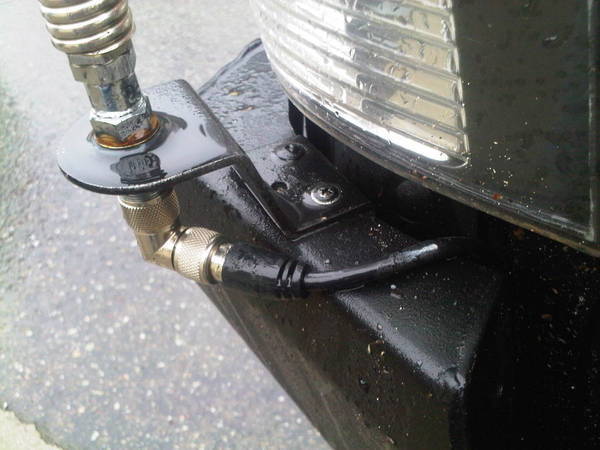

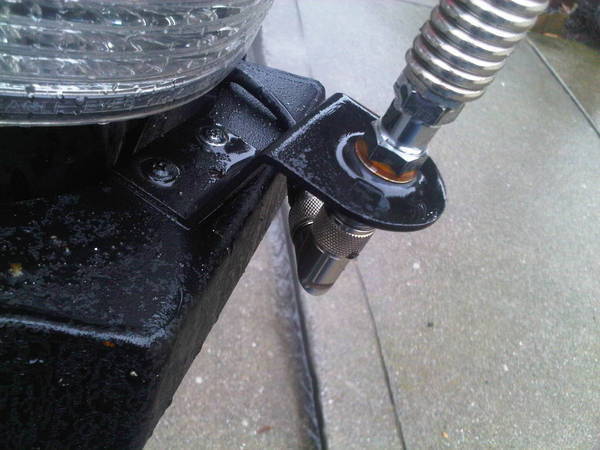

    I have a Bestop Supertop, mounted mine at the passenger side on my All Pro bumper:

    [​IMG]
    [​IMG]

  16. Mar 24, 2012 at 3:29 PM
    #16
    Bobbb

    Bobbb "Rumors of Bob, but never Bob. It is Bob, right?"

    Joined:
    Sep 14, 2011
    Member:
    #63498
    Messages:
    1,211
    Gender:
    Male
    First Name:
    Bob
    Bob
    Vehicle:
    Bob
    Tundra TRD/OR

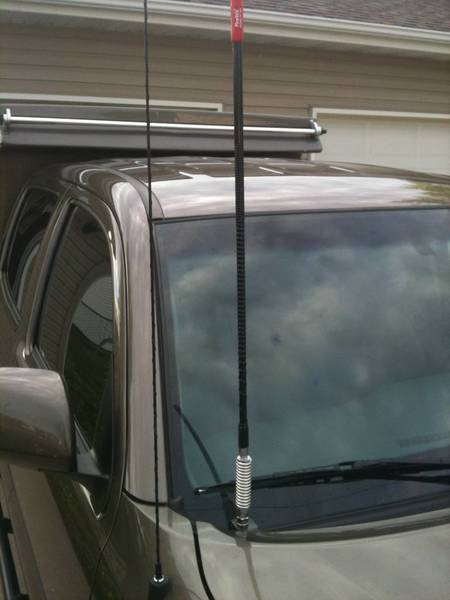

    I went with a Relentless Fab hood hinge mount. To use one you have to go with a stud-type connector like this or this for the coax due to the lack of space underneath the mount.

    I originally tried a 3' Wilson Flex, but it didn't clear the roofline enough to tune well so switched to a 4' WF. I park in my garage so went with a Firestik Quick Disconnect. I tried a folding mount first, but didn't care for the way it wobbled around. I have an AC and when I pull the antenna, it sits perfectly across the top edge of the jumpseat backs. Easy to grab and out of harm's way.

    Also, for anyone hooking up their first CB, Right Channel has gobs of great tech info.

  17. Apr 5, 2012 at 6:26 PM
    #17
    NHCrewcab2008

    NHCrewcab2008 Well-Known Member

    Joined:
    Jan 14, 2012
    Member:
    #70638
    Messages:
    84
    Gender:
    Male
    Thornton, NH
    Vehicle:
    SR5 TRD
    Close up of mount, it goes under the cap and then behind the bed rail, so it's solid. The big washer is there to offset the prior mounts greater thickness. I will replace it with a properly sized one this weekend.
    [​IMG]
    Pic of Antenna from the side. No rubbing even during heavy swaying, in fact it doesn't even knock against anything. I am very happy with how well it turned out. and it didn't cost me a dime, I just had scrap material hanging around.
    [​IMG]

  18. Apr 5, 2012 at 6:30 PM
    #18
    G.T.

    G.T. Official TW Burrito Inspector

    Joined:
    Jul 14, 2010
    Member:
    #40169
    Messages:
    4,084
    Gender:
    Male
    First Name:
    G.T.
    CONUS
    Vehicle:
    2011 Pyrite Mica 4WD DCLB TRDSport w/ FlipPac
    Some stick on chrome from pep boys
  19. Feb 24, 2016 at 12:34 PM
    #19
    Zona Scout

    Zona Scout The Local Marina Master Baiter

    Joined:
    Jan 12, 2015
    Member:
    #146224
    Messages:
    3,374
    Gender:
    Male
    First Name:
    Cody
    Tucson, AZ-->Oahu, HI
    Vehicle:
    2013 Wannabe Baja Badass Storm Trooper Knock Off Attempt
    Generic Cliche Bullshit
    Was your set up successful?

  20. Feb 27, 2016 at 8:57 AM
    #20
    TacoSeattle

    TacoSeattle Well-Known Member

    Joined:
    Oct 26, 2015
    Member:
    #167806
    Messages:
    240
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD OR 4x4 v6 SB Quicksand
    The "Right Channel" as noted by Bobbb is really super for information and packages. They have a NGP (No Ground Plane) installation like that used on fiberglass RVs.
