CB Install (Cobra 75 WX ST)

Discussion in 'Audio & Video' started by bakerla, Jun 10, 2010.

  1. Jun 10, 2010 at 9:21 AM
    #1
    bakerla

    bakerla [OP] Man, Myth, Legend

    Joined:
    Nov 3, 2009
    Member:
    #25348
    Messages:
    4,730
    Gender:
    Male
    First Name:
    Lyndall
    Pearland, TX
    Vehicle:
    '10 4wd OR
    CBI Moab front and CBI Trailrider rear, Budbuilt skids, Shrockworks sliders, OME Dakars w/ OME Nitros, OME 886x w/ OME Nitros, Light Racing UCAs, stainless steel brakelines F/R, Cobra 75 w/ Firestik antenna, 255/85/16 Cooper ST Maxx on 1st gen alloys, Weathertech liners, Engo 9000S winch, stickars and other shit.
    With the help of SCOTTS TACO LOCO we installed my CB radio a few weeks ago. Unfortunately I didn't take photos during the install, these photos were taken afterwards.

    The install didn't take long. What took long was deciding where to run my coax and where to mount the antenna.

    I decided to get the Cobra 75 WX ST. This unit is an all in one and doesn't require a lot of space, which was my deciding factor. I have used this radio on the trail, as well as on the road and it has done what a CB radio is designed to do: enable good communication from vehicle to vehicle. The drawback to this radio is the price. It isn't as inexpensive as some.

    I used 18ft of coax from the antenna to the radio. I read somewhere that 18ft is a good length (something to do with radio wavelengths) It sounds like a lot of cable, but I used all 18ft. I have both a 2ft and 3ft Firestik antenna. I use the 2ft antenna for daily driving since my parking garage at work doesn't allow for anything longer and the 3 ft antenna for road trips or offroad use. I swap them out as needed. The 3ft antenna is tunable and I was able to it tuned perfect at 1 SWR. The 2ft antenna (for the parking garage at work) isn't tunable, but is still at a good 2 SWR.

    Installing a CB isn't difficult (hindsight) and hopefully this write up will ease some minds for those considering what they need to do and how.

    UPDATE: The Cobra 75 WX ST is a good radio. The speaker has plenty of volume and the controls are laid out nicely. I don't recommend buying or using a 2ft antenna and mounting it behind the cab of truck. The antenna barely extends above the cab of truck. The reception is horrid when talking to vehicles ahead of you. It's also very limited when talking with vehicles behind you. I've had much better results with the 3ft antenna and intend on giving a 4ft antenna a try shortly.

    The power cable was wired direct to the battery and brought into the cab of the truck through this "thing". The cable was pushed through using a metal clothes hanger.
    [​IMG]

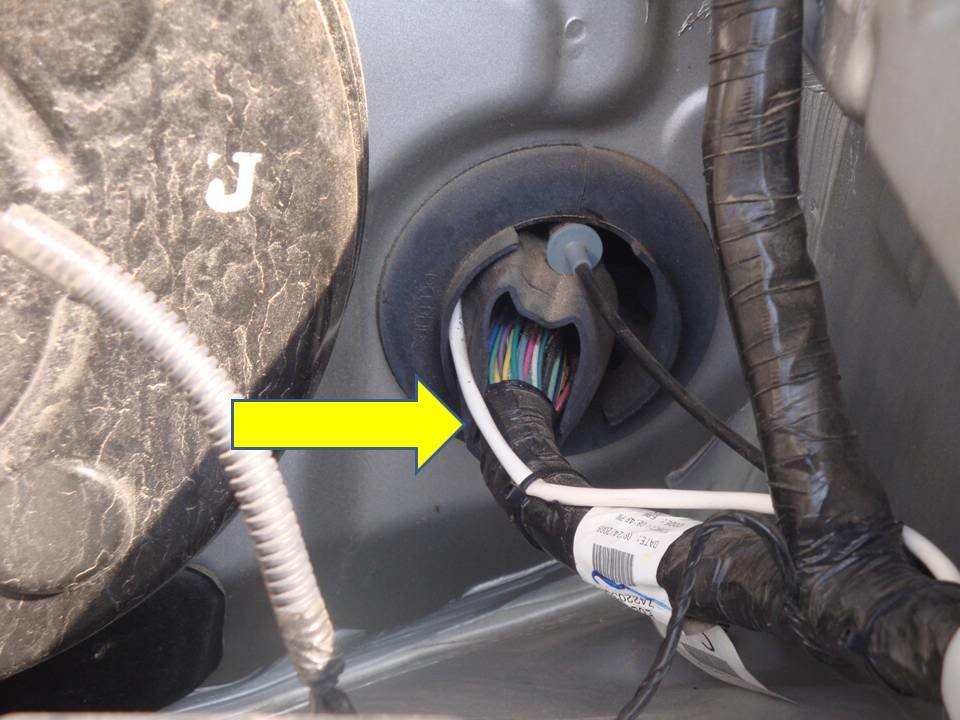

    The power cable comes out into the cab of the truck through this "thing" under the dash. A following picture shows where the power cable was ran.
    [​IMG]

    The antenna was mounted behind the cab, on the driver's side (preference) using the bedrails. The antenna mount is grounded (arrow) and the both coax and ground wire are ran down between the cab and the bed.
    [​IMG]

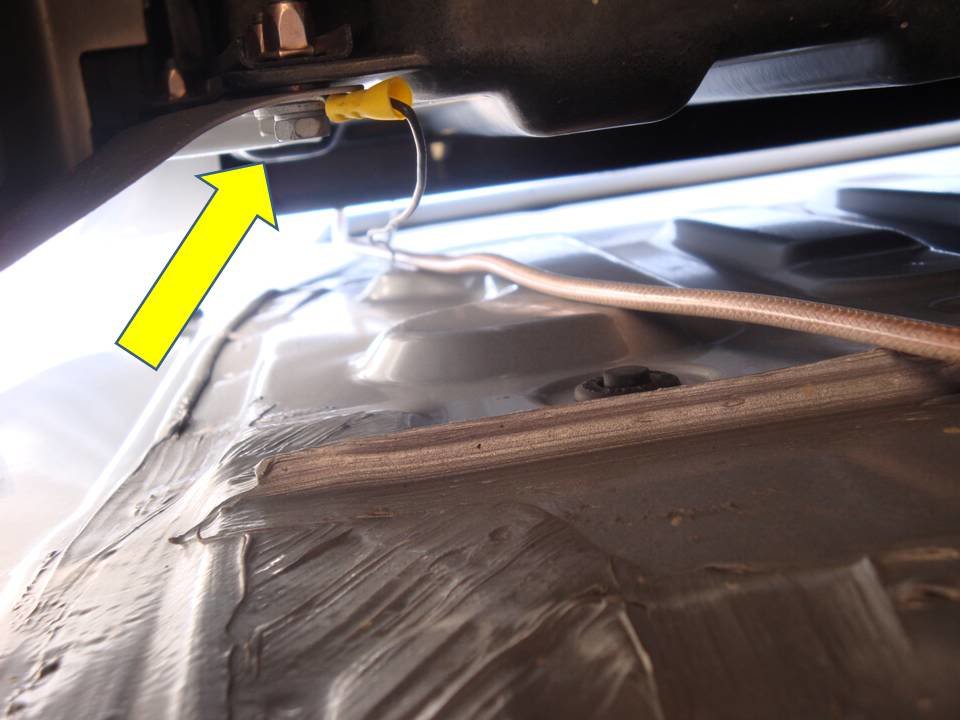

    The ground wire is grounded to this bolt (arrow).
    [​IMG]

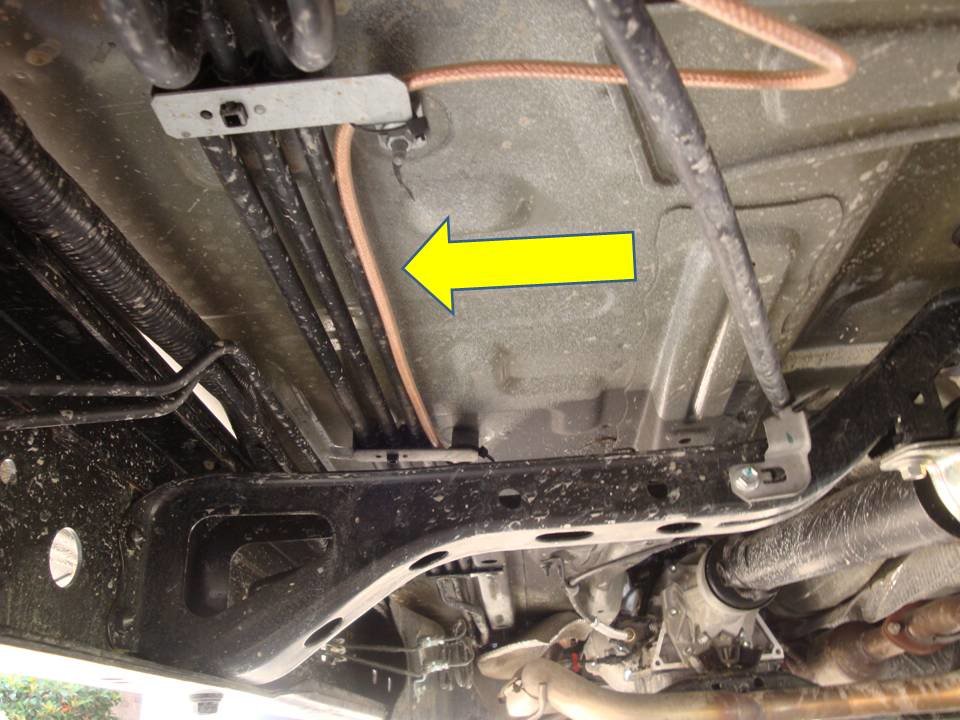

    I ran the coax and secured them it zip ties.
    [​IMG]

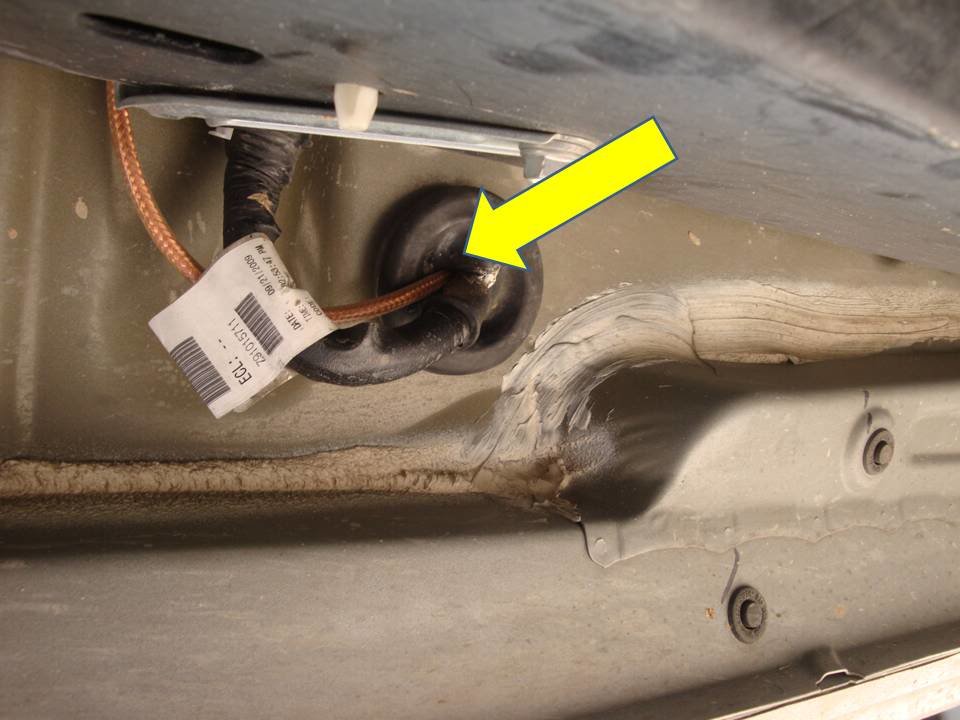

    The coax enters into the cab of the truck through this grommet beneath the driver's door. A small cut was made into the grommet and the coax was pushed through. You may want to cut the end of the coax off to get the coax through easier and re-solder the connector once the coax is ran.
    [​IMG]

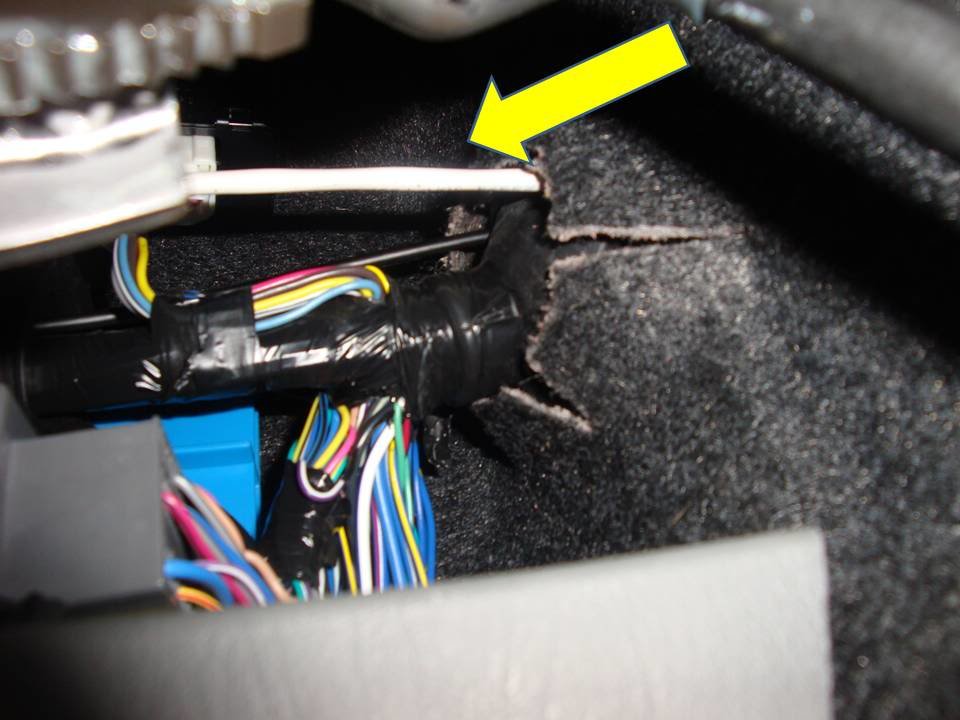

    Once through the grommet, the coax ends up under the a few inches under the carpeting of the truck ( arrow).
    [​IMG]

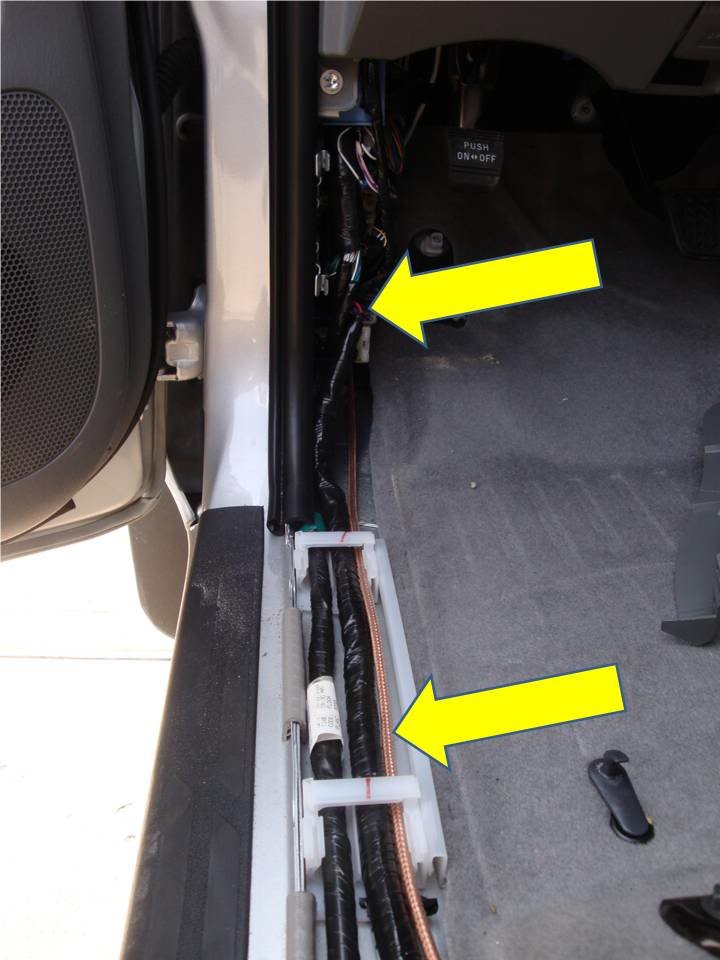

    The coax is ran along this route (arrow). All the interior pieces snap off, no pieces were broke during this process.
    [​IMG]

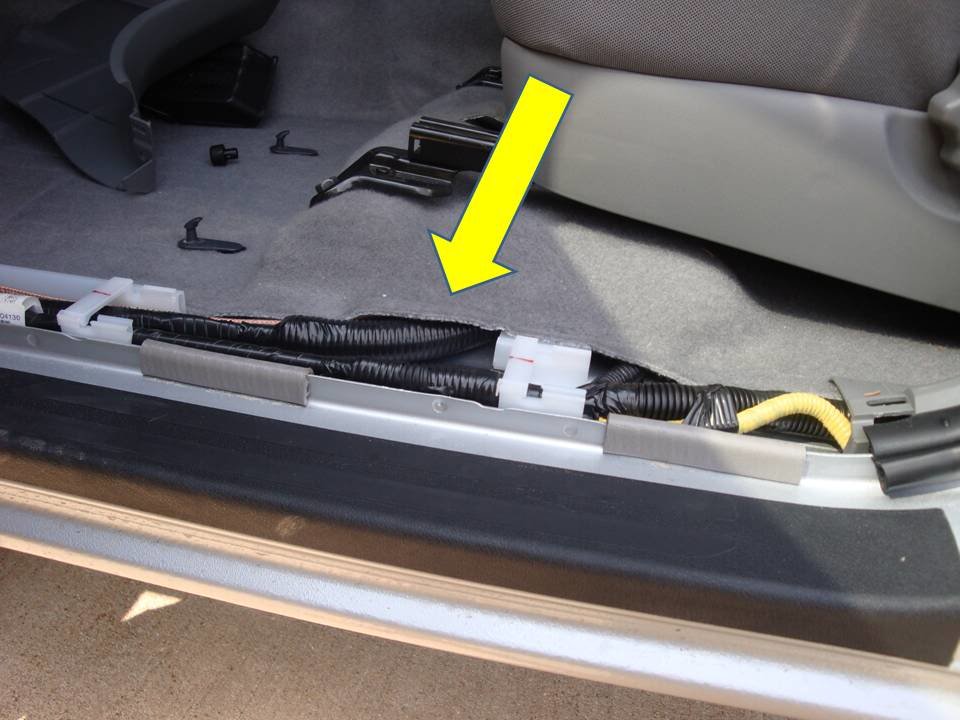

    The coax and the power wires are ran on the back side of the carpeting (arrows) and a metal clothes hanger is used to feed the cables back behind the console to the passenger side of the cab.
    [​IMG]

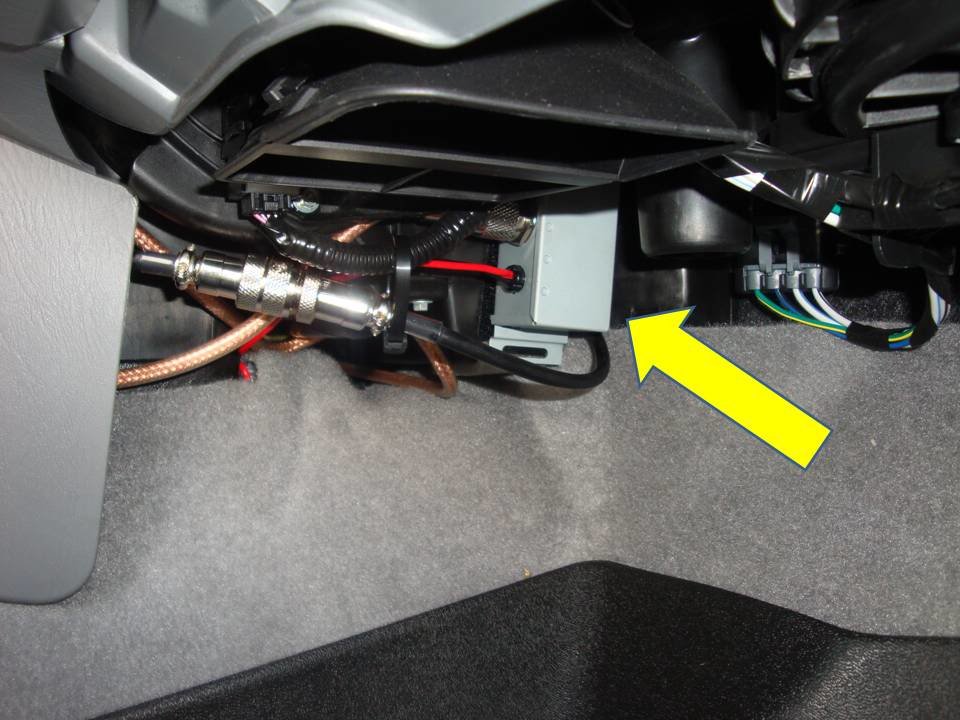

    This is the junction box where the power, antenna coax and CB mic all connect. It is placed underneath the glove box. I didn't drill any holes to attach it, but used adhesive velcro. It holds up just fine.
    [​IMG]

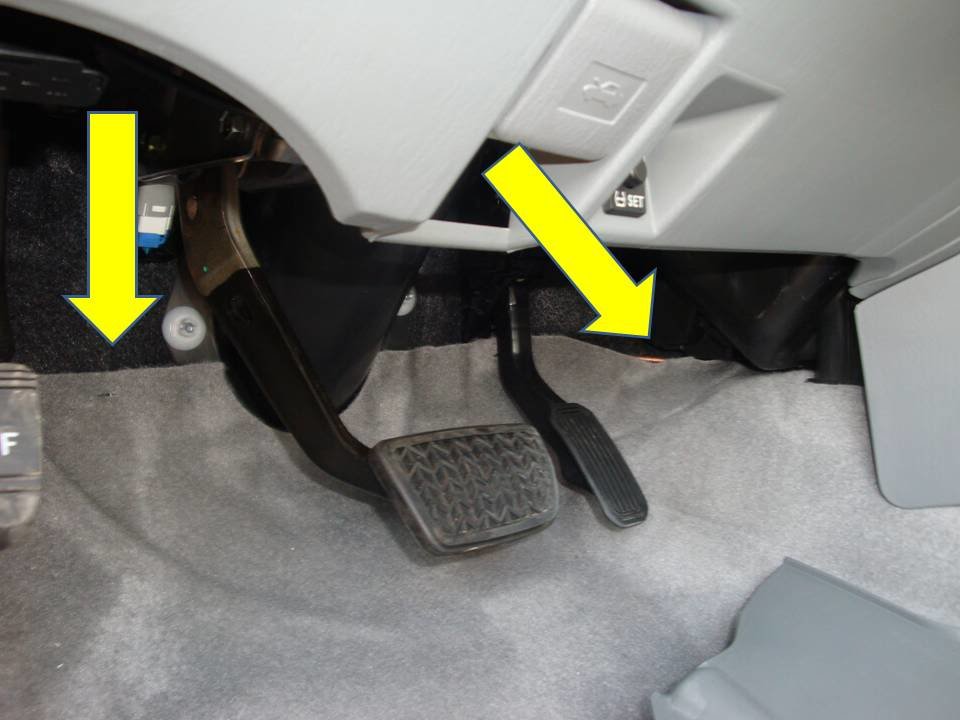

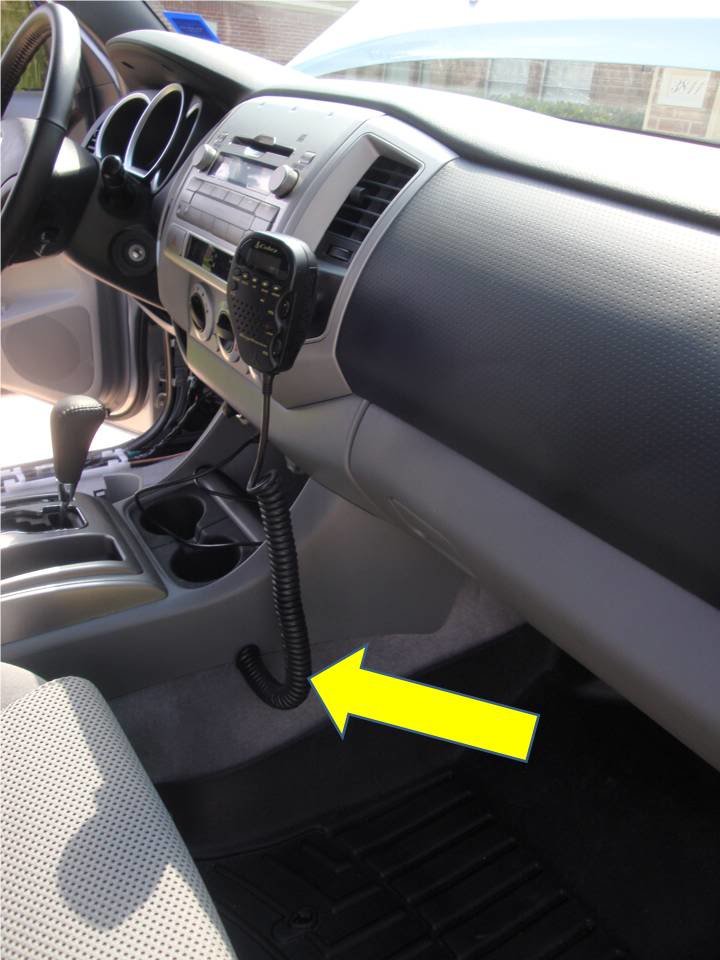

    I routed the mic cable (arrow) so it wouldn't get in the way of the passenger.
    [​IMG]

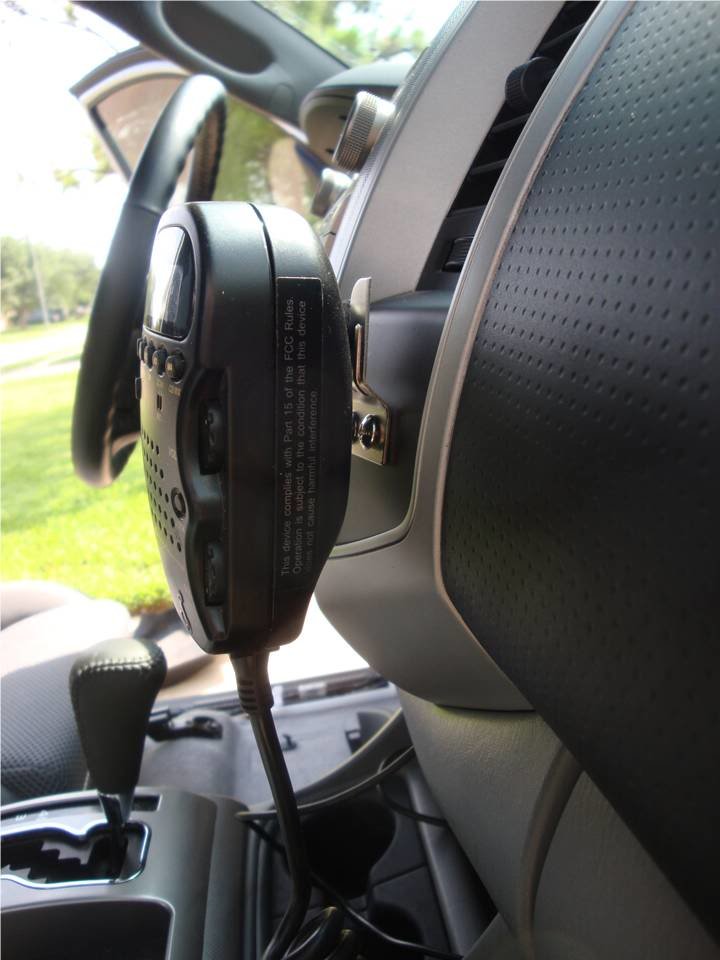

    The unit is mounted using a mounting clip and two screws that come with the radio.
    [​IMG]

    The end.

    Lord Humongous likes this.
  2. Jun 10, 2010 at 9:31 AM
    #2
    yotarob2005

    yotarob2005 Kiss My IFS

    Joined:
    Aug 10, 2009
    Member:
    #20984
    Messages:
    2,523
    Gender:
    Male
    First Name:
    Rob
    Bryan , Tx
    Vehicle:
    05 D-cab trd sport long bed
    Front Bilstien 5100's Set @ 1.75", rear 5100's & TSB springs, Flowmaster, TRD seat covers, Toyota All weather floor mats, 265/70-17 Michelin LTX AT2's, some Debadgeding, BHLM, led bed lights, 886 back up lights, fog lights anytime mod, Extra d-rings, Toyota bed mat, sockmoney TRD decals, Kenwood 890DNX, Firestone ride-rite air bags, 2 car seats.
    Good write up. Even though your radio wasn't cheap it is very nice.

  3. Jun 10, 2010 at 9:56 AM
    #3
    SCOTT'S TACO LOCO

    SCOTT'S TACO LOCO Cherry

    Joined:
    Apr 13, 2010
    Member:
    #35224
    Messages:
    293
    Gender:
    Male
    First Name:
    Scott
    TEXAS
    Vehicle:
    08 TACO TRD 4x$
    Rain-X, Blue Coral Wax, After-market cigarette lighter and a Texas Tacoma sticker! and few recalls here and there. Full Throttle gas pedal mod with bulky floor mats.
    cool, could you help with mine?

  4. Jun 10, 2010 at 12:52 PM
    #4
    Anathollo

    Anathollo www.saveadane.org

    Joined:
    Feb 25, 2009
    Member:
    #14071
    Messages:
    1,295
    Gender:
    Male
    Houston
    Vehicle:
    07 Tacoma TRD Sport
    Icon coilovers, Rear Fox Resi-shocks, 285/70/17 Toyo A/T's, Touchscreen JVC Headunit, Custom Rhino-lined sub box, Rocksford Fosgate components and Dual Rockford Fosgate 10" shallow subs, Pioneer and Rocksford Fosgate amps, 1250 watts total, Autometer Volt and Trans gauges with Lotek A-pillar, K&N Drop-in filter, WO Seat covers, Tint, NST WP pulley, Hi-lift jack, Diff breather mod, horn relocation mod, extra "D" rings, de-pinstriped, carrier bearing drop, Rear backup 886 bulbs, Camburg UCA's, AMW Catch can, BHLM, OME Dakars with AAL, Procomp 7089's, Front single hoop Demello bumper, Superwinch Tiger Shark 9500, Amsteel 3/8th synthetic line
    Nice Writeup! I'll use this once I purchase my CB.

  5. Jun 10, 2010 at 2:32 PM
    #5
    redraider

    redraider Well-Known Member

    Joined:
    Apr 2, 2007
    Member:
    #1212
    Messages:
    1,324
    Gender:
    Male
    First Name:
    Eric
    San Antonio,TX
    yes it is a good write up well done

  6. Jun 10, 2010 at 4:30 PM
    #6
    SamSter0077

    SamSter0077 Happy Camper

    Joined:
    Aug 7, 2008
    Member:
    #8396
    Messages:
    1,693
    Gender:
    Male
    Katy, TX
    Vehicle:
    09 Tacoma 4x4 TRD OR
    OME 886 Coils, and Struts, Rear Toytec TSB AAL/ OME shock absorbers, Fog Lamp anytime mod, Voyager Brake Controller.
    Nice one Baker! I ran mine the same way after looking at yours!

  7. Jun 11, 2010 at 3:50 PM
    #7
    skytower

    skytower Well-Known Member

    Joined:
    Jun 7, 2010
    Member:
    #38505
    Messages:
    3,228
    Gender:
    Male
    First Name:
    Dave
    virginia
    Vehicle:
    08 Tacoma 4x4
    Hitch and wiring, aux back-up light, rear strobe lights, radio and underseat sub.
    Good write up! Just a thought here: If you ever wanted to reroute the wires so they come up through the bed, you can get replacement coax ends from radio shack. Just make sure you put a grommet in the hole to protect from chafing.
    I'm still looking for a place to put the antenna with a cap on the bed, although not actively.

  8. Jun 22, 2010 at 1:56 PM
    #8
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    13,030
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    When I get around to it I'm going to drill a hole in my bumper and mount it there (towards the outside). I'll also get one of those mounts that collapse so the antenna lays along the top of the bumper if I'm going into a garage

  9. Jun 25, 2010 at 12:26 PM
    #9
    TX TRD Runner

    TX TRD Runner Well-Known Member

    Joined:
    Dec 6, 2009
    Member:
    #27113
    Messages:
    422
    Gender:
    Male
    First Name:
    Timothy
    Republic of Texas - Anna
    Vehicle:
    2007-Double Cab-Long Bed-SR5-TRD-Sport-4x4
    Toytec 3" Spacer Lift Kit w/AAL's - Spidertrax 1.25" Wheel Spacer - Stock 17" TRD Sport Wheels painted Black
  10. Jun 25, 2010 at 12:45 PM
    #10
    m771401

    m771401 Well-Known Member

    Joined:
    Sep 28, 2009
    Member:
    #23476
    Messages:
    164
    Gender:
    Male
    There is a rubber nipple just opposite of the hood-latch cable on that grommet.
    You could have cut the end of it off and fished 2 12awg wires thru it rather than poking a hole thru the rubber.


  11. Jun 25, 2010 at 12:50 PM
    #11
    EEtaco

    EEtaco Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13917
    Messages:
    244
    Gender:
    Male
    North Carolina
    Vehicle:
    09 V6 Prerunner
    5100's @1.75
    Good write up. Very clean install too!

  12. Jun 28, 2010 at 5:53 PM
    #12
    MikeTaco

    MikeTaco Pushin' Thru Another Day

    Joined:
    Jun 25, 2010
    Member:
    #39420
    Messages:
    117
    Gender:
    Male
    First Name:
    Mike
    Miami, FL
    Vehicle:
    07 Regular Cab
    A Few...
    very clean installation, hopefully i'll be installing my CB this weekend.

  13. Jun 28, 2010 at 5:59 PM
    #13
    DWreck

    DWreck Famous Retrieval Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,135
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2004 Tacoma Smurf Truck
    Plasti-dip paint, TRD S/C, MCM Fab LT kit, bunches of my fab
    Having two antennas is bad, they cancel out each other. If two are used they are supposed to be between 8' and 9' apart. This is why semis have them on opposing mirrors. !8' for the coax is very generic, make sure if there was any extra length it is not "coiled", as this also plays against you. Are the antennas grounded well? Just some tips I thought I'd throw out there. Looks good tho!

  14. Jun 28, 2010 at 8:08 PM
    #14
    bakerla

    bakerla [OP] Man, Myth, Legend

    Joined:
    Nov 3, 2009
    Member:
    #25348
    Messages:
    4,730
    Gender:
    Male
    First Name:
    Lyndall
    Pearland, TX
    Vehicle:
    '10 4wd OR
    CBI Moab front and CBI Trailrider rear, Budbuilt skids, Shrockworks sliders, OME Dakars w/ OME Nitros, OME 886x w/ OME Nitros, Light Racing UCAs, stainless steel brakelines F/R, Cobra 75 w/ Firestik antenna, 255/85/16 Cooper ST Maxx on 1st gen alloys, Weathertech liners, Engo 9000S winch, stickars and other shit.
    be sure to post up any issues you had during your install or any tips you have that might help other folks

    i might not have been clear. i'm not running 2 antennas at the same time. i use my 2 ft antenna for daily driving (parking garage at work) and use my 3 ft antenna for long road trips or off road use. i just swap them out. you make a good point though and are correct about using 2 antennas. first post is edited for clarification.

  15. Jun 29, 2010 at 4:34 AM
    #15
    DWreck

    DWreck Famous Retrieval Vendor

    Joined:
    May 18, 2010
    Member:
    #37368
    Messages:
    5,135
    Gender:
    Male
    First Name:
    Derek
    Las Vegas, NV
    Vehicle:
    2004 Tacoma Smurf Truck
    Plasti-dip paint, TRD S/C, MCM Fab LT kit, bunches of my fab
    10-4 Pink Flaminga! J/K

  16. Jun 1, 2011 at 4:41 PM
    #16
    TMASS

    TMASS Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38646
    Messages:
    120
    Gender:
    Male
    First Name:
    T-MASS
    OREGON
    Vehicle:
    2008 4X4 TOYOTA TACOMA
    I'll update soon
    Are you talking about that nipple in the bottom left hand corner of that photo?

  17. Jul 26, 2011 at 6:31 PM
    #17
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,890
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    hey man just had a couple questions before i pull the triger on one. wat is the diff between a tuneable and a non-tuneable, pros and cons between the two and finally was is meaning behind the "1 SWR and 2SWR"? thanks man

  18. Jul 26, 2011 at 7:27 PM
    #18
    bakerla

    bakerla [OP] Man, Myth, Legend

    Joined:
    Nov 3, 2009
    Member:
    #25348
    Messages:
    4,730
    Gender:
    Male
    First Name:
    Lyndall
    Pearland, TX
    Vehicle:
    '10 4wd OR
    CBI Moab front and CBI Trailrider rear, Budbuilt skids, Shrockworks sliders, OME Dakars w/ OME Nitros, OME 886x w/ OME Nitros, Light Racing UCAs, stainless steel brakelines F/R, Cobra 75 w/ Firestik antenna, 255/85/16 Cooper ST Maxx on 1st gen alloys, Weathertech liners, Engo 9000S winch, stickars and other shit.
  19. Dec 1, 2012 at 10:27 PM
    #19
    D.Holliday

    D.Holliday Well-Known Member

    Joined:
    May 30, 2012
    Member:
    #79756
    Messages:
    123
    Gender:
    Male
    First Name:
    Jon
    Portland, Oregon
    Vehicle:
    2008 Tacoma DCSB TRD Sport SR5 4x4
    Extang Trifecta Tri-Fold Tonneau Cover|Pioneer AVH-P1400DVD|3" Revtek Lift w/AAL|Pro Comp 7069|285x70r17 Federal Couragia MT's|Extra D-Rings Mod|Anzo Black Headlights|Corbra 75 CB w/3' Cobra Antenna & 4' Firestix Antenna|DTRL's Mod|L.A. Angels Sticker Mod|Smoked Aftermarket Tail lights
    Clean install! I hope to do the same with the same radio and callapsible antenna mount. Looks great!

  20. Mar 7, 2014 at 4:18 PM
    #20
    rileySB

    rileySB RileySB

    Joined:
    Apr 8, 2013
    Member:
    #101692
    Messages:
    677
    Gender:
    Female
    First Name:
    Gen
    Santa Barbara, CA
    Vehicle:
    13 DCSB OR 4x4
    5100/887, Dakars, 285s, Built Right UCAs, Icon rears
    Old thread revival…going to attempt to install my Cobra 75 that I got for Christmas. I love the idea of putting the box below the glove compartment with velcro backing, and I definitely want to ground the radio to the battery for clear transmissions. Being a noob to electrical stuff, I assume the naked ends from the box can attached to the metal ring thingys that look like washers and have heat shrink applied over them? I want a better way to connect it to the battery than just sliding the naked end under the bolt. Where do you get them? My question about the grounding or the antenna is…I have the coax cable from the unit to the antenna, it's an 18ft thing, I just hook it up to the antenna and back to the unit. How do you ground it? I am using a Relentless tie down corner plate that attaches to the bed rails. Is that enough to ground it (it's spray painted black), or do I need to fashion a cable like the pics above that include two circular metal ring things- attach one to the bolt on the mount, and then another to a bolt on the frame somewhere?
