CB Installation Complete - SWR Numbers Look Good

Discussion in '2nd Gen. Tacomas (2005-2015)' started by gunn_runner, Feb 2, 2018.

  1. Feb 2, 2018 at 1:28 PM
    #1
    gunn_runner

    gunn_runner [OP] www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,542
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
    I just finished up installing a Uniden Pro 510XL in my 2013 Tacoma. The job was straightforward with no issues, and I thought I'd share a few photos and my SWR numbers for those knowledgeable members that can tell me I'm on the right track or not.

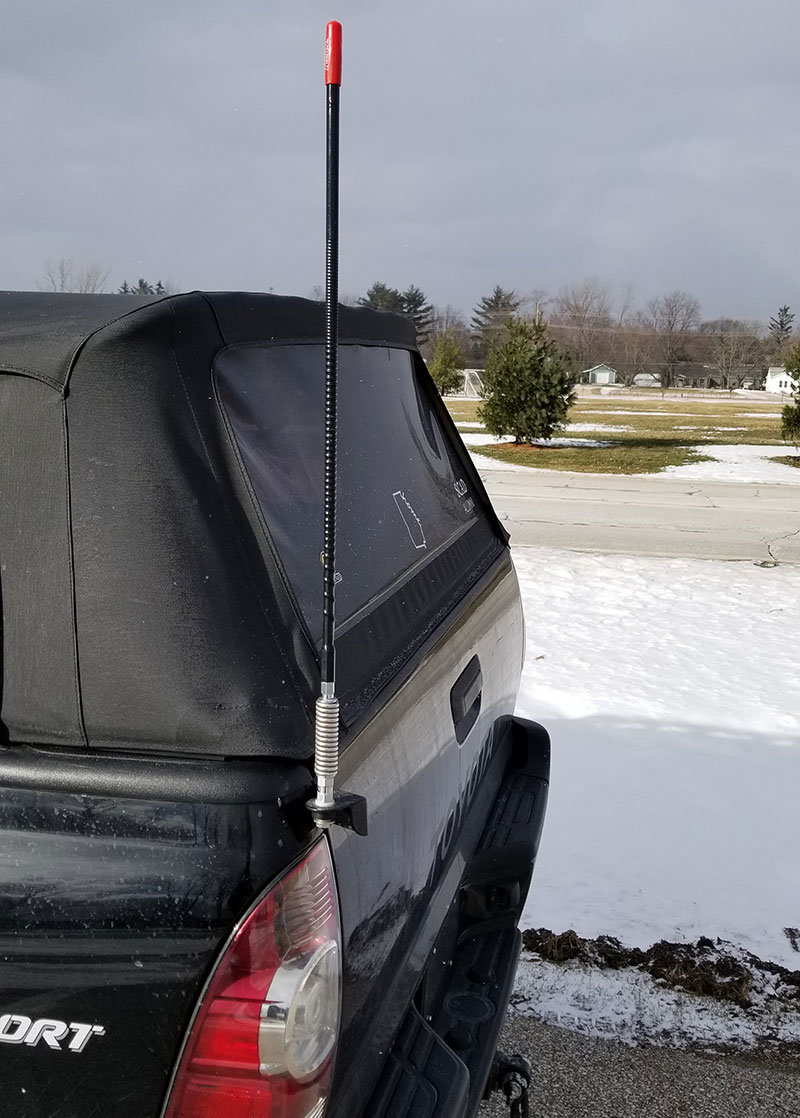

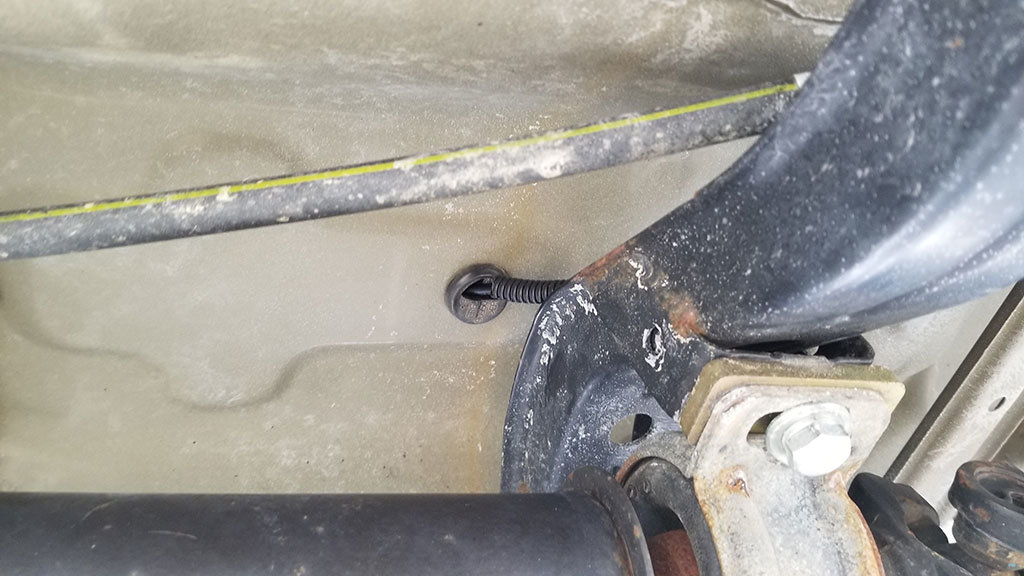

    I used the Relentless Fabrications tailgate mount, a 2' Firestick, and a Firering coax. The Coax is run behind the taillight, down the frame, and through a rubber grommet 6" behind the center console.

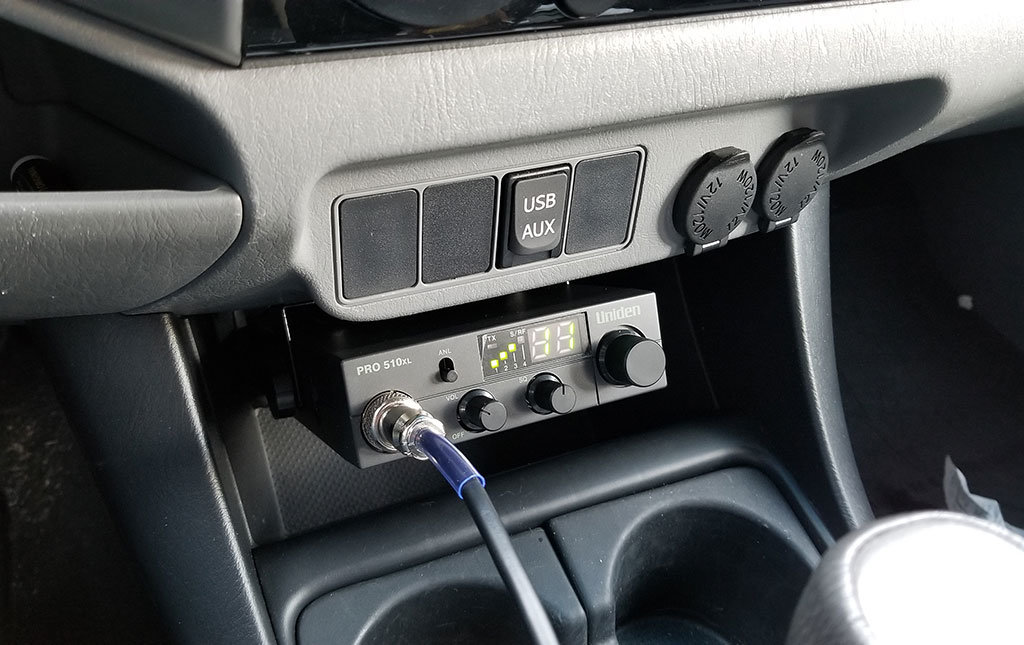

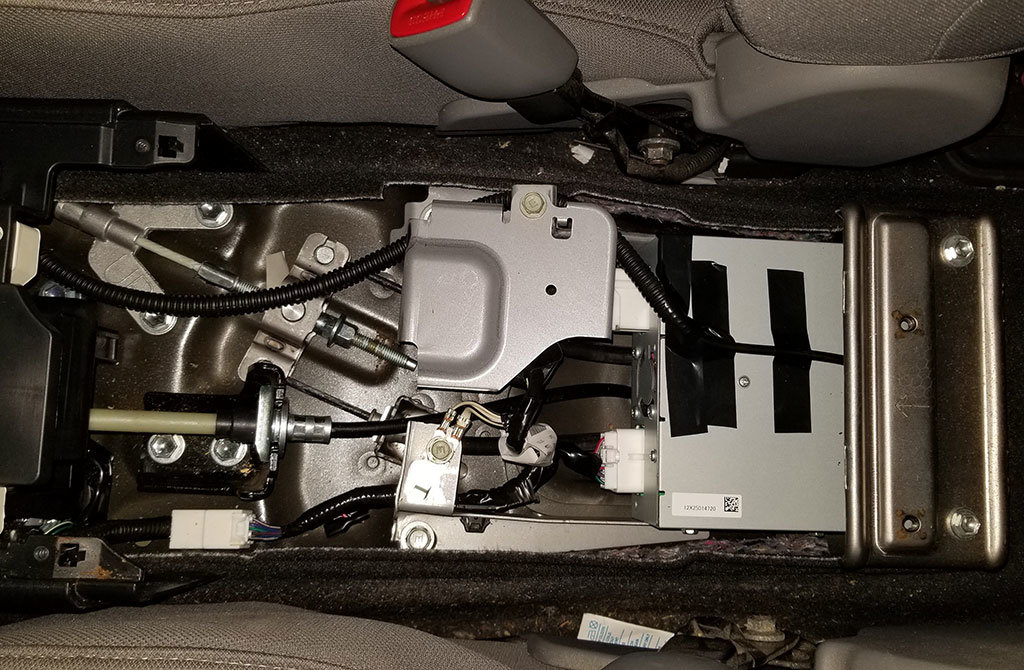

    I removed the center console up to the dash and cut a slot for the Uniden 510 to go through, only because I wanted it to sit flush with the dash and not get in the way of my front cup holders.

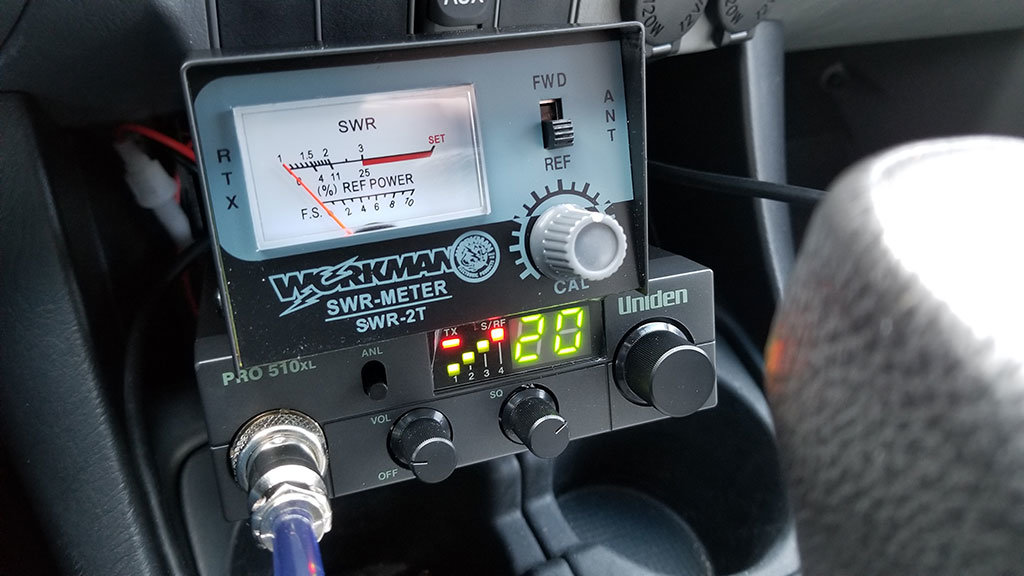

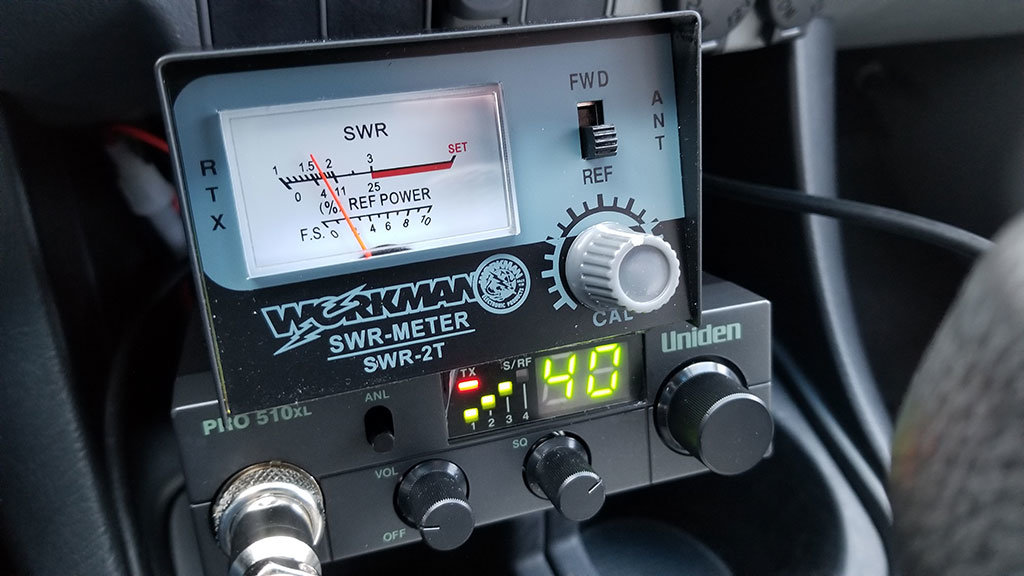

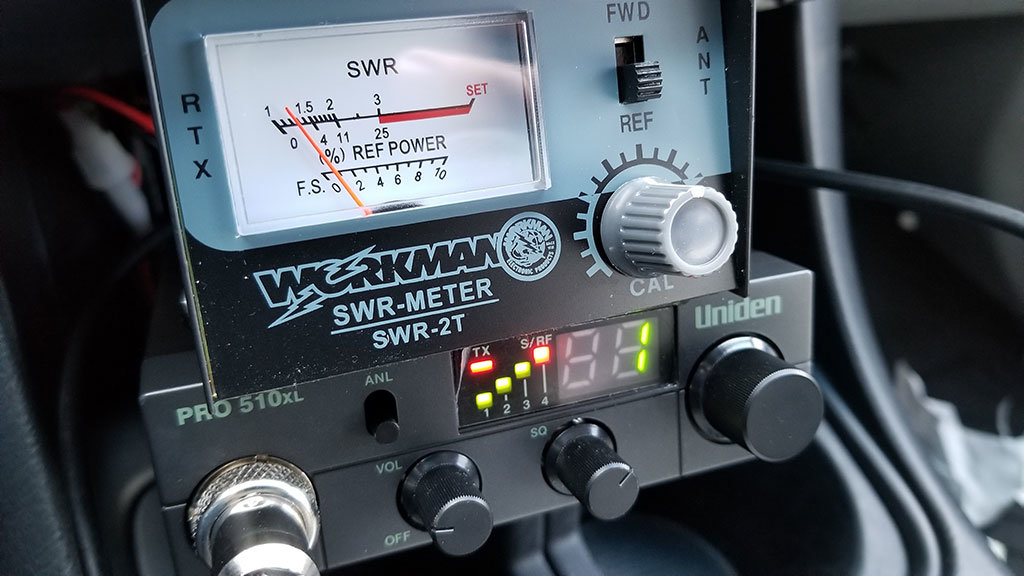

    Below are my SWR numbers. Im getting a little over 1.2 on Channel 1, 1:1 on channel 20, and a little over 1.7 on channel 40. This is after tuning the tip of the Firestick. After listening to the truckers from my driveway, I found out I was receiving a guy loud and clear over 7.5 miles away in downtown Cleveland. I know that doesnt say much since he could have been using more power than 4w, but that's not too bad for a little 2' antenna in my driveway surrounded by trees and houses.

    How do these numbers look?





    Attached Files:

    ChadsPride and rpeazy808 like this.
  2. Feb 2, 2018 at 1:38 PM
    #2
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,067
    Gender:
    Male
    First Name:
    Josh
    GA/WA
    Vehicle:
    2nd gen
    You could tune it a little more to get channel 1 and channel 40 just about evenly matched. Would settle somewhere in between the 1.2 and 1.7

    The SWR being higher on 40 says your tip could be shortened a little.

    DrFunker and gunn_runner[OP] like this.
  3. Feb 2, 2018 at 1:42 PM
    #3
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    6,067
    Gender:
    Male
    First Name:
    Josh
    GA/WA
    Vehicle:
    2nd gen
    Also I see you are using a Firering. Check on it maintenance-wise in 6 mo or so to make sure it hasn’t started to warp (the black plastic) and expose the wiring inside to elements. I had a similar setup but on my hood and after 1 yr or so it warped and the coax/wiring inside corroded.

  4. Feb 2, 2018 at 1:49 PM
    #4
    gunn_runner

    gunn_runner [OP] www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,542
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
    Will do. Thanks for your advice!

  5. Feb 2, 2018 at 4:33 PM
    #5
    knhallak

    knhallak Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88144
    Messages:
    69
    Gender:
    Male
    First Name:
    Khalil
    Laguna Hills
    Vehicle:
    '12 Black Tacoma
    Kenwood Deck Side Rails Tonneau G2 Bakflip Interior LED WeatherTech Floor Liners and Bed liner Wet Okoles Seat Cover K&N Intake Filter CB Radio + Firestik Antenna Baby Monitor (aka backup camera wired to display image when pressing a CH4x4 switch Hidden LED light bar in Front bumper Ditch lights Bed lights ADDED OEM Deck outlet
    Just had a question as I am looking to install a CB in the near future. Was that grommet already there or did you have to drill and add that?

  6. Feb 2, 2018 at 5:18 PM
    #6
    gunn_runner

    gunn_runner [OP] www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,542
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
    Already there. I slit it with a razor to push the cable and connector through.

  7. Feb 3, 2018 at 6:55 AM
    #7
    knhallak

    knhallak Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88144
    Messages:
    69
    Gender:
    Male
    First Name:
    Khalil
    Laguna Hills
    Vehicle:
    '12 Black Tacoma
    Kenwood Deck Side Rails Tonneau G2 Bakflip Interior LED WeatherTech Floor Liners and Bed liner Wet Okoles Seat Cover K&N Intake Filter CB Radio + Firestik Antenna Baby Monitor (aka backup camera wired to display image when pressing a CH4x4 switch Hidden LED light bar in Front bumper Ditch lights Bed lights ADDED OEM Deck outlet
    I was trying to find a clean way to enter the cabin but with the connector so big wasn't sure if I would have to drill and place a grommet myself. I will try this instead. Thanks.

  8. Feb 3, 2018 at 6:58 AM
    #8
    EdinCincinnati

    EdinCincinnati Well-Known Member

    Joined:
    Mar 11, 2013
    Member:
    #99457
    Messages:
    2,386
    Gender:
    Male
    First Name:
    Ed
    Ohio
    Vehicle:
    2014 4x4 TRD OR
    Nice Install and write up OP!

    gunn_runner[OP] likes this.
  9. Feb 3, 2018 at 8:08 AM
    #9
    conifers4

    conifers4 Tired and Broke

    Joined:
    Dec 12, 2014
    Member:
    #144143
    Messages:
    833
    Gender:
    Male
    First Name:
    Brian
    Long Island, NY
    Vehicle:
    2010 DCLB 4X4
    Great work, even an SWR of 1.7 is totally acceptable when your running a stock 4 watt radio. Don't sweat it

    gunn_runner[OP] and DrFunker like this.
  10. Feb 3, 2018 at 8:10 AM
    #10
    yote

    yote Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    4,633
    Gender:
    Male
    First Name:
    Mark
    Tacoma, WA
    Vehicle:
    2002 Ext Cab TRD Off-Road

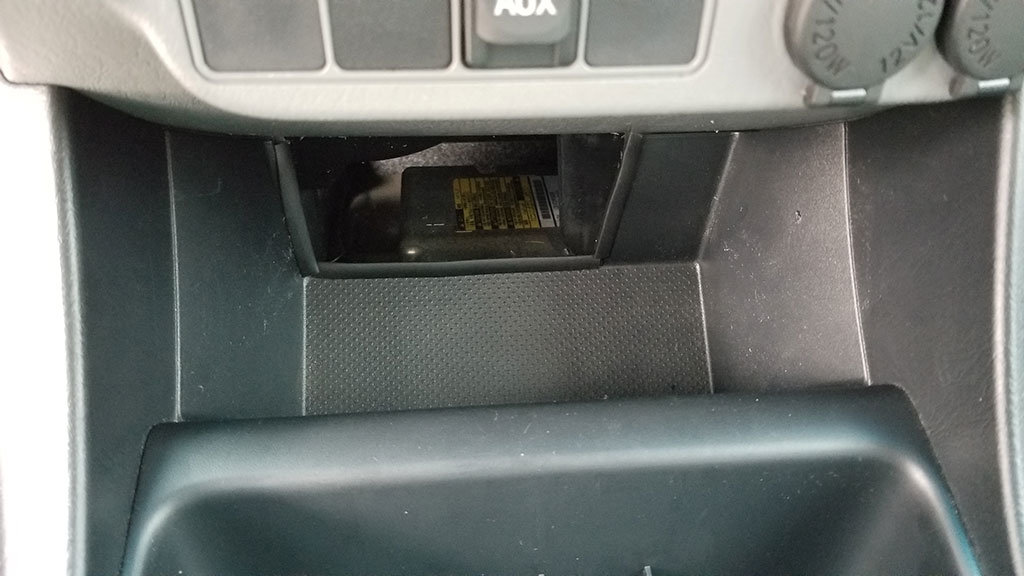

    Clean install. Can you still use that tray? I dont think I could get my fingers under the CB if I had it there & wanted to stick things under it
    Is this true or nahhh :confused:

  11. Feb 3, 2018 at 8:14 AM
    #11
    DrFunker

    DrFunker Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,920
    There is another on under the drivers seat too.

  12. Feb 3, 2018 at 8:27 AM
    #12
    knhallak

    knhallak Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88144
    Messages:
    69
    Gender:
    Male
    First Name:
    Khalil
    Laguna Hills
    Vehicle:
    '12 Black Tacoma
    Kenwood Deck Side Rails Tonneau G2 Bakflip Interior LED WeatherTech Floor Liners and Bed liner Wet Okoles Seat Cover K&N Intake Filter CB Radio + Firestik Antenna Baby Monitor (aka backup camera wired to display image when pressing a CH4x4 switch Hidden LED light bar in Front bumper Ditch lights Bed lights ADDED OEM Deck outlet
    Where is that one located? I haven't had a chance to crawl under the truck to check it out but if you have a picture or point me to picture, that would be great.

    DrFunker[QUOTED] likes this.
  13. Feb 3, 2018 at 8:28 AM
    #13
    DrFunker

    DrFunker Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,920
    I do not have a picture of it, sorry.
    Will look for one. Pretty sure there is one on the passenger side too.

  14. Feb 3, 2018 at 8:29 AM
    #14
    DrFunker

    DrFunker Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,920

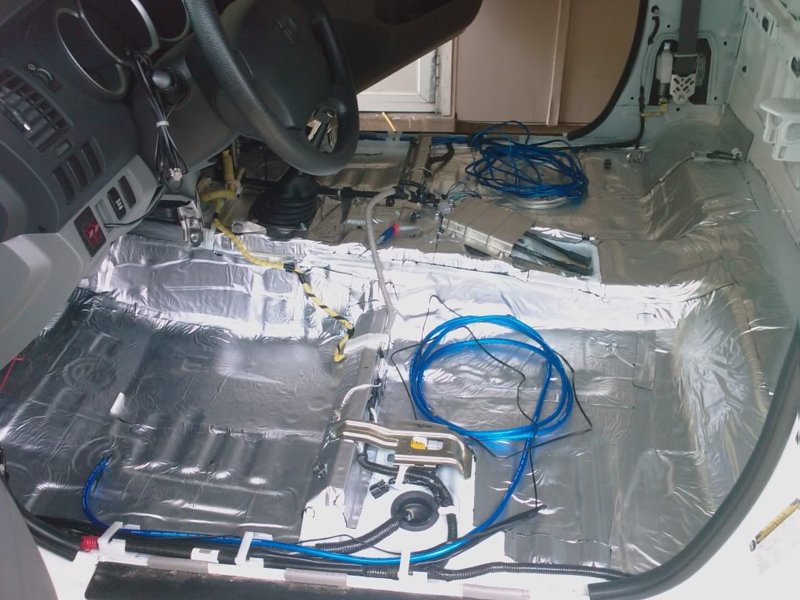

    stolen from another thread:
    [​IMG]

  15. Feb 3, 2018 at 8:33 AM
    #15
    DrFunker

    DrFunker Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,920

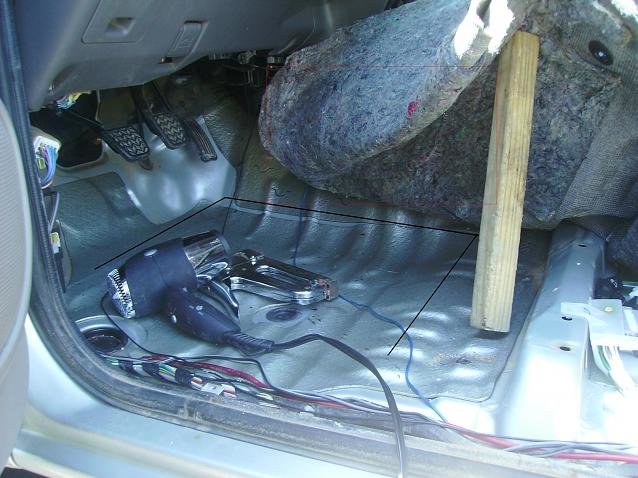

    Here's another showing the plugs in the floor:
    73842d1240857629-wet-floorboard-pict0001_083fcce2533834ebdbeab6d085390907e45c221c.jpg

  16. Feb 3, 2018 at 11:28 AM
    #16
    gunn_runner

    gunn_runner [OP] www.gunnphotoservices.com

    Joined:
    Apr 15, 2013
    Member:
    #102157
    Messages:
    1,542
    Gender:
    Male
    Rocky River, OH
    Vehicle:
    2013 DCLB TRD
    OME 886 & Dakars. 35" Mickey Thompson Baja Boss
    Barely fit in there but I can. I don't really use it so not an issue for me though.

  17. Feb 3, 2018 at 5:46 PM
    #17
    knhallak

    knhallak Well-Known Member

    Joined:
    Oct 2, 2012
    Member:
    #88144
    Messages:
    69
    Gender:
    Male
    First Name:
    Khalil
    Laguna Hills
    Vehicle:
    '12 Black Tacoma
    Kenwood Deck Side Rails Tonneau G2 Bakflip Interior LED WeatherTech Floor Liners and Bed liner Wet Okoles Seat Cover K&N Intake Filter CB Radio + Firestik Antenna Baby Monitor (aka backup camera wired to display image when pressing a CH4x4 switch Hidden LED light bar in Front bumper Ditch lights Bed lights ADDED OEM Deck outlet
    Thanks, I crawled under the truck today and was able to spot what you were talking about, thanks. This will be my next project!

    DrFunker and gunn_runner[OP] like this.
  18. Feb 6, 2018 at 10:46 AM
    #18
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    127,315
    Vehicle:
    Sponsored by TacomaWorld.com
    Nice work!! just saved this thread to my 'to do' list

    EatSleepTacos likes this.
  19. Feb 6, 2018 at 10:50 AM
    #19
    DrFunker

    DrFunker Well-Known Member

    Joined:
    Feb 3, 2014
    Member:
    #122158
    Messages:
    42,920
    No CB in your truck Chad?

    ChadsPride[QUOTED] likes this.
  20. Feb 6, 2018 at 10:51 AM
    #20
    ChadsPride

    ChadsPride Tacoma Owner & Enthusiast

    Joined:
    Nov 26, 2014
    Member:
    #143119
    Messages:
    127,315
    Vehicle:
    Sponsored by TacomaWorld.com
    On the parts shelf collecting dust like most of my 'mods' :oops:
    Really want to get it installed soon. Bummer not having one on convoys with the club.

    DrFunker[QUOTED] likes this.
