CB Radio (Cobra 29) Mod & Mount in Center Console

Discussion in 'Audio & Video' started by DDD, Aug 25, 2009.

  1. Aug 25, 2009 at 4:28 AM
    #1
    DDD

    DDD [OP] Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,186
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    I recently was given a Cobra 29 LTD Classic CB radio from a driver at work. Most of the veteran truck drivers at work have used the Cobra 29 Classic for over 20 years.

    Here is my problem:

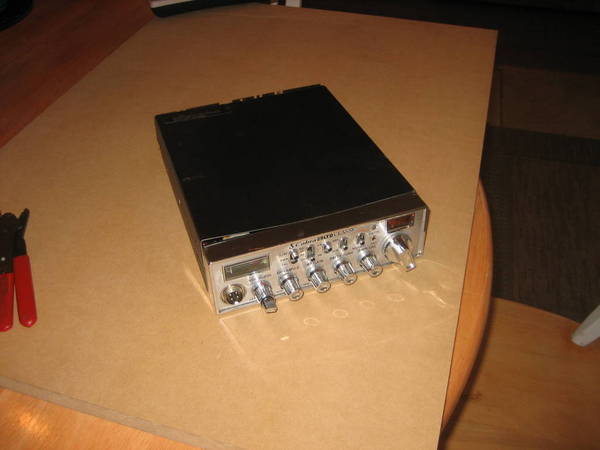

    This radio is giant.
    [​IMG]
    There really isn't anywhere to mount it where it can be hidden but still be accessible and functional when I need it. I have seen other people's solutions to mounting this radio, such as LonghornTaco mounting it behind the console and MonkeyProof mounting it inside the cup holders. Those are both great ideas, but I did not want my radio to take up any room in the cab (leg room) and I wanted my radio hidden from passengers. I don't want to cut up the cup holders and loose the use of them. And, most importantly, I need the radio in a spot where I can access it easily while driving. I really like Ccoorreeyy's idea of using the glove box, but the Cobra 29 is too large to fit.



    Here is the solution I came up with:
    I decided relocate the face of the radio in the center console and secure the body (main circuit board, housing and speaker) under the passenger seat.
    This is accomplished by cutting the wires that connect the circuit board to the face plate and splicing in longer wires to bridge the gap between the passenger seat and the center console.



    Here is how I did it:


    Extending the faceplate wires

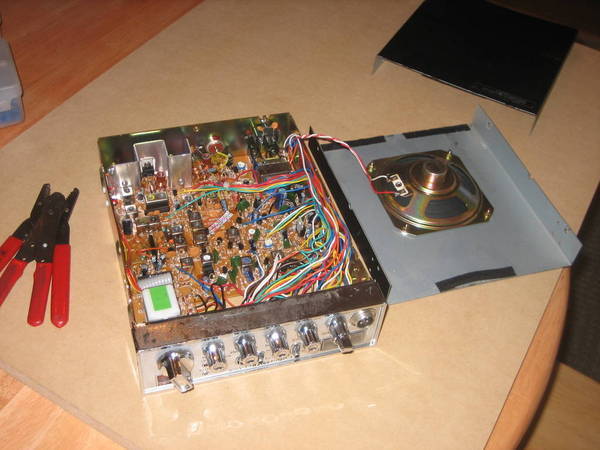

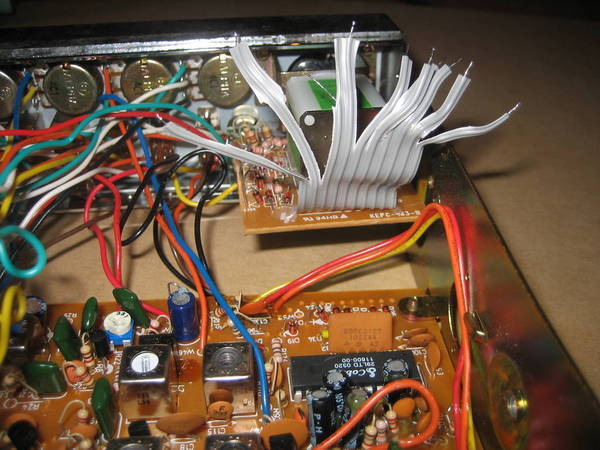

    I took apart the radio and found over 40 wires connecting the faceplate to the body.:( This includes wires for the switches, dials, display and SWR meter gauge. I decided to use CAT5 ethernet cable because I had an old 500 ft spool setting around for a few years and each strand has 8 wires in it. In all it took me about 6 strands of the CAT5 cable.
    [​IMG]

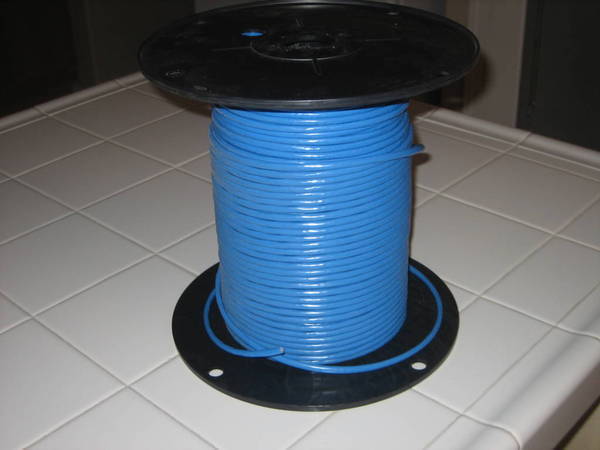

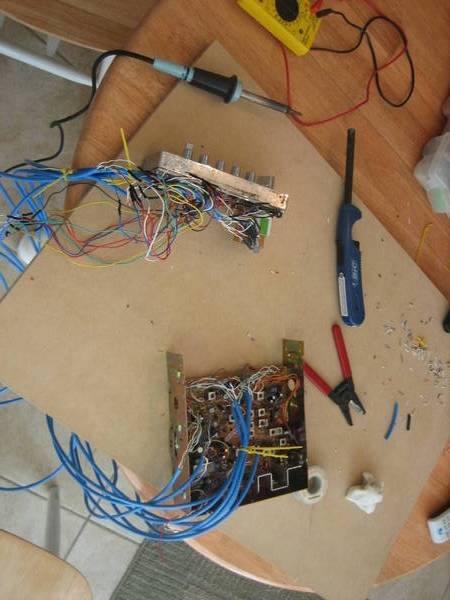

    So, I plugged in the soldering iron, turned on the Fox Saturday baseball (Dodgers vs. Cubs) and got to work. By the time the Dodgers had shut out the sorry Cubs I was almost finished.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

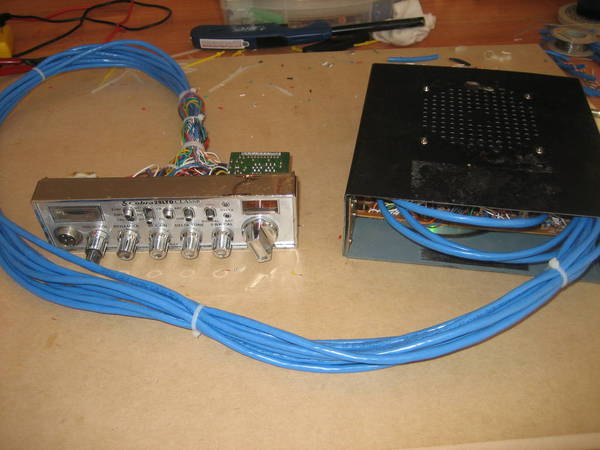

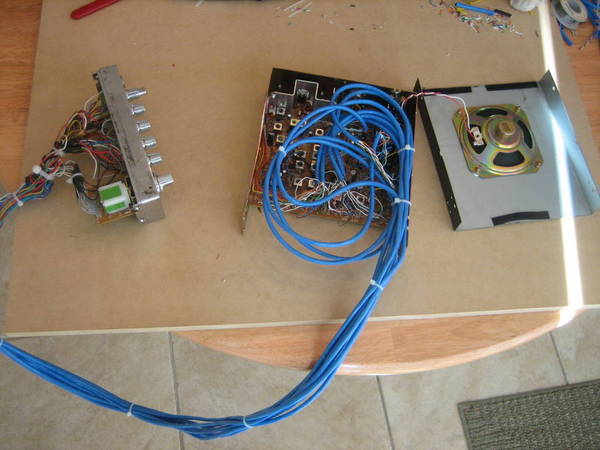

    So, over 80 solder connections later, I was finished with the toughest part. I immediately tested all functions of the radio to make sure everything worked. To my amazement everything worked.:bananadance: I must be lucky or good at soldering.



    Mounting the Radio Housing

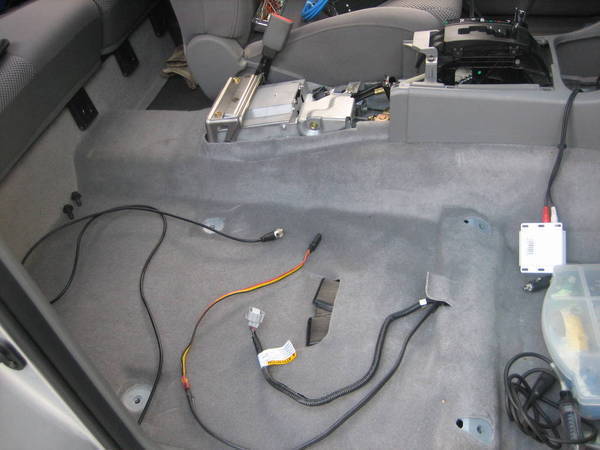

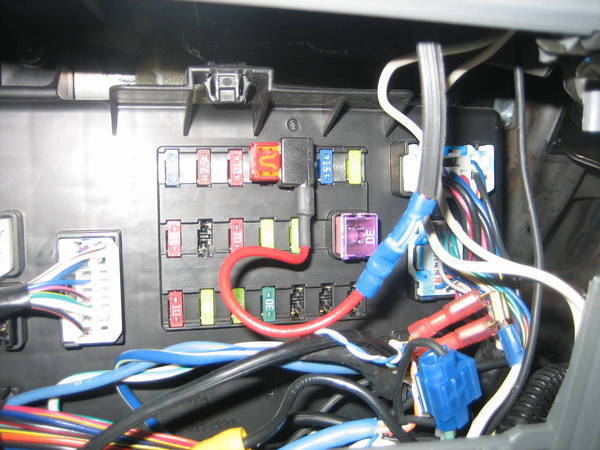

    I removed the center console and passenger seat. I ran a power cable to the fuse block and ran my antenna cable.
    [​IMG]

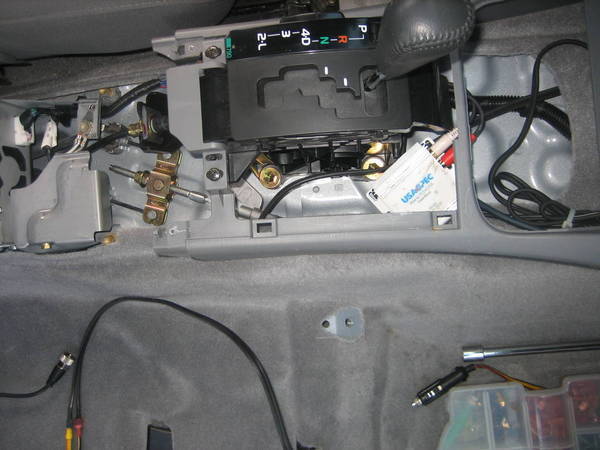

    I was able to fish the power cable under the carpet to where the shifter is and from there to the fuse block.
    [​IMG]

    [​IMG]

    I was able to strap the radio down to the floor using zip ties connecting with some metal support braces under the carpet. Not very pretty, but no one will see it.
    [​IMG]

    I mounted it with the speaker facing up. I will see if it is loud enough, if not I will get an external speaker at a later time.



    Mounting the Faceplate

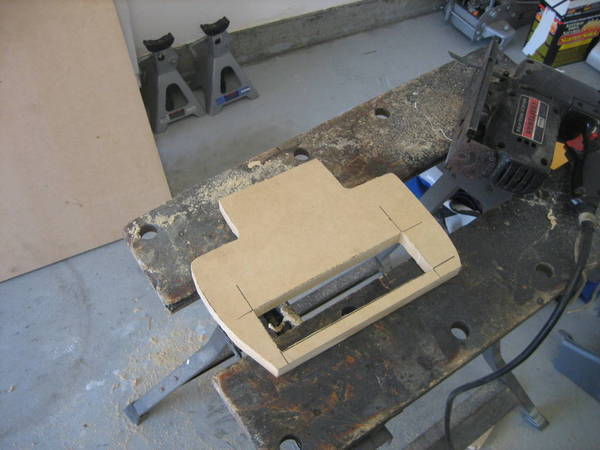

    I cut a hole in the bottom of the center console to feed the wires through. Then I cut a new base plate for the console out of some plywood.
    [​IMG]

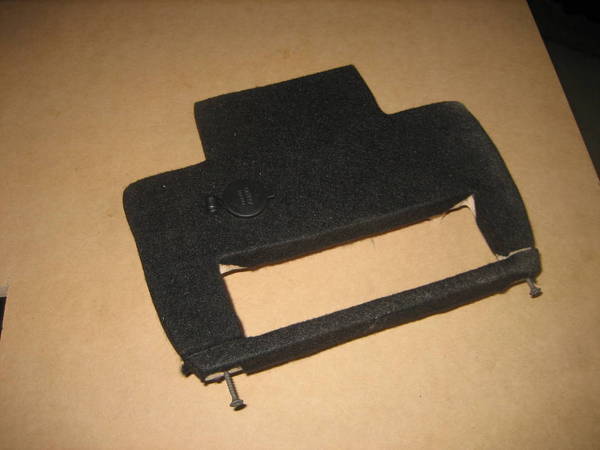

    I covered it with some felt (to look pretty) and installed the faceplate in wood base plate. I added some wood blocks under the deck to provide the spacing I needed and while I was there I decided to add a 12v power source.

    [​IMG]

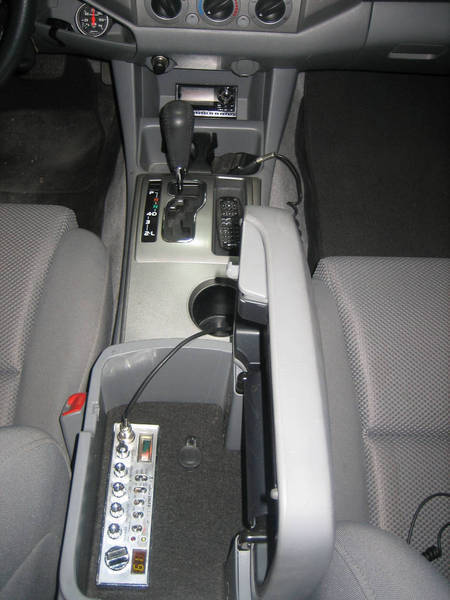

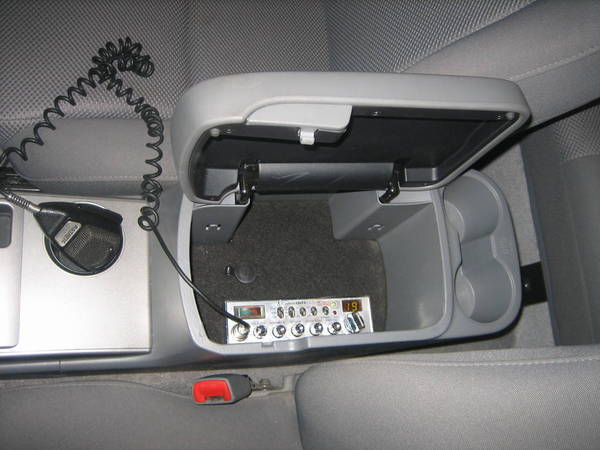

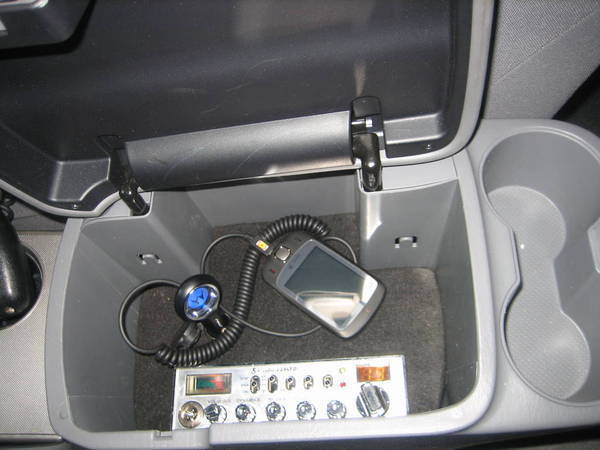

    Here is the finished product
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

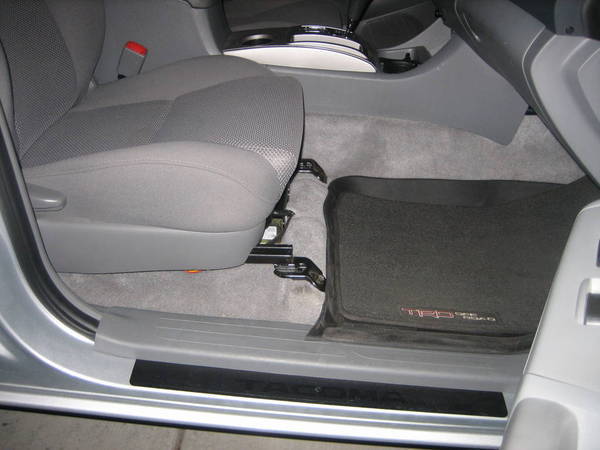

    Below are 2 pictures with the seat slid all the way back.
    [​IMG]

  2. Aug 25, 2009 at 4:50 AM
    #2
    98tacoma27

    98tacoma27 :POOPCORN: Thor

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    48,249
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5, 88 SR5 PU, 98 TRD OR (CRUSHED)
    5100's all on fours
    Niiiiicccceee!!

  3. Aug 25, 2009 at 4:52 AM
    #3
    blackhawke88

    blackhawke88 wo ai ni bao bei ^_^

    Joined:
    Jan 11, 2009
    Member:
    #12478
    Messages:
    16,864
    Gender:
    Male
    SGV, CA
    Vehicle:
    07 TRD Offroad
    :eek: amazing~!!

  4. Aug 25, 2009 at 6:03 AM
    #4
    drew02a

    drew02a Rocking your mom's world Since 1997

    Joined:
    Jan 26, 2009
    Member:
    #13005
    Messages:
    3,177
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    2006 Regular Cab 2.7L 4x4
    As an electronics junkie who has modded or repaired almost every type of small electronic device I've ever owned, I'm embarrassed that you beat me to this!

    It looks Great! And you can bet that when I install my CB I'll be doing the same thing. I just might choose a different place for mounting the controls.

  5. Aug 25, 2009 at 6:14 AM
    #5
    kasey200

    kasey200 Well-Known Member

    Joined:
    May 29, 2008
    Member:
    #6949
    Messages:
    198
    Gender:
    Male
    south dakota
    Vehicle:
    07 TRD Dboubl Cab Longbed
    3" toytec, 285 BFG AT's
    come do mine!! i have the same radio out of my last truck that sits in my garage because it doesn't fit anywhere in the Taco.

  6. Aug 25, 2009 at 6:49 AM
    #6
    MT_mudflaps

    MT_mudflaps Just playin' on the runways

    Joined:
    May 25, 2008
    Member:
    #6857
    Messages:
    394
    Gender:
    Male
    First Name:
    Clint
    Bellflower, CA
    Vehicle:
    Indigo SR5 PreRunner with TRD off road
    Likewise, I have the exact same radio -- been wondering what to do with it! That's awesome!

  7. Aug 25, 2009 at 11:00 AM
    #7
    Fuzzyman81

    Fuzzyman81 The New Guy

    Joined:
    Jul 28, 2008
    Member:
    #8174
    Messages:
    435
    Jax, FL
    Vehicle:
    04 PreRunner TRD
    You wanna solder another for some cash! :) LMAO.

  8. Aug 25, 2009 at 11:10 AM
    #8
    w8n4mud

    w8n4mud There's a mod for that!

    Joined:
    May 23, 2008
    Member:
    #6831
    Messages:
    6,212
    Gender:
    Male
    First Name:
    Albert
    San Diego, CA
    Vehicle:
    2015 Subaru WRX
    Bilsteins 5100's (Front & Rear), GrillCraft, Line-X'ed Skid Plate & Bumper Valence, Blacked out hood scoop, Avid Light Bar and much more.
    Holy Shiny, that's a bright face plate!

    Nice work. When I saw you taking it apart, I was like... "Oh crap, here's a mod going south fast...", but you pulled it through. Looks tight.

  9. Aug 25, 2009 at 11:28 AM
    #9
    wiscdave

    wiscdave Lets Do It!

    Joined:
    Mar 20, 2008
    Member:
    #5392
    Messages:
    2,551
    Gender:
    Male
    Northern Wisconsin
    Vehicle:
    Tundra Rock Warrior
    Past ride - 3" OME 885s&Shocks/ TSB 1.5AAL/ AX184 Rims 285 Firestone destination ATs/ 2 Shallow mount P310s in Supercrew Box - Punch 601s, Beefed up Hunter Brush guard, Tint, Fog light mod, AFE Drop in, AC and Fog light mods, scangauge
    How much to just get a plug and play of that made? But wow, too much sodering for me, I would have just put the entire thing in the center console if it fit and if you weren't planning on using the space just my 2 pennies. You could relocate it to the dash somewhere and that would look SWEET!

  10. Aug 25, 2009 at 6:43 PM
    #10
    duckcmdr

    duckcmdr If it flies it dies!!

    Joined:
    Nov 3, 2008
    Member:
    #10471
    Messages:
    3,863
    Gender:
    Male
    First Name:
    Joe
    New Jersey
    Vehicle:
    06 DCLB 4x4
    ARB Winch Bumper, Cabelas trial gear 2 mats, Wade vent shades, rear TSB, Toytec TSB AAL ,5100's set to 0,886 coils w/top plate 285/75/16 Treadwright at on Raceline Raptors, Toytec Diff drop, Bud Built Skids,Total Chaos LCA Skids,Devil horns,LED Dome Light,Scan Gauge, Rear Diff Breather, Revenge Fab Sliders. XRC 8 winch, Safari Snorkel, KC Daylighters 100 watt, Redline hood Struts & ez-down tailgate, G-stop extended SS brake lines,Homeroshi front grill and snorkle grill, relentless fab hc rear bumper
    nice job.:thumbsup:

  11. Aug 25, 2009 at 6:53 PM
    #11
    derekabraham

    derekabraham Living vicariously through everybody

    Joined:
    Jul 8, 2008
    Member:
    #7822
    Messages:
    29,448
    Gender:
    Male
    First Name:
    TW'S Hippy Liberal
    Portland, OR
    Vehicle:
    2002 4x4 4Runner
    Stick on hood scoop from Autozone.
    Excellent work!!!!!

  12. Aug 25, 2009 at 7:08 PM
    #12
    mwild

    mwild I CANT SPELL SO DONT BITCH

    Joined:
    May 18, 2008
    Member:
    #6720
    Messages:
    1,414
    Gender:
    Male
    First Name:
    Matt
    Vernon, NJ
    Vehicle:
    03 2500 Dodge Ram
    Cat-Back, weather techs, ipod and sisuis Old 04 Taco: 5100s At all 4 corners set at 2.5", Toyotec AAL, Gibson cat-back, Deck plate mod, 20% Tint on fronts, 10" Kicker Comp sub, Sirius radio, Bud Built Skid, Pro Comp 8069 Wheels
    looks awsome

  13. Aug 25, 2009 at 7:11 PM
    #13
    Colton

    Colton Reagan/Bush '84

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,059
    Gender:
    Male
    First Name:
    Colton
    VA/SC
    Vehicle:
    08 4X4 TRD Sport super white
    Bilstein 5100 F&R, OME 885 w/ top plate spacers, 1.5" AAL, 285/70/17 Hankook Dynapro MT, 17x9 Level 8 MK6, 20% tint, AEM Brute force intake, Alpine CDE-W235BT, 2 12" Shok subs, Armortech sliders, EBC Stage IV brake it, stainless steel brake lines
    That is damn genius! Awesome job!

    You want to do another for cash also?

  14. Aug 30, 2009 at 9:28 AM
    #14
    DDD

    DDD [OP] Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,186
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Forgot to add:

    Here is how I ran the Coax antenna cable to the antenna.

    Here is the grommet that I am going to use.
    [​IMG]

    I pulled out the grommet and used a sharp tool to poke a hole into it.
    [​IMG]

    I shoved my needle nose pliers through the hole.
    [​IMG]

    And grabbed a hold of the wire.
    [​IMG]

    Slide the grommet over the wire.
    [​IMG]

    Finally put the grommet back into the hole.
    [​IMG]

    Its water tight and you don't have to drill any holes in your truck. Now I ran the cable under the right rear door floor panel to the passenger seat. There is already a channel with wires under that floor panel with room for 1 more wire...

  15. Aug 30, 2009 at 9:34 AM
    #15
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Thor

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,352
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    damn good job you did with this mod man!!! very nice!

  16. Aug 30, 2009 at 11:40 AM
    #16
    MT_mudflaps

    MT_mudflaps Just playin' on the runways

    Joined:
    May 25, 2008
    Member:
    #6857
    Messages:
    394
    Gender:
    Male
    First Name:
    Clint
    Bellflower, CA
    Vehicle:
    Indigo SR5 PreRunner with TRD off road
    Good to go!

  17. Sep 28, 2009 at 6:01 PM
    #17
    LonghornTaco

    LonghornTaco Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Wow, that is a nice install!

    And thanks for the nod in the original post. I really don't like where mine is mounted, but I never even considered anything like this!

  18. Oct 5, 2009 at 1:26 AM
    #18
    07prerunner91

    07prerunner91 Member

    Joined:
    Feb 26, 2009
    Member:
    #14077
    Messages:
    19
    Gender:
    Male
    Pleasanton, CA
    Vehicle:
    07 Prerunner 3in lift 285/75/r16 sim beadlock
    3in spacer, 2in add a leaf, 285/75/r16 toyo open country m/t's, ultra black rims with simulated bead lock, bhlm, recessed billet grill, touch screen in dash, amp, sub
    Oh my god! that is some impressive work! you definitely have my respect!!!

  19. Oct 5, 2009 at 2:11 AM
    #19
    Hoyal

    Hoyal Whiskey bent and hell bound.

    Joined:
    May 14, 2009
    Member:
    #17221
    Messages:
    17,642
    Gender:
    Male
    First Name:
    Devin
    N 39.2249 W -106.16974
    Vehicle:
    2000 4runner
    OME 3 inch suspension lift Toytec 1in body lift Rodger brown diff drop ARB front bumper Big tires, but want bigger! :) Xrc 8000 winch Hella3000 lights Deck plate mod Diff breather relocate Cb radio 1st gen roll bar Addicted sliders Spider trax wheel spacers.
    Nice work!

    If I could do this install I would put a CB in my Tacoma.

  20. Oct 5, 2009 at 9:08 AM
    #20
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,181
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    Wow, Props. That's a lot of work. Almost all the modern amateur radios have remote mount faces its very convenient.
