1. Welcome to Tacoma World!

    You are currently viewing as a guest! To get full-access, you need to register for a FREE account.

    As a registered member, you’ll be able to:
    • Participate in all Tacoma discussion topics
    • Communicate privately with other Tacoma owners from around the world
    • Post your own photos in our Members Gallery
    • Access all special features of the site
    Quick Links: Power wires for 2010 radio harness Thoughts on Rockville powered sub? 2014 Tacoma - Proposed Sound System Need more bass want to hear your opinions. Are Dasaita Android 13 HDR camera compatible? Speaker and sound system upgrade - 2014 ext cab Taco

CB Radio Information and Installation

Discussion in 'Audio & Video' started by Frogsauce, Jun 2, 2013.

Page 13 of 22
  1. Jan 4, 2014 at 4:35 PM
    #241
    frankakashane

    #241
    frankakashane Well-Known Member

    Joined:
    Sep 25, 2011
    Member:
    #64114
    Messages:
    170
    Gender:
    Male
    First Name:
    Frank
    San Diego, California
    Vehicle:
    06 White 4x4 TRD SR5 O/R Pack
    Icon extended travel shocks front~Icon resi extended travel rear shocks~Alcan rear springs~total chaos UCAs~Wheelers super bumps front and rear~Diff drop~steel brake lines~Alpine single din stereo~blacked out emblems~front 1.25" spidertrax wheel spacers~carrier bearing drop~TRD cat back exhaust
    cool write up! Thanks. Sub'd for future use.

    frankakashane, Jan 4, 2014
    #241
  2. Jan 9, 2014 at 7:22 PM
    #242
    BBtacosurfer

    #242
    BBtacosurfer Well-Known Member

    Joined:
    Nov 23, 2012
    Member:
    #91716
    Messages:
    3,877
    Gender:
    Male
    First Name:
    Dave
    ID
    Vehicle:
    MGM 2012 4x4
    awesome thread! I know nothing about this stuff...Now to read through 13 pages and wrap my brain around all this good stuff :D

    BBtacosurfer, Jan 9, 2014
    #242
  3. Jan 10, 2014 at 6:51 PM
    #243
    timmyedge

    #243
    timmyedge Well-Known Member

    Joined:
    Sep 27, 2011
    Member:
    #64211
    Messages:
    240
    Gender:
    Male
    First Name:
    Timmy
    Layton, UT
    Vehicle:
    TRD OR DCSB
    Magnaflow cat back exhaust with down pipe, Volant CAI, BHLM w/new bulbs, 3000K replacement fog lights,Debadged/Painted/Re-badged to say TACO/ New JVC Dbl Din Nav in dash/ Fosgate 400W amp/ Fosgate 10" sub/Tacotunes box/ Order OME complete lift w/Daker springs and LR UCA's/Ordered SCS Stealth 6 Matte Gun Metal -265/70R17 Goodyear Duratracks, BAMF behind gril light bar, Custom Trial Ridge Sliders , bed mat, weathertechs, Wet Okles, All Pro Front IFS skid Plate, Plasti Dir rear bumper Future MODS-Skids IFS/Fuel tank, transfer, rear dif
    subd

    timmyedge, Jan 10, 2014
    #243
  4. Jan 22, 2014 at 7:59 PM
    #244
    PS78

    #244
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    Should I be taking my SWR reading from the middle numbers?


    First round was at

    Ch 1 = 1.5
    Ch 19 = 1.3
    Ch 40 = 1.2

    Adjusted the firestik tip a little longer and ended up at

    Ch 1 = 1.3
    Ch 19 = 1.5
    Ch 40 = 1.8

    Should I try going a bit shorter on the firestik tip to get the ch 40 and ch 1 SWR closer together? Should I try and have the SWR as low as possible?

    PS78, Jan 22, 2014
    #244
  5. Jan 22, 2014 at 8:07 PM
    #245
    tylershane17

    #245
    tylershane17 Back to Back World War Champions

    Joined:
    Oct 4, 2012
    Member:
    #88312
    Messages:
    910
    Gender:
    Male
    First Name:
    Tyler
    Northwest Alabama
    Vehicle:
    2007 TRD OFF ROAD DCSB
    Brushguard, Lift.
    Anything below 1.5 SWR is a good reading. You should adjust your antenna to make Channel 1 and Channel 40 be as close as possible.

    If the SWR on channel 40 is greater than that on channel 1, your antenna is considered to be long. Reduce the physical length of your antenna to correct. Do the opposite if channel 1 is greater than channel 40.

    tylershane17, Jan 22, 2014
    #245
  6. Jan 22, 2014 at 8:13 PM
    #246
    PS78

    #246
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    So if you were reading my SWR meter you are getting the numbers from the middle? That's my biggest question

    PS78, Jan 22, 2014
    #246
  7. Jan 22, 2014 at 8:17 PM
    #247
    tylershane17

    #247
    tylershane17 Back to Back World War Champions

    Joined:
    Oct 4, 2012
    Member:
    #88312
    Messages:
    910
    Gender:
    Male
    First Name:
    Tyler
    Northwest Alabama
    Vehicle:
    2007 TRD OFF ROAD DCSB
    Brushguard, Lift.
    Oh lol you mean on the meter itself right?

    tylershane17, Jan 22, 2014
    #247
  8. Jan 22, 2014 at 8:37 PM
    #248
    PS78

    #248
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    Yup

    PS78, Jan 22, 2014
    #248
  9. Jan 22, 2014 at 8:39 PM
    #249
    tylershane17

    #249
    tylershane17 Back to Back World War Champions

    Joined:
    Oct 4, 2012
    Member:
    #88312
    Messages:
    910
    Gender:
    Male
    First Name:
    Tyler
    Northwest Alabama
    Vehicle:
    2007 TRD OFF ROAD DCSB
    Brushguard, Lift.
    Should be looking at the upmost numbers

    tylershane17, Jan 22, 2014
    #249
  10. Jan 22, 2014 at 8:44 PM
    #250
    PS78

    #250
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    Hmm, I wanna say you're wrong because the SWR is close to the center numbers, and the W above the upper numbers and the DB below the lower numbers. Anyone?

    PS78, Jan 22, 2014
    #250
  11. Jan 22, 2014 at 8:47 PM
    #251
    tylershane17

    #251
    tylershane17 Back to Back World War Champions

    Joined:
    Oct 4, 2012
    Member:
    #88312
    Messages:
    910
    Gender:
    Male
    First Name:
    Tyler
    Northwest Alabama
    Vehicle:
    2007 TRD OFF ROAD DCSB
    Brushguard, Lift.
    I still don't understand what you mean:annoyed:

    tylershane17, Jan 22, 2014
    #251
  12. Jan 22, 2014 at 8:49 PM
    #252
    tylershane17

    #252
    tylershane17 Back to Back World War Champions

    Joined:
    Oct 4, 2012
    Member:
    #88312
    Messages:
    910
    Gender:
    Male
    First Name:
    Tyler
    Northwest Alabama
    Vehicle:
    2007 TRD OFF ROAD DCSB
    Brushguard, Lift.
    Here's the cricket. http://www.youtube.com/watch?v=YwFPKIjweP8

    tylershane17, Jan 22, 2014
    #252
  13. Jan 22, 2014 at 8:59 PM
    #253
    PS78

    #253
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread

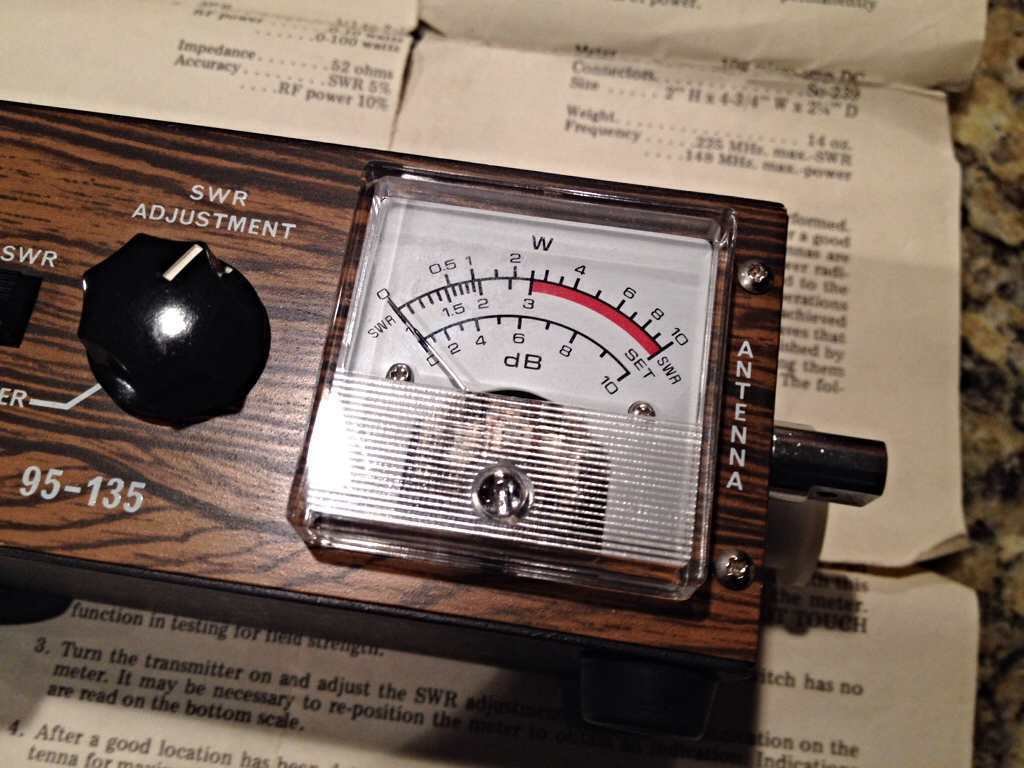

    Look at the photo I posted, on my SWR meter the SWR reading is in the middle I believe.

    PS78, Jan 22, 2014
    #253
  14. Jan 22, 2014 at 9:01 PM
    #254
    tylershane17

    #254
    tylershane17 Back to Back World War Champions

    Joined:
    Oct 4, 2012
    Member:
    #88312
    Messages:
    910
    Gender:
    Male
    First Name:
    Tyler
    Northwest Alabama
    Vehicle:
    2007 TRD OFF ROAD DCSB
    Brushguard, Lift.
    The swr part of the meter has SWR printed on both sides of it.

    tylershane17, Jan 22, 2014
    #254
  15. Jan 23, 2014 at 5:45 AM
    #255
    maineah

    #255
    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    6,776
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Antenna match is slightly long put it back where you had it those reading were fine. An analog meter will not give you perfect readings unless you spend the big bucks. The spread across the band is 25 KC it is unlikely you'll have a 1.1:1 match from one end to the other.

    maineah, Jan 23, 2014
    #255
  16. Jan 23, 2014 at 5:55 AM
    #256
    Frogsauce

    #256
    Frogsauce [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    764
    Gender:
    Male
    Chesapeake Bay
    Vehicle:
    16 TRD Offroad
    I see what your asking, yes it is the middle numbers you should be concerned with. Your's are fine. The best approach is to try to get 1 and 40 as close as possible. But at 1.5 or lower you are fine.

    I believe the numbers on the top are telling you the % of reflected power. (e.g. 10 would be 100% reflected, and 4 would be 40%). This is just extra info.

    The numbers on the very bottom are for measuring field strength, which is unimportant when setting up a standard CB rig. Plus, it takes two people and a static location to properly measure. Since trucks move around, it is impractical.

    Frogsauce, Jan 23, 2014
    #256
  17. Jan 23, 2014 at 9:44 AM
    #257
    PS78

    #257
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread

    thanks a lot buddy, im going to adjust the firestik slightly shorter and try and get the ch 1 and ch 40 SWR reading closer together and a bit lower, but yeah it should be fine where its at too.

    Thanks again!!

    PS78, Jan 23, 2014
    #257
  18. Jan 24, 2014 at 12:43 PM
    #258
    WTFaulkner

    #258
    WTFaulkner Well-Known Member

    Joined:
    Sep 23, 2012
    Member:
    #87546
    Messages:
    835
    Gender:
    Male
    First Name:
    Kris
    SLC
    Vehicle:
    Tacoma
    Stuff
    WTFaulkner, Jan 24, 2014
    #258
  19. Jan 24, 2014 at 1:00 PM
    #259
    headhunter247

    #259
    headhunter247 Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,422
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    18 Taco Double Cab TRD
    5100's all around, OME 888 and Dakars. ProComp Series 05. Cooper SST Maxx 275s.
    That's what I have. Nice radio, not too big, and does the trick.

    headhunter247, Jan 24, 2014
    #259
  20. Jan 24, 2014 at 1:02 PM
    #260
    PS78

    #260
    PS78 I like beer, I brew beer!

    Joined:
    Jun 10, 2011
    Member:
    #58057
    Messages:
    6,471
    Gender:
    Male
    First Name:
    Rancher
    Vehicle:
    2011 DCSB TRD OR
    to many to list, check the build thread
    PS78, Jan 24, 2014
    #260
Page 13 of 22
To Top
