CB Radio Information and Installation

Discussion in 'Audio & Video' started by Frogsauce, Jun 2, 2013.

  1. Apr 2, 2014 at 10:53 PM
    #301
    uncleART

    uncleART Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR

    Yeah - it's just that last summer, I found myself driving under downed trees quite a bit - where someone had already cut a tunnel thru the branches. I was clearing the trunks with inches to about a foot to spare.

  2. Apr 17, 2014 at 4:58 PM
    #302
    Vanguard

    Vanguard Re-Member

    Joined:
    May 31, 2013
    Member:
    #105340
    Messages:
    1,078
    Gender:
    Male
    First Name:
    Brooks
    Kailua, Hawaii
    Vehicle:
    Bad Ass
    Icon Extended C/O's non resi, OME 60091/Dakar Leaf Pack, All Pro U-bolt Flip, Timberens, 17" SR8's, 285/70/17 Duratracs, AFE Stage II Intake, Magnaflow Cat back w/Resonator, BHLM, Grillcraft, 15/5 Tint, All-Pro HD Sliders @10 degr, OEM Roof Racks, TRD Skid Plate, Wet Okole's, Scan guage II, Optima Yellow
    sub'd for future

  3. Apr 22, 2014 at 8:49 PM
    #303
    Li0nel1234

    Li0nel1234 Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118634
    Messages:
    395
    Gender:
    Male
    First Name:
    Lionel
    Denver
    Vehicle:
    14 TRD OR DCSB SSM
    So how do I connect my antenna to my cb box?

    I have a firestick 4'
    [​IMG]

    and this mount for my hood mount
    [​IMG]

    And this coax cable
    [​IMG]

    but it has two of those coupling ends and my mount for the antenna doesn't have a reciprocating piece...

    I'm not good at wiring things.

  4. Apr 22, 2014 at 8:51 PM
    #304
    Sloth

    Sloth Baby Ruth?

    Joined:
    Nov 16, 2012
    Member:
    #91263
    Messages:
    5,731
    Gender:
    Male
    First Name:
    Seth
    Peoples Republic of Massachusetts
    Vehicle:
    07 FJ Cruiser
    You got the wrong mount. You need a mount that the coax will just screw into..That mount looks like a fire ring type mount

  5. Apr 22, 2014 at 8:52 PM
    #305
    RevAdam

    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 2M70CM, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks.
  6. Apr 22, 2014 at 8:54 PM
    #306
    Li0nel1234

    Li0nel1234 Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118634
    Messages:
    395
    Gender:
    Male
    First Name:
    Lionel
    Denver
    Vehicle:
    14 TRD OR DCSB SSM
    I think I needed to order this:
    [​IMG]

    Ooops.

  7. Apr 22, 2014 at 8:56 PM
    #307
    Li0nel1234

    Li0nel1234 Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118634
    Messages:
    395
    Gender:
    Male
    First Name:
    Lionel
    Denver
    Vehicle:
    14 TRD OR DCSB SSM
    Can I do this to my coax:
    [​IMG]
    And get this setup to work?

  8. Apr 22, 2014 at 9:03 PM
    #308
    Sloth

    Sloth Baby Ruth?

    Joined:
    Nov 16, 2012
    Member:
    #91263
    Messages:
    5,731
    Gender:
    Male
    First Name:
    Seth
    Peoples Republic of Massachusetts
    Vehicle:
    07 FJ Cruiser
    This is what you need

  9. Apr 23, 2014 at 3:51 AM
    #309
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    3,593
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Yes. Use some sealant where the wires come out of the outer jacket.

  10. Apr 23, 2014 at 12:33 PM
    #310
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    6,307
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.

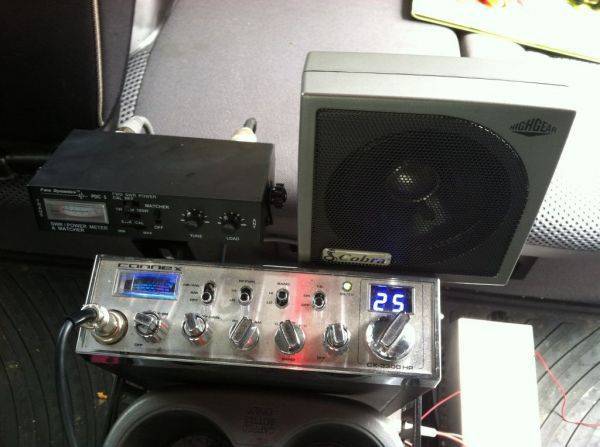

    Did some rearranging today.

    [​IMG]

  11. Apr 23, 2014 at 2:00 PM
    #311
    skygear

    skygear           

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,547
    Gender:
    Male
    I never ended up tuning my Cobra antenna. Think I blew it up. Cannot receive anything! No static or anything.

  12. Apr 24, 2014 at 9:27 AM
    #312
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    3,593
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    What happens if you open the squelch? even if you TX with no antenna it should still receive even if you cooked the finals in the radio provided you didn't let all the smoke out. Transmitting into a badly tuned antenna will not hurt the antenna but it will damage the radio.

  13. Apr 25, 2014 at 8:14 AM
    #313
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Cool.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    '12 TRD Sport DCSB 4X4
    Click My Sig Homie
    Anyone mount a Wilson 1000 to the relentless hood mount? Imma go look at one today and see if you can just curious. I have the Firestik but can't get SWR below 1.8 plus it bangs like hell on limbs

    Last edited: Apr 25, 2014
  14. Apr 25, 2014 at 8:45 AM
    #314
    RevAdam

    RevAdam Impressive Member

    Joined:
    Aug 17, 2011
    Member:
    #61854
    Messages:
    1,082
    Gender:
    Male
    First Name:
    Adam
    Upstate SC
    Vehicle:
    11 TRD OR 4x4
    Icom 5100 2M70CM, Baja Rack, Kenwood 6980, ARB Bull Bar, Lightforce HID lights, Warn winch, LED lights, 5100s, Switchbacks.
    Is the antenna electrically long or short?

  15. Apr 25, 2014 at 8:45 AM
    #315
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    6,307
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    What type of Wilson 1000? The trucker is the only one I know that will screw Ito a stud mount.

  16. Apr 25, 2014 at 8:46 AM
    #316
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Cool.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    '12 TRD Sport DCSB 4X4
    Click My Sig Homie
    Same 1.8 1/40, dips to 1.6 at 19, I really don't "mind" that as much as the antenna itself going crazy in wind and off trees bouncing around ecerywhere

  17. Apr 25, 2014 at 8:47 AM
    #317
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Cool.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    '12 TRD Sport DCSB 4X4
    Click My Sig Homie

    I don't know yet, I'll find out in about an hour and met you know

  18. Apr 25, 2014 at 9:27 AM
    #318
    Bsheriff11

    Bsheriff11 Remember Your ABC's. Always. Be. Cool.

    Joined:
    Apr 6, 2013
    Member:
    #101499
    Messages:
    2,435
    Gender:
    Male
    First Name:
    Brandon
    Virginia livin', South Carolina raised
    Vehicle:
    '12 TRD Sport DCSB 4X4
    Click My Sig Homie
    It fits, but can't open the hood lol, I kept it anyway and will do a bracket mount off the side I guess

  19. Apr 25, 2014 at 4:48 PM
    #319
    uncleART

    uncleART Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #103994
    Messages:
    1,238
    Gender:
    Male
    First Name:
    Arty
    Bothell, WA
    Vehicle:
    13 MGM DCLB Sport
    DeBadged, Toyota Bedmat, TRD exhaust, Window tint 30%, DeFlapped the front, Bilstein 5100s, Toytec coil overs, Dakar leafs, LR UCAs, SwayBar relocate, TRD Offroad tow hook, RotoPax, Bora wheel spacers, DeFlapped the rear, Tailgate mod, CBI receiver shackle w/ Bolt Hitch Pin, Goodyear Duratrac 285/70-17, Weathertech Floor Liners, Spare tire mod, UWS toolbox with Bolt Latch Retrofit, Rear Diff vent relocated, Blacked-out grill emblem, Toolbox Bedrail mod, Trailer Plug relocated, Back-Up light mod, ECGS bushing, Redline Hood Struts, Leer 100XR
    If it's mounted to the hood, then you'll need to run a separate ground to the frame. The hood hinge is not a good ground. This will get your SWR down.

  20. May 4, 2014 at 8:02 PM
    #320
    happyjack87

    happyjack87 Active Member

    Joined:
    Nov 7, 2011
    Member:
    #66663
    Messages:
    31
    Gender:
    Male
    WA
    Vehicle:
    2011 DCSB TRD 4x4
    Husky Liner Mud Flaps Pace Jackrabbit Tonneau
    Good thread for future use.
