CB Radio Information and Installation

Discussion in 'Audio & Video' started by Frogsauce, Jun 2, 2013.

  1. Jun 5, 2013 at 6:39 AM
    #21
    w00dy

    w00dy Hey Now!

    Joined:
    Nov 7, 2009
    Member:
    #25556
    Messages:
    1,946
    Gender:
    Male
    First Name:
    Jeff
    North of the Wall
    Vehicle:
    03 dCab tURD
    BAMF kick out sliders, SkidRow skids,Pro Comp 7069, Kelly Safari TSR 285's, Elite front bumpa, OME 883 & Dakars w/ D6XL AAL, Nitro sport shocks, Eddie209 Soft topper, Satoshi, k&n fipk, Clarion vx400, Ultra Gauge, Debadgination mod
    Excellent write up! I subbed this for future reference.

  2. Jun 5, 2013 at 6:43 AM
    #22
    HIYota

    HIYota Well-Known Member

    Joined:
    Apr 12, 2011
    Member:
    #54813
    Messages:
    1,525
    Gender:
    Male
    First Name:
    Angel
    Key West, FL originally Kauai, HI
    Vehicle:
    09 Silver 6 spd TRD Sport DCSB 4x4
    Fox 2.5 ext travel coilovers w/700# King Coils, Desert Products uniball UCAs, AllPro 3" leafs, Fox rear resi's, ext brake lines, Weathertech digifits front and back, B.A.M.F. sliders & LCA skids, full set of ATO skids, Aero Turbine 2525XL, LED dome, map and license plate lights, URD Short Throw Shifter, Brute Force Fab front plate bumper, Satoshi, BlueInstinct console and door handle covers, TRS D2S HID retrofit, aFe Pro dry-s air filter, TonnoPro Tonneau cover, Pop&Lock, Yellow wire mod, Wet Okole seat covers, 17" SCS SR8 rims, more to come.
    Nice write up! I started having flashbacks to training I had at work when I read "radio signal propagation".

  3. Jun 5, 2013 at 6:44 AM
    #23
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    7,570
    Gender:
    Male
    Easton
    Vehicle:
    2015 Jeep Wrangler Sahara
    Ok now I am confused. So what is the better cable for the antenna

  4. Jun 5, 2013 at 7:01 AM
    #24
    SoCaltaco65

    SoCaltaco65 Well-Known Member

    Joined:
    May 10, 2011
    Member:
    #56389
    Messages:
    6,939
    Gender:
    Male
    Vehicle:
    2011 DCSB 4x4 Offroad TRD
    Harbor Freight 110v welder garage fab parts.
    Not a bad write up, although there are a few holes in it.

    Questions about Coax: Best by far 400max http://www.dxengineering.com/parts/dxe-400max


    Space concern and a good performer: rg8x http://www.dxengineering.com/parts/dxe-8x


    I use 400 max for HF and CB, while VHF and UHF rg8x, I also only run 7 feet(HF/CB) of with no SWR issues ( I am not using off the self antennas)

    Firestick did that write up because of inefficiencies in there antennas and attempting to catch a null in the wave in order to gain favorable SWR.

    Likewise Coax selection for mobile use and noise is very difficult to say will make a difference as you are not Earth ground nor are most CB's on the market filtered to compensate for Vehicle devices.

    Last edited: Jun 5, 2013
  5. Jun 5, 2013 at 7:07 AM
    #25
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    7,255
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    Mini-8 is fine for most mobile set-ups as long as there is no extra power involved. Once you add power it is inferior and must be upgraded. The problem with mini-8 is it really isn't regulated so there is some really low quality stuff out there. Don't skimp on the antenna and the coax and you will be fine.

  6. Jun 5, 2013 at 7:09 AM
    #26
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    7,570
    Gender:
    Male
    Easton
    Vehicle:
    2015 Jeep Wrangler Sahara
  7. Jun 5, 2013 at 7:41 AM
    #27
    Frogsauce

    Frogsauce [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    ^ He's got it.

    I had actually used RG8X for the antenna and power.

    RG8X is not much more expensive and is good quality. For a usual CB application, RG8X is fine. I updated that section in the write-up.

    Last edited: Jun 5, 2013
  8. Jun 5, 2013 at 7:46 AM
    #28
    Frogsauce

    Frogsauce [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    I grounded it to a screw below the tail light. It's hard to see the bolt I used in the picture (Section 7), but it's the red wire coming out of the tail light and anchored to the bolt on the left side of the picture.

    Where ever you decide, make sure it is grounded to the frame for the best ground.

  9. Jun 5, 2013 at 7:56 AM
    #29
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    7,255
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    RG8X is Mini-8. RG8U is a better coax. There are a shit ton of different types just depends on how involved you want to get and how well you want your set-up to perform.

    This calculator has a ton of good info on coax....

    http://www.timesmicrowave.com/cgi-bin/calculate.pl

  10. Jun 5, 2013 at 8:22 AM
    #30
    Frogsauce

    Frogsauce [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    Oh, I didn't realize they were one in the same. Thanks!

  11. Jun 5, 2013 at 9:48 AM
    #31
    64Wildcat

    64Wildcat Ancient or so i'm told

    Joined:
    May 17, 2009
    Member:
    #17334
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Denis
    MA
    Vehicle:
    2010 Tundra Off Road
    Thanks Chris, i'm going to ground to the frame,i just wasn't sure where the antenna itself was grounded.

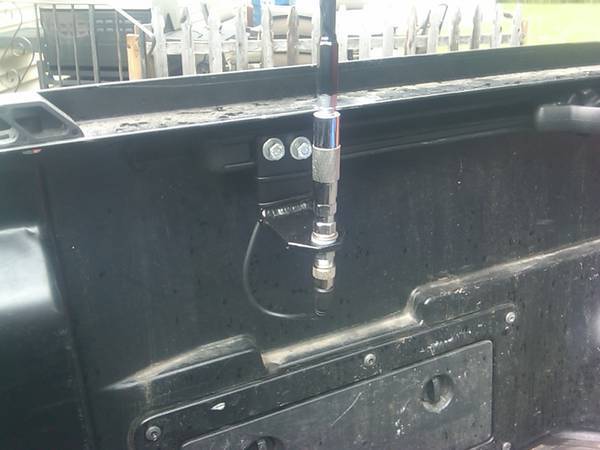

    This is the mount i made.
    [​IMG]

  12. Jun 5, 2013 at 9:51 AM
    #32
    TacoFMS

    TacoFMS My turn.

    Joined:
    Jan 24, 2010
    Member:
    #29938
    Messages:
    4,209
    Gender:
    Male
    First Name:
    Justin
    Louisa County, VA
    Vehicle:
    just another grocery getter
    crushed goldfish crackers & spilled apple juice
    sorry for the noob question but i have a 3 ft tuneable firestik II and i have no clue how to ground the antenna??? how do you just ground the antenna and not the mount? it will be mounted on one of relentless fabs hood cb mounts.

  13. Jun 5, 2013 at 10:07 AM
    #33
    Frogsauce

    Frogsauce [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    Very nice.

    What kind of antenna do you have? It may not be grounded the same as mine. I used a Wilson 4' flex.

  14. Jun 5, 2013 at 11:24 AM
    #34
    64Wildcat

    64Wildcat Ancient or so i'm told

    Joined:
    May 17, 2009
    Member:
    #17334
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Denis
    MA
    Vehicle:
    2010 Tundra Off Road
    3' Firestik

  15. Jun 5, 2013 at 11:50 AM
    #35
    Frogsauce

    Frogsauce [OP] Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104546
    Messages:
    513
    Gender:
    Male
    First Name:
    Chris
    Chesapeake Bay
    Vehicle:
    09 TRD Offroad
    Billies + AAL, Breather housing mod, TruXport Tonneau Cover, Custom Wood Rear Seat Extender, Firestone Dest A/T's, Swing Case
    You guys may have the No Ground Plane (NGP) antennas. These do not require grounding. Try looking up your exact model and see if it says No Ground Plane or NGP. I think the Firestik II is not a NGP though.

    If it's not an NGP antenna, then you will need to make sure the mount itself is grounded. You can run a wire from the mount to a location on your truck that connects to the frame (or directly to the frame). Just make sure whatever you attach to, it's not painted. You can use a continuity tester to determine if your grounded or not. Or look at your SWR reading, it will be way over 2.

    Something like this:
    [​IMG]

    Last edited: Jun 5, 2013
  16. Jun 5, 2013 at 11:56 AM
    #36
    TacoFMS

    TacoFMS My turn.

    Joined:
    Jan 24, 2010
    Member:
    #29938
    Messages:
    4,209
    Gender:
    Male
    First Name:
    Justin
    Louisa County, VA
    Vehicle:
    just another grocery getter
    crushed goldfish crackers & spilled apple juice
    so if i just put the mount from relentless on wouldnt the mount already be grounded? i mean since it uses the bolts that hold your hood on to mount it? or am i wrong?

  17. Jun 5, 2013 at 12:15 PM
    #37
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,311
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I have a 3' NGP Firestik mounted in the front drivers corner of my bed. I am getting High SWR, any suggestions?

  18. Jun 5, 2013 at 12:24 PM
    #38
    LUSETACO

    LUSETACO Central Scrutinizer

    Joined:
    Jun 27, 2009
    Member:
    #18991
    Messages:
    7,255
    Gender:
    Male
    First Name:
    Dennis
    Aim-ish country PA
    Vehicle:
    08 TRD OFFROAD 6spd
    FM 10 series, K&N 63 series intake, 5100's at 2.5, TSB springs, Connex 3300HP,Fat Boy 2 pill, Wilson 1000, Dual ammo cans, Cue ball shifter, color matched bumper, Homeroshi grill, car seat mod, Hella triple tone air horns, AVS vent visors, Debadged, Deflapped, Custom painted eyelids and third brake light, Custom radio antenna , Rugged Cover, Husky mats, yellow fogs, Warn shackle, 265/75 16 Trail Diggers, American Racing wheels, Rugged T bedside decals, Ultra Gauge, too much homemade stuff to list.
    Yeah, ditch the NGP Firestik. I had one and it was crap, could never get my SWR down low enough.

  19. Jun 5, 2013 at 12:25 PM
    #39
    Sandman614

    Sandman614 LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    9,311
    Gender:
    Male
    Boone, NC\Cary, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yea, I see the roof mount in your sig. I'm not going there.

    I'm curious if a GP antenna in the same location would be any better.

  20. Jun 5, 2013 at 12:34 PM
    #40
    TacoFMS

    TacoFMS My turn.

    Joined:
    Jan 24, 2010
    Member:
    #29938
    Messages:
    4,209
    Gender:
    Male
    First Name:
    Justin
    Louisa County, VA
    Vehicle:
    just another grocery getter
    crushed goldfish crackers & spilled apple juice
    ok so i looked up the part number on my antenna and it is a firestik II with a part number of FS3-b.... so im guessing its not an NGP antenna then???
