CBI high clearance with swing arm

If you get bored can take a couple measurements for me?

I'm curious how wide it is at the front of the bumper where it meets the wheel well. Also how long the side plates are. I have fiberglass bedsides and wonder how well they'd work. If at all.



At the corners its 76.5" wide
And the high clearance plates are 31"



Im from Los Banos



I know this doesn't help you sell it, but I really wish this would fit my truck. I think my bedsides are too wide.



great deal @ 2k. Especially no wait time. I have their non-swing HC on order and I would have pony'ed up a little more for yours (local+ASAP). I just didn't need all the do-dads. GLWS



I must fight the urge, Daddy want soo bad! I'm moving the family to Washington state on 6/28 if you still have it at that point I may make an offer.



Another Price drop! Someone is gonna save a good amount of$



wish this was a second gen bumper. Good luck with the sale



Damn. I need to go measure my truck again. I really want this.

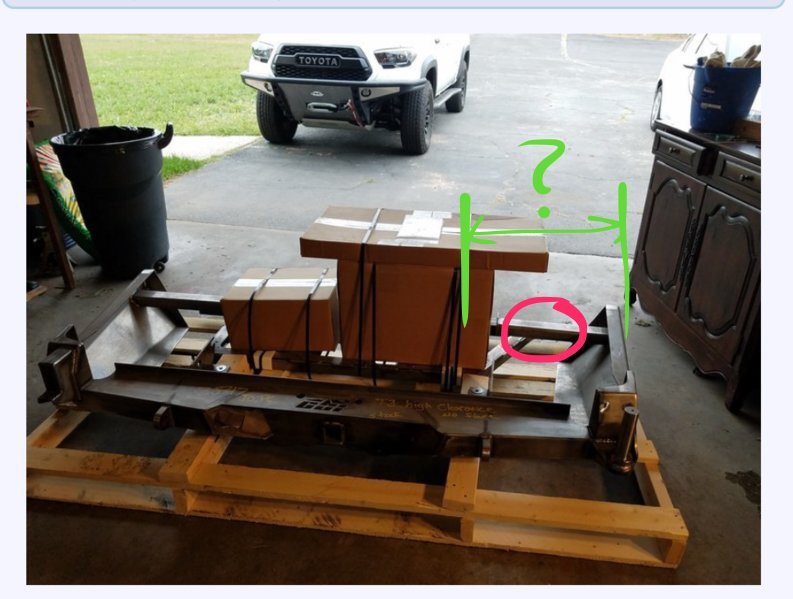

If you are bored and want to measure can you measure this. Is that thing I circled a frame mount? If it is how far from the frame mount is it to the outside of the plate. Like in the drawing.



17.5 inches

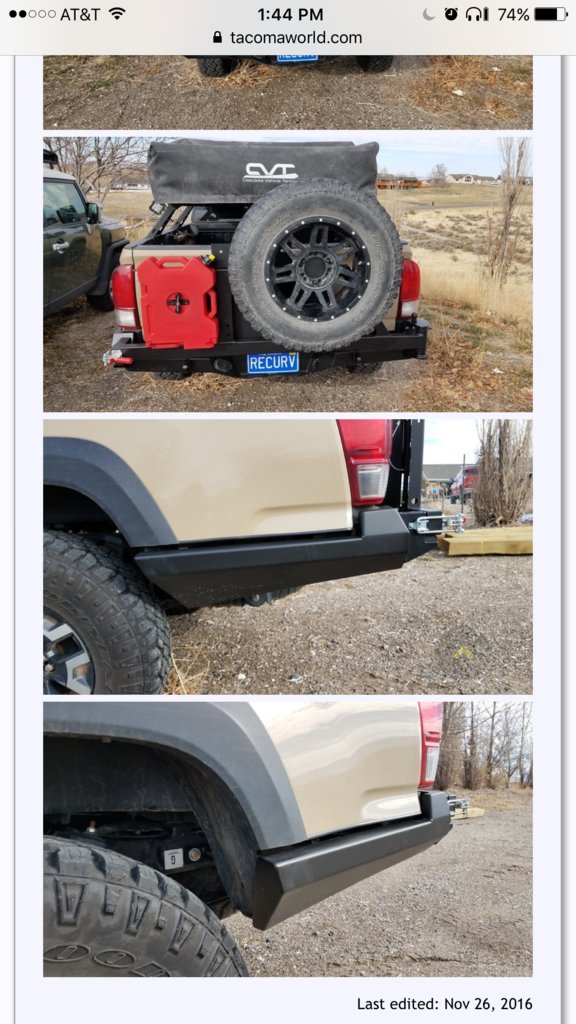

Are there any pictures anywhere of this thing installed? It's not on their site. The one picture I did find (posted below) definitely isn't that one.

I'm going to do some measuring when I get home. I'm looking for a pic so I can see how those side pieces fit. To see how they'll work with my bedsides.



^ I'm pretty sure that is the same one as OP has for sale



I hope so. I'm pretty sure I can make that work!



do it!!! you will be super happy with it!



The difference between the o e picturedand the one I have for sale are the attachments. Mine has the 2 jerry can and high lift mount options. The one pictured looks to have Roto pack option



Oh that's good then. The only thing I'm concerned with are the side pieces and how they'll line up. The rest is exactly what I need.

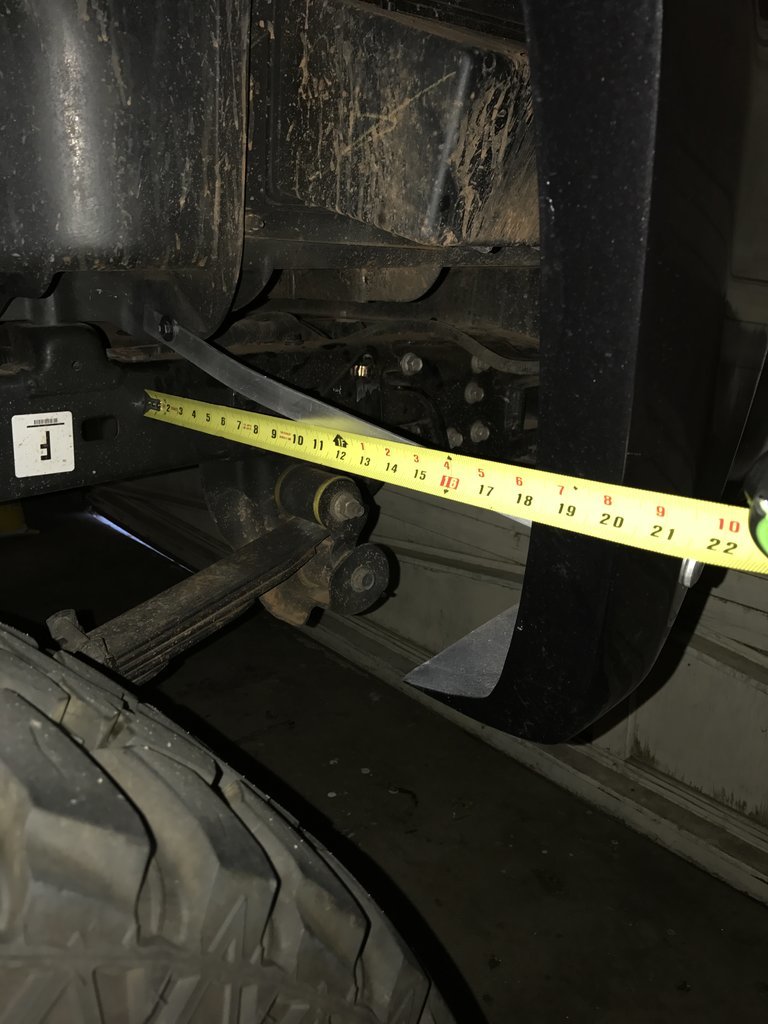

So what do you think. Here is what I have. The frame to fender is around 20". I know you measured less than that but check where you measured just in case.

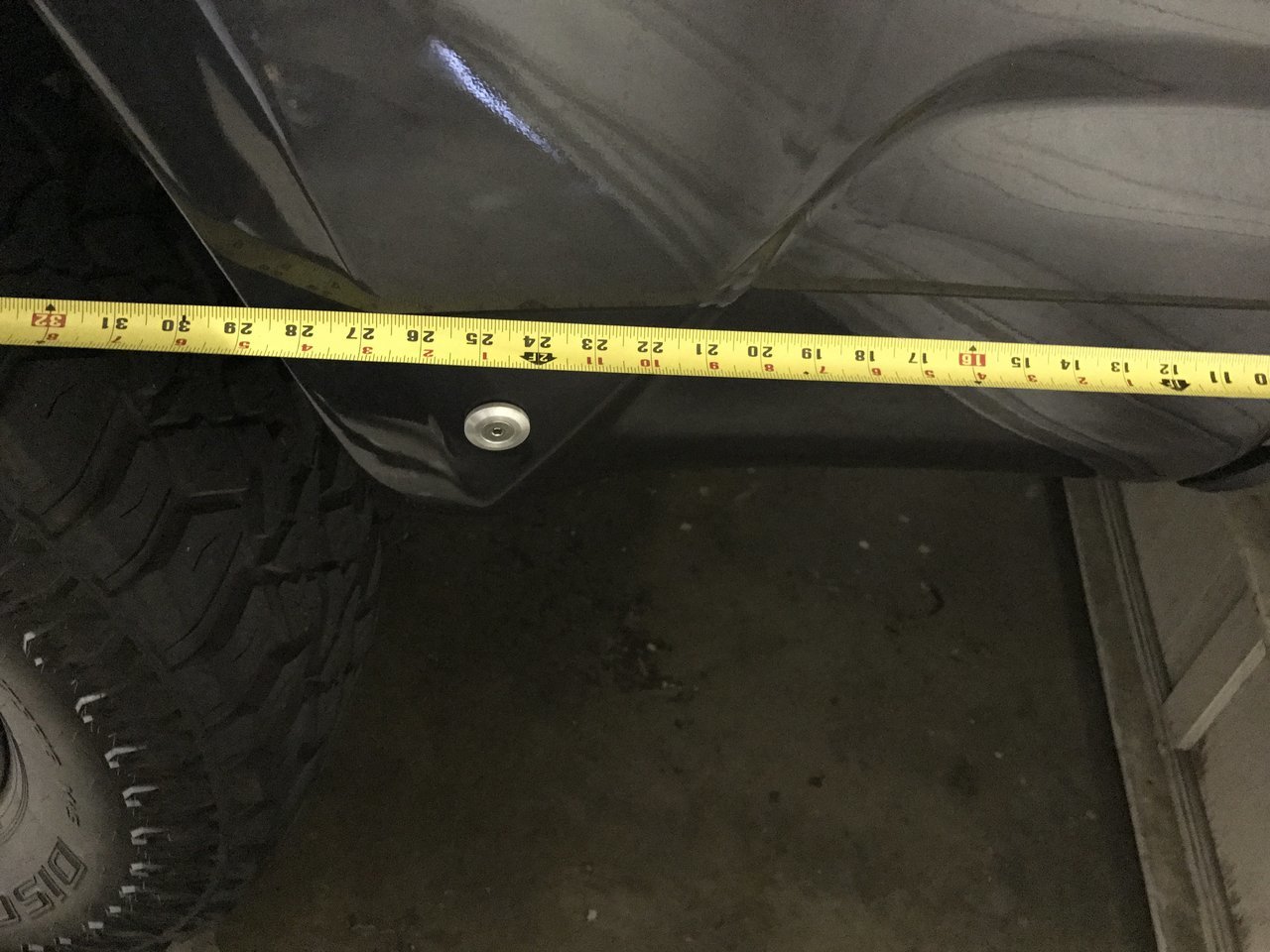

Next my bumper to wheel opening is 29ish. I tried to get as close as I could to the back of the bumper. Kind of hard alone though.



Somethings not adding up.
I just measured OEM frame to outside fender and it was 17.5".
Going off that picture on the quicksand it looks as if the bumper comes out another 1-2". Which would put it ~19ish.
OP double check measurements?



I'm banking on that extra width!
