Ceiling fan install

Discussion in 'Garage / Workshop' started by TacomaArto, Jul 2, 2016.

  1. Jul 2, 2016 at 11:57 AM
    #1
    TacomaArto

    TacomaArto [OP] Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    728
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5

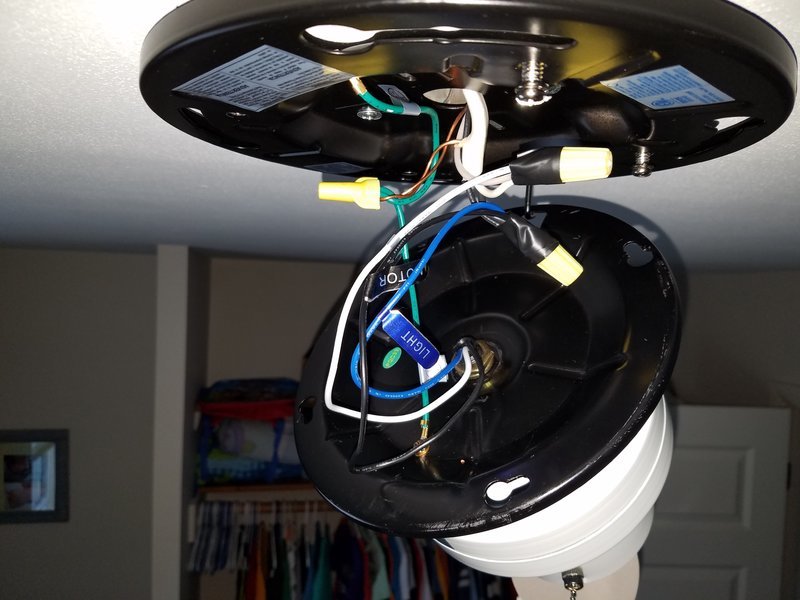

    Ok. So I am no electrical wizard by any means, but I have done many ceiling fan/light fixture installs in our homes.

    And today I got around to installing the boys ceiling fans. 1st one went just fine. No issues. 2nd one I finish everything, restore power to his room with switch in down/off position. I get back up to his room after flipping breaker on and see his fan spinning? How is that possible? Go back down to basement and the breaker is tripped. For fun I flip it back on and it instapops off again.

    I go up and start to isolate by removing just the lights. Restore breaker and come up stairs to find switch in off position and blades spinning. At this point I figure I must have been spacing out and not tied the blue wire to the other hot wires. Well, Idisassemble the whole fan (annoying) and my wiring is correct...

    Mind you I didn't pay special attention to the old fixtures wiring I just undid it all fast. Is it possible they had some weird wiring Ishould have noted?

    Any help is appreciated.

    [​IMG]

  2. Jul 2, 2016 at 2:54 PM
    #2
    Maticuno

    Maticuno Resident Pine Swine

    Joined:
    May 26, 2011
    Member:
    #57287
    Messages:
    3,812
    Gender:
    Male
    California High Deserts
    Vehicle:
    2011 Suburban 2500
    JBA Shorty Headers, Flowmaster FlowFX Sing/Dual Exhaust
    Why does it look like there are two black wires coming from the house wiring (Romex) on the top? Am I seeing that wrong? Is there more than one switch in the room? If so, one switch is meant to turn on the light and one switch is meant to turn on the fan, so they need to be hooked up separately.

    tcBob likes this.
  3. Jul 2, 2016 at 4:35 PM
    #3
    TacomaArto

    TacomaArto [OP] Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    728
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    Only 1 switch in the bedroom. There is white,black, ground passing thru. It seems the light fixture simply tapped into it. Does that make sense?

    I just can't believe I have an issue. It must have been weird funky....lesson learned

  4. Jul 2, 2016 at 5:37 PM
    #4
    OdinBow

    OdinBow Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    Looks like you may have two ckts running through one box. Are both hots dead when you kill the breaker? Most ceiling fans are 3 wire. Two hots and one neutral - thing is you would normally have two switches - one for each hot.


    Get your tester out and see what is what starting at the switch. Figure out what is coming from the panel then connect. If only one switch in the room you will have to cap one hot from the switch and use the chains to turn on/off what you want.

    Sounds to me like they tried to wire it for two switches but only gave you one.

  5. Jul 3, 2016 at 6:24 AM
    #5
    TacomaArto

    TacomaArto [OP] Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    728
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    I should add, all that was there previously was a light fixture. And all the wires were wire nut together when I took old fixture down, but I didn't pay attention to them so I was questioning if they had something wired in a weird way.

    We were at a birthday party last night, but I am gonna dig into this after breakfast now.

  6. Jul 7, 2016 at 4:40 PM
    #6
    File IFR

    File IFR "... Intercepting The Localizer"

    Joined:
    Mar 4, 2012
    Member:
    #74145
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Mike
    Central MA
    Vehicle:
    2012 MGM 4X4 DC-LB TRD Sport
    What hot wire is the line/load? Did you change the switch?.... Is the fixture powered at the light or from the switch? Pic of the switch wires...... single romex or (black and neutral on a switch or tied neutrals with line/load to switch)?

  7. Jul 7, 2016 at 6:57 PM
    #7
    TacomaArto

    TacomaArto [OP] Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164541
    Messages:
    728
    Gender:
    Male
    Wisconsin
    Vehicle:
    2015 White DCSB SR5
    My bad. Forgot this was posted in 2 spots. Issue resolved. I killed power and tested/toned out all cables. There was a hot black wire up at light so I tied that to white towards the switch and then took the black from switch to rest of blacks at ceiling fan. Works perfect.

    Thank you for the help tho!

  8. Jul 7, 2016 at 7:32 PM
    #8
    OdinBow

    OdinBow Just an idiot out wandering around CO.

    Joined:
    Apr 17, 2016
    Member:
    #184540
    Messages:
    216
    Gender:
    Male
    First Name:
    Mitch Cumstein
    Erie, CO
    Vehicle:
    2011 Timberland Mica T|X Pro
    None, but willing to learn.
    o_O Sorry, but the neutral is for the circuit. You don't need a neutral on the switch. The switch only breaks the hot leg. Now you have a hot neutral (white wire). Yes it works but is a potential safety issue for an unsuspecting individual.
