Center Console/ Glove Box Light (auto on/off when opened)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by shane100700, Jul 2, 2011.

  1. Jul 2, 2011 at 4:32 PM
    #1
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    My version of an interior lights mod.

    I finally got around to wiring my glove box and center console with some lights. I went with amber to keep a stock look. I also decided to put a different spin on it and make both of my lights only come on when the glove box or center console is open and the headlights are on. I did a write up because I have not seen any with pressure switches before. If you did this and there is a write up I missed then I apologize. For the MANY people out there that have added lights to the inside of their trucks thank you for the wonderful write ups and ideas.There are too many to give credit to and there for do not claim to be the sole originator of this idea. You all shared so I will add to the knowledge base that is TacomaWorld!

    Every part I used I got from RadioShack, except for a few plastic washers and grommets I got from Lowes.

    Major parts used;

    Switches
    The link are the switches I bought however the picture on the website is not what they looked like.
    http://www.radioshack.com/product/index.jsp?productId=2062540&filterName=Type&filterValue=SPST

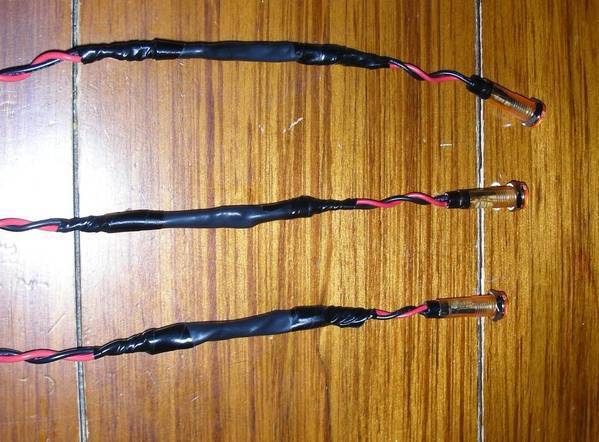

    LED's
    Extra lengths of wire soldered and shrink wrapped.

    [​IMG]

    http://www.radioshack.com/product/index.jsp?productId=2062570

    Inline fuse
    http://www.radioshack.com/product/index.jsp?productId=2102783

    Tap-In connectors
    http://www.radioshack.com/product/index.jsp?productId=2103500

    Various crip connectors
    I decided that because most of the areas are hard to get to, I would use a lot of crip connectors so that everything was easilly removed to replace LED's, check wires, or any other reason.


    Glove Box

    First the switches.

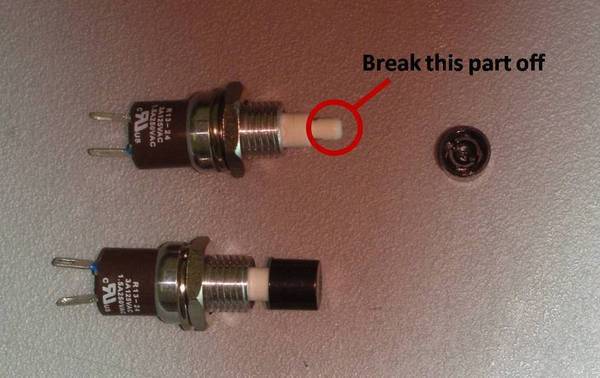

    These are both "momentary" "normally closed (NC)" switches. In order to make them smaller I took the cap off and broke part of the tip off (see pic below). Once broke I soldered extra lengths of wire to them and then shrink wrapped the ends.

    [​IMG]

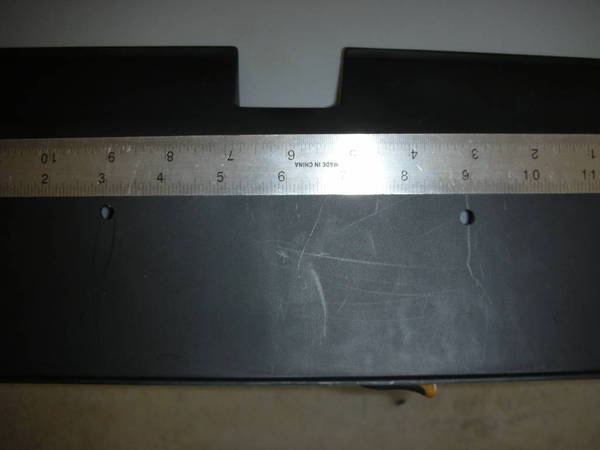

    Removed plastic trim above glove box. It is held on by two clips and one 10mm bolt. After that I drilled two holes for the LED's and one (not shown here) on the far left just below the rubber stop for the switch.

    [​IMG]

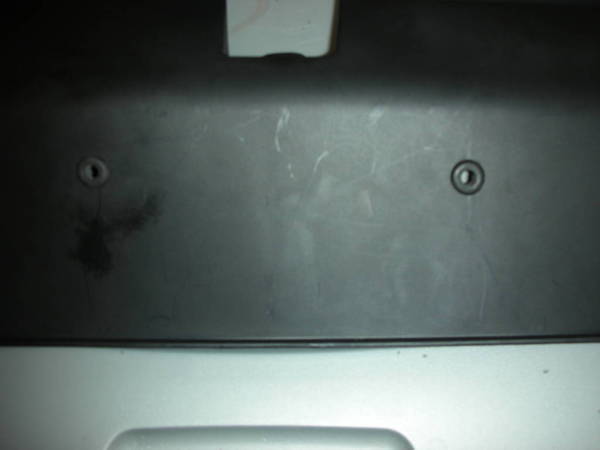

    Rubber grommets installed (more of a clean look).

    [​IMG]

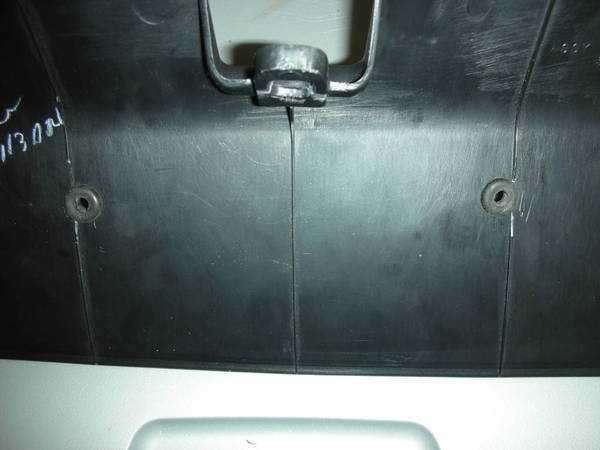

    I had to trim the back to so that the grommets would sit flush.

    [​IMG]

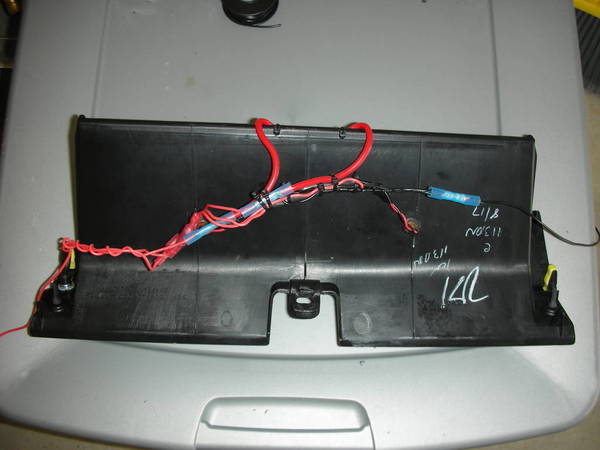

    Wire (nest?), the picture makes it look a little disorganized but I wanted all the wires to be tight together just in case I ran into clearance issues. Turns out there was plenty of room. Oh well, less chance of snaging a wire. I ran one lead of the switch to the fuse and the other to "both" pos wires on the LED's. I did'nt want to run them in series so that if one went out, the other would still work. The other end of the fuse went to the power source (shown below).

    [​IMG]

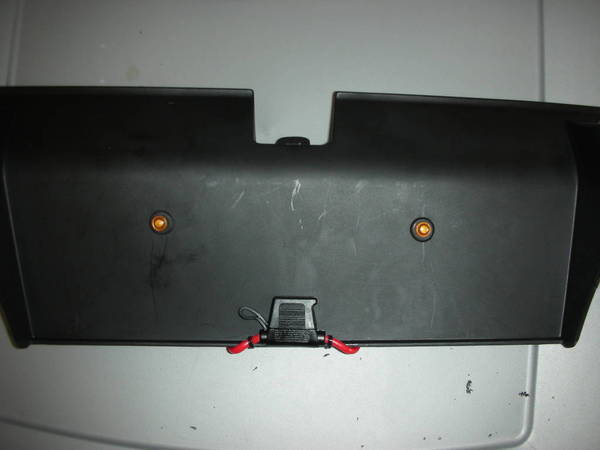

    Front view of the LED's and fuse (zip tied in place).

    [​IMG]

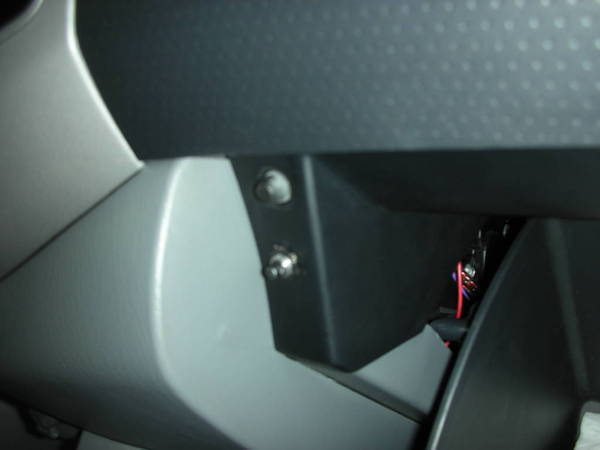

    Switch placement

    [​IMG]

    Additional view

    [​IMG]

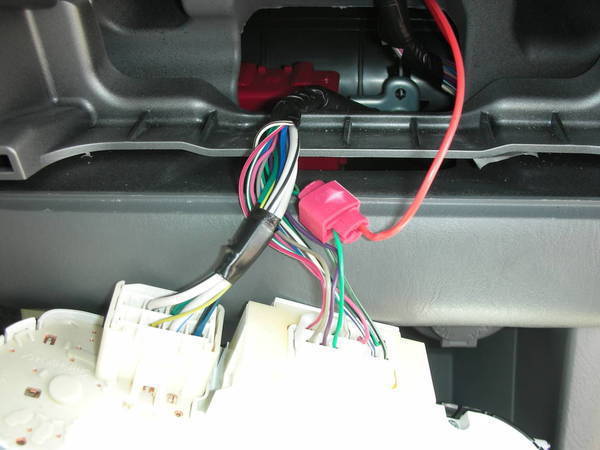

    Where I tapped for power on the climate control pannel. I would explain more but it is clearly seen in the picture.

    [​IMG]

    I grounded to this bolt (10mm) on the right side kick pannel.

    [​IMG]

    Center Console

    I used the same type of switch that was used on the glove box. To removed the center console (no pix), removed the carpet insert inside the console and removed the two 10mm bolts. Remove the two philips head screws under the plastic trim that covers the shifter. The trim piece just pulls off.

    Where I decided to place the switch. I used a small switch and this area was just the right size and was fully enclosed, meaning I wouldnt have to worry about hiding the wires. The switch took a little more abuse then I thought it would and still need to repaint both of them.

    [​IMG]

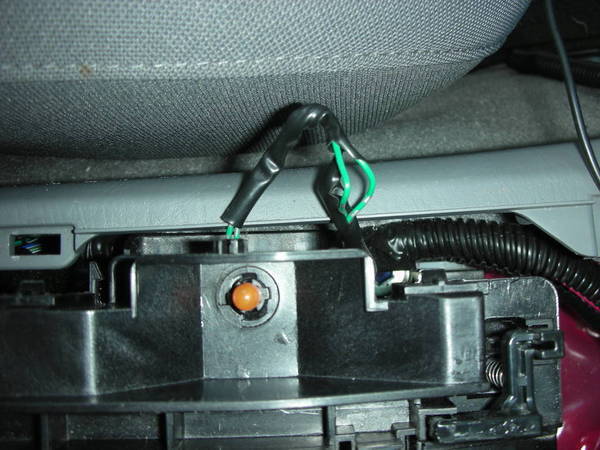

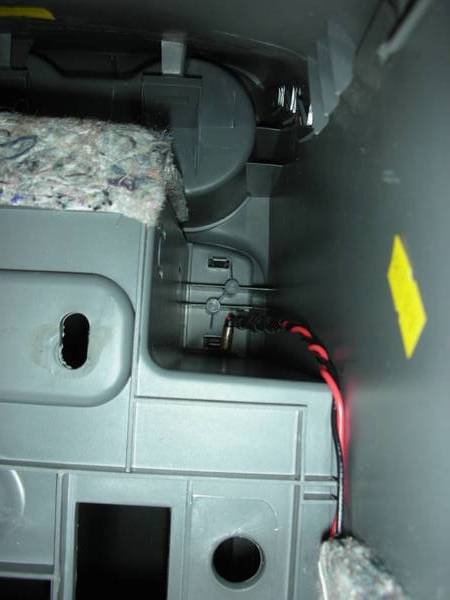

    Inside view of the switch.

    [​IMG]

    Additional view of the switch and LED

    [​IMG]

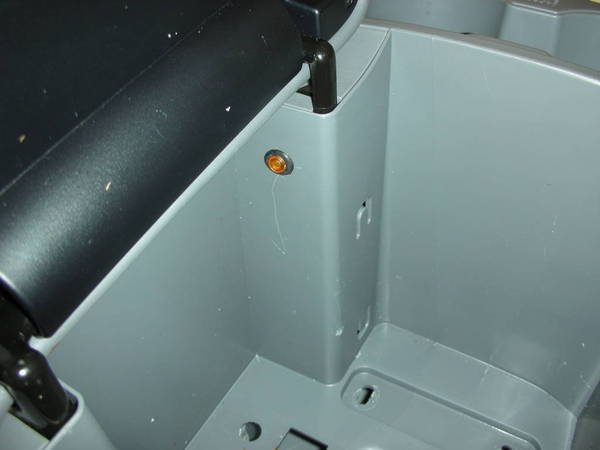

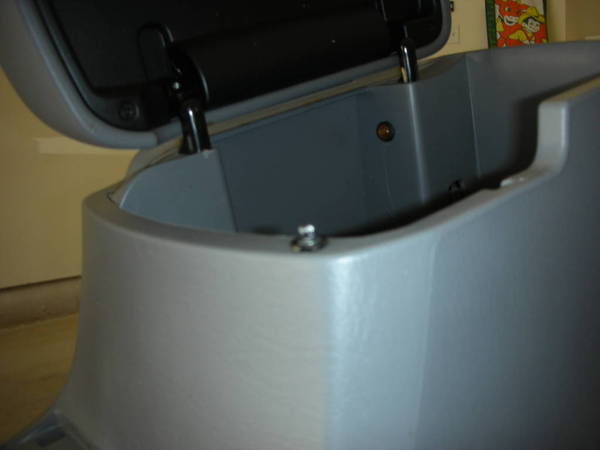

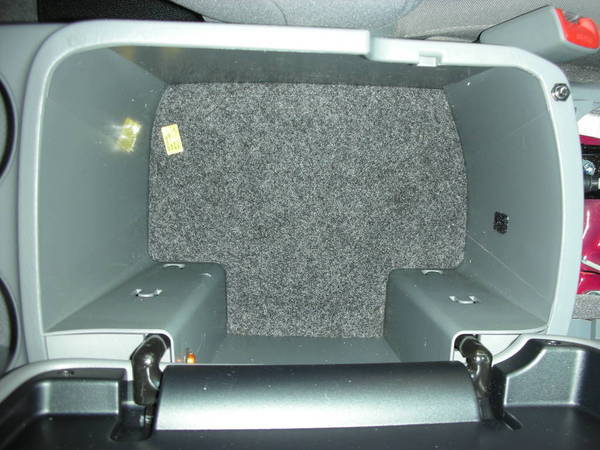

    Where I placed the single LED. I only wanted one light in the center console. Bright lights at night drive me crazy and if I wanted something brighter I will just use the overhead.

    BTW- It was a pain in the ass to drill here and even ended up scratching my console a little on the inside right below the LED. I used a right angle drill but it was still a tight fit. Even after using a punch and starting with a smaller bit, still had some jumping with the bits.

    [​IMG]

    Inside view of the LED

    [​IMG]

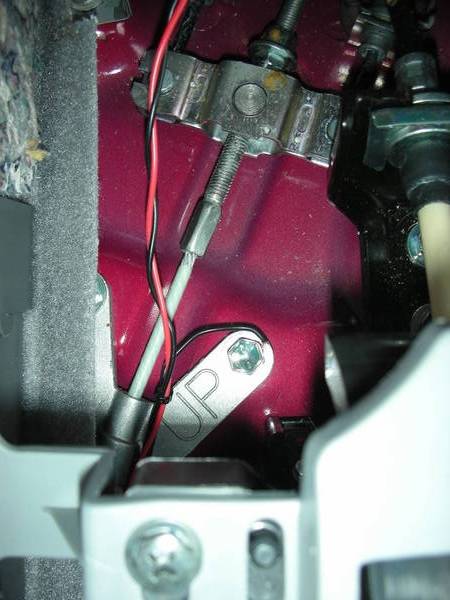

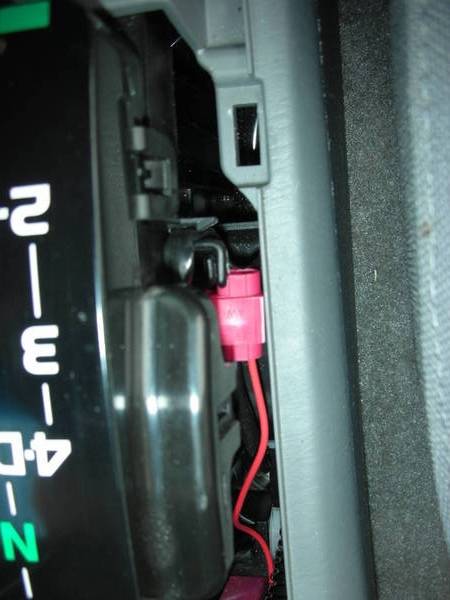

    This is where I tapped into power. I decided to go with the shift light so that I wouldnt have to take apart the rest of the console and it would be less distance. Removing the light is just a quarter turn and then it pushes out. I used some hook tools to remove the wire routing to make it easier.

    [​IMG]

    In this picture you can see the light replaced and wire routed back over the clip.

    [​IMG]

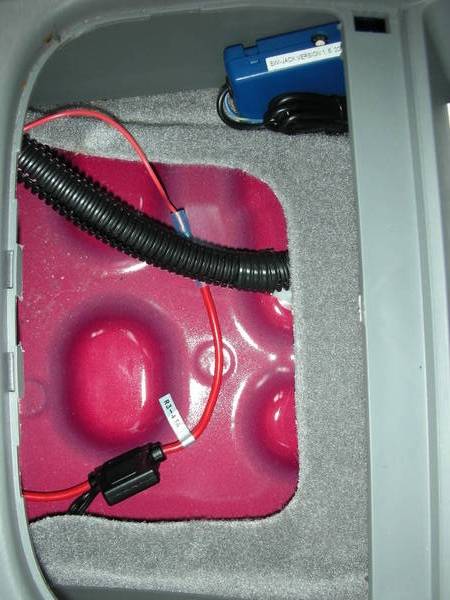

    I ran the fuse to the cup holder so that it would be easy to check and/or replace. It was run the same as the glove box.

    Power- fuse/fuse- switch/switch-LED

    [​IMG]

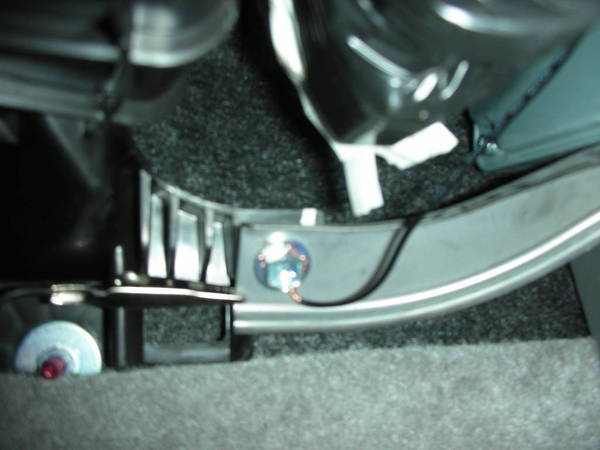

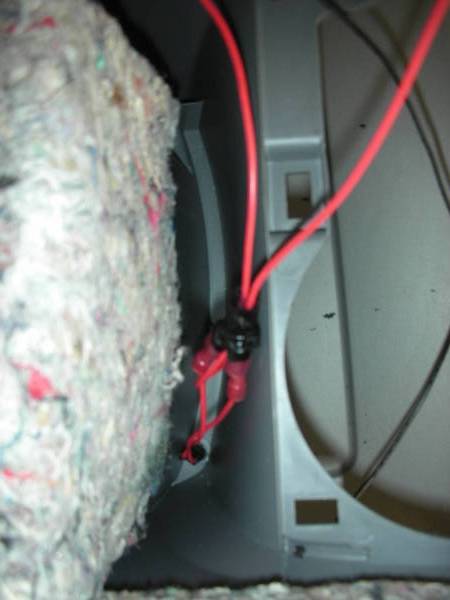

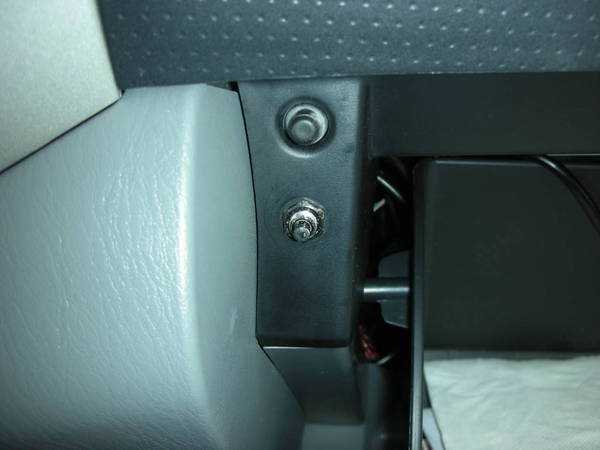

    Where I ran the ground, also a 10mm bolt.

    [​IMG]

    That is basically it. I still owe pictures at night but I wanted to keep it short and simple. Really a very easy mod. It took me about 3 hours but I took my time and did one to completion at a time. I also spent some extra time using a test light to decide where I wanted to tap in at. I took a lot of time testing at every phase of the wiring because it turns out I only had the exact number of connectors I needed. I thought I would have extra but actually cut it pretty close. If anyone has any questions feel free to comment or PM me.

    Again I give full credit to the multitude of others out there that have done this mod before me. The only change I made was possible some of the tie-in's and the addition of a push switch.

    Happy MOD'ing!

    -EDIT-

    Night pictures

    In retrospect I probably should have used two lights in the center console but it still works. It was only ment to grab something quick. If I need to look deeper or anything thats what the overhead is for. Sorry for the blurry pictures, I had to turn off my flash so the exposure rate was slow.

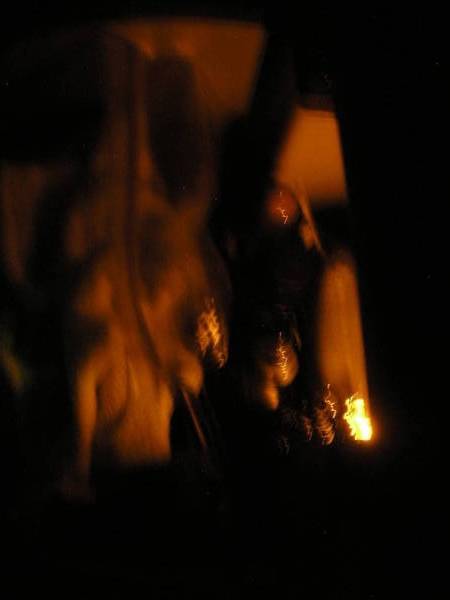

    Center console

    [​IMG]

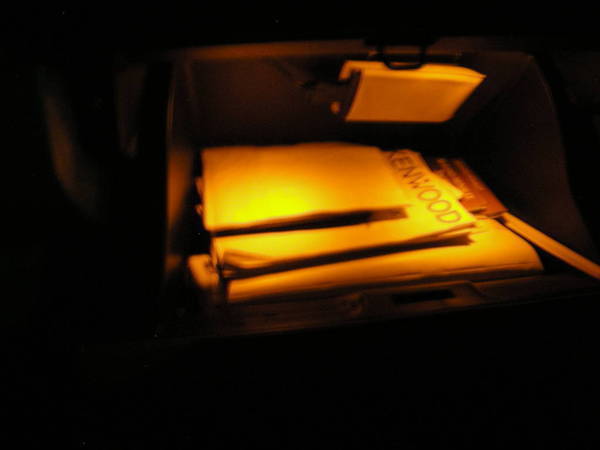

    Glove box

    [​IMG]

  2. Jul 2, 2011 at 4:42 PM
    #2
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    It's not dark out yet!! :D

  3. Jul 2, 2011 at 4:50 PM
    #3
    redezman

    redezman Well-Known Member

    Joined:
    May 1, 2010
    Member:
    #36325
    Messages:
    455
    Gender:
    Male
    First Name:
    Charles
    Raleigh N.C
    Vehicle:
    2012 4Runner SR5 4x4
    All Factory for now, LOVE it that way
    thx for the idea, i like the center console mod.

  4. Jul 2, 2011 at 4:58 PM
    #4
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    Thanks! Not a problem... I've stolen off write up's so figured it was only fair to do one of my own.

    It was more of a fuction thing to me. I tryed the megnetic lights, but it gets so hot here that nothing short of super glue would make them stay in place. I really dont know why the Tacoma didnt come stock with at least a glove box light! I'm too old for any of the other crazy light stuff so I kept it simple!

  5. Jul 2, 2011 at 6:35 PM
    #5
    wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,130
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    Great Mod, Thanks for the write up, I will do the same mod...

  6. Jul 2, 2011 at 6:50 PM
    #6
    Steves104x4

    Steves104x4 Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35468
    Messages:
    7,407
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2010 RC 2.7 4x4
    BUCKLE UP! It makes it harder for Aliens to pull you out of your Truck.
    Wow. That's nice.

    Steve

  7. Jul 2, 2011 at 6:52 PM
    #7
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    Thanks!

    BTW- That cows hot! :drool:

  8. Jul 3, 2011 at 4:10 PM
    #8
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    bump for "erazon"

  9. Jul 3, 2011 at 5:02 PM
    #9
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,594
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity
    Awsome. Very smart and clean

  10. Jul 3, 2011 at 5:46 PM
    #10
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    Thanks! I did steal the grommet idea though. It does leaves a more clean look. I tried to look up who I seen that do that before so I could give them credit but couldnt find the actual thread I was looking for.

  11. Jul 3, 2011 at 6:59 PM
    #11
    Bill in Ky

    Bill in Ky Well-Known Member

    Joined:
    Nov 6, 2007
    Member:
    #3384
    Messages:
    251
    Gender:
    Male
    Vehicle:
    Bright White 08 Reg 4X4 2.7 5spd SR5
    I got my first 4x4 in 1972...haven't been without one! I still like Chrome!
    Nice write up!
    I'm putting this mod on my list.

  12. Jul 3, 2011 at 7:28 PM
    #12
    NaYoung

    NaYoung What about my Member???

    Joined:
    Apr 1, 2011
    Member:
    #54178
    Messages:
    361
    Gender:
    Male
    Florida
    Vehicle:
    2011 PreRunner SR5
    3/30/2011 Purchaced, Booster Seat, Child Restraint Seat, LED cockpit lights (amber), LED tailgate bar, 3rd brake light cover (Sock Monkey!), Tonneau Cover, Westin running boards, 17" wheels, Yakima Q bar system and landsharks
    Very nice, great write up!

  13. Jul 3, 2011 at 7:31 PM
    #13
    MrGrimm

    MrGrimm Mall Crawler

    Joined:
    Oct 19, 2009
    Member:
    #24568
    Messages:
    2,732
    Gender:
    Male
    First Name:
    Dean
    Wisconsin
    Vehicle:
    2006 Toyota Tacoma 4WD w/TRD Sport Package
    See build page
    I like it!

  14. Jul 3, 2011 at 10:53 PM
    #14
    Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,505
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale
    stealing your switch idea lol

  15. Jul 3, 2011 at 11:03 PM
    #15
    IluvTEA

    IluvTEA Well-Known Member

    Joined:
    Jan 31, 2010
    Member:
    #30430
    Messages:
    1,134
    Gender:
    Male
    South Dakota
    Vehicle:
    '10 DC LB 4x4 SR5 Super White
    Cooper ST 265/75/16 on Flat Black TRD OR wheels, window tint, blacked-out badges, front mudflap trim, BHLM, Base Black Rear Bumper Swap, Color-matched grille, Custom Relentless Fab plate bumper powdercoated flat wrinkle black and "TACOMA" backlit with Drunknsloth LEDs, Camburg 2.5" coilovers, LR UCAs, Power sliding rear window, Back-up camera anytime, FX-R projectors/Morimoto 3Five Ballasts/D2S bulbs 5000K, Black WeatherTechs, heated TRD seats with Roadwire Graphite Leather, OEM Roof Rack, front mud flap delete, Black Level 8 Guardians, TreadWright 285/75/16 with KG ...
    Looks great! Sub'd for future mod

  16. Jul 4, 2011 at 5:00 AM
    #16
    FY01CPO

    FY01CPO Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58412
    Messages:
    309
    Gender:
    Male
    First Name:
    Jeremy
    CT
    Vehicle:
    SR5 4x4
    black tube steps, side marker turn signals, 15% tint and window strip, EGR vent shades, fighter pilot/cockpit mod, console and glove box auto on LED, anytime fog light mod, 3000k HID fogs, bed mat wing nut mod, locking bed storage bin mod, smoked tail lights, plasti-dipped rims, blacked out emblems, black tail pipe, tail gate hose clamp, rear seat utility/dog shelf with rear center console access door.
    It's looks really good! Where did you get the grommets? Is this something I can get at Radio Shack too?

  17. Jul 4, 2011 at 7:11 AM
    #17
    shane100700

    shane100700 [OP] Look'n like a fool with your pants on the ground..

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    291
    Gender:
    Male
    Fort Dix, NJ (MT born and raised)
    Vehicle:
    08 Off Road, DC
    Kenwood 6140 w/nav/BlueTooth/backup cam/ Focal Components/ Alpine PDX-5/ JL 10", rear storage lock mod, tint, Snug Top xtra vision, OEM running boards, XD Spy 18x9, Nitto Terra Gripper AT's, AFE pro dry, Ultra Gauge
    The grommets I got at Lowes, in the bolts and nuts section. I also got some thin plastic washers there so I would adjust the depth of the switch as needed. I had to play around a little so they would'nt be too shallow or too deep. Everything else was purchased at Radio Shack.

  18. Jul 4, 2011 at 11:16 AM
    #18
    zul

    zul Professional Goofball

    Joined:
    Jun 11, 2011
    Member:
    #58083
    Messages:
    910
    Gender:
    Male
    Oregon Territory
    Vehicle:
    '12 Pyrite Mica DCSB SR5 4WD V6 AT
    STOCK: DRL, Tow Package, All Weather Mats HAVE: Bed mat, Tailgate Lock, WANT: Rear Plate Bumper, Color-matched Grille, Heated Wet Okoles, Weathertech Floor Liners, Avid Step Rails
    I like this mod - I'm surprised the Tacomas dont come with a light in the glove box stock. Good job with it!!

  19. Jul 4, 2011 at 2:31 PM
    #19
    Mitch

    Mitch Somebody call for a Wambulance?

    Joined:
    Jun 27, 2011
    Member:
    #58964
    Messages:
    5,594
    Gender:
    Male
    First Name:
    Mitch
    Tigard, OR
    Vehicle:
    2007 Access Cab SR5 4x4
    Lights, Siren, Drugs, Needles, Electricity

    I'm thinking this should/will be the first mod for my Tacoma. I think Ill do green instead of the amber though. Just personal choice

  20. Jul 4, 2011 at 6:10 PM
    #20
    FY01CPO

    FY01CPO Well-Known Member

    Joined:
    Jun 17, 2011
    Member:
    #58412
    Messages:
    309
    Gender:
    Male
    First Name:
    Jeremy
    CT
    Vehicle:
    SR5 4x4
    black tube steps, side marker turn signals, 15% tint and window strip, EGR vent shades, fighter pilot/cockpit mod, console and glove box auto on LED, anytime fog light mod, 3000k HID fogs, bed mat wing nut mod, locking bed storage bin mod, smoked tail lights, plasti-dipped rims, blacked out emblems, black tail pipe, tail gate hose clamp, rear seat utility/dog shelf with rear center console access door.
    Ok. gotcha. I guess I will make a stop over in that aisle when I am there getting my cam locks for the bins in the bed! :D Thanks.
