Center console switch blank help! (2nd Gen)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by brianfoleary, Feb 20, 2017.

  1. Feb 20, 2017 at 6:32 AM
    #1
    brianfoleary

    #1
    brianfoleary [OP] New Member

    Joined:
    Jan 30, 2017
    Member:
    #209071
    Messages:
    3
    Gender:
    Male
    First Name:
    Brian
    Vehicle:
    2009 Tacoma Access cab

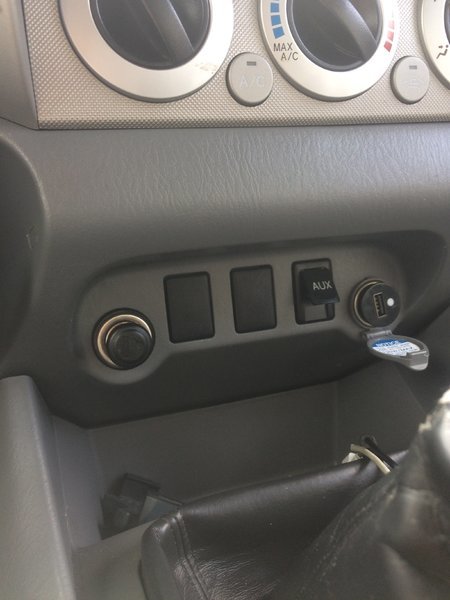

    Hey guys, I want to add switches to the blanks shown in the photo (left of the Aux plug). I've found a bunch of information on how to do it to the left of the steering wheel (near the fuse box) or people that add their own switch panel somewhere on the center console. But i'd really just like to use these blanks. Thanks for any help! I don't quite have the confidence yet to start pulling stuff apart and plan to just figure it out.


    brianfoleary, Feb 20, 2017
    #1
  2. Feb 20, 2017 at 7:04 AM
    #2
    RacecarGuy

    #2
    RacecarGuy Well-Known Member

    Joined:
    Jul 12, 2012
    Member:
    #82501
    Messages:
    818
    Gender:
    Male
    Houston, Texas
    Vehicle:
    '12 DCSB OR
    Pelfreybilt front and rear HC bumper w/swingout, BAMF LCA Skids, BAMF Diff skid, Pelfreybilt IFS and Trans skid, RCI gas tank skid, Bronze SCS F-5's, Icon RR's ext travel, Dakar leafs, Archive Garage shackle flip
    I didn't bother pulling everything apart. I popped the blank out with a small pick, then fished a wire through the hole to under the driver's side of the dash. Then taped all the wires for my switch to that fished wire, and pulled them back through the hole. Plugged them into my switch, and popped it into the spot.

    RacecarGuy, Feb 20, 2017
    #2
    dratliff1978 and ChemDawg like this.
  3. Feb 20, 2017 at 7:26 AM
    #3
    whipper

    #3
    whipper Well-Known Member

    Joined:
    Jul 8, 2015
    Member:
    #158998
    Messages:
    72
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2007 PreRunner
    whipper, Feb 20, 2017
    #3
  4. Feb 25, 2017 at 6:53 AM
    #4
    Trouble_The_Tacoma

    #4
    Trouble_The_Tacoma Well-Known Member

    Joined:
    Dec 26, 2016
    Member:
    #205749
    Messages:
    2,196
    Gender:
    Male
    First Name:
    Conrad

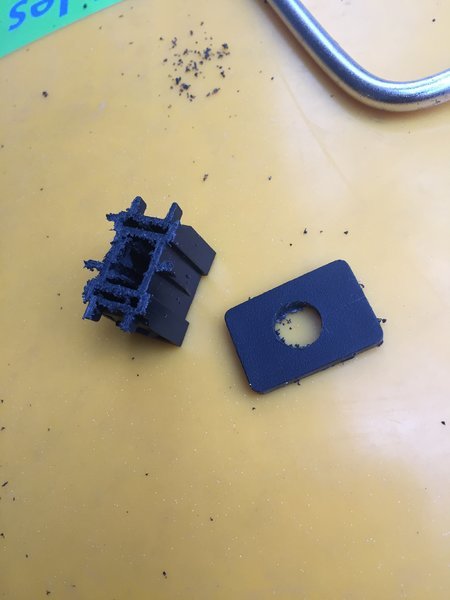

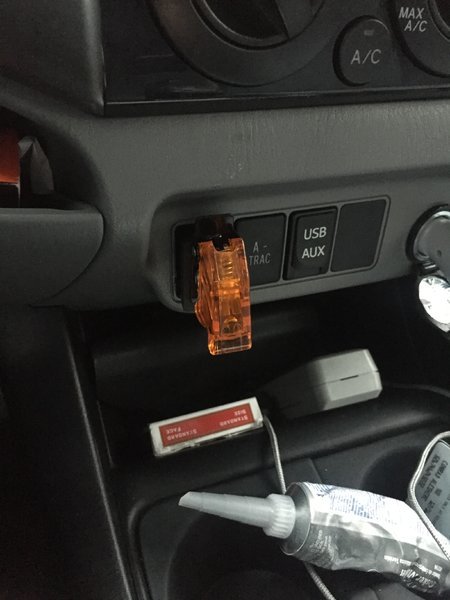

    This is what I did to mine (2015). I have another switch for the right side going in. Pulled out blank, found center, drilled and cut.

    I'm having the service done on the truck right now so I asked the guy what the part number is on the extra blanks in case I mess up or need a new one. He said it was
    $16 55539ae010c0 TOYOTA Genuine Spare Switch Hole Cover
    55539ae010c0 but I haven't really looked into it. The switches I have light up when they are on and fit in the spacing when the hood is flipped up. I haven't wired them up yet, but I'll need to dremel out a channel for the wiring because of the way the switch is.

    I got these switches on eBay, 5 switches for $9 and they come in tons of colors. Same switch from like auto zone is $10 for one and I don't think it lights up. I went with the orange/Amber to match my CB radio colors. Eventually I'll have front and rear LEDs to each switch. I also gave a few to my buddy for his POS dodge and he loves the switches for his light bars.

    But like racecarguy said, I just gently pried it out with a small screw driver. You have to remove a lot of stuff to remove that lower center piece.


    Trouble_The_Tacoma, Feb 25, 2017
    #4
    RacecarGuy likes this.
