Center Console Switch Panels

In the OP



Forgive my ignorance but what exactly is "Switchbacks and Sub-harness (+$44.00)"

I'm going to order mine next week sometime. Only two oem locations on a TRD OR



I just added that. I am building switch backs so that you can plug and play the switches into the truck.

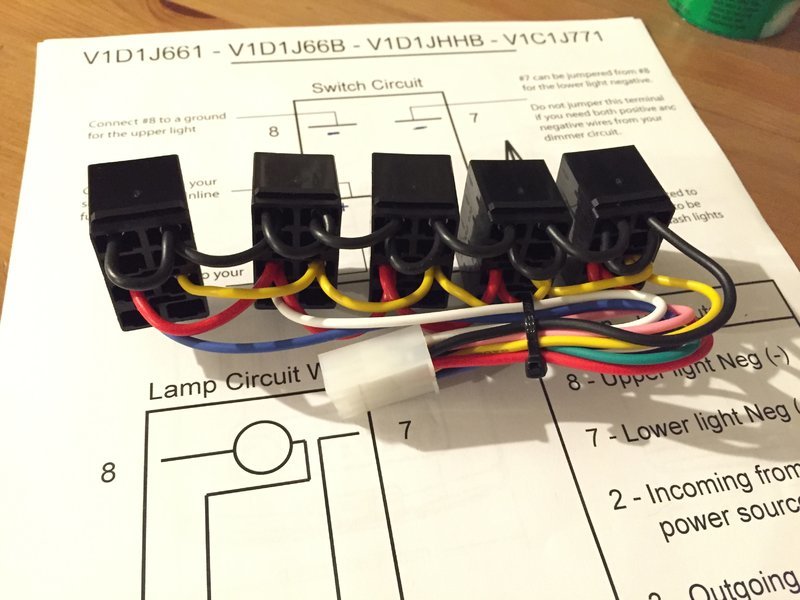

This picture is the just a sample of the wired switch backs. The sub harness would connect to the white plug and have tap-a-fuses to power the switches when the truck is on and when the dash lights are on, along with wire leads to go to your relays.

I'll get better pics once I make one.



Ahhh the space means everything Looks really nice!



I need to finalize what switches I need to run and then I'm gonna order this!!!!!



I'm trying to see if I can do an on/off/on circuit with one of these.

I have my LED bars setup now on a switch that gets power from the high beam tap in the fuse box. So right now I have ON with high beams only or off. Idealy I would like ON with highbeams / OFF / ON so I can have only the LED's on.

Other than that one switch the rest would be simple illuminated SPST/DT switches. I will go ahead and order my panel and start looking at switches again



I have the same thing with my highbeams and front LEDs. I have the option of high beams only, high and led, led only and all off.



My bad I was thinking of different switches and confused myself entirely.

I am curious how they illuminate for you in the configuration. I was planning on getting the "Lower Independent (Text Area)" so that the image lights up when on.

Order sent in



@Iggy. why did I just cut my demo switch to fit a rocker without looking at this did you finish the switch back harness yet? Also where would the white plug go into? Are you making the inline fuse and relay harness to go directly into the batter or how would that work if you have multiple lights and harnesses?



Maaaaybe!

The white plug connects to the sub harness, which includes taps for your power sources. The wire leads get spliced to the replay inputs or can get wired into an RTMR. I can also supply prewired RTMR for a whole kit.



How much for the full kit @Iggy. ?



Sub'd for future expenses

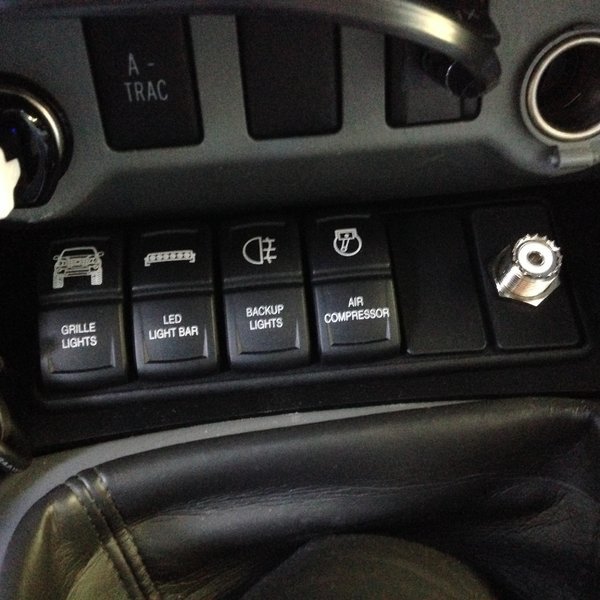

Switch panel looks great. CB radio connector fits well on a switch blank. This is on a 6-speed.

Great fit and wired switch backs by Iggy. Such a clean setup!



Looking good @Overlanerd!



Ordered

My ARB locker switches will clip into this?
If not, I'll get new switches that will.

OTTRATTW has Contura ll, lll, lV, and X. What ones fit your panel? Or will any of them fit?

Thank you!



I had a left over switch holder but it doesn't fit inside iggys panel. Is there a special switch insert we need for these panels?



Awesome product OP. If I didn't need to access the storage area this panel blocks (ham radio external speaker) I would be all over this.



Which switch holder are you using? The cut out is for the Carling switch holder like this one. I haven't tested it on and offbrand model yet.



It was just one that I had purchased prior online, it came in individual holders that slid together to make a 6 switch holder. I'll have to order the carling one though for this. Thank you!



That one should work too. Is it too big?
