Center Console Switch Panels

Another happy customer here

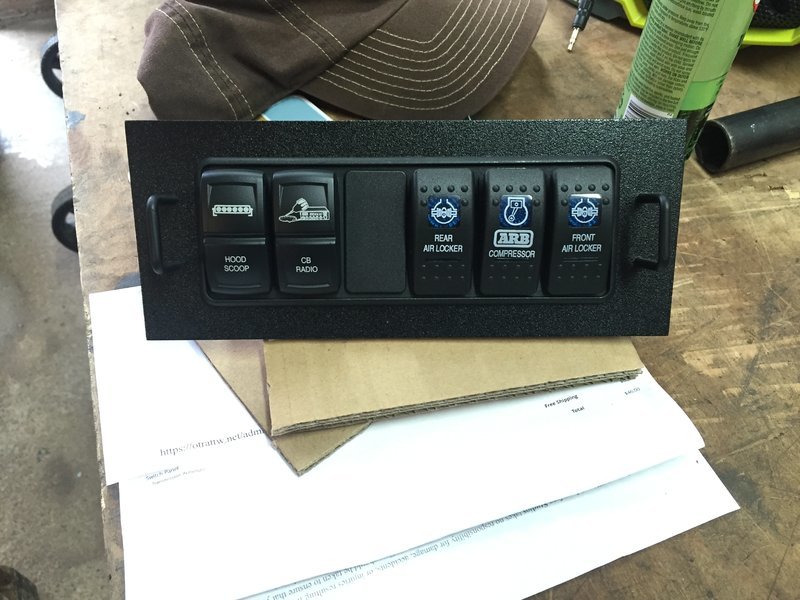

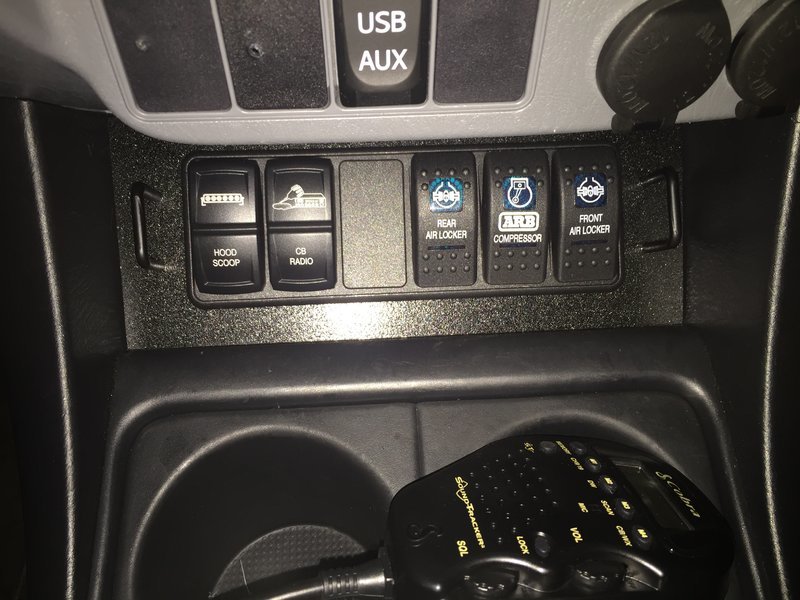

I painted it with spray on bed liner. I had some left over from my bumpers and I like the texture



The blank that's left will hold my winch power switch. That'll be this weekends project.

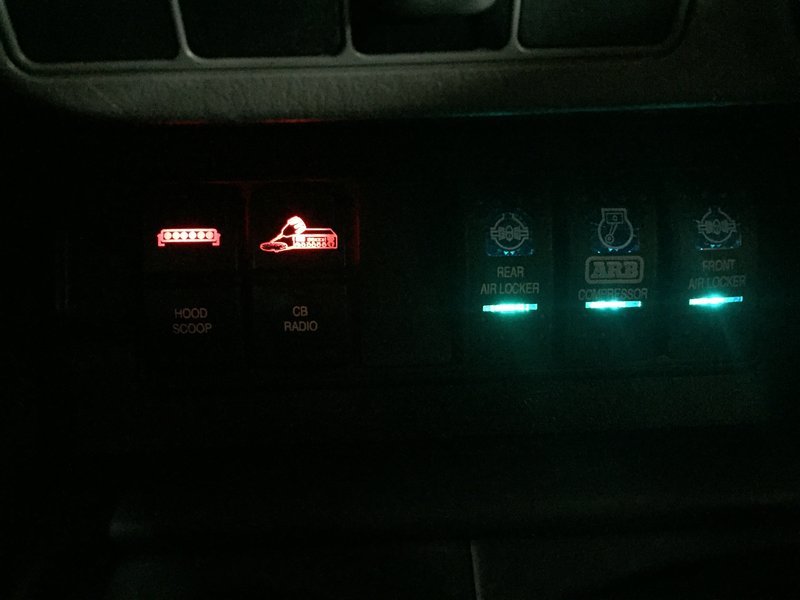

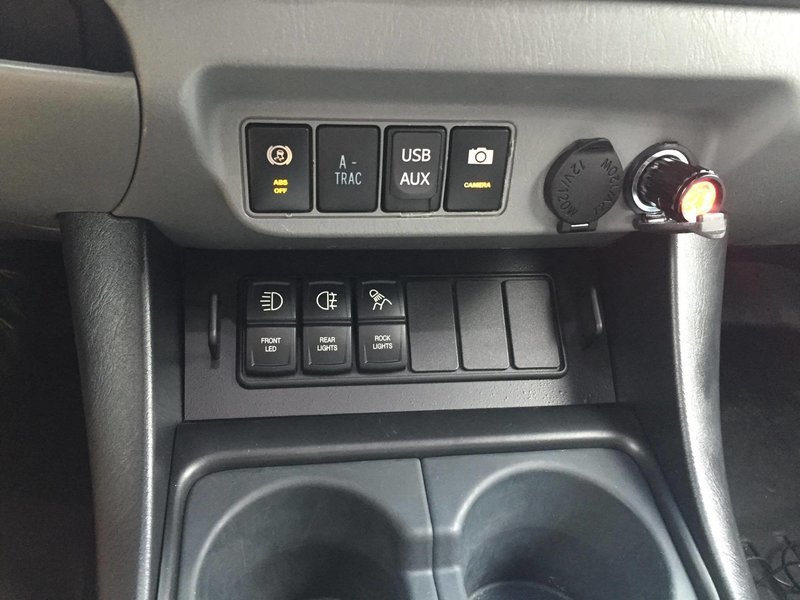

Mine is shaping up a bit.
I have to redo the paint... just put some dip on it for fun. It's also not even seated correctly and the switches aren't wired but it's fun to look at



Oh yeah and I need to get a small enough torx to tighten the handles doh!



Looking good guys!!

@justchil let me know if you need any help wiring it up. I hope the diagrams I sent make sense.

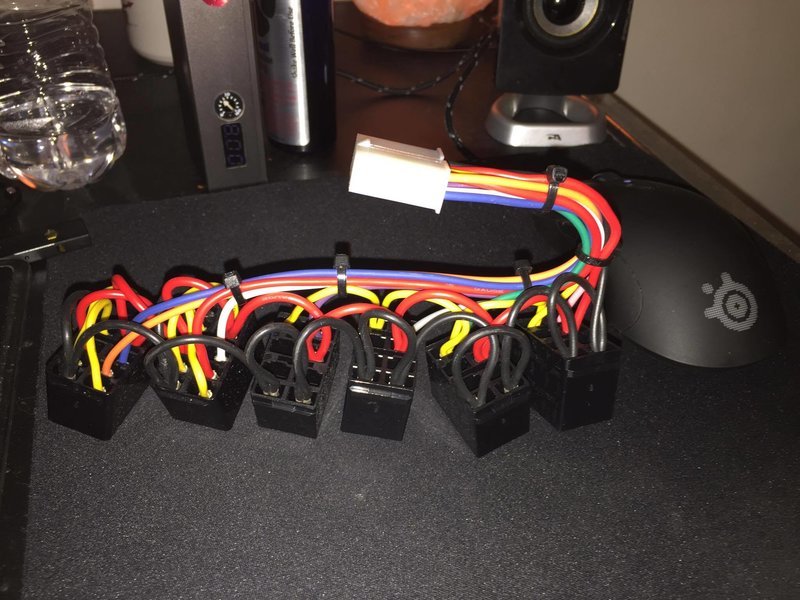

Hey thanks. Mine's all wired up. The diagram made it a snap. I even had enough sense to tap into the + & -on the ARB switches for the lights in the new ones.

Hold on while I turn around for my pat on the back...

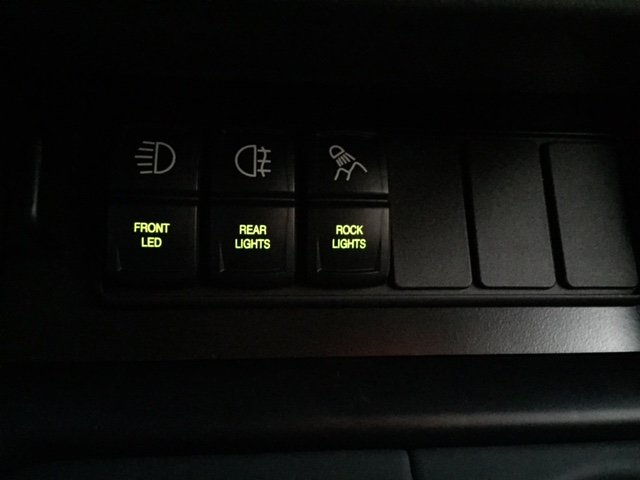

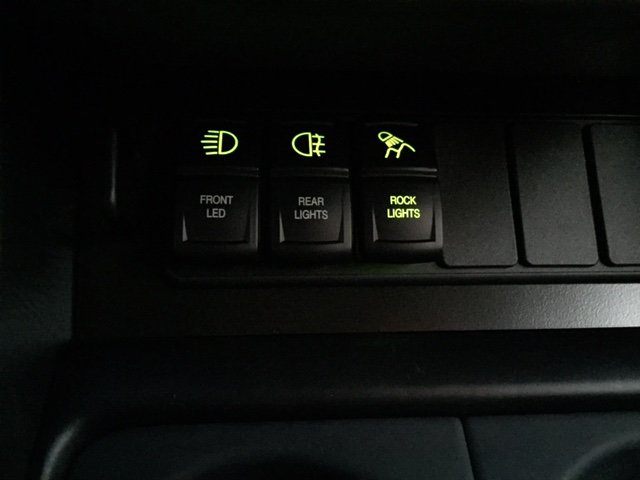

Super super happy. The two left switches are on/off/on (on/off /on with highbeam (s1) // on with reverse light (s2).

Having trouble getting the panel to stay put. I'm not sure if maybe I should pull the cupholder thing put the panel in and put it back in... or if my paint is too thin to help hold it. The switchbacks behind the panel and the harness connector is pretty bulky so it may be causing the issue.

I put 3-5 light coats of flat'ish black paint.



Quick question for you all. I'm looking to get these anodized in black so you guys don't have to paint them. It will increase the price about $5-6, is this something you all might be interested in?

It will be a Type II with MIL certification.



I would've paid a few $ extra to not have to paint it. Hell, a can of spray paint costs that much...



I would probably buy another one if it's anodized!



I need to know where and what switches you got going on in that setup!



So I'm pretty sure I need one of these, but what secures it in place? It's perfect since I need spots for switches, but don't know about losing the spot to throw my sh*t



The panel is designed to use Carling switches. I get mine from http://www.otrattw.net/. The ones up above are commonly ordered from air on board.

It's a snug fit, that really why the handles are there to help you install and remove the panel. I'm working on a more permanent mounting solution that will require disassembly and drilling of the center console.



Thanks. Now to decide what I want to do



Hi Iggy,

What is the RTMR full system. Someone else asked on a price and I didn't see a reply; what is it and what is your price?



Is there install instructions?? Also when will this be available for automatic again?



I'm still working on the price for a full system. I should have that once I get this next batch of panels made.

They are being made now! This next batch has been taking a bit longer dude to the amount of prep for anodizing. These are going to be awesome and worth the wait.



Subd



I'm in as well already Pm'd



Ok guys! I should be getting these back from anodizing this week. Almost there, thanks for all your patience!



Cool also in, pm a week or 2 ago



I should pick up the batch today or tomorrow. I'll update stock on the website ASAP!
