Cheap/Free Mods

Discussion in 'Technical Chat' started by piercedtiger, Dec 28, 2007.

  1. Jun 7, 2009 at 5:18 PM
    #541
    peleus21

    peleus21 Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18102
    Messages:
    56
    Gender:
    Male
    okanogan, b.c. canada
    Vehicle:
    red trd sport
    led taillights HID dual beam headlights bolts and clamps to handle off road
    this is actually a real simple mod. no money and about 10 minutes to do the simple way.

    First of all i suggest you get some aftermarket lights like mine in the pic.


    the stock bulbs will burn up to quick on you otherwise and may even damage your headlight housing.

    SIMPLE WAY
    open the fuse box under hood and pull out the dim switch relay. solder the following prongs together with a piece of wire. or wedge a wire in the prong slots.



    result (i did the fog light mod too)


    to do the mod the hard way pull the fuse box apart like you do in the fod light mod hard way and connect the 2 terminals together on the inside. this is the way i did it but my camera was recharging and i am not pullin the thing apart for a pic to involved.

  2. Jun 7, 2009 at 5:23 PM
    #542
    replica9000

    replica9000 ./$0|./$0&

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    13,876
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium
    So where can I get these aftermarket lights for no money and in 10 minutes? :D

    ChemDawg likes this.
  3. Jun 7, 2009 at 10:45 PM
    #543
    peleus21

    peleus21 Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18102
    Messages:
    56
    Gender:
    Male
    okanogan, b.c. canada
    Vehicle:
    red trd sport
    led taillights HID dual beam headlights bolts and clamps to handle off road
    hehe i guess a 5 finger discount might work as long as you don't live near me :p

    seriously i got mine online with the HID low beams for 400 for a pair

    Isack51515 likes this.
  4. Jun 8, 2009 at 4:22 AM
    #544
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,450
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft
    Well the mod itself is free, and if you already have aftermarket lights... lol I wouldn't mind trying this myself but I'd be concerned about melting the housings.

  5. Jun 8, 2009 at 9:54 PM
    #545
    peleus21

    peleus21 Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18102
    Messages:
    56
    Gender:
    Male
    okanogan, b.c. canada
    Vehicle:
    red trd sport
    led taillights HID dual beam headlights bolts and clamps to handle off road
    well it does look great at night but i also got the HID kit so that makes a huge difference too

  6. Jun 8, 2009 at 10:07 PM
    #546
    peleus21

    peleus21 Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18102
    Messages:
    56
    Gender:
    Male
    okanogan, b.c. canada
    Vehicle:
    red trd sport
    led taillights HID dual beam headlights bolts and clamps to handle off road
    i did a mod on my fog light and got some interesting results

    what i did was pull the switch apart and broke off the post for the light ground and soldered it to the signal output post. this makes it so the switch is only illuminated when it is on. but it also makes it so your fog lights are on all the time if your vehicle is running (i did fog anytime mod). if switch is off, headlights are off, fogs are on. if switch is off, headlights on, fogs are off. i like it cuz they are now my daytime running lights and at night i have full control of em. i could post pics if necessary but if you have followed the fog light indicator mod, it has pics and shows what is what

  7. Jun 13, 2009 at 7:56 PM
    #547
    kubota man

    kubota man Well-Known Member

    Joined:
    Apr 7, 2008
    Member:
    #5804
    Messages:
    129
    hazard ky
    Vehicle:
    08 trd off road dc 4x4
    i have the same relay same number 275-218 and the numbers are obbset of your diagram looks the same but for example your ground is shown on # 8 and its #7 on mine all the # are obbset on mine acording two the picture just trying not to mess it up could some one help me out and led me toward the correct way

  8. Jun 13, 2009 at 8:41 PM
    #548
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,450
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft

    Ok there seems to be too much confusion over this since you're the second person questioning the wiring diagrams/color codes. It doesn't really matter HOW the relays are setup pin-wise as long as it's a double-pole double-throw.

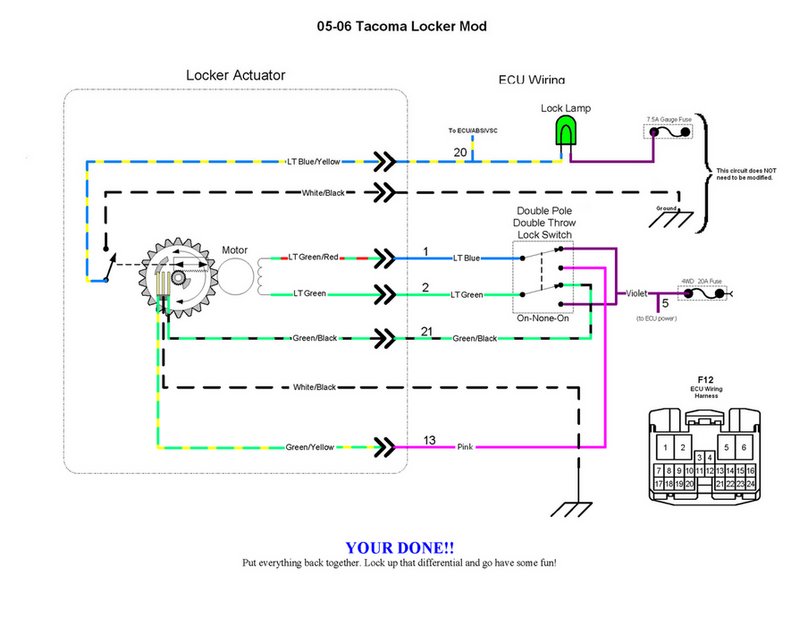

    Refer to this diagram:


    Regardless of the pin numbers on whatever relay is used just match up the light blue and light green wires to the constant side of the relay, and the other 4 to the appropriate switched ones.

    For example, for the light blue wire match up violet to the normally closed and pink to switched open. For light green connect green/black to normally closed and violet to switched. Don't pay attention to pin numbers other than to match up that relay's diagram if it's not printed on the relay itself.

    That just leaves power and ground for the coil to activate the relay.

    When I did this I didn't have someone giving me pin numbers to go off, and I don't have the time to pin out every single relay out there. Use the diagram above to understand how this works and apply it to whatever relay is used. Think of it as blue toggling from violet to pink and green from green/black to violet when the relay is active. Wire whatever relay you have to achieve that goal based on the diagram of your particular relay without getting hung up on numbers.

  9. Jun 13, 2009 at 9:46 PM
    #549
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,282
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Sorry about the confusion. Numbers 7 and 8 are interchangeable. 7 and 8 cause the relay to switch back and forth. Whichever way you wire those 2 connectors it will work. just connect a ground to one and the stock button (switch) to the other...

  10. Jun 14, 2009 at 7:44 AM
    #550
    kubota man

    kubota man Well-Known Member

    Joined:
    Apr 7, 2008
    Member:
    #5804
    Messages:
    129
    hazard ky
    Vehicle:
    08 trd off road dc 4x4
    thanks man for the quick response im having a hard time with the diagram but yours is so much easier to understand. i admit im not the brightess tool in the shed when it come to all the diff. switchs and such also thanks for not drilling me to the wall like the other guy did

  11. Jun 17, 2009 at 12:42 PM
    #551
    jwicker

    jwicker Well-Known Member

    Joined:
    Apr 30, 2009
    Member:
    #16623
    Messages:
    68
    Gender:
    Male
    Southern Indiana
    Vehicle:
    2003 Lunar Mist Double Cab 4x4
    ARB shell
    Just received a very helpful PDF from my inside contact at Toyota Manufacturing.

    The posts that I found regarding programming the keyfob/keyless entry options were a little off for my (2004 PreRunner Auto with keyless entry) application.

    This document worked perfectly for me.

    I was able to set the "unlock both doors with a single click" option as well as the "lock doors on ignition on option".

    Hope this helps.
    jwicker


    Attached Files:

  12. Jun 18, 2009 at 6:42 AM
    #552
    Rocketball

    Rocketball If The World Didn't Suck, We'd All Fall Off

    Joined:
    Mar 18, 2009
    Member:
    #14869
    Messages:
    1,516
    Gender:
    Male
    First Name:
    Scott
    Westminster, MD
    Vehicle:
    08 Speedway Blue DC Sport 4x4
    Pioneer head unit, PAC steering wheel control modual, Hard wired Sirius radio, Hard wired radar detector, Hella Supertone horns, Blacked out badges, Smoked Tails, BHLM (color matched Speedway Blue), T-Rex Eyelids, Black Powder Coated Billet Grill, Color Matched Engine Cover, Lund in channel vent visors, FJ Cruiser wheels, Leer 100XQ shell, OEM bed mat, Piezo beeper for locking doors, Tinted front side windows, Black Westin bull bar, Aires tube steps, Mini Maglite Mod, D-Cell Maglite Mod, Weathertech Digifit Floor Mats
    Do you know if this works for the 05+ trucks as well?

    I didn't see anything in the front of the document that says it's specifically for the first gen models.

  13. Jun 18, 2009 at 7:06 AM
    #553
    piercedtiger

    piercedtiger [OP] Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,450
    Gender:
    Male
    First Name:
    Jon
    Southern Tier, NY
    Vehicle:
    2015 F150 3.5EB SCEW 6.5ft

    It states for 2004 Tacoma. If they wrote it in 2004 for the 2004 model how would they know what a 2005+ truck does? :confused: :laugh:

    You could try it, but I bet it doesn't work unless they've kept the same procedures.

  14. Jun 18, 2009 at 7:50 AM
    #554
    hotbrass

    hotbrass Well-Known Member

    Joined:
    Apr 14, 2008
    Member:
    #5962
    Messages:
    46
    Cowtown
    Vehicle:
    2005 Tacoma
    I would like to see one for 2005 also if anyone has access to the codes.

    Thanks!

  15. Jun 18, 2009 at 8:07 AM
    #555
    Rocketball

    Rocketball If The World Didn't Suck, We'd All Fall Off

    Joined:
    Mar 18, 2009
    Member:
    #14869
    Messages:
    1,516
    Gender:
    Male
    First Name:
    Scott
    Westminster, MD
    Vehicle:
    08 Speedway Blue DC Sport 4x4
    Pioneer head unit, PAC steering wheel control modual, Hard wired Sirius radio, Hard wired radar detector, Hella Supertone horns, Blacked out badges, Smoked Tails, BHLM (color matched Speedway Blue), T-Rex Eyelids, Black Powder Coated Billet Grill, Color Matched Engine Cover, Lund in channel vent visors, FJ Cruiser wheels, Leer 100XQ shell, OEM bed mat, Piezo beeper for locking doors, Tinted front side windows, Black Westin bull bar, Aires tube steps, Mini Maglite Mod, D-Cell Maglite Mod, Weathertech Digifit Floor Mats
    Well, if they wrote it in 2004, they would know everything about the 2005. The engineering would have been done, and parts manufacturing would be underway to support the next model year hitting the dealer lots. :cool:

  16. Jun 18, 2009 at 10:44 AM
    #556
    jwicker

    jwicker Well-Known Member

    Joined:
    Apr 30, 2009
    Member:
    #16623
    Messages:
    68
    Gender:
    Male
    Southern Indiana
    Vehicle:
    2003 Lunar Mist Double Cab 4x4
    ARB shell
    Sorry - but I am not sure if my earlier post will work for 2nd Gens.
    I'll try to hit my buddy up for a later year document.

  17. Jun 18, 2009 at 11:02 AM
    #557
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,041
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2009 Tacoma OR (SOLD); 2015 TRD PRO 4Runner
    Toytec TRD PRO LIFT with 1.5 SAW in rear, 255 Coopers, Baja Rack, Southern Style Front Bumper, Warn Wireless Winch, DeMello Sliders.
    Did anyone try this on a 2009 or anything besides a 2004?

  18. Jun 19, 2009 at 6:13 PM
    #558
    peleus21

    peleus21 Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18102
    Messages:
    56
    Gender:
    Male
    okanogan, b.c. canada
    Vehicle:
    red trd sport
    led taillights HID dual beam headlights bolts and clamps to handle off road
    i would love to but the instructions are very vague on what will happen and where. i would think it should work for me with a 06 but not sure till i figure this dumb thing out

  19. Jun 19, 2009 at 8:18 PM
    #559
    gavonder

    gavonder She's Kickass!

    Joined:
    Dec 13, 2007
    Member:
    #3825
    Messages:
    390
    Gender:
    Male
    Bethel, Ct
    Vehicle:
    08 TRD Sport Access Cab
    Sunroof, Leer Cap w/ Thule rack, Factory Running Boards, Fog Light Mod, Hood Struts, Scangauge, w/homemade mirror mount, AC/Defrost mod, Rear Spring TSB, TRD Center Caps
    I tried one of these for my '08 and messed up my key fob. I had to have Toyota fix it. I think it only works if you have the optional alarm system, not the factory key fobs.

    I would love to find one that works, but from what I've read and heard, it's not possible.

    GA

  20. Jun 20, 2009 at 6:31 PM
    #560
    jwicker

    jwicker Well-Known Member

    Joined:
    Apr 30, 2009
    Member:
    #16623
    Messages:
    68
    Gender:
    Male
    Southern Indiana
    Vehicle:
    2003 Lunar Mist Double Cab 4x4
    ARB shell
    When i tried the (much earlier) previously posted instructions, my keyfob also quit working.
    I used the Toyota PDF instructions after my fob stopped and it worked fine afterwards.
    May not help or apply to later models...but I am just saying that I thought that the early instrcutions also goofed my remote...but stepping through the ones I posted worked.
    I just set to open driver first and pass. second click and the fob started working again.
    I then selected the single click = both doors and all is good.

    HTH
    jwicker
