Cheap Mod: DIY AUX Input in a 2005-2008 Factory Head Unit

Discussion in 'Audio & Video' started by fbconvert, Jun 9, 2011.

  1. Sep 12, 2013 at 6:06 PM
    #321
    rsdill2

    rsdill2 Member

    Joined:
    Oct 25, 2011
    Member:
    #65844
    Messages:
    10
    Gender:
    Male
    Vehicle:
    12 PreRunner SR5 Double Cab I4

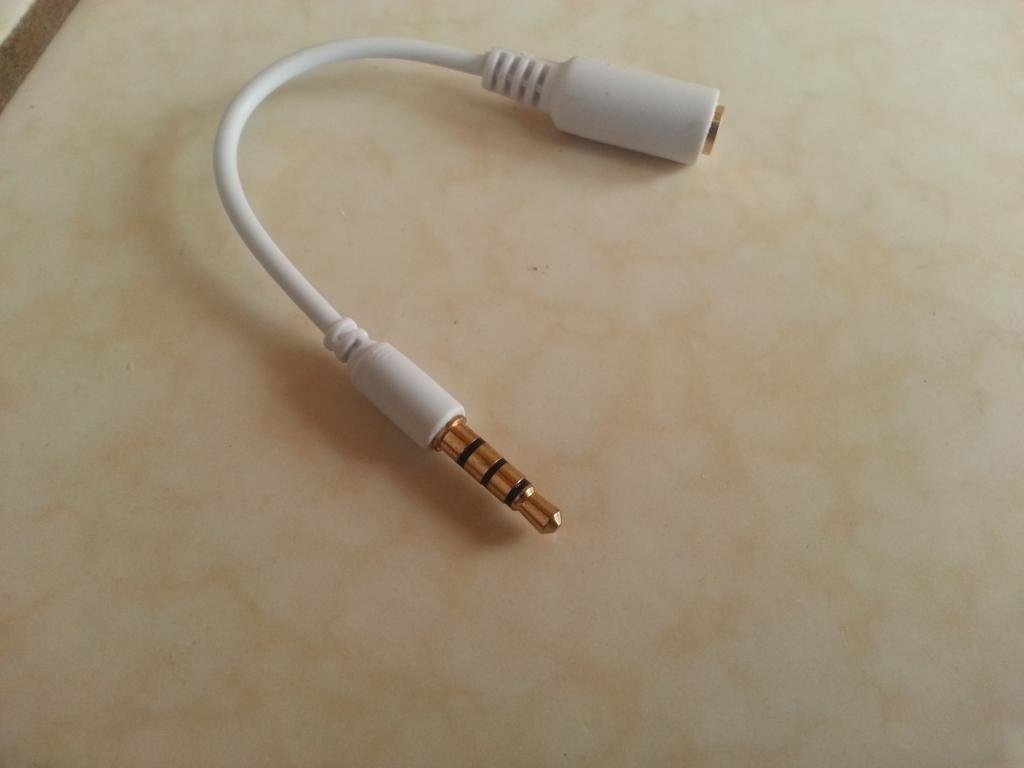

    what kind of adapter is this? This mod worked great for me when I had the iPhone but just switched to a Galaxy S4. Radio Shack said he didn't have the right adapter. Got a link to buy one online? I'd rather not have to open it up again and resolder.

    Thanks.

  2. Oct 4, 2013 at 8:24 AM
    #322
    mrburns05

    mrburns05 Well-Known Member

    Joined:
    Oct 4, 2013
    Member:
    #113819
    Messages:
    81
    Gender:
    Male
    First Name:
    Jake
    Menifee CA
    Vehicle:
    06 AccessCab SR5 L4
    None yet
    Awesome! Got it done on my 06 non-JBL unit thanks to you guys, works great!

  3. Nov 1, 2013 at 2:43 PM
    #323
    Ian.S

    Ian.S Active Member

    Joined:
    Oct 4, 2013
    Member:
    #113854
    Messages:
    40
    Gender:
    Male
    First Name:
    Ian
    Harlingen, TX
    Vehicle:
    '10 DCSB Prerunner
    3"x2" Lift, Avid Nerf steps (W/Rhinolining), Bedside decals by RuggedT, JVC stereo
    Props to you FB for a great write-up and for keeping up with the thread for so long!

    I have a 2010 but the stereo went bad, bought an 05 stereo for 30 bucks :thumbsup:

    Uuuunfortunately I didn't realize it didn't have an aux input. (That's what I get for buying it 2 minutes after I saw it)

    I want to go your route on the mod and plug into the stock aux input under the A/C controls.

    How did you remove the input jack from the '09 dash?

    Thanks in advance :D

  4. Nov 3, 2013 at 1:34 PM
    #324
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    359
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    it's been so long I am trying to remember how I did it. I think the first time for sure I removed the whole console panel that the Aux plug is installed in. you have to reach behind it to unplug the wire harnesses. Once the panel is removed I think there are two plastic tabs on both sides of the Aux plug. Press against them at it should pop right out. You could also try sticking a butter knife or something on the side of the plug to release the tabs. Just take your time though and if you are really concerned just play it safe and remove the panel.

  5. Nov 6, 2013 at 6:34 AM
    #325
    Ian.S

    Ian.S Active Member

    Joined:
    Oct 4, 2013
    Member:
    #113854
    Messages:
    40
    Gender:
    Male
    First Name:
    Ian
    Harlingen, TX
    Vehicle:
    '10 DCSB Prerunner
    3"x2" Lift, Avid Nerf steps (W/Rhinolining), Bedside decals by RuggedT, JVC stereo
    I got it! Got it all done and installed last night. Works so well!

    Thanks man!

  6. Dec 25, 2013 at 9:33 AM
    #326
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,534
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    subd to link 20

    Last edited: Dec 25, 2013
  7. Dec 27, 2013 at 3:11 PM
    #327
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,534
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    17 years old, no radio/soldering experience whatsoever, did this mod in about 4 hours total. Yes, that's long, but I had to redo my solder joints. At first music only went through my driver side speakers..now all works but I get an "error code 1" and idk of my CD will eject... Idk what that is..?

  8. Dec 27, 2013 at 3:17 PM
    #328
    whahahajr

    whahahajr Lone Star Club

    Joined:
    Jun 24, 2012
    Member:
    #81279
    Messages:
    622
    Gender:
    Male
    First Name:
    jimbob
    New Braunfels, Tx
    Vehicle:
    07 Tacoma TRD
    Camburg Uniball UCA, ARB Front Bumper, TAG rear bumper, OME rear shocks, All Pro 3" leaf springs
    Did you leave the cd in while doing the mod? My guess is the cd is stuck. Sorry bro not positive though.

    I think the manual says Error1 is a damaged or dirty CD

    Last edited: Dec 27, 2013
  9. Dec 28, 2013 at 5:43 AM
    #329
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,534
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Yeah, I did when I redid my solder joints, bad on my part, but I'll fix it today.

  10. Dec 28, 2013 at 11:19 AM
    #330
    mrburns05

    mrburns05 Well-Known Member

    Joined:
    Oct 4, 2013
    Member:
    #113819
    Messages:
    81
    Gender:
    Male
    First Name:
    Jake
    Menifee CA
    Vehicle:
    06 AccessCab SR5 L4
    None yet
    I finally dropped the mod for a new double din unit with Bluetooth. No more cables!!! I have the old unit if anyone wants it. It's free, just need to get it somehow

  11. Dec 28, 2013 at 11:20 AM
    #331
    mrburns05

    mrburns05 Well-Known Member

    Joined:
    Oct 4, 2013
    Member:
    #113819
    Messages:
    81
    Gender:
    Male
    First Name:
    Jake
    Menifee CA
    Vehicle:
    06 AccessCab SR5 L4
    None yet
    RE: Already modded FYI

  12. Jan 13, 2014 at 9:29 PM
    #332
    Mountaineers11

    Mountaineers11 Future RN

    Joined:
    Aug 7, 2013
    Member:
    #109957
    Messages:
    19
    Gender:
    Male
    First Name:
    Reuben
    West Virginia
    Vehicle:
    2006 Double Cab Sport
    A.R.E. hard tonneau cover. Interior Oznium LEDs. JVC DD KWV20BT HU Reverse liscense plate camera Adubs4real custom bedsides
    This was my first time soldering, and I couldn't get the solder to stick to the spots. So I put everything back together, and now I don't get any sound out of my drivers side? I think that I may have got the lch and rch spots too hot. I'm not sure. Any help would be much appreciated. Thanks :confused: :(

  13. Jan 14, 2014 at 1:17 PM
    #333
    Mountaineers11

    Mountaineers11 Future RN

    Joined:
    Aug 7, 2013
    Member:
    #109957
    Messages:
    19
    Gender:
    Male
    First Name:
    Reuben
    West Virginia
    Vehicle:
    2006 Double Cab Sport
    A.R.E. hard tonneau cover. Interior Oznium LEDs. JVC DD KWV20BT HU Reverse liscense plate camera Adubs4real custom bedsides
    The sound only doesn't come out of the drivers side in DISC mode. Everything is fine on the FM setting. How do I fix this?

  14. Jan 14, 2014 at 2:22 PM
    #334
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    15,519
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
    I think you toasted it.

  15. Jan 14, 2014 at 8:19 PM
    #335
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,534
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Hmm, not sure that its completely done, that happened to me also - only in CD mode - I believe I redid my solder joints( yes a pita since it was my first time soldering) then hooked it all up and it worked. Mine said error code 1 and I broke the CD part entirely trying to stop that lol but I think that was because I left a CD in there when I redid my soldering. Tips: solder joints so they are not touching and then put hot glue on them so they stay. I got the modded radio from mrburns and that's what he did.

  16. Jan 15, 2014 at 8:07 AM
    #336
    Mountaineers11

    Mountaineers11 Future RN

    Joined:
    Aug 7, 2013
    Member:
    #109957
    Messages:
    19
    Gender:
    Male
    First Name:
    Reuben
    West Virginia
    Vehicle:
    2006 Double Cab Sport
    A.R.E. hard tonneau cover. Interior Oznium LEDs. JVC DD KWV20BT HU Reverse liscense plate camera Adubs4real custom bedsides
    I'll have to try that hot glue when I open it up again. Hopefully that'll work. Thanks a lot!

  17. Jan 19, 2014 at 6:59 AM
    #337
    ashade07

    ashade07 New Member

    Joined:
    Jan 19, 2014
    Member:
    #120977
    Messages:
    1
    Gender:
    Male
    Sacramento
    Vehicle:
    06 tacoma
    Stock, aux mod
    It may not be toast.
    First, I must say, this is a great mod. Just did this on my 05 with in-dash 6 disc changer. It looked just like the pics in the original post.

    I used the cheap $4 soldering iron from harbor freight. The first time, I was getting no audio from the right side, in cd mode.
    Ripped it back apart (goes alot quicker the second time). Reheated the solder joints. Check your ground. WHALA! Works perfect! All for less than $4.
    Thanks!

  18. Jan 22, 2014 at 4:37 PM
    #338
    SeminoleTRD

    SeminoleTRD Well-Known Member

    Joined:
    Jan 5, 2013
    Member:
    #94509
    Messages:
    181
    Gender:
    Male
    First Name:
    James
    Fleming Island
    Vehicle:
    2008 TRD Sport DCLB
    3" ProComp Add-a-leaf, 1.5" SpiderTrax, Center Bearing shim, Nitto TerraGrappler 285/70R17, Volant Air Box, BakFlip Tonneau HD, DIY 3.5mm AUX Jack install, D-Ring bed mounts, Plasti-Dipped badges, Dumped 50 Series Flowmaster with DeltaFlow Tech, Lumen LED Fog Lights, Lumen Marker Lights, Spyder Smoke Headlights, Satoshi Grill, Anytime Fogs
    Just did the mod myself. Mounted the port on the bottom side of the radio on the driver's side. Works great and I love the results. It took me the better part of 3 hours and a few adult refreshments since I was taking my time and getting distracted. I have the non-JBL 6-Disc and plan on getting a Double DIN with Navi waaaaay down the road.

    For those who only have sound on one side, check the solder and make sure the solder is making a good connection to the board where the little silver circle is. If there is a good connection, but you see a black circle around it, then you fried it. I had to use a magnifying glass to make sure everything was good.

    TIP: Solder the LCH before the RCH. If you do the RCH first, you will be fighting it the whole time you are doing the LCH. May be different for you, though.

  19. Mar 18, 2014 at 7:13 PM
    #339
    MM Sailor

    MM Sailor New Member

    Joined:
    Mar 18, 2014
    Member:
    #125624
    Messages:
    1
    Gender:
    Male
    California Bay Area
    Vehicle:
    06 PreRunner
    I made an account because of this.

    The mod is working great so far. All in all it took about two hours. My one spin on it is if you have a multimeter find a ground point on the circuit board and solder the ground to it that way you dont have to worry about grounding its all "tight"

  20. Mar 18, 2014 at 7:36 PM
    #340
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,534
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Nice! and welcome
