Cheap Mod: DIY AUX Input in a 2005-2008 Factory Head Unit

Discussion in 'Audio & Video' started by fbconvert, Jun 9, 2011.

  1. Mar 19, 2014 at 7:49 AM
    #341
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    Welcome to TW, do you have any pictures of where you soldered the ground?

  2. Mar 20, 2014 at 1:29 PM
    #342
    crumf20

    crumf20 Well-Known Member Vendor

    Joined:
    Aug 13, 2012
    Member:
    #84656
    Messages:
    212
    Gender:
    Male
    First Name:
    Wesley
    AZ
    Vehicle:
    2007 Toyota Tacoma Pre-Runner
    Custom Fishing Rod Holders, Mountain Bike Bed Rail Mounts, DIY Aux IPod Input, LED Bed Lights, LED Light Bar Hood Scoop, Plasti-Dip Lower Valence (Black), White LED Dash
    Just did this mod on my friends 2nd gen non jbl, single disc head unit and it works great but the disc that was in it before we did it wont eject and we also get a message on the unit that says "Error 3". ANYONE know what it means or how to fix it? The mod still works though.

  3. Mar 20, 2014 at 1:58 PM
    #343
    fbconvert

    fbconvert [OP] It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
    I am assuming you forgot to remove the CD before performing this mod? I never got that error before but my guess is there is something that is jamming the eject mechanism. If it were me, I might try to remove the CD manually, but then you might ended up with nothing working. You could carefully disassemble it and make sure there is nothing binding in there first. Sorry I can't be much more help.

  4. Apr 23, 2014 at 11:01 AM
    #344
    s0lid

    s0lid New Member

    Joined:
    Mar 27, 2012
    Member:
    #75705
    Messages:
    4
    Gender:
    Male
    First Name:
    Ben
    Maryland
    Vehicle:
    06 SR5 Lifted
    Fog Lights, Extra Tie-downs, 2.75" Lift with new tires, TacomaWorld.com sticker
    Has anyone tried using something like one of these bluetooth adapters with their DIY AUX port? http://www.amazon.com/VicTsing-Blue...269&sr=8-14&keywords=3.5mm+bluetooth+receiver

    Just wondering if the AUX outlet would provide enough power for these to work. Some of the bluetooth receivers have a little power plug, but i'm more interested in one that would be powered solely by the AUX outlet. If so, this may provide an easy way to add bluetooth capability and clean up some of the wiring. You could maybe even mount the bluetooth adapter behind the dash somewhere or leave it in the glove box and just connect via bluetooth.

    Also, would the CD player override this when its plugged in but not playing music?

    I had a friend do this to his Tacoma a while back and when I tried my S3 it didn't work, but I since gotten a new phone and it looks like you guys figured some ways around the S3 issue. He sold his truck recently so I can't just plug one of these into his AUX outlet. I took another look at this forum and I'm very interested in doing this, but being able to connect over bluetooth would make this even more appealing for me. Thanks guys.

  5. Apr 29, 2014 at 6:12 PM
    #345
    crumf20

    crumf20 Well-Known Member Vendor

    Joined:
    Aug 13, 2012
    Member:
    #84656
    Messages:
    212
    Gender:
    Male
    First Name:
    Wesley
    AZ
    Vehicle:
    2007 Toyota Tacoma Pre-Runner
    Custom Fishing Rod Holders, Mountain Bike Bed Rail Mounts, DIY Aux IPod Input, LED Bed Lights, LED Light Bar Hood Scoop, Plasti-Dip Lower Valence (Black), White LED Dash
    So is there a way to turn this original mod into a wireless/bluetooth mod?? And is the quality of sound as good as the original mod?

  6. May 1, 2014 at 2:54 PM
    #346
    bhai81

    bhai81 Member

    Joined:
    Jul 18, 2012
    Member:
    #82898
    Messages:
    7
    Gender:
    Male
    Lincoln, NE
    Vehicle:
    06 Double Cab Long bed Sport
    Cheap cheap cheap AUX input
    The aux outlet does not provide power. You will have to use the provided 1 x USB Cable to charge the device.

    I did this mod couple of years ago, and it's great. I recently bought http://www.amazon.com/SMARTmini-Blu...sim_cps_2?ie=UTF8&refRID=14SRWKZX2CVESCM5VF4K , and the CD plays while my phone is not transmitting anything to the device.

  7. May 2, 2014 at 5:34 AM
    #347
    s0lid

    s0lid New Member

    Joined:
    Mar 27, 2012
    Member:
    #75705
    Messages:
    4
    Gender:
    Male
    First Name:
    Ben
    Maryland
    Vehicle:
    06 SR5 Lifted
    Fog Lights, Extra Tie-downs, 2.75" Lift with new tires, TacomaWorld.com sticker
    Thanks bhai81. So just to be clear, do you have to use a usb cable to power your goGroove? or did you mean to charge the phone?

  8. May 2, 2014 at 7:19 AM
    #348
    bhai81

    bhai81 Member

    Joined:
    Jul 18, 2012
    Member:
    #82898
    Messages:
    7
    Gender:
    Male
    Lincoln, NE
    Vehicle:
    06 Double Cab Long bed Sport
    Cheap cheap cheap AUX input
    The USB cable is not required to power the goGroove, you only need it to charge the goGroove, it has an internal battery that according to their website "USB rechargeable with 6 hour playback.". I have the power cable connected to it all the time, I'm just afraid that it will die during my 30 min commute.[​IMG]

    I also have another cable to charge my phone, which I also plug in as soon as I step in the truck.

  9. May 8, 2014 at 2:54 PM
    #349
    Chas of MRT

    Chas of MRT Total Automotive Performance

    Joined:
    Aug 16, 2011
    Member:
    #61803
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Chas
    Las Vegas, NV
    Vehicle:
    06 Tundra V8
    Airaid Bilstein
    Instead of going thru the process of installing a jack and all that, I just cut one end off a male-male audio cable and soldered it to the board of my 06 Tundra CD player.

    The process basically consists of:
    Removing the cdplayer from the dash
    Disassembling headunit by removing 20-30 small screws
    Separating CD player from control unit
    Locating correct channel solder points
    cutting the end off one 4ft 3.5mm audio cable, stripping the wires, soldering them to the board.
    connect ground
    reassemble cd player unit
    reinstall

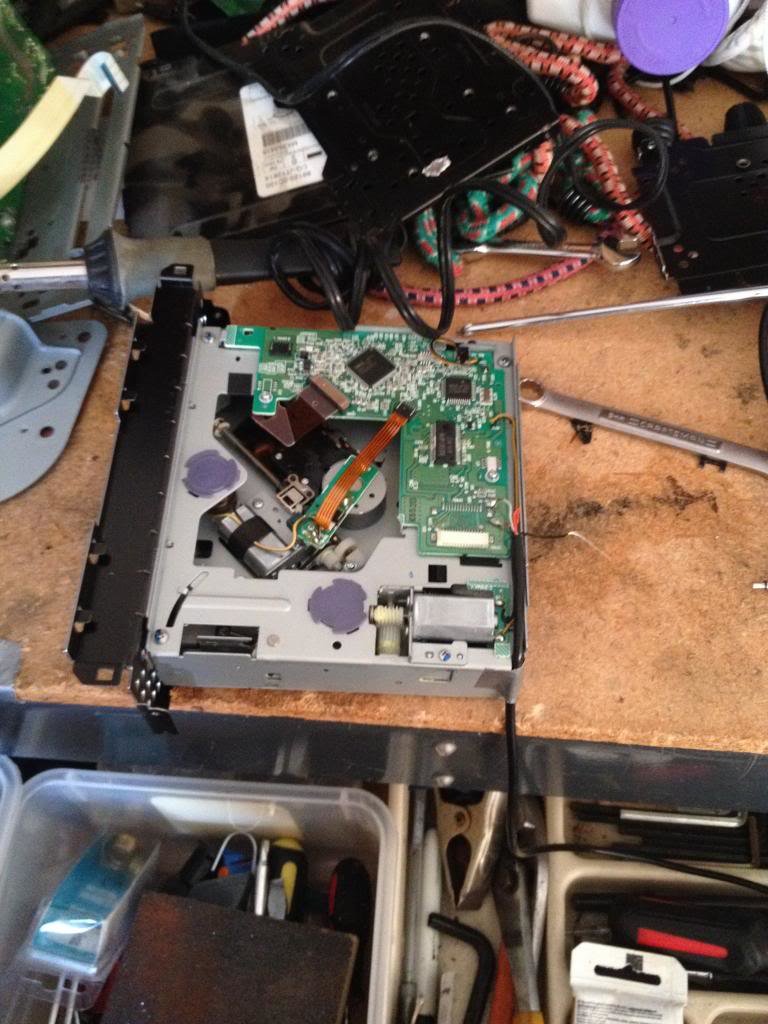

    [​IMG]


    A CD must be in the player. When nothing is plugged in, the cd player works as normal. When I plug any audio source into the wire it picks up that signal and overrides the CD player output, giving you an aux input.



    Their is no static or interference whatsoever except for when the phone is charging by the cig lighter. When not charging the sound quality is higher and cleaner then most CD's and is loud enough to damage the factory speakers.


    [​IMG]

  10. May 8, 2014 at 3:31 PM
    #350
    MTopp

    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    4,274
    Gender:
    Male
    First Name:
    Matt
    North NJ
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
  11. May 22, 2014 at 5:44 AM
    #351
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,921
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R

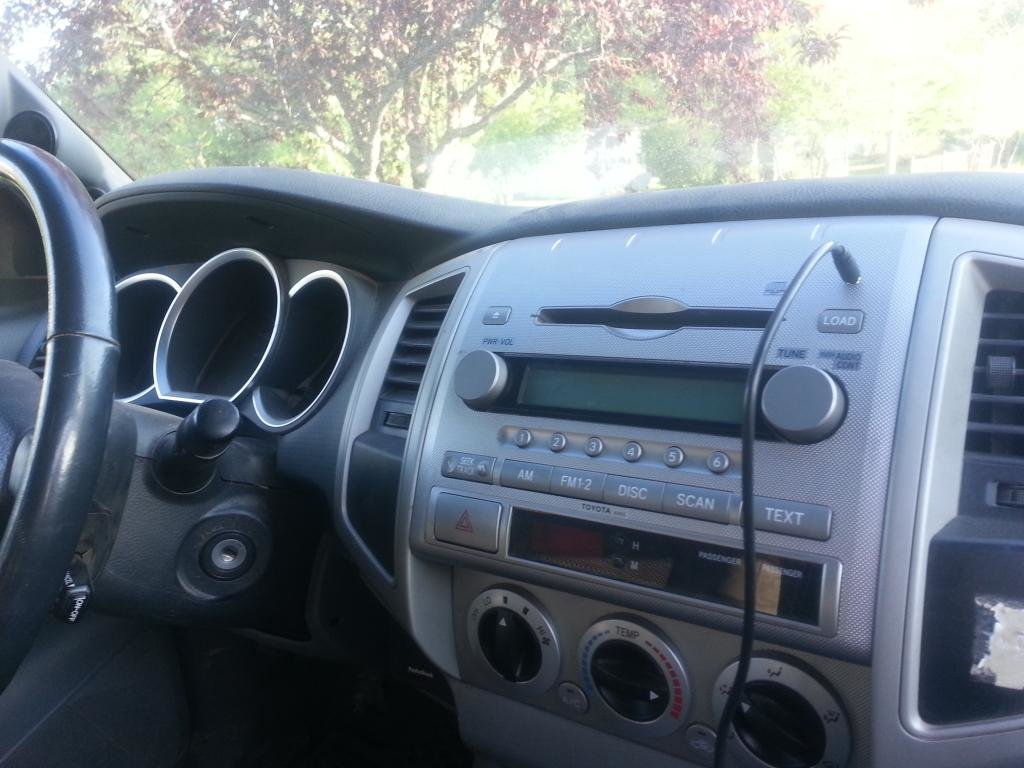

    And boom. I did this mod last night thanks to these pics. OMG these pics make the connection points look relatively big...these things are microscopic, lol. But after much screwing around, I got it done.

    I also left out the resistors, actually I used a small needle nose pliers to break them from the circuit board rather than unsolder them.

    Thanks to you guys for figuring this out!

    [​IMG]

  12. Jun 12, 2014 at 11:28 PM
    #352
    crumf20

    crumf20 Well-Known Member Vendor

    Joined:
    Aug 13, 2012
    Member:
    #84656
    Messages:
    212
    Gender:
    Male
    First Name:
    Wesley
    AZ
    Vehicle:
    2007 Toyota Tacoma Pre-Runner
    Custom Fishing Rod Holders, Mountain Bike Bed Rail Mounts, DIY Aux IPod Input, LED Bed Lights, LED Light Bar Hood Scoop, Plasti-Dip Lower Valence (Black), White LED Dash
    This radio is from a 4runner and i found what i think is the correct Left and Right channels but im not sur ewhich set it is!!?? ANy help please is it the pair that says "L", "R", or "L CH" and "R CH" Please Help!!


  13. Jun 13, 2014 at 10:01 AM
    #353
    Chas of MRT

    Chas of MRT Total Automotive Performance

    Joined:
    Aug 16, 2011
    Member:
    #61803
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Chas
    Las Vegas, NV
    Vehicle:
    06 Tundra V8
    Airaid Bilstein
    L CH & R CH

  14. Sep 13, 2014 at 5:05 PM
    #354
    fire03

    fire03 Member

    Joined:
    Sep 13, 2014
    Member:
    #138207
    Messages:
    5
    Gender:
    Male
    First Name:
    matthew
    az
    Vehicle:
    2005 toyota tacoma double cab prerunner
    do you know anyone who has used them? i'm not real savvy when it comes to electronics and this seems like a pretty good deal. thx!

  15. Nov 12, 2014 at 5:17 PM
    #355
    TacomaCowgirl

    TacomaCowgirl Well-Known Member

    Joined:
    Nov 10, 2014
    Member:
    #142053
    Messages:
    143
    Gender:
    Female
    First Name:
    Liv
    CA
    Vehicle:
    2007 Toyota Tacoma TRD
    just bought my 07 and wanted a quick fix to make it look less stock: Gotta love spray paint :D[​IMG]

  16. Nov 22, 2014 at 6:07 PM
    #356
    Atskune

    Atskune Active Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    27
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    07 Tacoma 4 Cyl Reg Cab
    Aux Cable...AFE with Second filter removed...Cluster color swap...color matched grill...oem style fogs. Toyota Rear Bilstien shocks
    Worked Like a Charm Thanks :D


  17. Jan 15, 2015 at 9:48 AM
    #357
    Krazie Sj

    Krazie Sj Resident Jackass

    Joined:
    Oct 9, 2008
    Member:
    #9849
    Messages:
    13,501
    Gender:
    Male
    First Name:
    Power Serge
    LV-426 (Acheron)
    Vehicle:
    07 TRD Off Road 4x4
    Borla Catback Exhaust, Airaid Short Ram Intake, 285x75R16 Mickey Thompson MTZs, 16" Konig Countersteer rims, ARB Bumper, All Pro LT w/Walker Evan Shocks front and back, All Pro expedition leaf pack, 10,000lb Superwinch, Intake Manifold Spacer, Bed Rack with ARB RTT, Rotopack and Hi Lift mounted, Husky Liner mats and an air freshener from 1995.

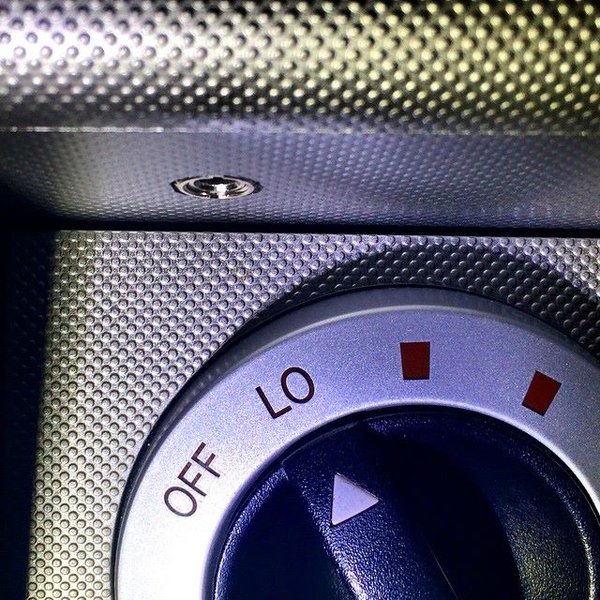

    [​IMG]

    Can't get much more stock looking than that. And I don't have the cable hanging out of the dash. Nicely hidden and doesn't get in the way of the coffee cups.

    Only issue I sometimes have is my left channel on the CD player will occasionally disappear when playing a CD. Works fine with the Aux and Radio though. Go figure.

  18. Feb 10, 2015 at 6:46 AM
    #358
    Tacomalover303

    Tacomalover303 Well-Known Member

    Joined:
    Feb 10, 2015
    Member:
    #148317
    Messages:
    49
    Gender:
    Male
    Colorado
    Vehicle:
    08 TRD Sport
    So I tried this mod last night on my 08 TRD Sport and when I soldered the L and R Channel the solder pads just popped off and now there is no place to solder. Does anyone have a pic of the other solder pads I can solder to? I am pretty good at soldering but for some reason the pads just fell off pretty easy. Thanks

  19. Feb 10, 2015 at 4:39 PM
    #359
    Chas of MRT

    Chas of MRT Total Automotive Performance

    Joined:
    Aug 16, 2011
    Member:
    #61803
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Chas
    Las Vegas, NV
    Vehicle:
    06 Tundra V8
    Airaid Bilstein
    Happened on mine. You can solder to the board if you can see where the connections were.

  20. Feb 10, 2015 at 6:50 PM
    #360
    Tacomalover303

    Tacomalover303 Well-Known Member

    Joined:
    Feb 10, 2015
    Member:
    #148317
    Messages:
    49
    Gender:
    Male
    Colorado
    Vehicle:
    08 TRD Sport

    How do you get the solder to connect to the board if there is no pad?
